Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102

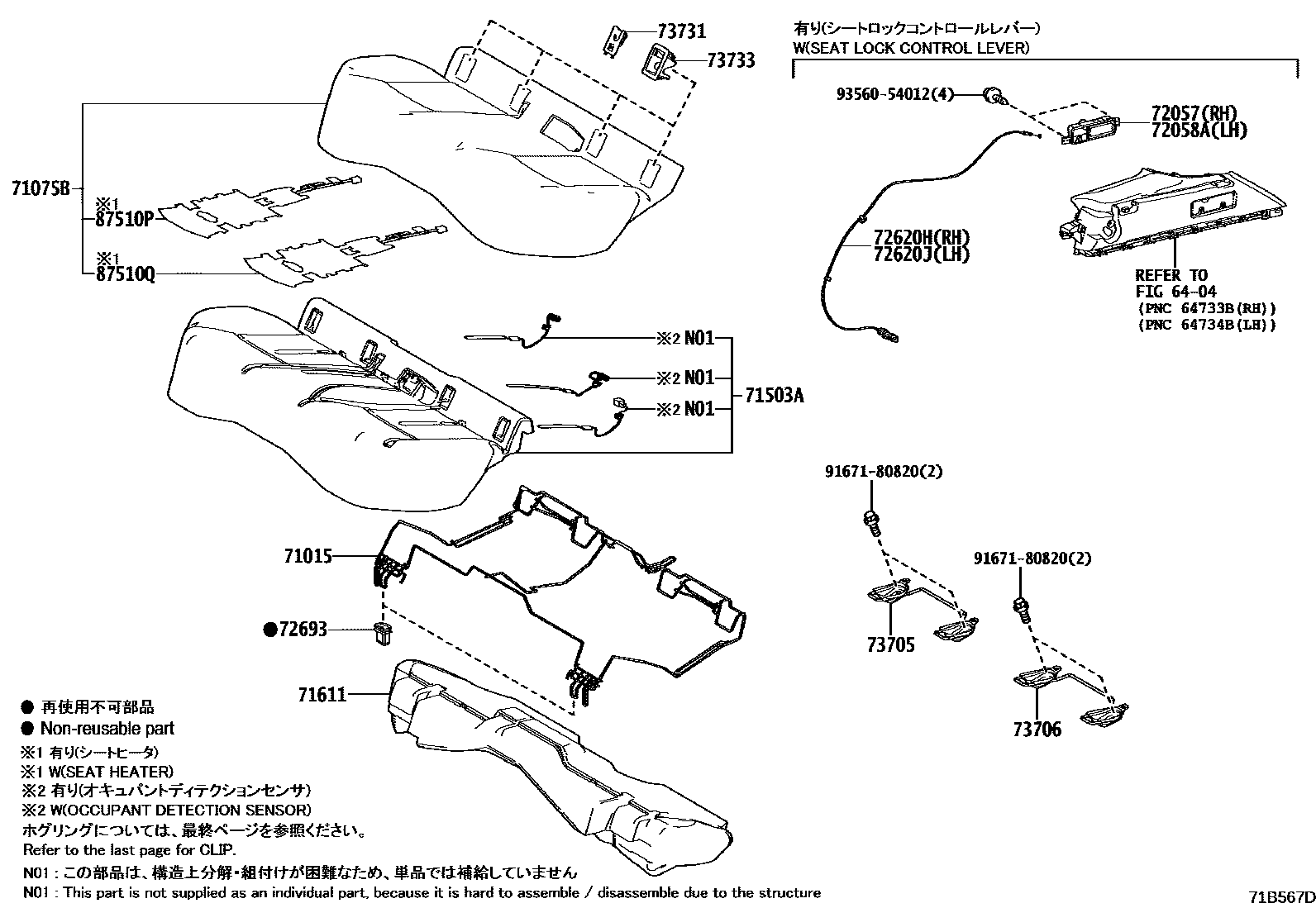

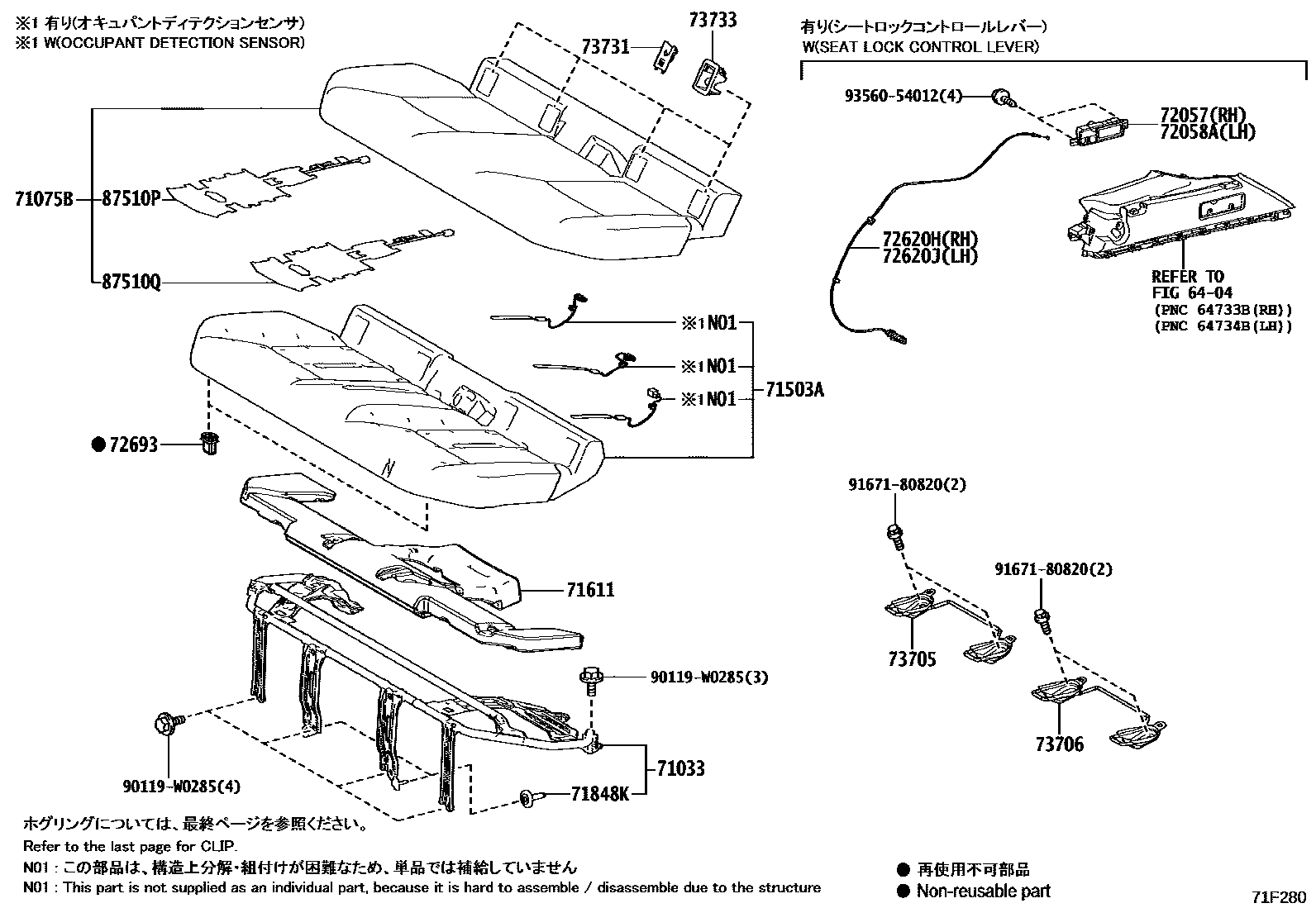

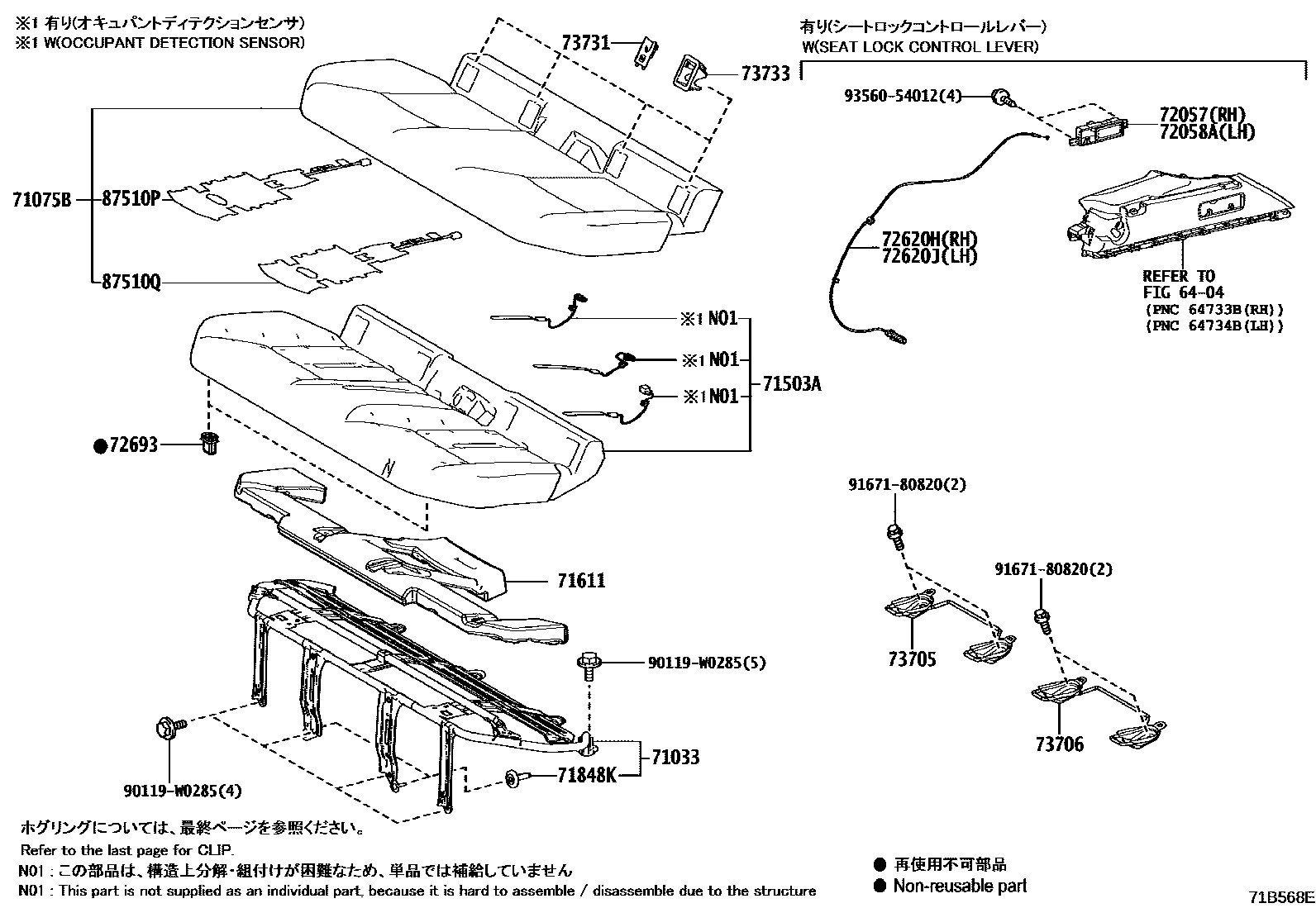

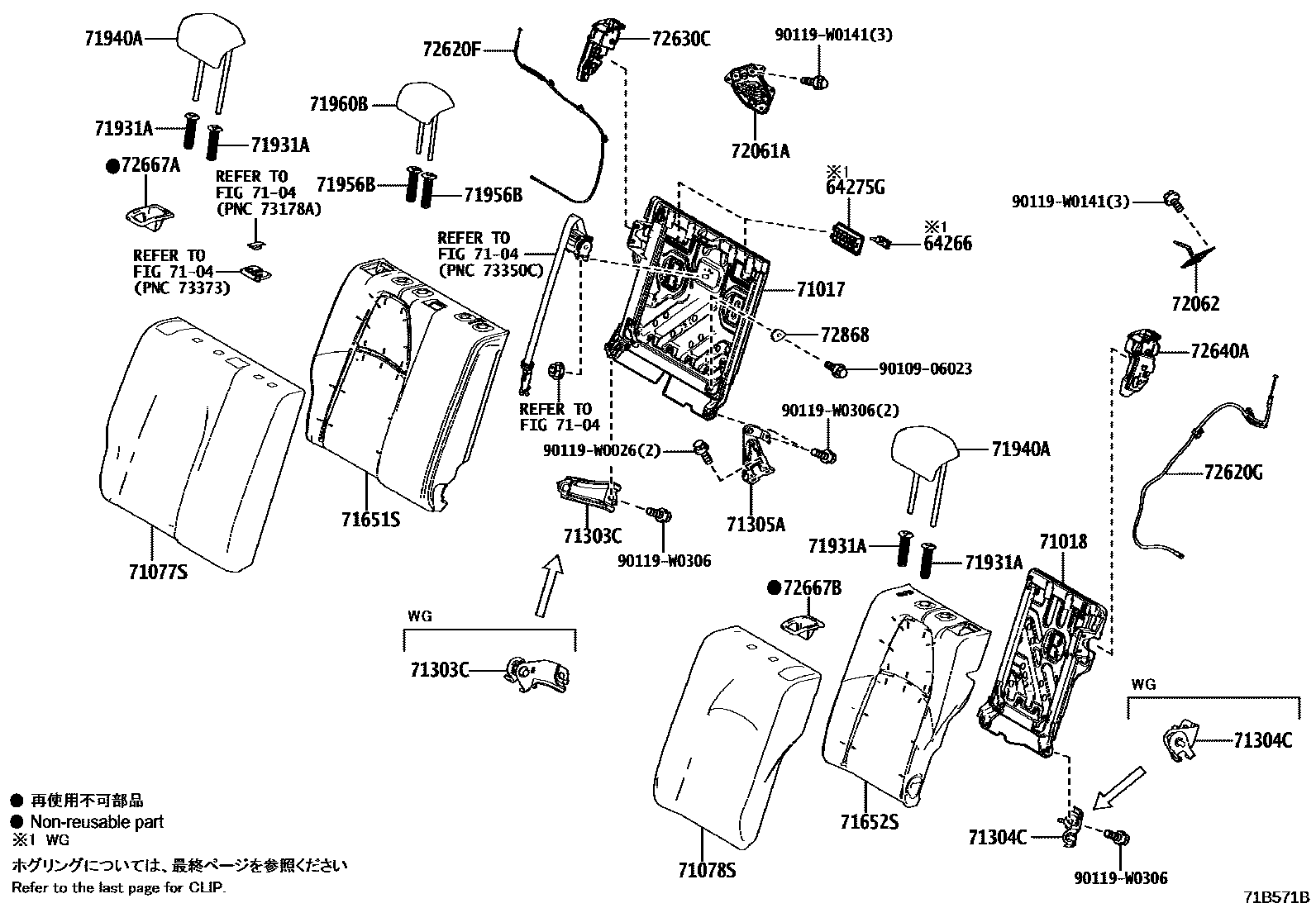

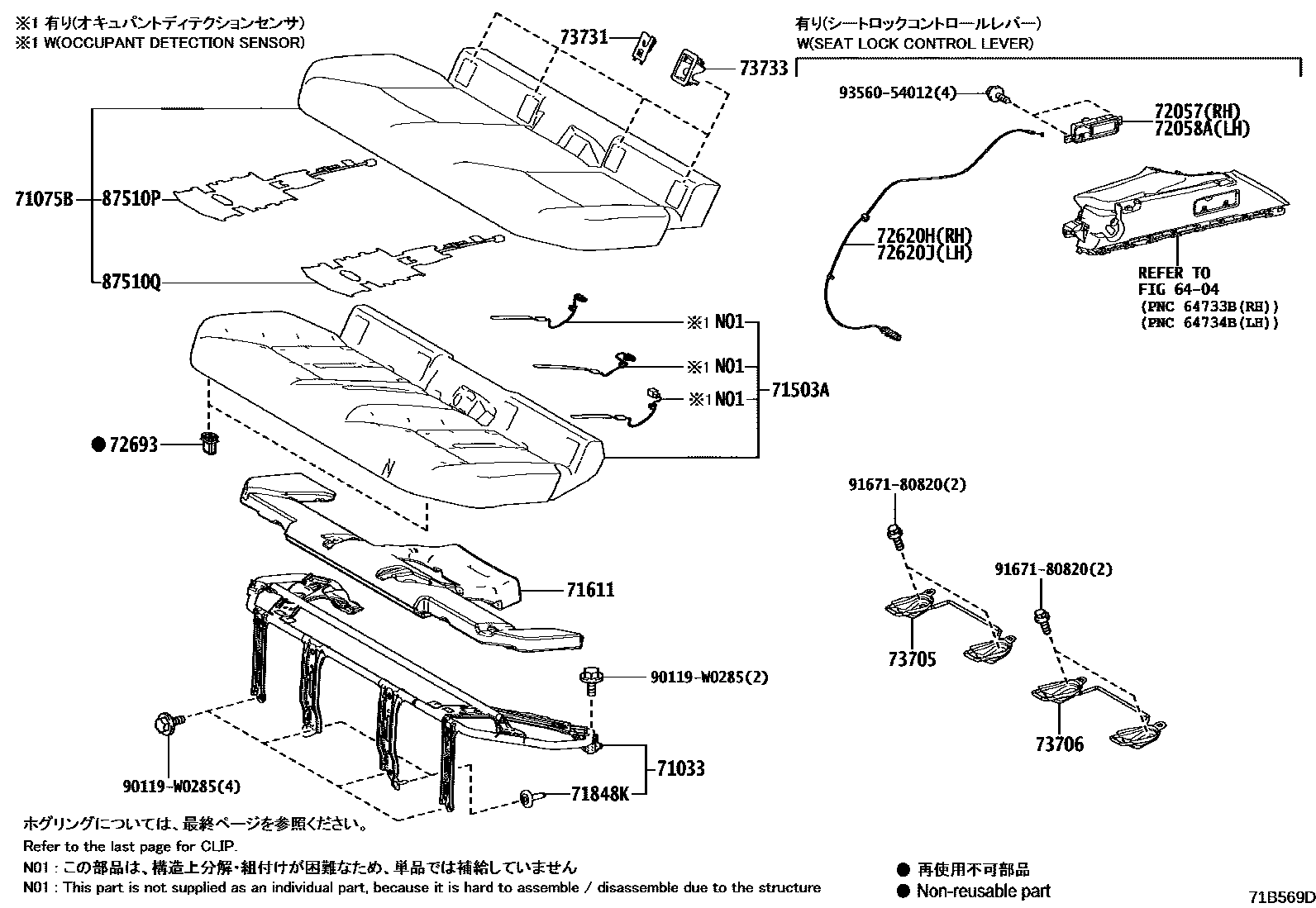

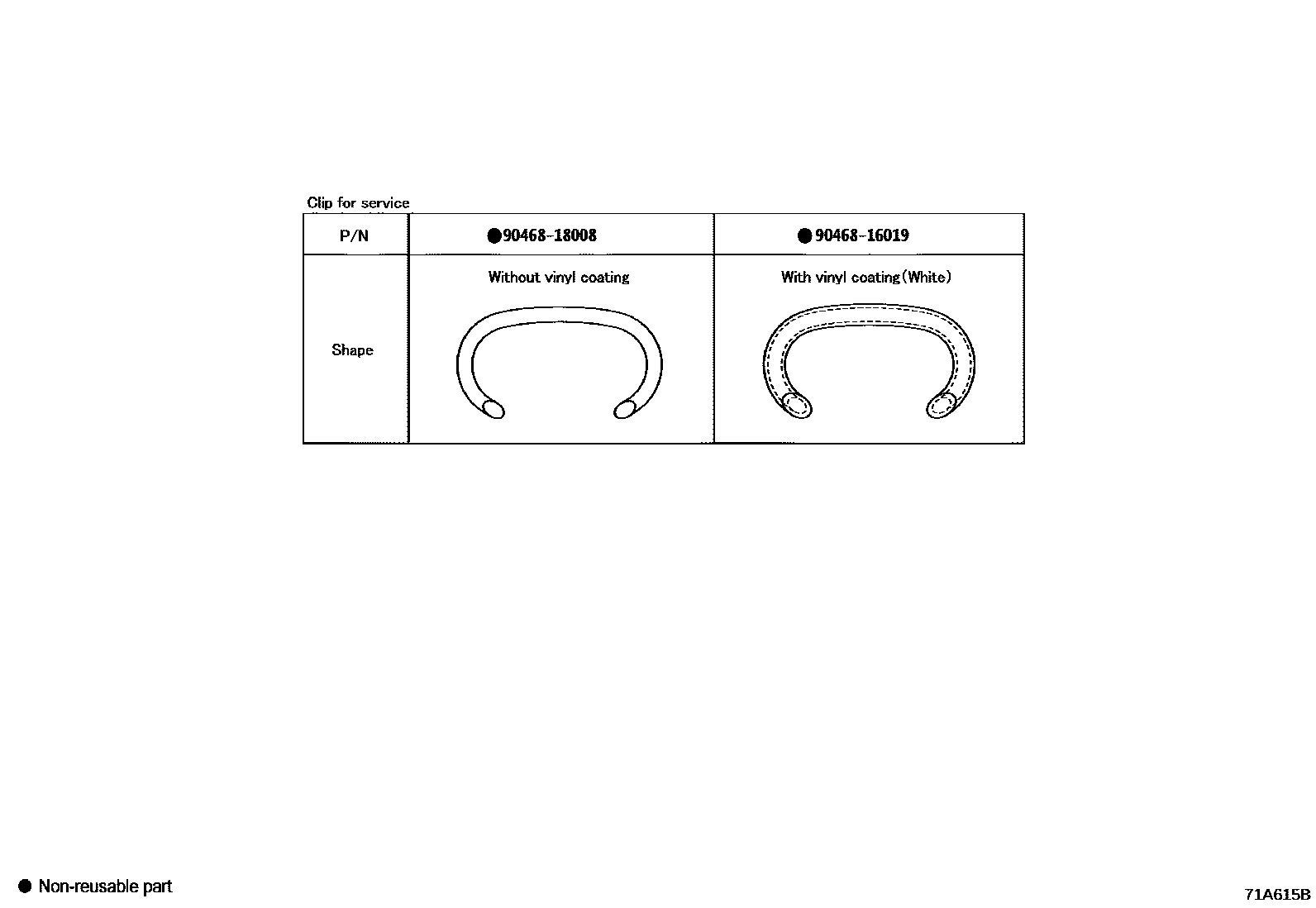

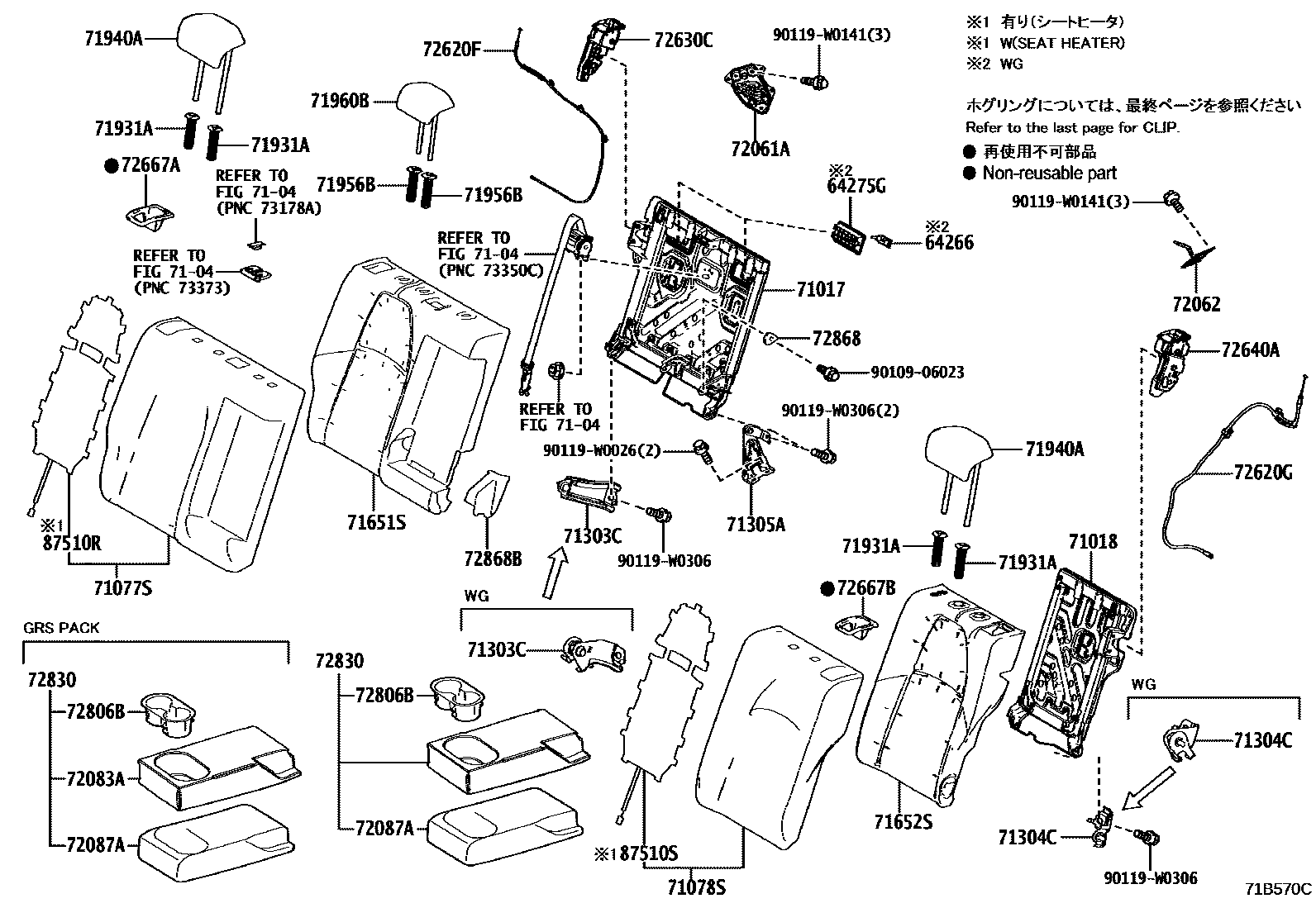

Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 7 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64266 | ANCRE, FILET DE SEPARATION DE L'HABITAT | 64266-02020 |
| 64275G | COUVERCLE SEPARATION HABITACLE | 64275-02020 |
| 71015 | Rear seat cushion frame sub-assembly | 71015-02410 |
| 71017 | Right rear seat back frame sub-assembly | 71017-02B40 · 71017-02B60 |
| 71018 | Rear left seat back frame sub-assembly | 71018-02590 |
| 71033 | Rear seat cushion and leg sub-assembly | 71033-02020 · 71033-02070 · 71033-02110 |
| 71075B | Rear seat cushion cover (for bench seat) | 71075-YY080 · 71075-YY090 · 71075-YY110 · 71075-YY120 · 71075-YY130 · 71075-YY140 · 71075-YY150 · 71075-YY160 · 71075-YY170 · 71075-YY180 · 71075-YY190 · 71075-YY200 · 71075-YY210 · 71075-YY220 · 71075-YY230 · 71075-YY240 · 71075-YY250 · 71075-YY260 · 71075-YY270 · 71075-YY280 · 71075-YY290 · 71075-YY300 · 71075-YY310 · 71075-YY320 · 71075-YY330 · 71075-YY340 · 71075-YY350 · 71075-YY360 · 71075-YY370 · 71075-YY380 · 71075-YY590 · 71075-YY591 · 71075-YY600 · 71075-YY601 |
| 71077S | Right rear seat back cover (for split seats) | 71077-YY080 · 71077-YY090 · 71077-YY100 · 71077-YY110 · 71077-YY120 · 71077-YY130 · 71077-YY140 · 71077-YY150 · 71077-YY160 · 71077-YY170 · 71077-YY180 · 71077-YY190 · 71077-YY200 · 71077-YY210 · 71077-YY220 · 71077-YY230 · 71077-YY370 · 71077-YY371 · 71077-YY380 · 71077-YY381 |
| 71078S | Rear left seat back cover (for split seats) | 71078-YY040 · 71078-YY050 · 71078-YY060 · 71078-YY070 · 71078-YY080 · 71078-YY090 · 71078-YY100 · 71078-YY110 · 71078-YY120 · 71078-YY130 · 71078-YY140 · 71078-YY150 · 71078-YY160 · 71078-YY170 · 71078-YY180 · 71078-YY190 · 71078-YY310 · 71078-YY320 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71303-02320 · 71303-02410 · 71303-F4010 |
| 71304C | Rear left seat back hinge sub-assembly | 71304-02060 · 71304-02150 · 71304-F4010 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-02330 |
| 71503A | SS-ENS. REMBOURRAGE, COUSSIN SIEGE ARRIERE | 71503-02490 · 71503-02620 · 71503-02A20 · 71503-02A30 · 71503-02A80 |
| 71611 | Rear seat cushion cushion | 71611-02130 · 71611-02220 · 71611-02230 · 71611-02240 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-02750 · 71651-02A30 · 71651-02A40 · 71651-02A50 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-02690 · 71652-02770 |
| 71848K | BOUCHON, COUVERCLE DU REGLAGE DU SIEGE | 71848-02070 · 71848-02090 |
| 71940A | Rear seat headrest assembly | 71940-02Q50 · 71940-YP130 · 71940-YP160 · 71940-YY080 · 71940-YY090 · 71940-YY100 · 71940-YY150 · 71940-YY250 |
| 71960B | Rear center seat headrest assembly | 71960-02J40 · 71960-YP060 · 71960-YP090 · 71960-YY080 · 71960-YY090 · 71960-YY100 · 71960-YY110 · 71960-YY220 |
| 72061A | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MD | 72061-02031 |
| 72062 | SOUS-ENS. BASE, VERROUILLAGE ARRIERE DE SIEGE ARRIERE, MG | 72062-02061 · 72062-F4011 |
| 72087A | SOUS-ENS. CACHE, ACCOUDOIR CENTRAL SIEGE ARR | 72087-YY010 · 72087-YY020 · 72087-YY030 · 72087-YY050 · 72087-YY090 · 72087-YY091 |
| 72620F | ENS. CABLE, VERR SIEGE ARR, MD | 72620-02050 |
| 72620G | ENS. CABLE, VERR SIEGE ARR, MG | 72620-02060 |
| 72620H | ENS. CABLE, RABATTEMENT A DISTANCE SIEGE ARR, MD | 72620-02070 |
| 72620J | ENS. CABLE, RABATTEMENT A DISTANCE SIEGE ARR, MG | 72620-02070 |
| 72630C | Rear right seat back lock assembly | 72630-02170 |
| 72640A | Rear left seat back lock assembly | 72640-02180 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72830 | Rear seat center armrest assembly | 72830-YP010 |
| 72868 | Right center armrest hinge cover | 72868-02250 |
| 73705 | Child restraint seat anchor right side bracket sub-assembly | 73705-02281 |
| 73706 | Child restraint seat anchor left bracket sub-assembly | 73706-02121 |
| 87510P | Seat heater assembly | 87510-02350 |
| 87510Q | Seat heater assembly | 87510-02350 |
| 87510R | Seat heater assembly | 87530-02090 |
| 87510S | Seat heater assembly | 87530-02090 |
