Toyota COROLLA 背门板和背门玻璃 — Figure 6708

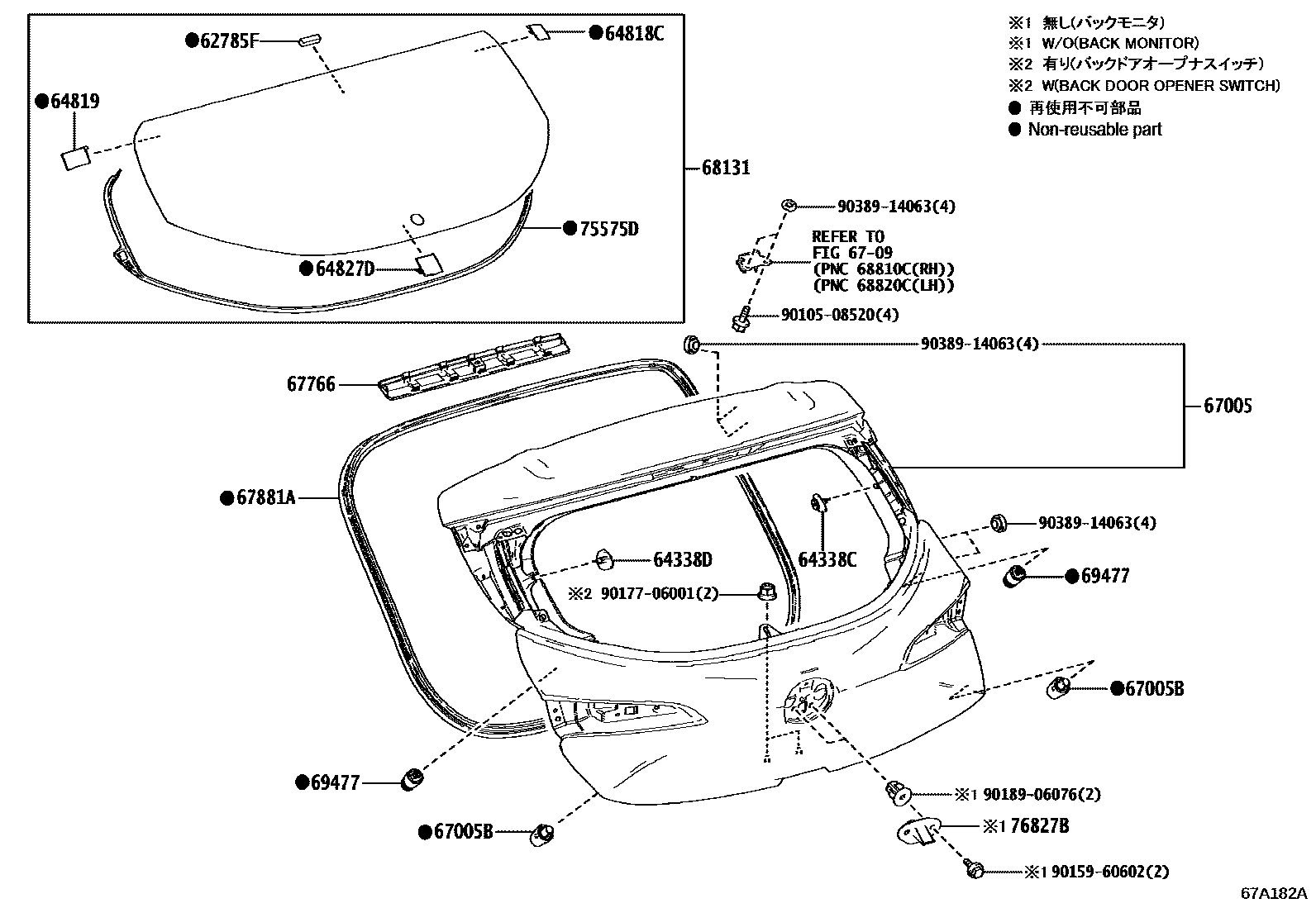

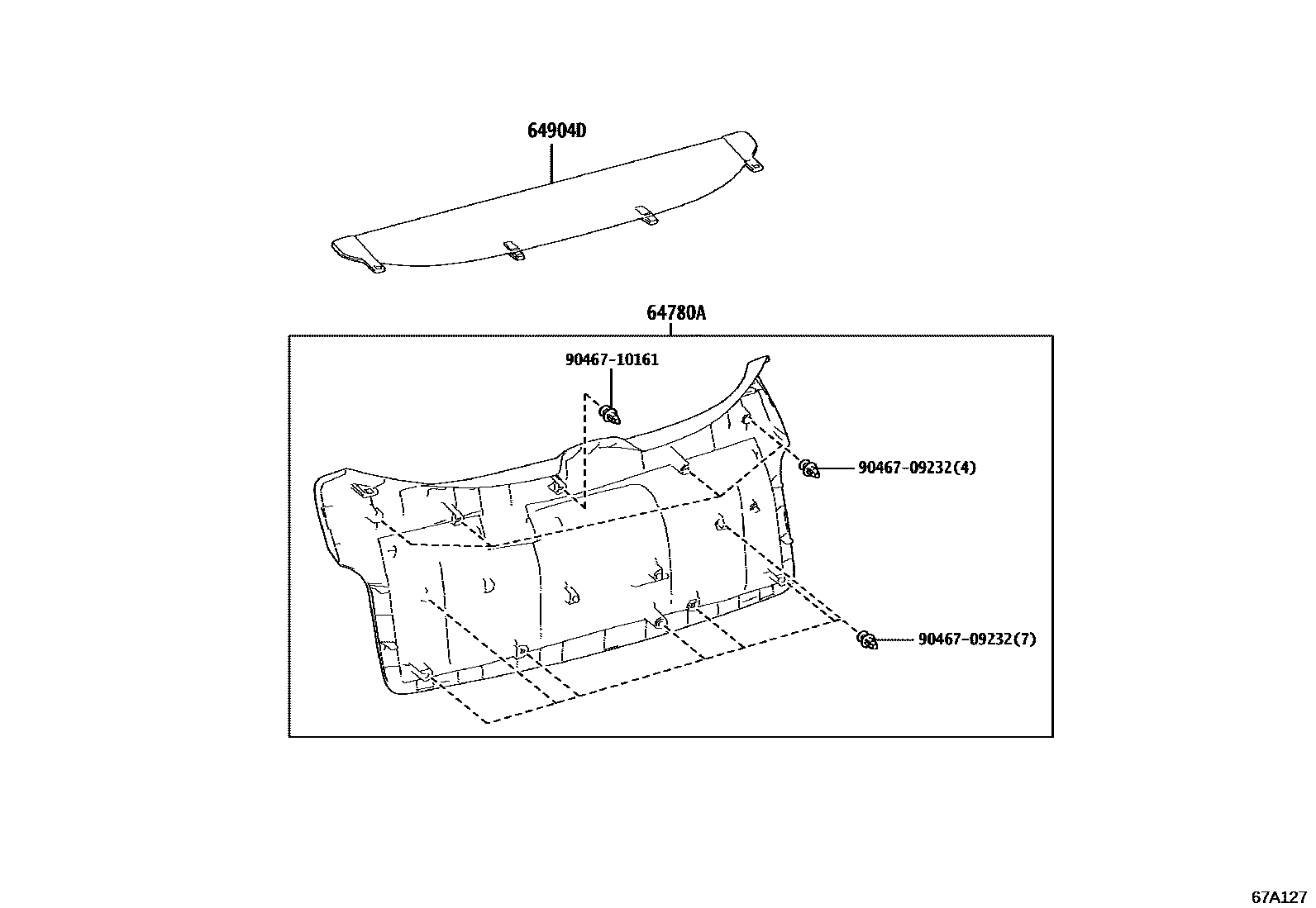

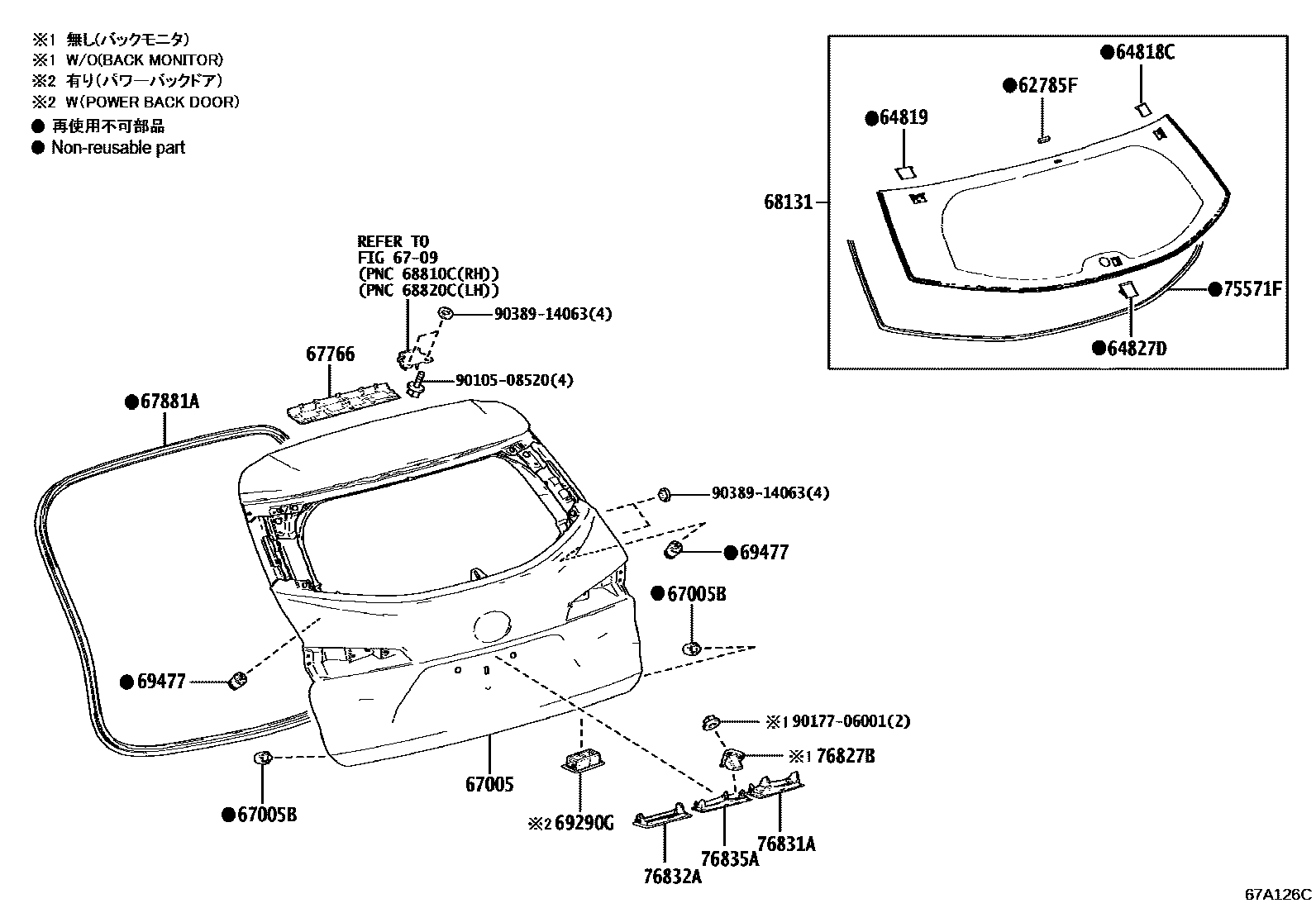

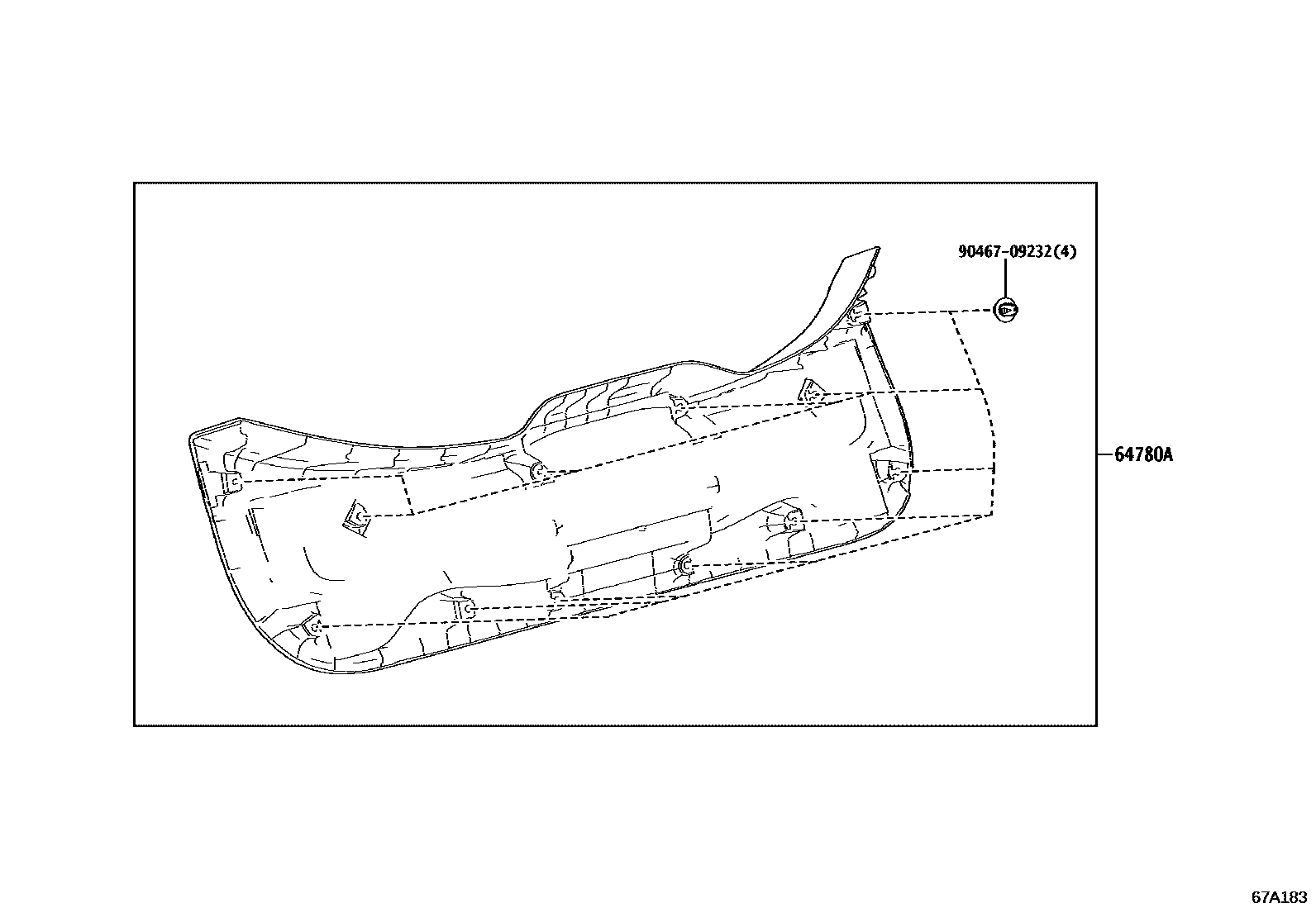

Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-60030 |
| 64818C | No. 1 back window glass spacer | 64818-02080 · 64818-02090 |
| 64819 | No. 2 back window glass spacer | 64819-02070 · 64819-02080 |
| 64827D | Back window glass clip | 64827-02030 · 64827-02040 |
| 64904D | SOUS-ENS. CACHE, BAGAGES, NO.2 | 64904-02010 |
| 67005 | Rear door panel sub-assembly | 67005-02610 · 67005-02780 · 67005-02790 · 67005-02791 |
| 67005B | Cushion pad (for back door panel) | 90541-09147 |
| 67881A | Back door seal | 67881-02130 · 67881-02140 |
| 68131 | back door glass | 68105-02330 · 68105-02331 · 68105-02440 · 68105-02450 · 68105-02460 · 68105-02470 · 68105-02530 · 68105-02531 · 68105-02571 · 68105-02581 · 68105-02611 · 68105-02680 · 68105-02681 · 68105-02690 · 68105-02691 · 68105-02700 · 68105-02701 · 68105-02710 · 68105-02711 · 68105-02720 · 68105-02721 · 68105-02730 · 68105-02731 · 68105-02740 · 68105-02741 |
| 69477 | Back door upper stop buffer pad | 69477-02010 |
| 75571F | Back door and window protection strip | 75571-02350 |
| 75575D | Protective strip under rear window | 75575-02090 |
| 76827B | RETENUE NO.2 DOUBLURE HAYON | 76827-02060 · 76827-02070 |
| 76831A | Decorative panel cover on the right side of the rear door | 76831-02020 |
| 76832A | Rear door left decorative panel cover | 76832-02010 |
| 76835A | No. 1 rear door decorative panel protective cover | 76835-02020 |
