Toyota COROLLA 后门锁和后门把手 — Figure 6706

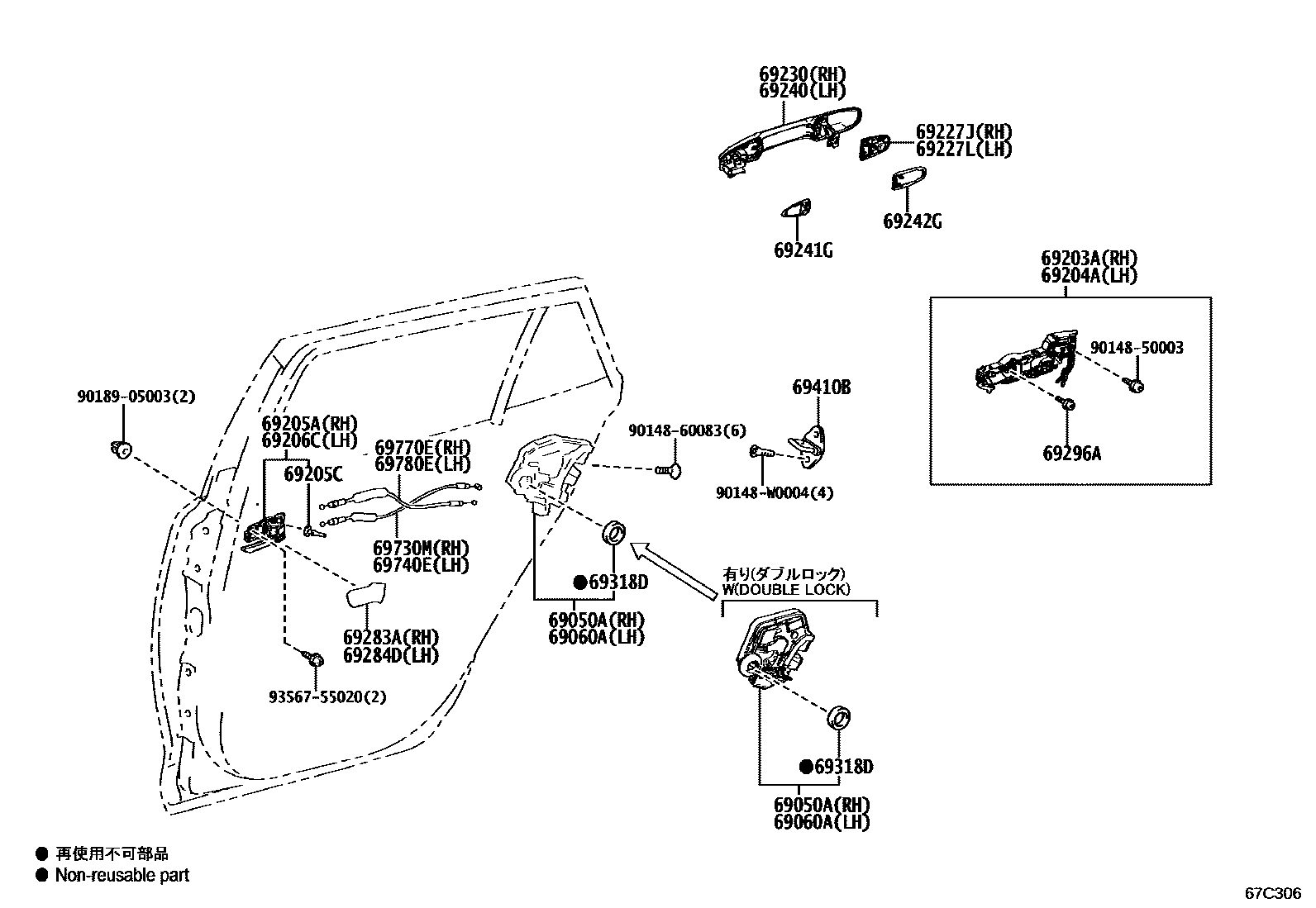

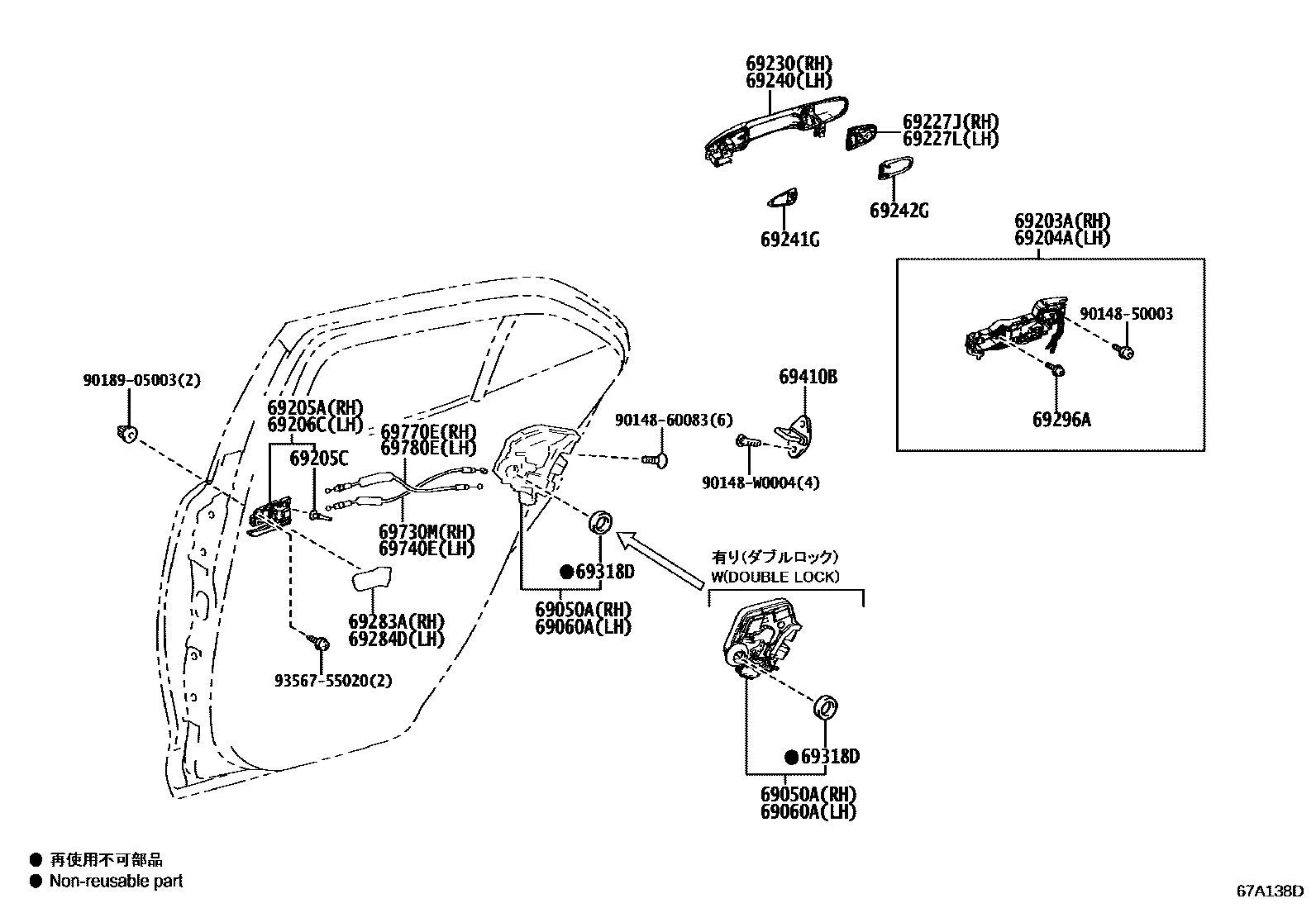

Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69050A | Right rear door lock assembly with motor | 69050-02580 · 69050-02600 · 69050-02610 |
| 69060A | Left rear door lock assembly with motor | 69060-02580 · 69060-02600 · 69060-02610 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02400 · 69203-02410 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02400 · 69204-02410 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227J | Right rear door outer handle cover | 69227-02390 |
| 69227L | Left rear door outer handle cover | 69227-02390 |
| 69230 | Right rear door outer handle assembly | 69211-02934 |
| 69240 | Left rear door outer handle assembly | 69211-02934 |
| 69241G | Rear door front exterior handle pad | 69241-02250 |
| 69242G | Rear door rear outer handle pad | 69242-02240 |
| 69296A | Car door inner handle screws | 69296-30010 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0H020 |
| 69730M | CABLE,COMM VERR A DISTANCE PORTE ARR,MD(LEVIER OUVERTURE) | 69730-02330 · 69730-02430 · 69730-02470 |
| 69740E | CABLE,COMM VERR A DISTANCE PORTE ARR,MG(LEVIER OUVERTURE) | 69730-02330 · 69730-02430 · 69730-02470 |
| 69770E | CABLE, VERR INTERNE PORTE ARR, MD(POUR BOUTON VERR/DEVERR) | 69770-02430 · 69770-02520 · 69770-02530 · 69770-02570 |
| 69780E | CABLE, VERR INTERNE PORTE ARR, MG(POUR BOUTON VERR/DEVERR) | 69770-02430 · 69770-02520 · 69770-02530 · 69770-02570 |
