Toyota COROLLA 后门板和后门玻璃 — Figure 6705

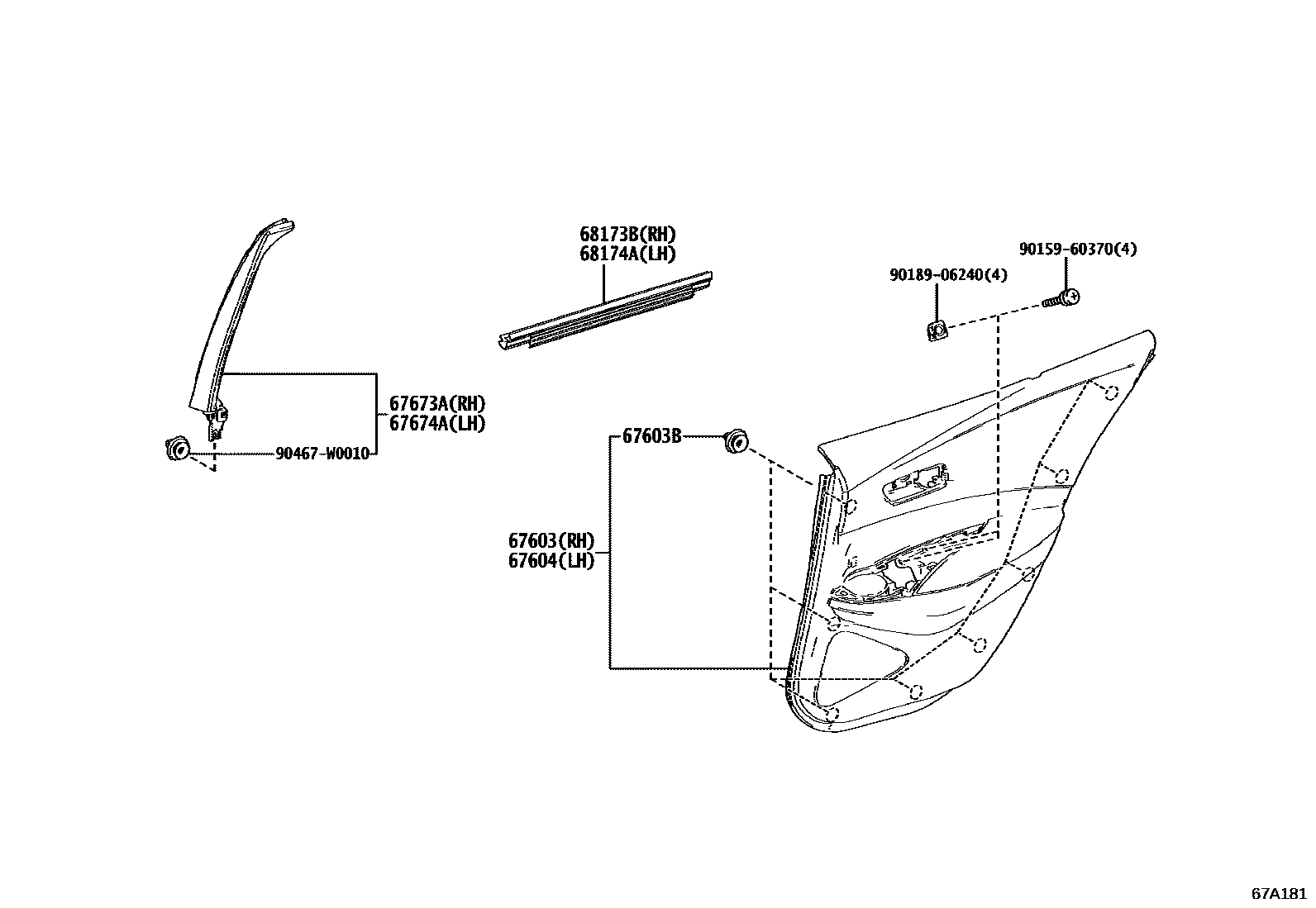

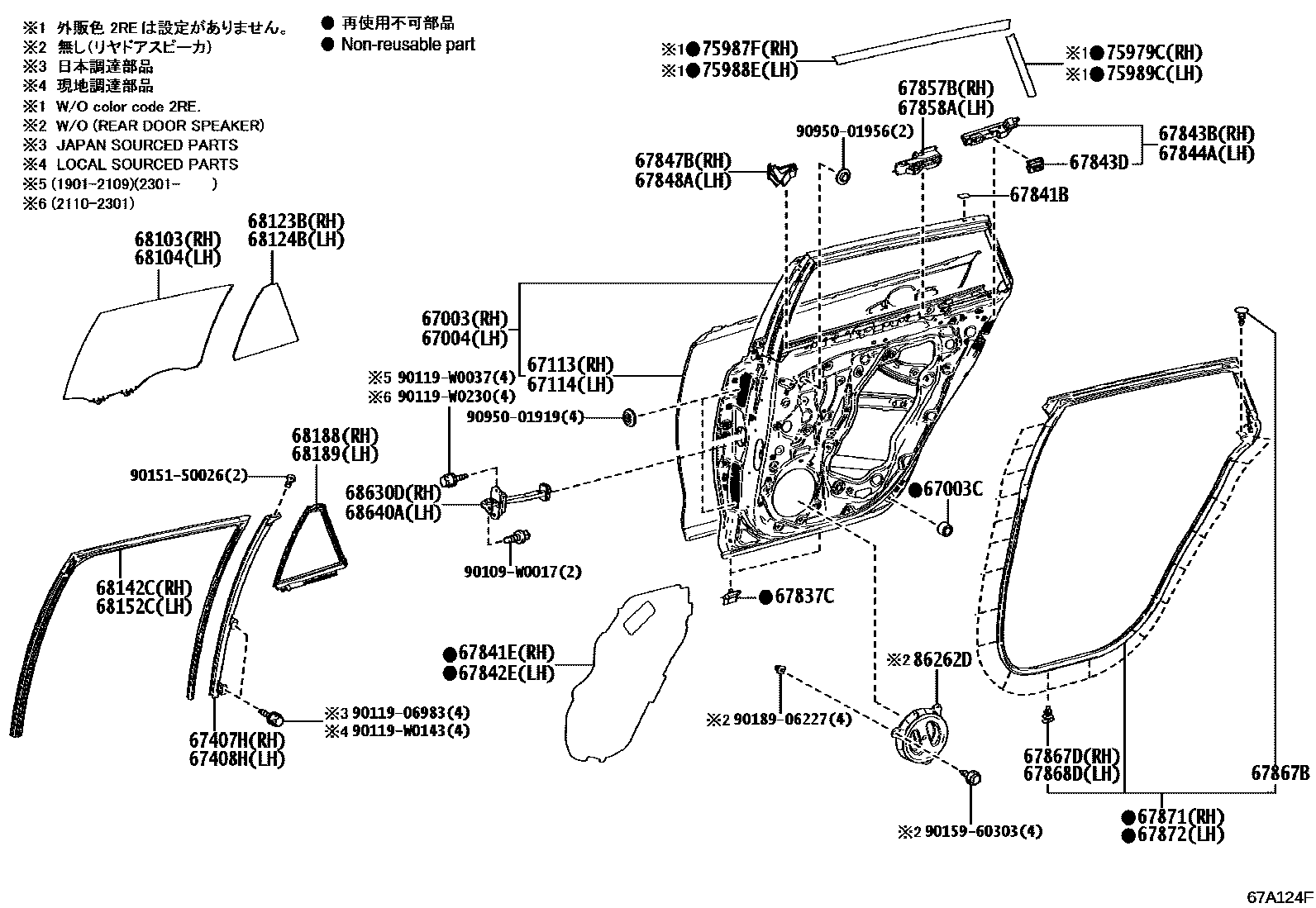

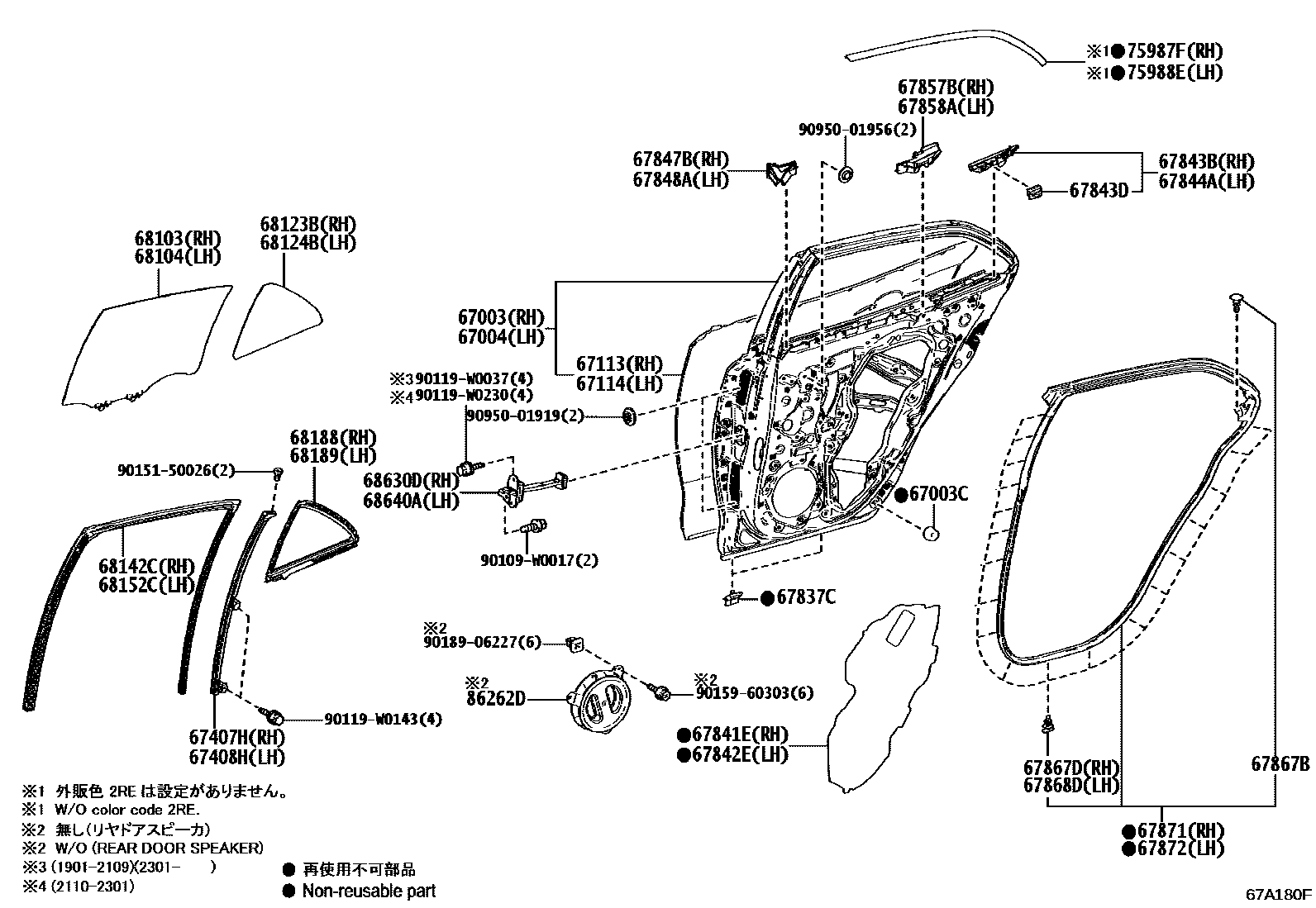

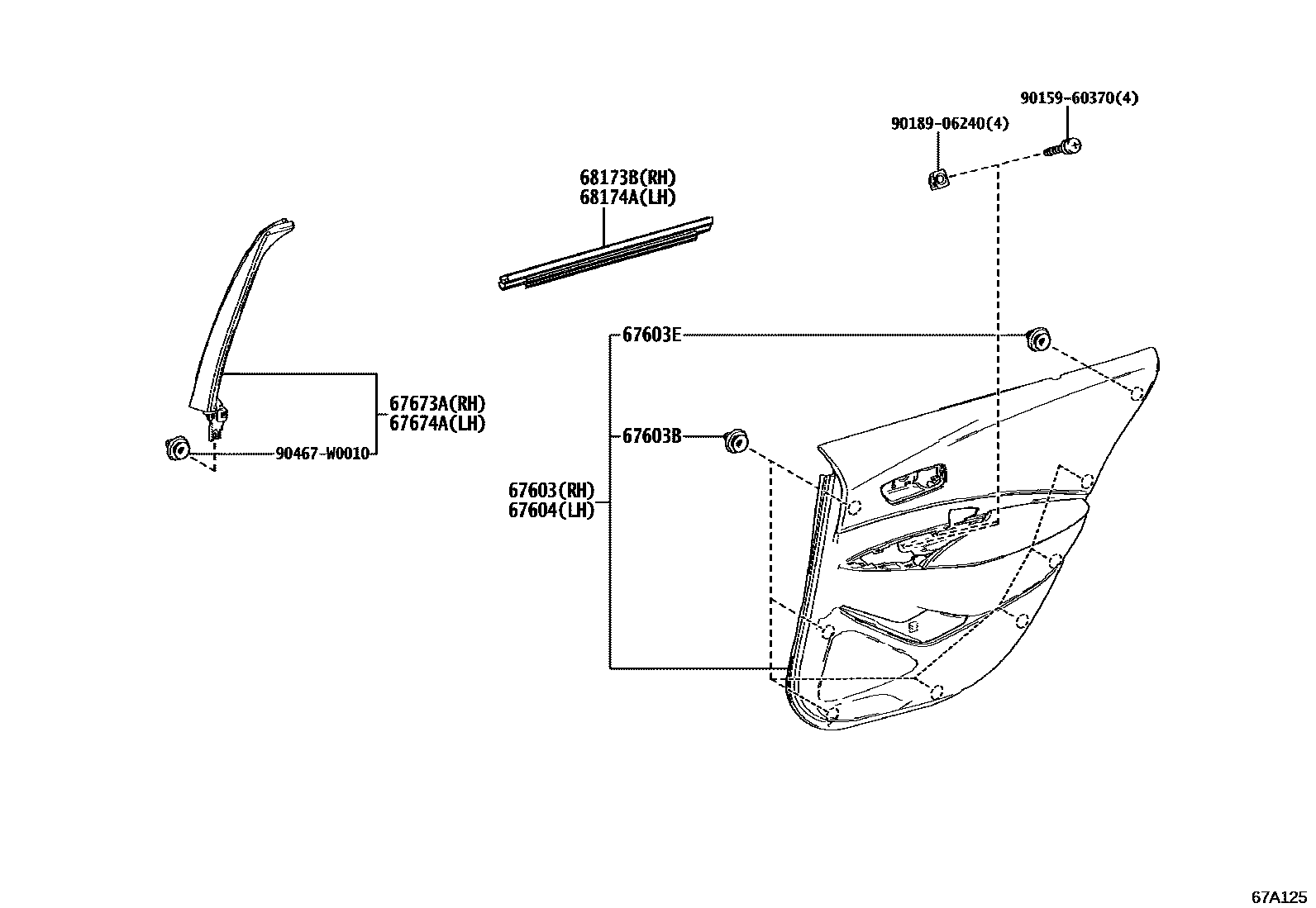

Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 4 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-02540 · 67003-02560 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-02540 · 67004-02560 |
| 67113 | Right rear door outer panel | 67113-02290 · 67113-02310 |
| 67114 | Left rear door outer panel | 67114-02290 · 67114-02310 |
| 67407H | Right sliding door window divider sub-assembly | 67407-12400 · 67407-12410 |
| 67408H | Left rear sliding door window divider sub-assembly | 67408-12400 · 67408-12410 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 · 90467-W0016 |
| 67603E | Catch (for rear door trim panel) | 90467-09236 |
| 67673A | Right rear door frame decorative strip | 67673-02020 |
| 67674A | Left rear door frame decorative strip | 67674-02020 |
| 67837C | Rear door dust seal retainer | 67837-47060 |
| 67841B | Rear door access hole cover | 67841-02540 |
| 67841E | Right rear door access hole cover | 67841-02420 · 67841-02530 |
| 67842E | Left rear door access hole cover | 67842-02390 · 67842-02490 |
| 67843B | Right rear door No. 2 access hole cover | 67843-02020 · 67843-02100 |
| 67843D | Rear door access hole clip | 67923-33100 |
| 67844A | Left rear door No. 2 access hole cover | 67844-02020 · 67844-02100 |
| 67847B | No. 1 right rear door ventilator seal | 67847-02100 |
| 67848A | No. 1 left rear door ventilator seal | 67848-02040 |
| 67857B | Right rear door panel protector | 67857-02110 · 67857-02120 |
| 67858A | Left rear door panel protector | 67858-02110 · 67858-02120 |
| 67867B | Door seal strip clip (for rear door) | 67868-30030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-02320 · 67871-02330 |
| 67872 | Left rear door sealing strip | 67872-02320 · 67872-02330 |
| 68103 | Right rear door glass sub-assembly | 68103-02550 · 68103-02551 · 68103-02560 · 68103-02561 · 68103-02570 · 68103-02571 · 68103-02600 · 68103-02601 |
| 68104 | Left rear door glass sub-assembly | 68104-02520 · 68104-02521 · 68104-02560 · 68104-02561 · 68104-02570 · 68104-02571 · 68104-02600 · 68104-02601 |
| 68123B | Right rear door corner window glass | 68123-02470 · 68123-02471 · 68123-02480 · 68123-02481 · 68123-02490 · 68123-02491 · 68123-02520 · 68123-02521 |
| 68124B | Left rear door corner window glass | 68124-02470 · 68124-02471 · 68124-02480 · 68124-02481 · 68124-02490 · 68124-02491 · 68124-02520 · 68124-02521 |
| 68142C | Right rear door glass lift slot | 68142-02350 · 68142-02360 |
| 68152C | Left rear door glass lift slot | 68152-02350 · 68152-02360 |
| 68173B | Right rear door glass inner sealing strip | 68173-02390 · 68173-02410 |
| 68174A | Left rear door glass inner sealing strip | 68174-02330 · 68174-02350 |
| 68188 | Right rear door corner window seal | 68188-02240 · 68188-02260 |
| 68189 | Left rear door corner window seal | 68189-02240 · 68189-02260 |
| 68630D | Right rear door opening limiter assembly | 68630-02340 · 68630-02440 |
| 68640A | Left rear door opening limiter assembly | 68630-02340 · 68630-02440 |
| 75979C | Right rear door outer upper trim strip | 75979-02040 |
| 75987F | Right rear door outer trim | 75987-02020 · 75987-02040 |
| 75988E | Left rear door outer trim | 75988-02020 · 75988-02040 |
| 75989C | Left rear door outer upper trim strip | 75989-02040 |
| 86262D | Rear door speaker cover | 86262-02030 |
