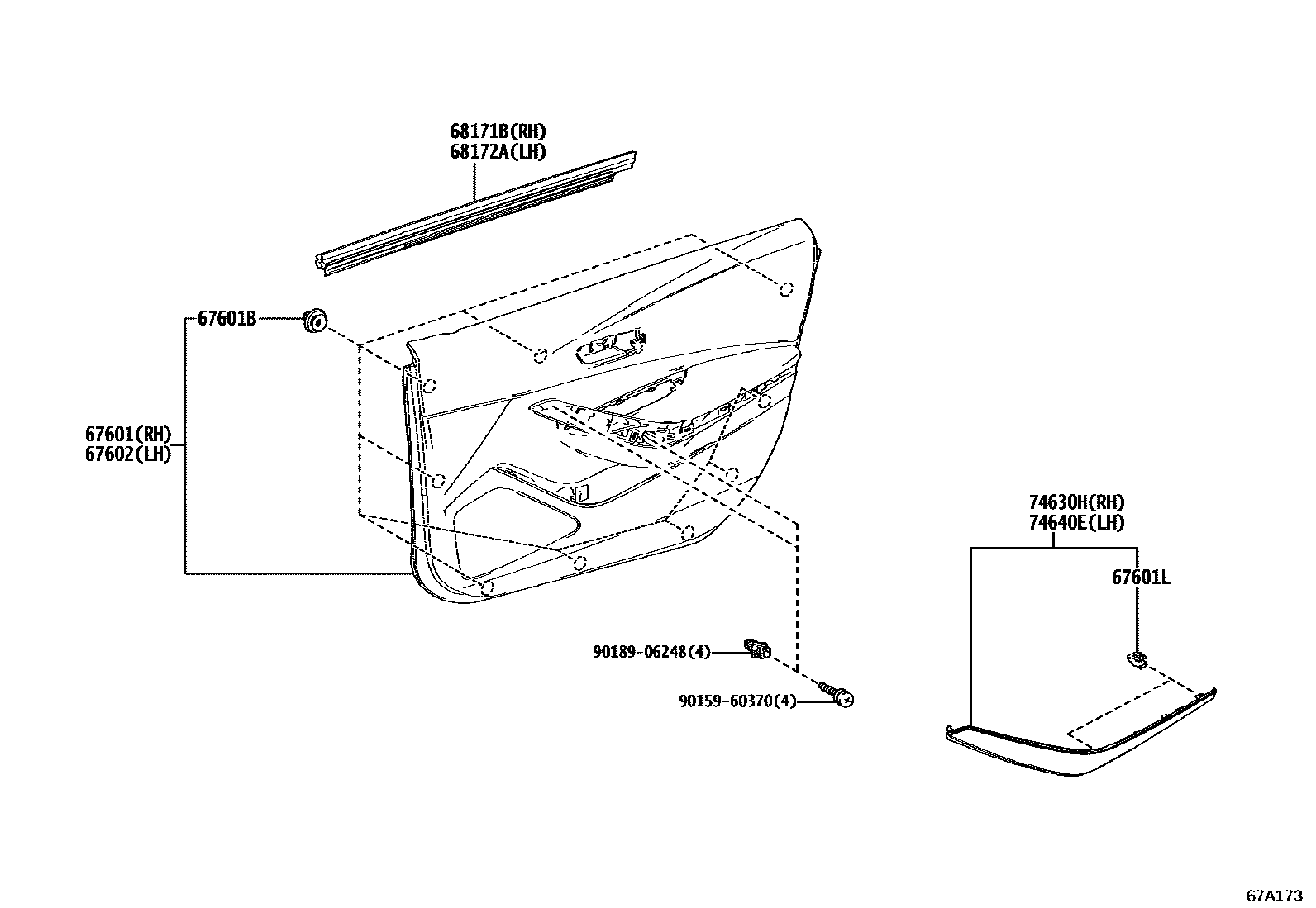

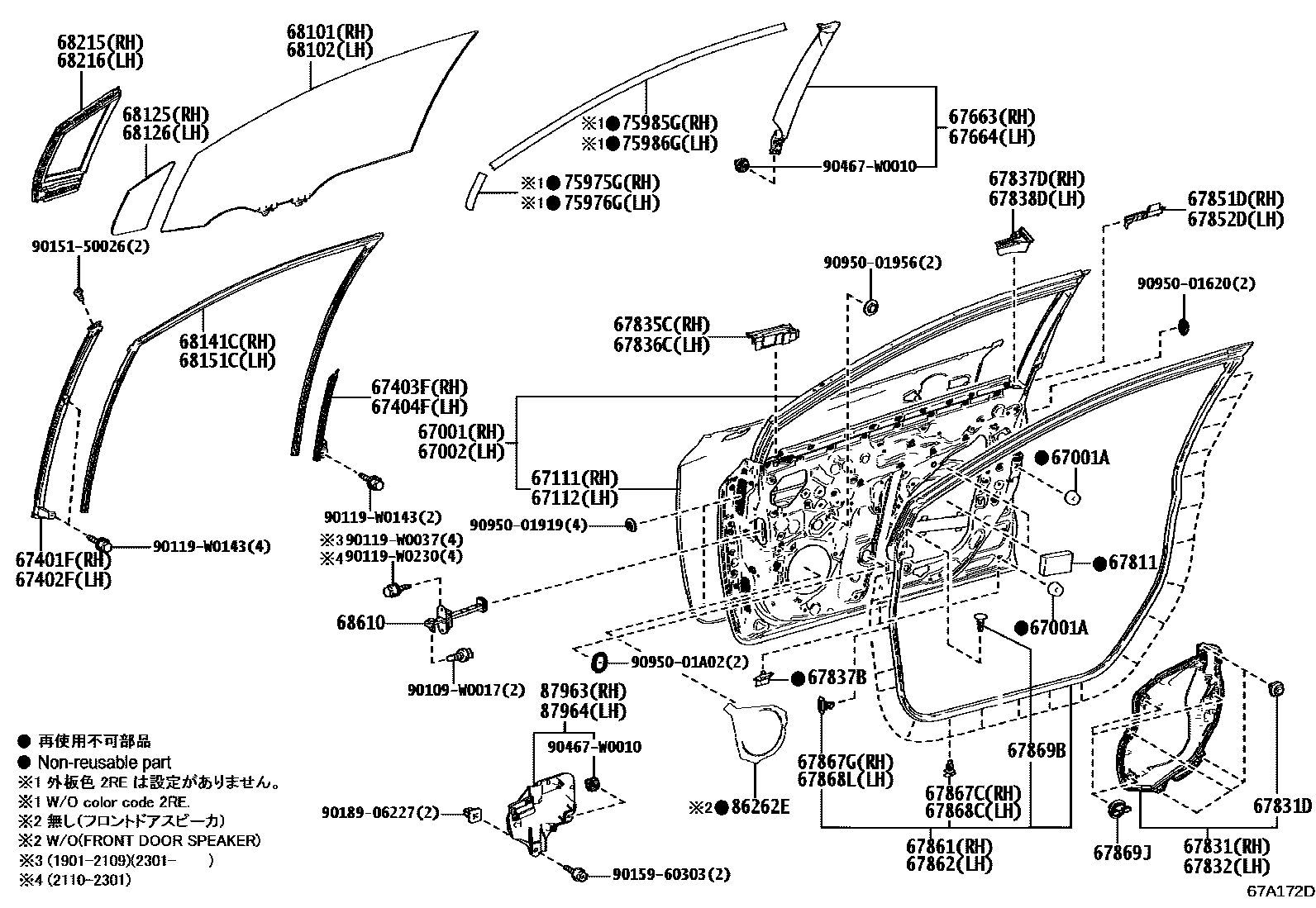

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-02550 |
| 67001A | Front door panel cushion | 90541-09124 |
| 67002 | Left front door panel sub-assembly | 67002-02540 |
| 67111 | Outer right front door panel | 67111-02320 |
| 67112 | Outer left front door panel | 67112-02320 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12390 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12410 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-02250 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-02250 |
| 67601B | Catch (for front door trim panel) | 90467-09206 · 90467-W0016 |
| 67601L | Catch (for front door trim panel) | 90467-05172 |
| 67663 | Decorative strip on right door frame | 67663-02030 |
| 67664 | Decorative strip on left door frame | 67664-02030 |
| 67811 | Front door silencer pad | 67811-12180 |
| 67831 | Right front door access hole cover | 67831-02450 |
| 67831D | Catch (for front door access hole cover) | 90467-W0010 |
| 67832 | Left front door access hole cover | 67832-02450 |
| 67835C | Right front door No. 3 inspection hole cover | 67835-02020 |
| 67836C | Left front door No. 3 access hole cover | 67836-02080 |
| 67837B | Front door dust seal retainer | 67837-47060 |
| 67837D | Right front door ventilator seal | 67837-02080 |
| 67838D | Left front door ventilator seal | 67838-02060 |
| 67851D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MD | 67851-02020 |
| 67852D | JOINT, EXTERIEUR ARRIERE PORTE AVANT, MG | 67852-02020 |
| 67861 | Right front door seal | 67861-02340 |
| 67862 | Left front door seal | 67862-02340 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67867G | Right door sealing strip fixing | 67867-52030 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67868L | Left door seal strip fixing | 67867-52030 |
| 67869B | Front door seal strip clip | 67868-30030 |
| 67869J | Front door seal strip clip | 67869-F4010 |
| 68101 | Right front door glass sub-assembly | 68101-02560 · 68101-02561 · 68101-02570 · 68101-02571 |
| 68102 | Left front door glass sub-assembly | 68102-02560 · 68102-02561 · 68102-02570 · 68102-02571 |
| 68125 | Right front door fixed window glass | 68125-02020 · 68125-02021 |
| 68126 | Left front door fixed window glass | 68126-02020 · 68126-02021 |
| 68141C | Right front door glass lift channel | 68141-02390 |
| 68151C | Left front door glass lift channel | 68151-02380 |
| 68171B | Right front door glass inner sealing strip | 68171-02370 |
| 68172A | Left front door glass inner sealing strip | 68172-02350 |
| 68215 | Right front door fixed window seal | 68215-02020 |
| 68216 | Left front door fixed window seal | 68216-02020 |
| 68610 | Front door opening limiter assembly | 68610-02350 · 68610-02430 |
| 74630H | Right front door auxiliary handle assembly | 74630-02090 · 74630-02230 · 74630-02231 · 74630-02250 · 74630-02260 · 74630-02270 · 74645-02410 |
| 74640E | Left front door auxiliary handle assembly | 74640-02080 · 74640-02220 · 74640-02221 · 74640-02240 · 74640-02250 · 74640-02260 · 74646-02410 |
| 75975G | Right front door outer lower trim strip | 75975-02020 |
| 75976G | Left front door outer lower trim strip | 75976-02020 |
| 75985G | Right front door outer trim | 75985-02020 |
| 75986G | Left front door outer trim | 75986-02020 |
| 86262E | front speaker cover | 86262-17010 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-02020 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-02020 |
