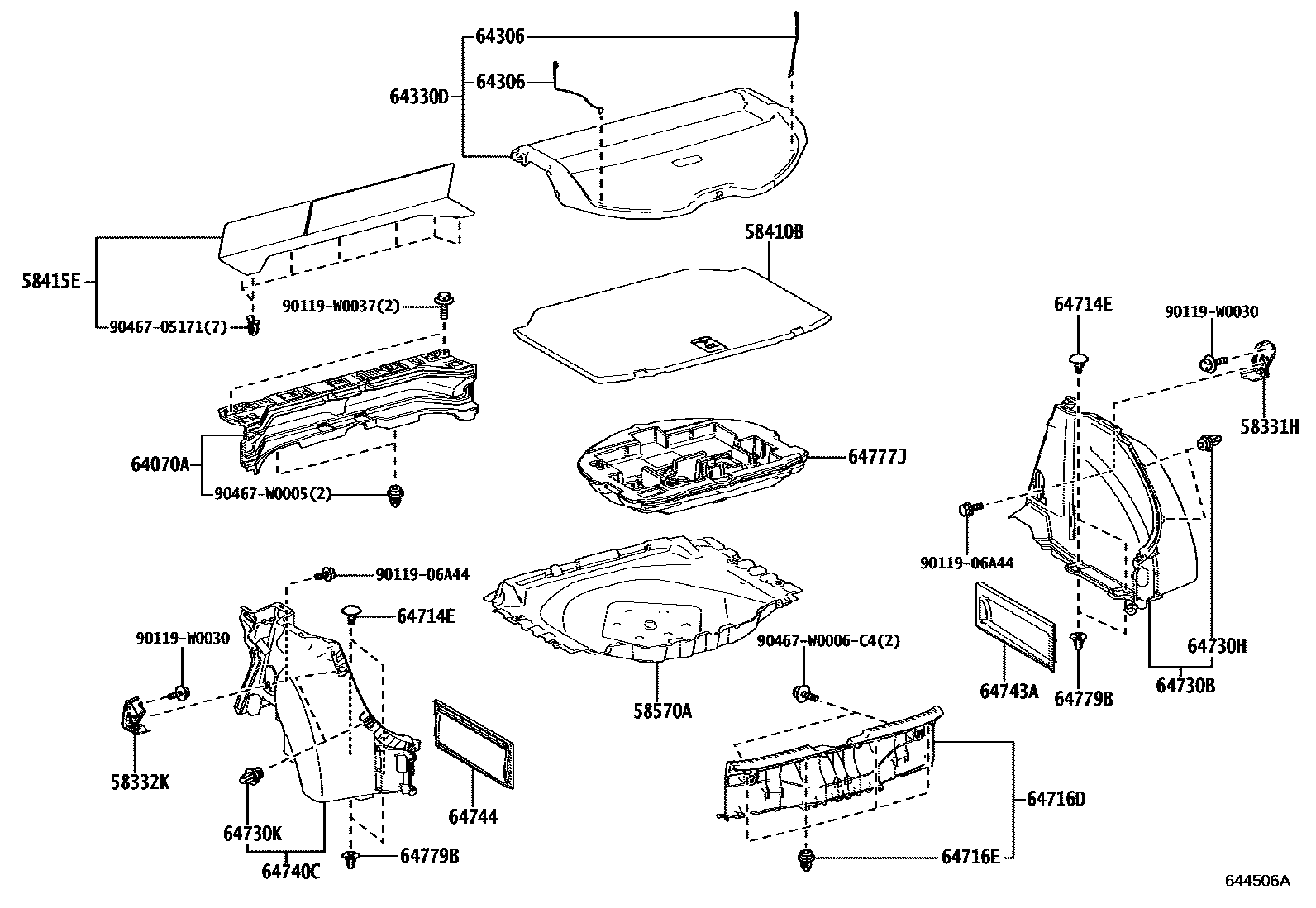

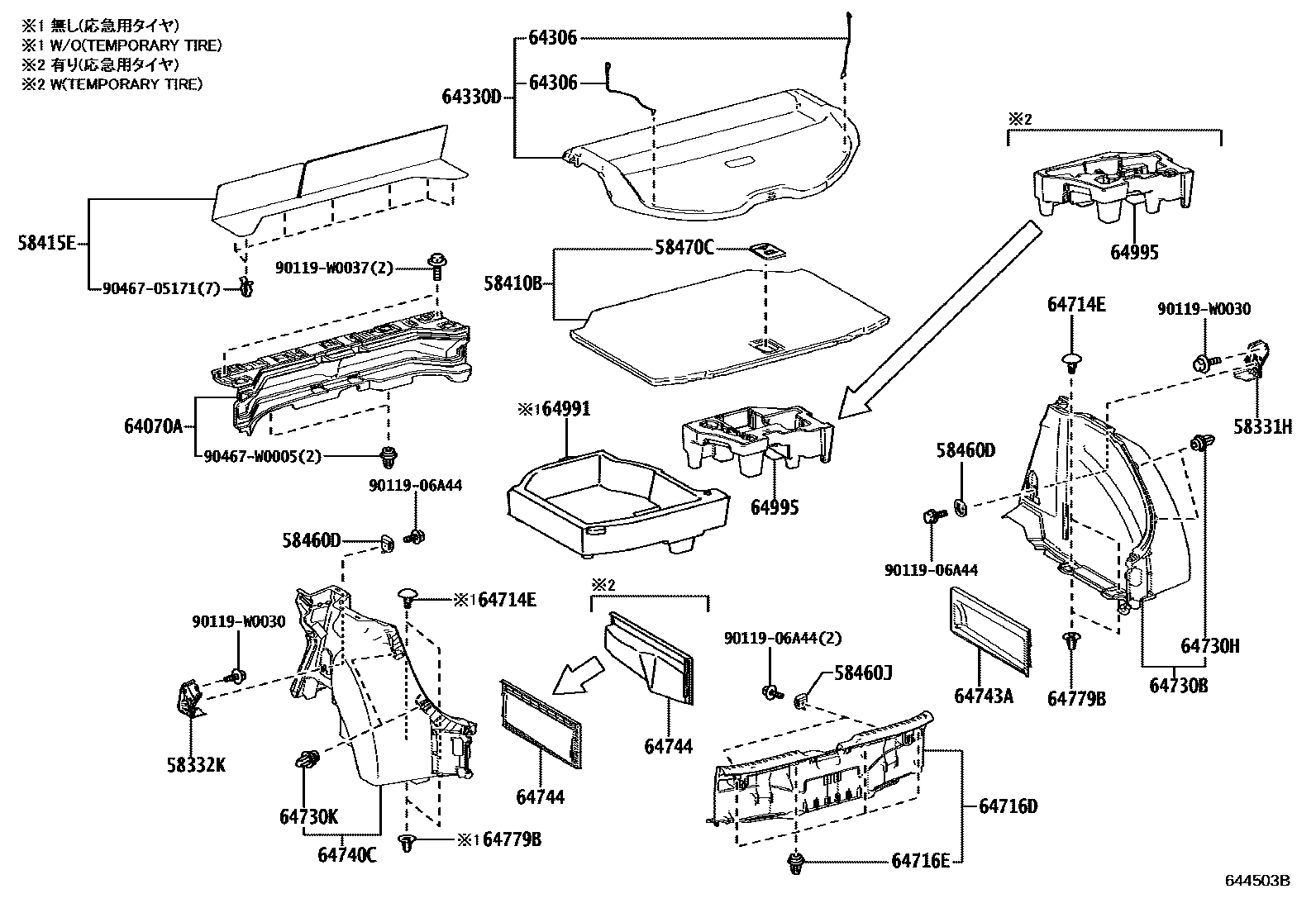

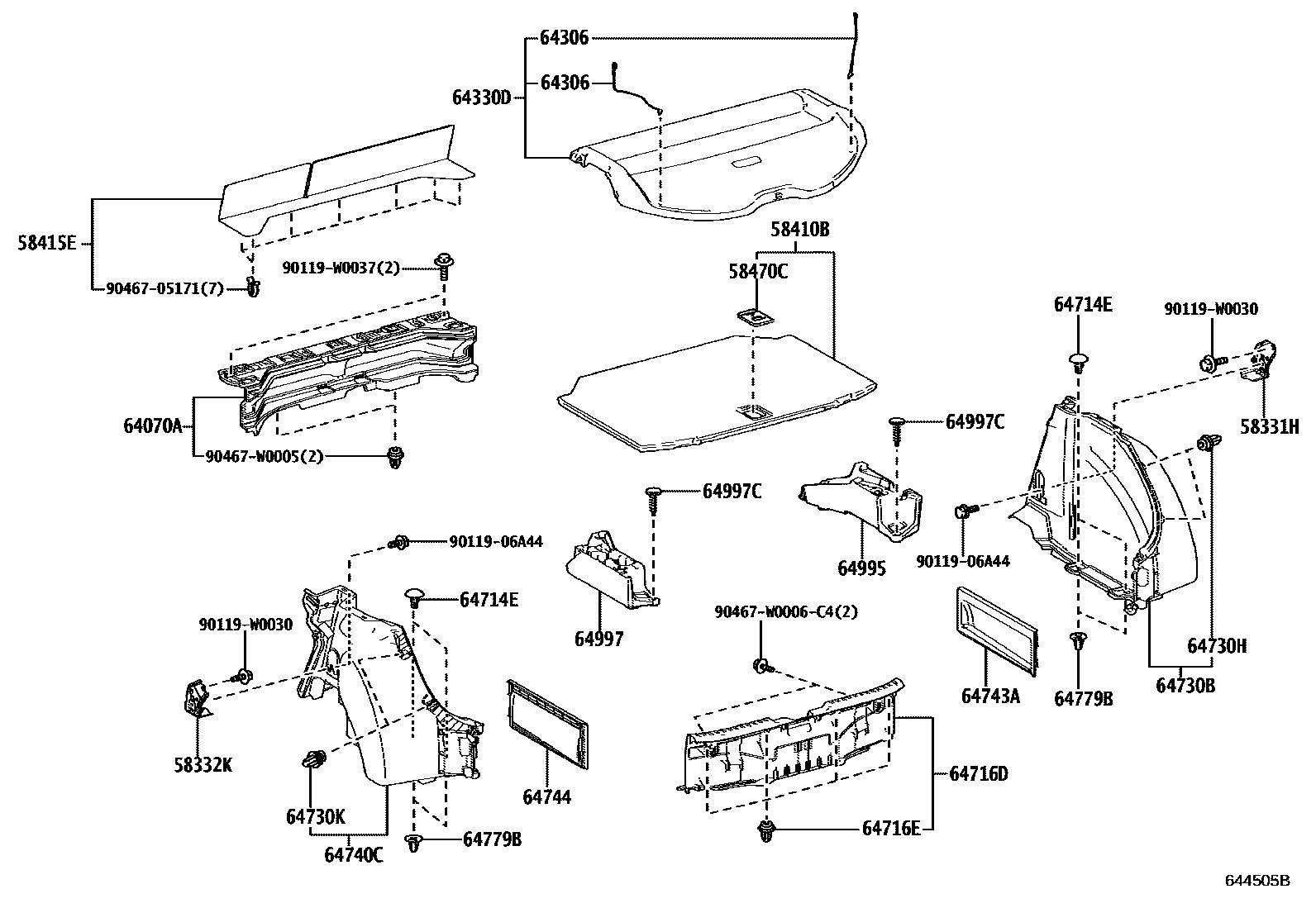

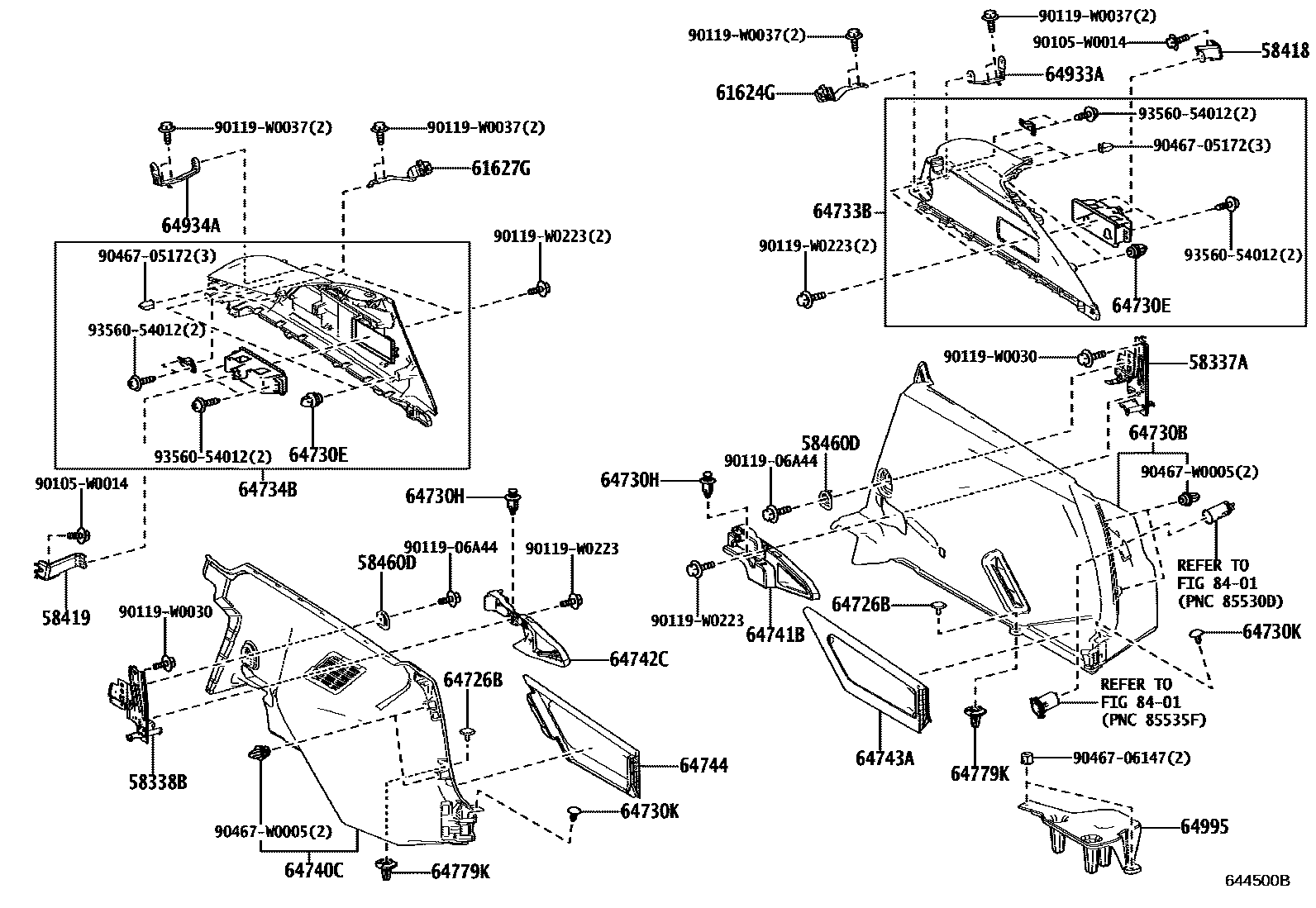

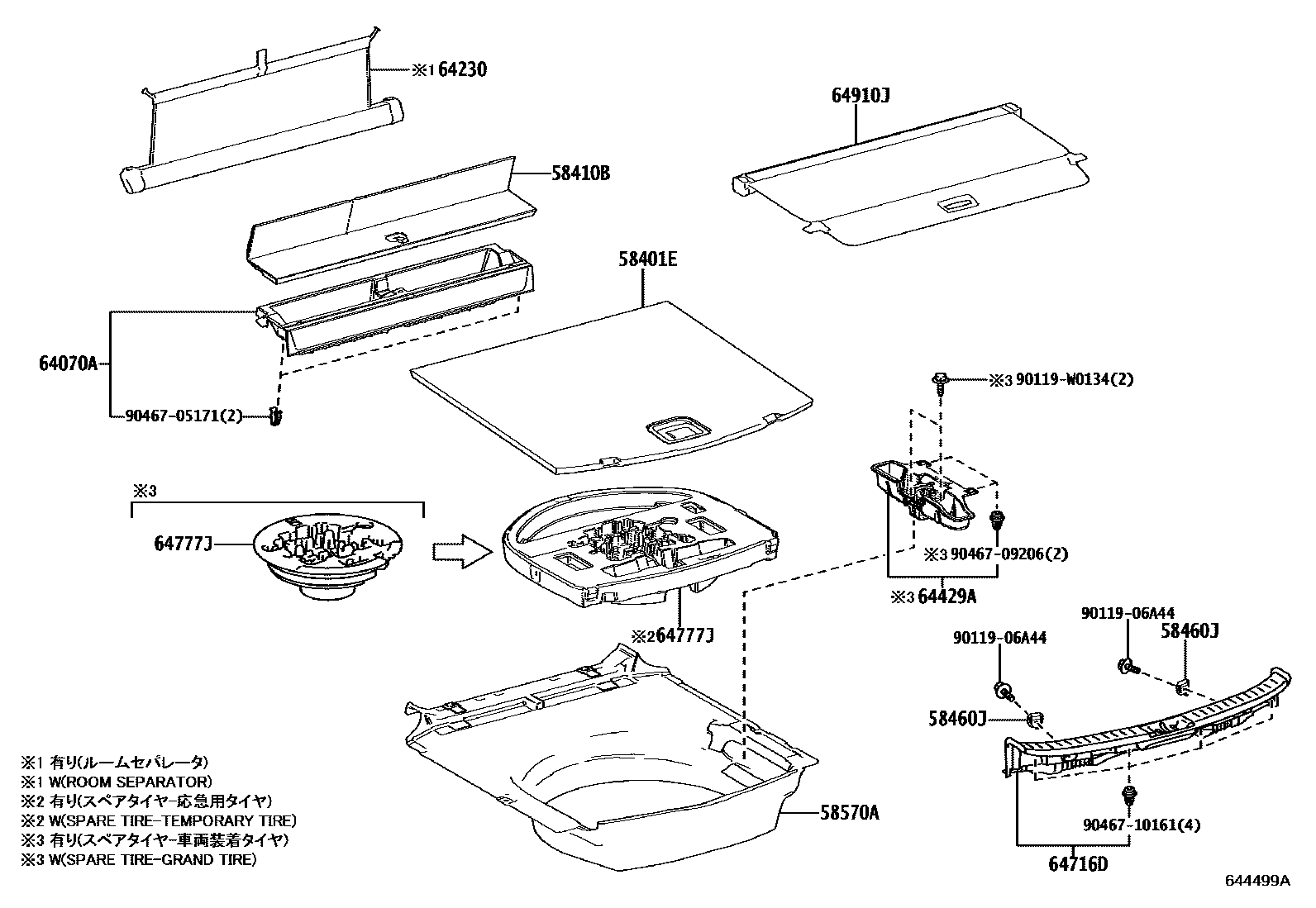

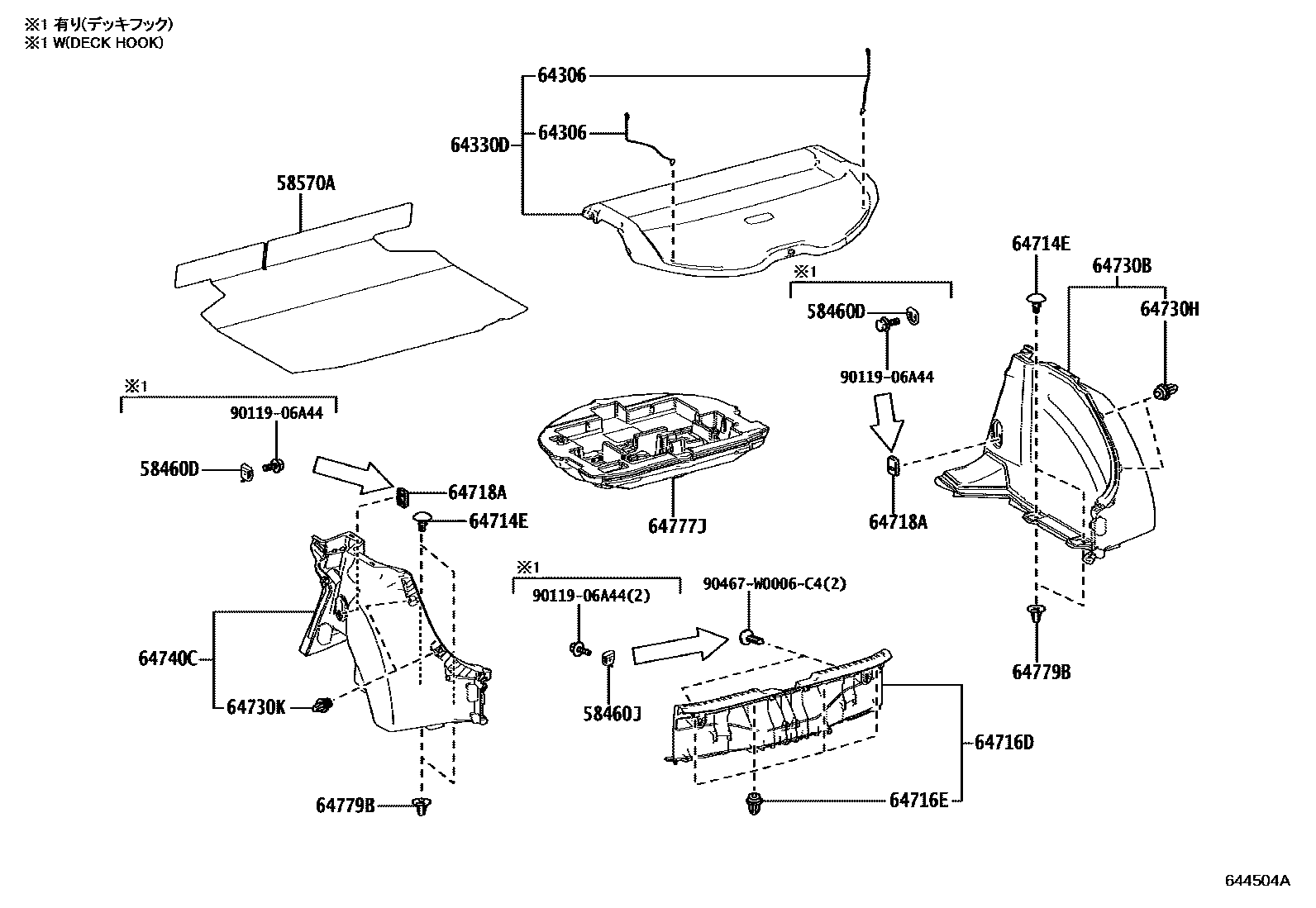

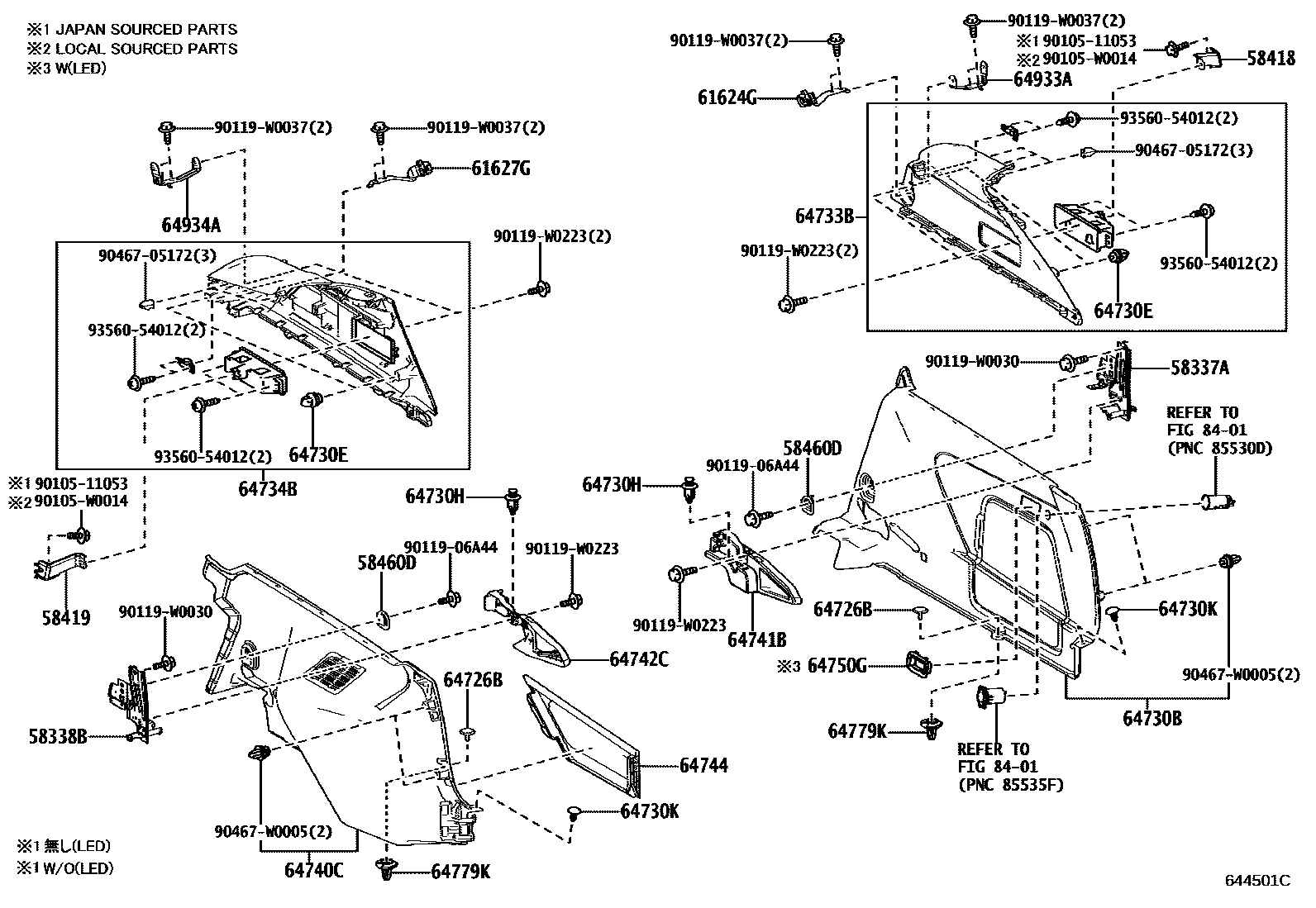

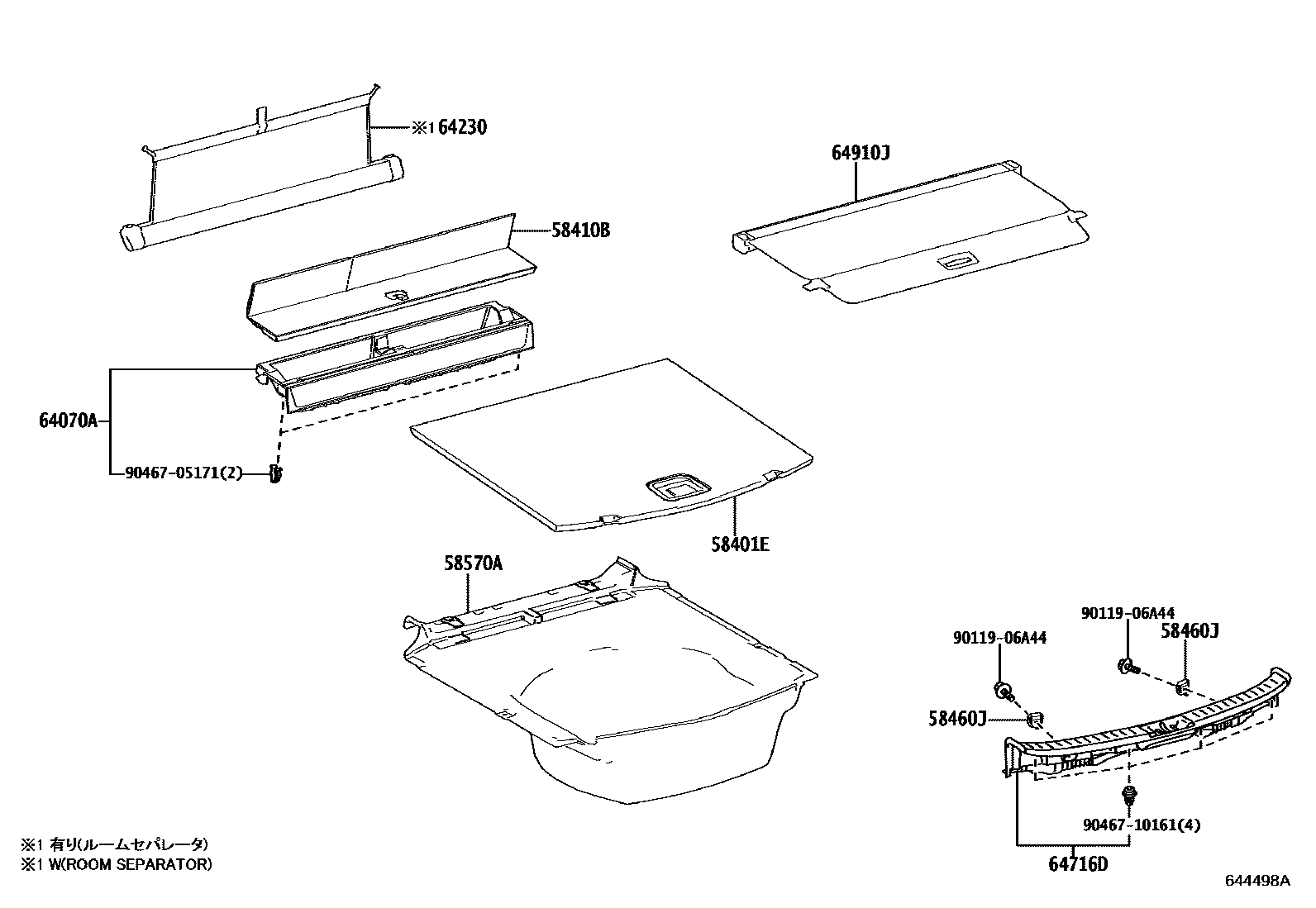

Toyota COROLLA 底板和底板装饰罩 — Figure 6404
Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 8 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58331H | No. 1 suitcase decorative panel bracket | 58331-02170 |
| 58332K | No. 2 suitcase decorative panel bracket | 58332-02120 |
| 58337A | SUPPORT, GARNITURE LAT PLANCHER, MD | 58337-02050 · 58337-02060 |
| 58338B | SUPPORT, GARNITURE LAT PLANCHER, MG | 58338-02040 · 58338-02050 |
| 58418 | Bottom plate bracket No. 1 | 58418-02010 |
| 58419 | Bottom plate bracket No. 2 | 58419-02010 |
| 58460D | Luggage fixing belt lock assembly | 58460-33020 |
| 58460J | Luggage fixing belt lock assembly | 58460-33020 |
| 58470C | Base plate handle assembly | 58470-12010 |
| 61624G | Upper bracket for decorative part on the right side of the floor panel | 61624-02040 |
| 61627G | Upper bracket for decorative part on the left side of the floor panel | 61627-02100 |
| 64230 | Car partition net assembly | 64230-02020 |
| 64306 | Glove box decorative panel fixed rod sub-assembly | 64306-02080 |
| 64429A | suitcase decorative box | 64429-02030 |
| 64716E | Clip (for rear floor decorative cover) | 90467-W0005 |
| 64730E | Clip (for bottom panel side decorative panel) | 90467-09240 |
| 64730H | Clip (for bottom panel side decorative panel) | 90467-W0005 |
| 64730K | ATTACHE(POUR PANNEAU DE GARNITURE DE COTE DU PLANCHER) | 90467-W0005 · 90467-W0007 |
| 64750G | Rear floor panel right trim panel assembly | 64750-02010 |
| 64777J | Spare tire cushion | 64777-02360 · 64777-02400 · 64777-02410 |
| 64779B | Spare tire cover stop | 64779-26010 |
| 64779K | BUTEE, COUVERCLE ROUE SECOURS | 64779-26010 |
| 64910J | Trunk cover assembly | 64910-02060 · 64910-02061 · 64910-02070 · 64910-02071 |
| 64933A | Right trunk trim cover retainer | 64933-02020 |
| 64934A | Left trunk trim cover retainer | 64934-02010 |
| 64991 | Front floor box | 64991-02010 |
| 64995 | Bottom right floor box | 64995-02060 · 64995-02120 · 64995-02130 · 64995-02140 |
| 64997 | Bottom left floor box | 64997-02120 |
