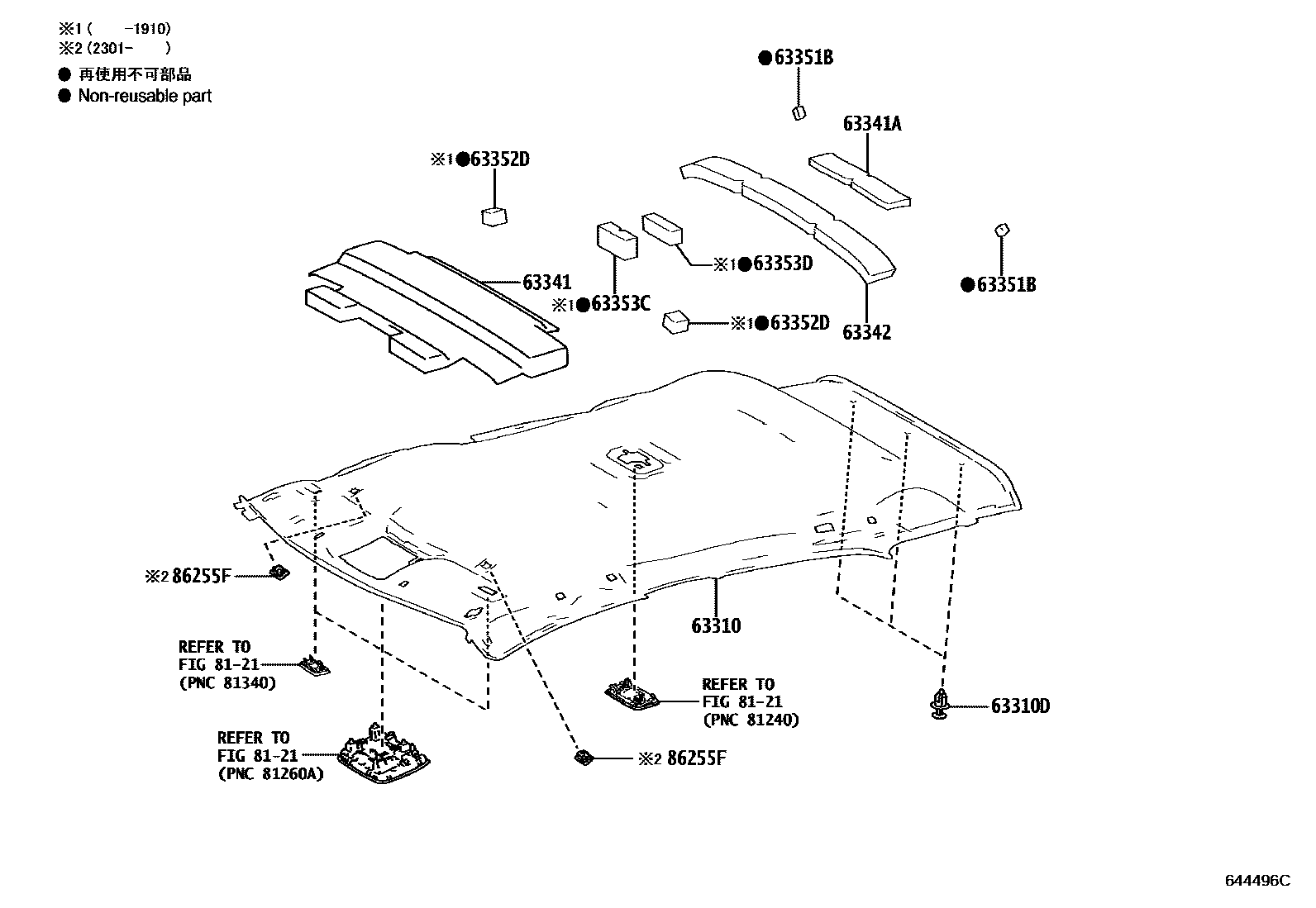

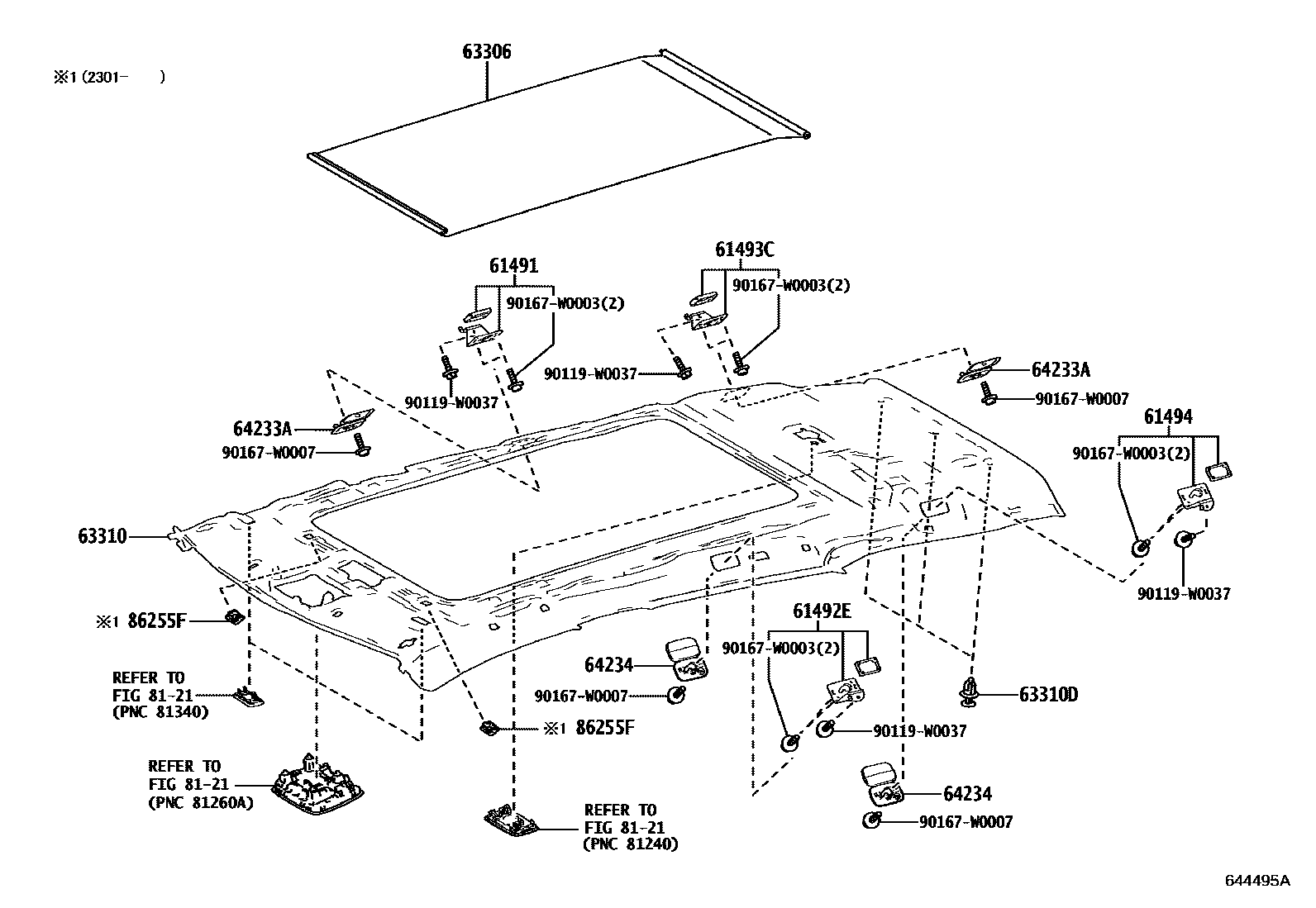

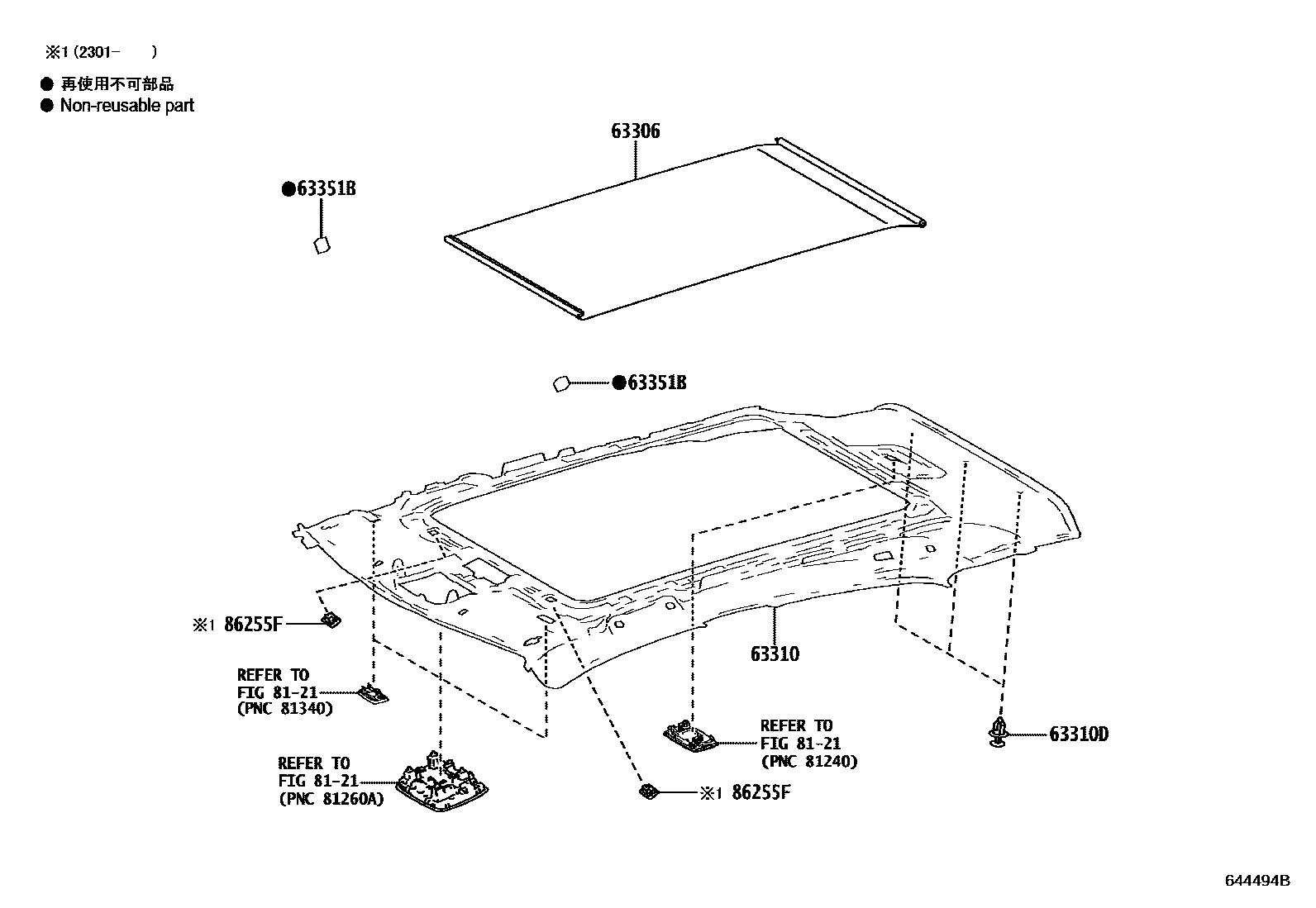

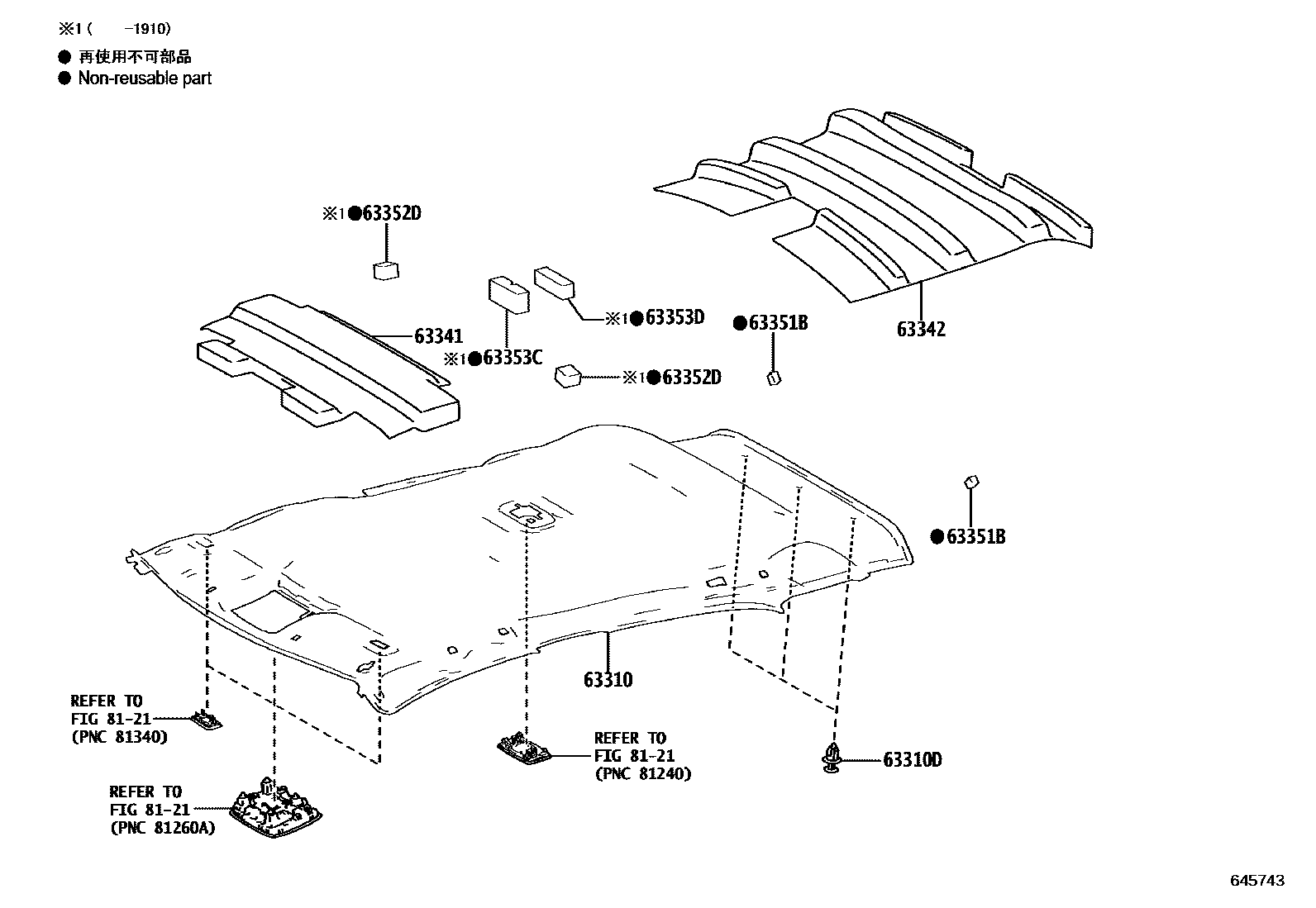

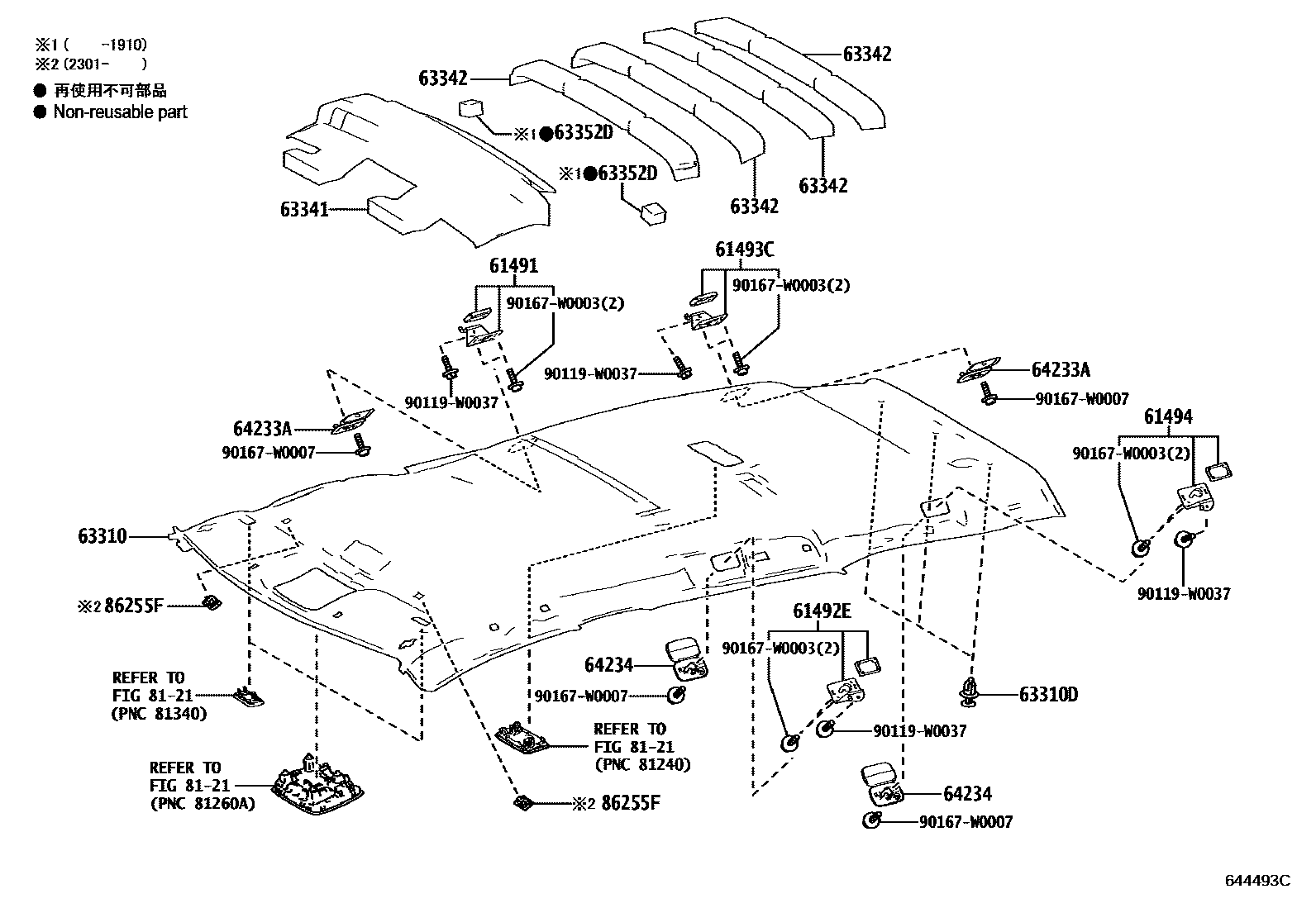

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 5 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61491 | No. 1 side panel reinforcement bracket | 61491-02060 |
| 61492E | SUPPORT, RESISTANCE PANNEAU LAT, NO.2 | 61492-02020 |
| 61493C | SUPPORT, RESISTANCE PANNEAU LAT, NO.3 | 61493-02010 |
| 61494 | SUPPORT, RESISTANCE PANNEAU LAT, NO.4 | 61494-02010 |
| 63341 | No. 1 roof silencer mat | 63341-02570 · 63341-02591 |
| 63341A | No. 1 roof silencer | 63341-02560 |
| 63342 | No. 2 roof muffler pad | 63342-02740 · 63342-02760 · 63342-02770 |
| 63351B | roof lining pads | 63351-02220 |
| 63352D | No. 2 roof lining lining block | 63352-02130 |
| 63353C | Center roof lining lining | 63353-02090 |
| 63353D | Center roof lining lining | 63353-02100 |
