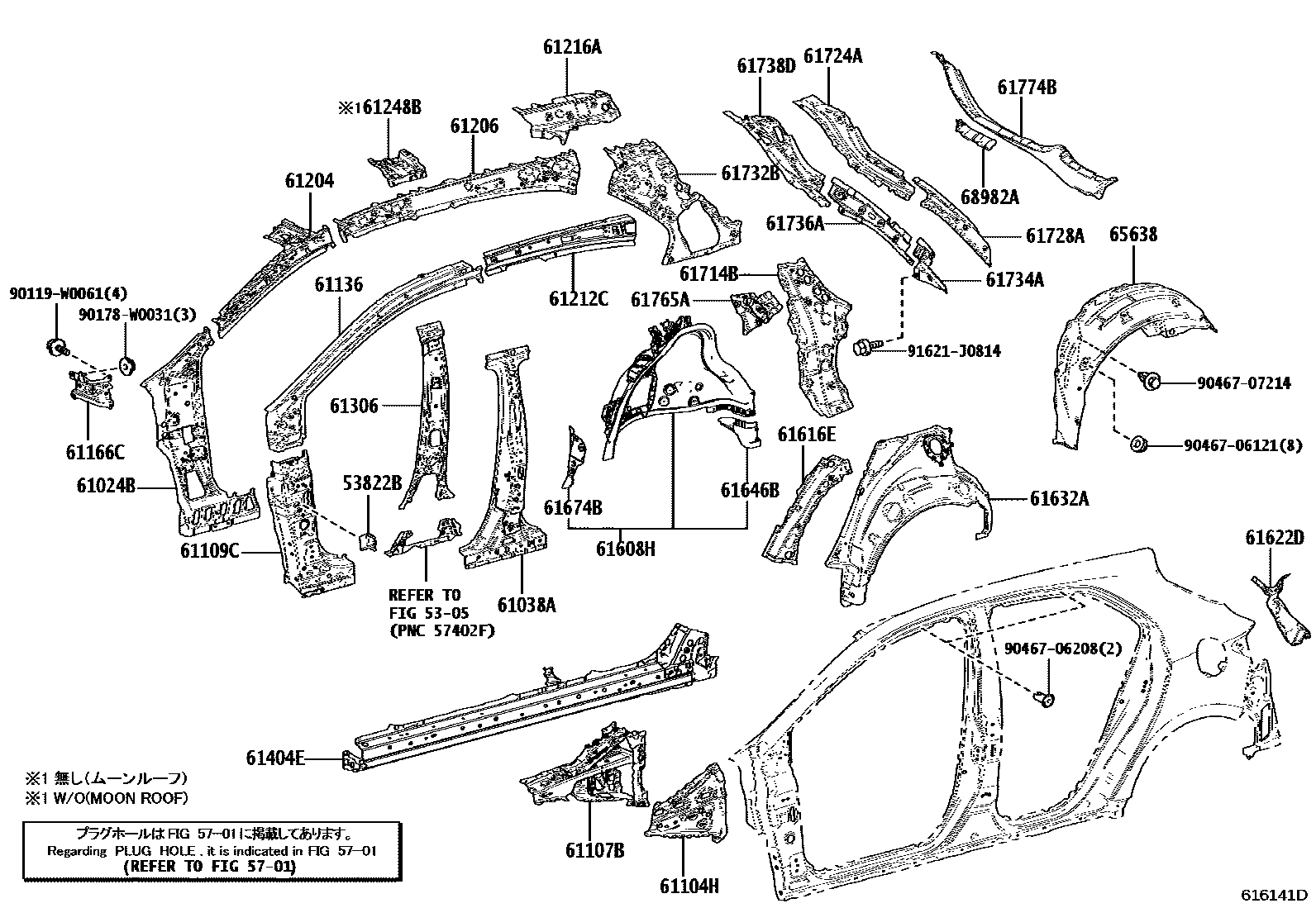

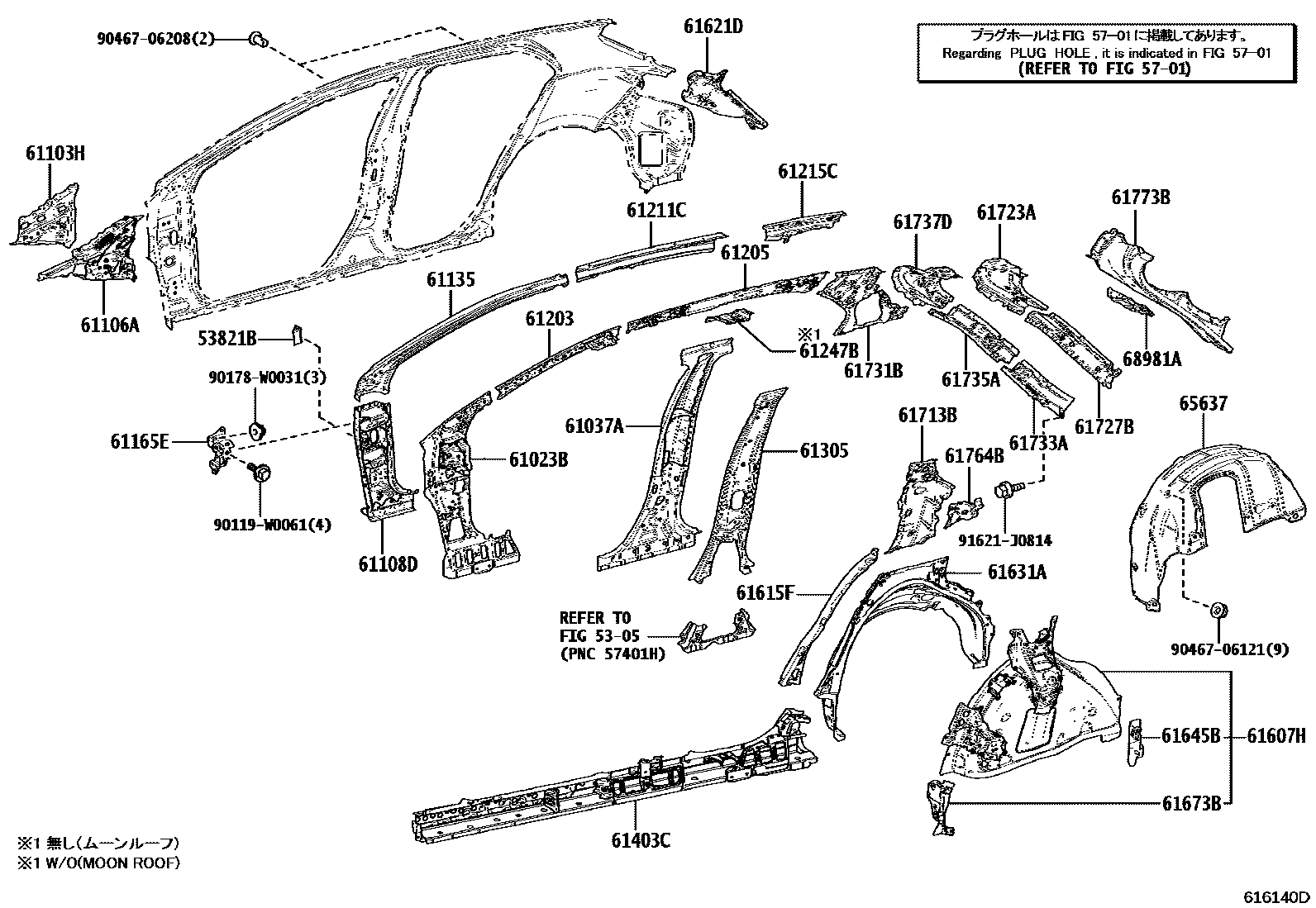

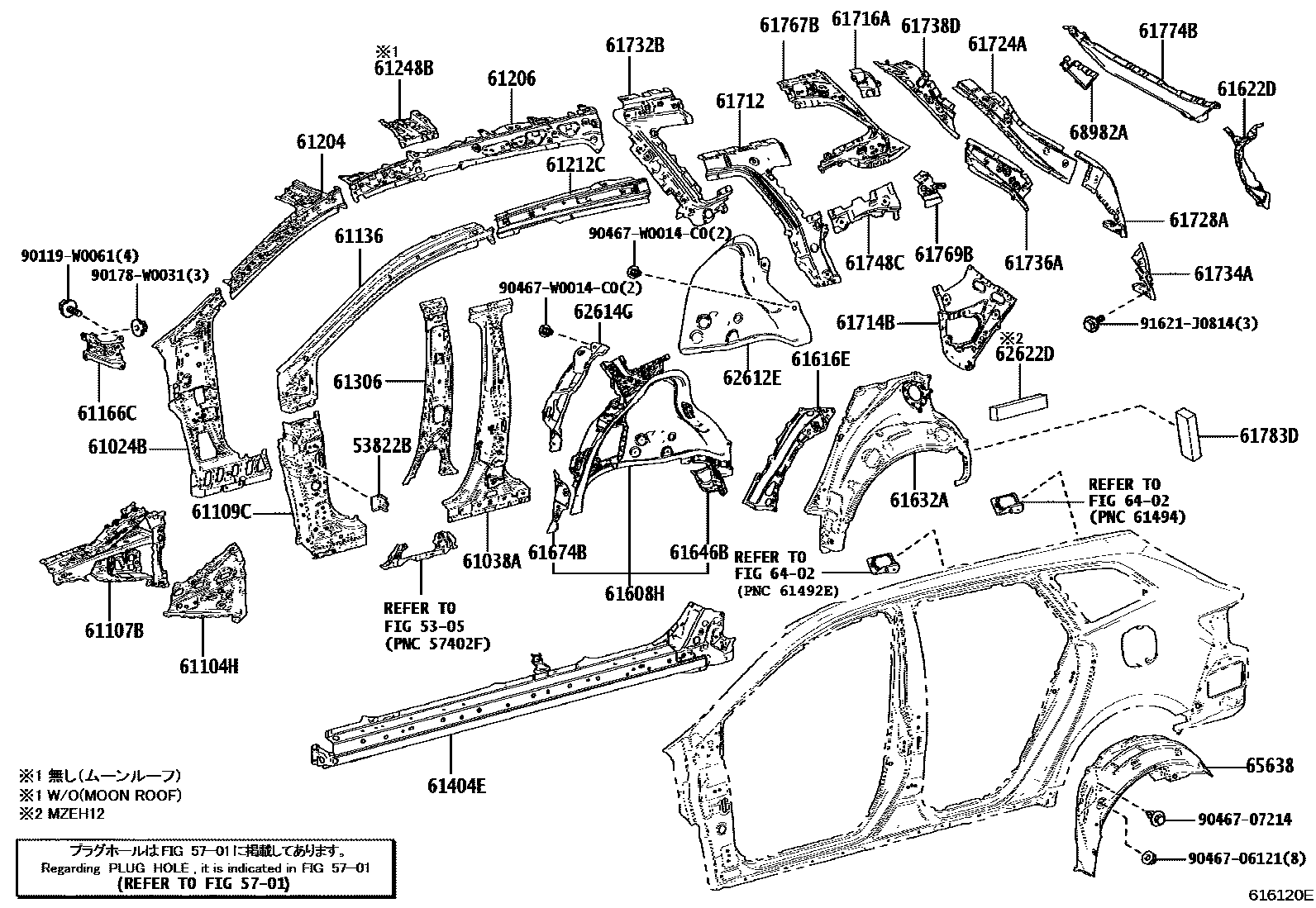

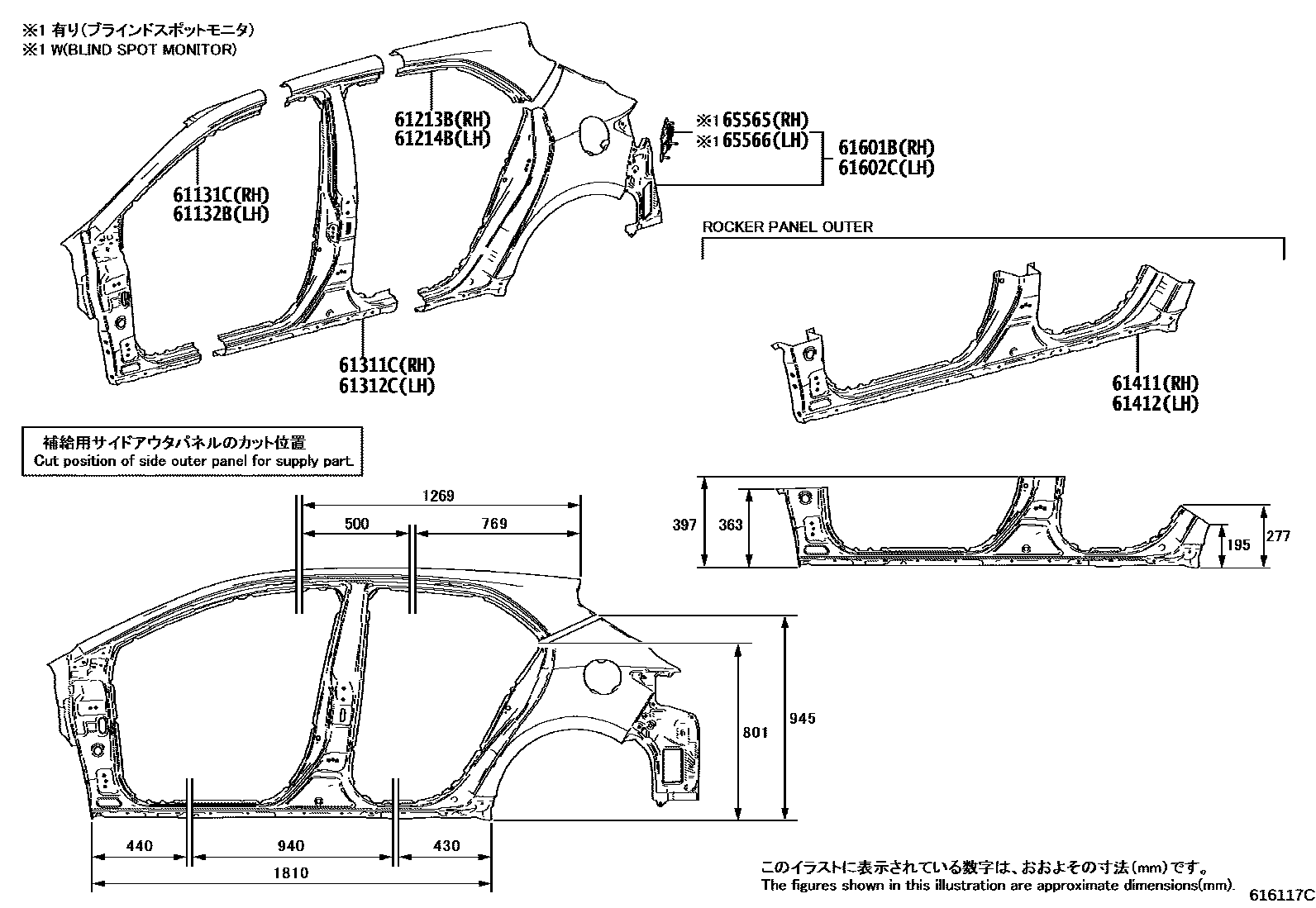

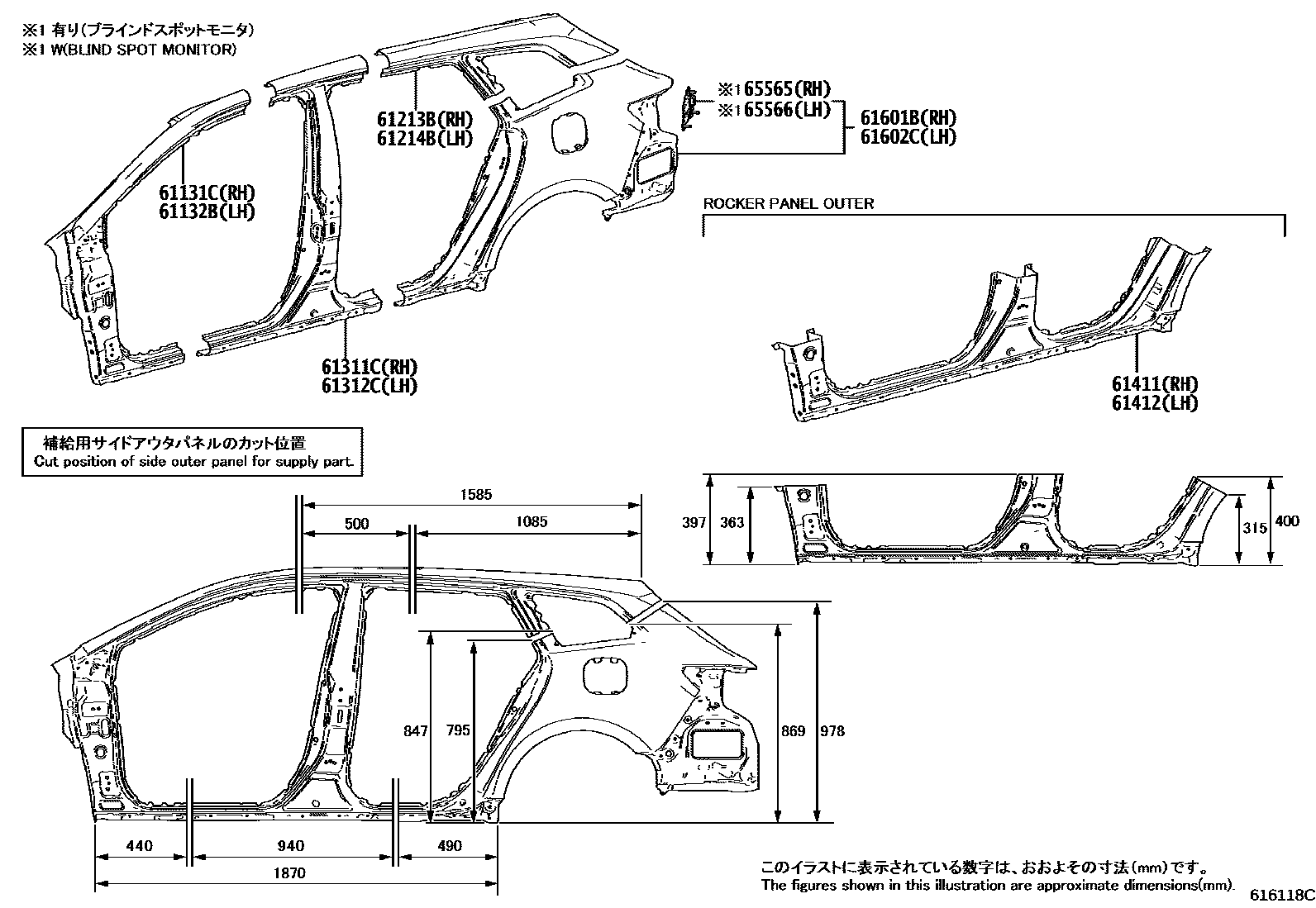

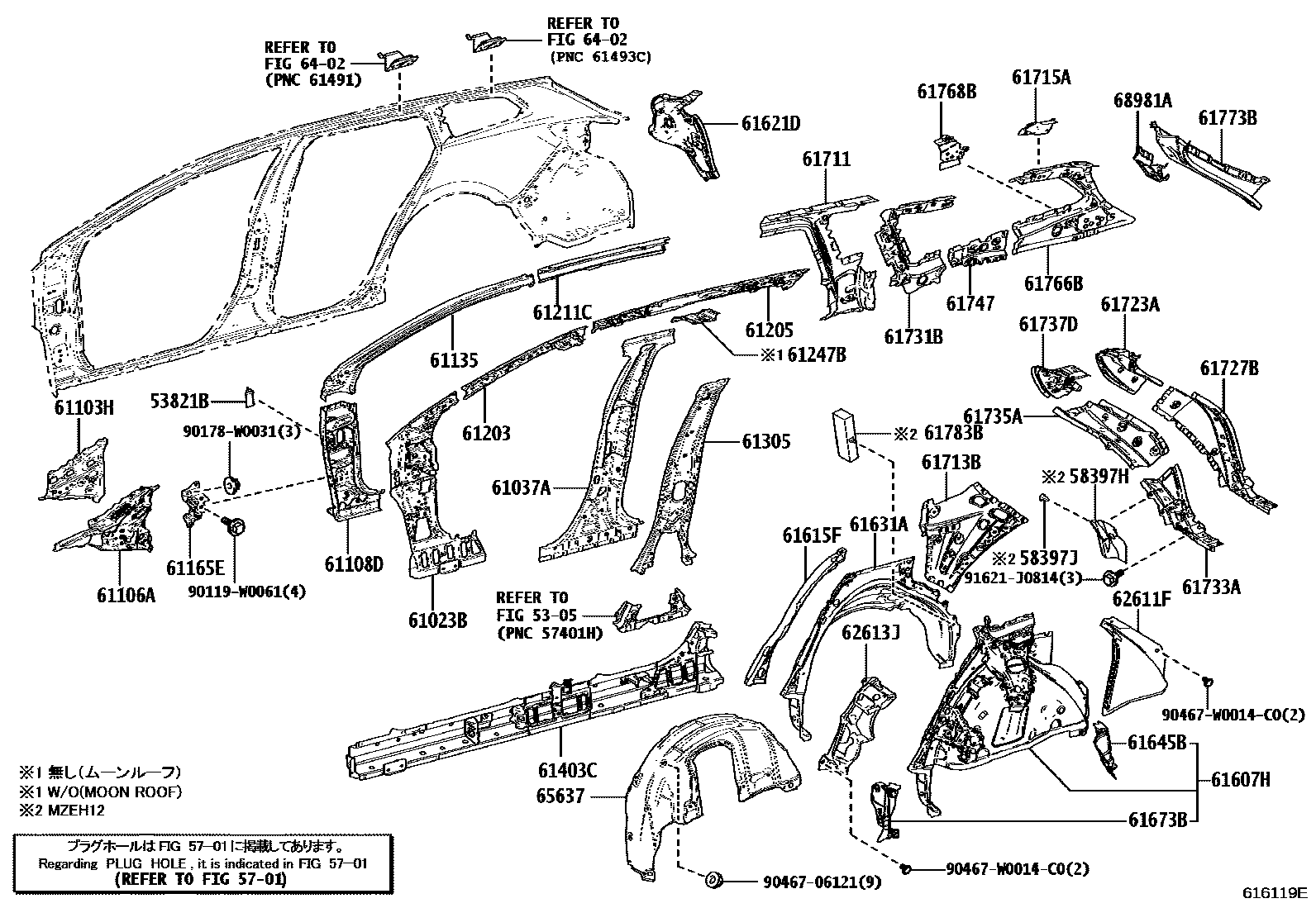

Toyota COROLLA 侧梁 — Figure 6101
Toyota COROLLA EPC diagram 6101, 侧梁, with 6 images and 94 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53879-02120 |
| 53822B | Left front fender rear support | 53879-02120 |
| 58397H | COUV., DOS INF. CARROSSERIE, DROIT | 58397-02010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-02360 |
| 61024B | Left body inner front pillar sub-assembly | 61024-02340 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-02330 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-02330 |
| 61103H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MD | 61113-02020 |
| 61104H | SOUS-ENS. PANNEAU, LATERAL, NO.2 MG | 61114-02020 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-02040 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-02030 |
| 61108D | Front panel right lower reinforcement sub-assembly | 61108-02310 |
| 61109C | Front panel left lower reinforcement sub-assembly | 61109-02330 |
| 61131C | Right body outer front pillar | 61013-02010 · 61101-02180 |
| 61132B | Left body outer front pillar | 61014-02010 · 61102-02170 |
| 61135 | Reinforcement member on the right front body pillar | 61135-02260 |
| 61136 | Reinforcement member on left front body pillar | 61136-02270 |
| 61165E | SUPPORT, TABLEAU BORD AU COTE AUVENT, MD | 61165-02010 |
| 61166C | SUPPORT, TABLEAU BORD AU COTE AUVENT, MG | 61166-02010 |
| 61203 | Roof right inner longitudinal beam sub-assembly | 61203-02190 |
| 61204 | Roof left inner longitudinal beam sub-assembly | 61204-02210 |
| 61205 | Right rear roof inner longitudinal beam sub-assembly | 61205-02020 · 61205-02040 |
| 61206 | Left rear roof inner longitudinal beam sub-assembly | 61206-02020 · 61206-02040 |
| 61211C | Roof right side rail | 61211-02210 · 61211-02220 |
| 61212C | Roof left side rail | 61212-02210 · 61212-02220 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61207-02030 · 61213-02240 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61208-02030 · 61214-02250 |
| 61215C | Right rear roof outer longitudinal beam | 61215-02010 |
| 61216A | Left rear roof rail | 61216-02010 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-02220 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-02080 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-02200 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-02200 |
| 61311C | Right rear body front outer panel | 61311-02260 · 61311-02320 |
| 61312C | Left rear body front outer panel | 61312-02310 · 61312-02350 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-02903 · 61403-02904 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-02905 · 61404-02906 |
| 61411 | Right door outer sill panel | 61411-02330 · 61411-02340 |
| 61412 | Left door outer sill panel | 61412-02330 · 61412-02340 |
| 61601B | Right side enclosure sub-assembly | 61601-02500 · 61601-02510 · 61601-02520 · 61601-02530 |
| 61602C | Left side enclosure sub-assembly | 61602-02530 · 61602-02540 · 61602-02550 · 61602-02560 |
| 61607H | Right side wheel cover lining plate sub-assembly | 61607-02790 · 61607-02800 |
| 61608H | Left side wheel cover lining plate sub-assembly | 61608-02710 · 61608-02720 |
| 61615F | Right side enclosure outer panel reinforcement | 61615-02160 · 61615-02210 |
| 61616E | Left side enclosure outer panel reinforcement | 61616-02170 · 61616-02220 |
| 61621D | Back door right opening slot | 61621-02280 · 61621-02290 |
| 61622D | Rear door left opening slot | 61622-02280 · 61622-02290 |
| 61631A | Right wheel cover outer panel | 61631-02250 · 61631-02260 |
| 61632A | Left side wheel cover outer panel | 61632-02280 · 61632-02290 |
| 61645B | Right rear side wheel housing corner panel | 61645-02110 · 61645-02120 |
| 61646B | Left rear side wheel housing corner panel | 61646-02100 · 61646-02110 |
| 61673B | Right wheel housing lining panel reinforcement | 61673-02120 |
| 61674B | Left side wheel housing lining plate reinforcement | 61674-02150 |
| 61711 | Roof right side outer panel | 61711-02180 |
| 61712 | Roof left outer panel | 61712-02180 |
| 61713B | Roof right outer reinforcement | 61713-02070 · 61713-02080 |
| 61714B | Roof left outer reinforcement | 61714-02070 · 61714-02080 |
| 61715A | Roof right inner upper extension | 61715-02150 |
| 61716A | Roof left inner upper extension | 61716-02100 |
| 61723A | No. 1 right corner window opening fixing piece | 61723-02010 · 61723-02020 |
| 61724A | No. 1 left corner window opening fixing piece | 61724-02010 · 61724-02020 |
| 61727B | EXTENSION, RENFORT PANNEAU CUSTODE, MD | 61727-02010 · 61727-02020 |
| 61728A | EXTENSION, RENFORT PANNEAU CUSTODE, MG | 61728-02010 · 61728-02020 |
| 61731B | Roof right inner panel | 61731-02350 · 61731-02351 · 61731-02360 |
| 61732B | Roof left inner panel | 61732-02350 · 61732-02360 |
| 61733A | Right front roof inner panel | 61733-02040 · 61733-02050 |
| 61734A | Left front roof inner panel | 61734-02040 · 61734-02050 |
| 61735A | Right rear roof inner panel | 61735-02250 · 61735-02260 · 61735-02261 |
| 61736A | Left rear roof inner panel | 61736-02250 · 61736-02260 |
| 61737D | Roof right inner reinforcement | 61737-02120 · 61737-02130 · 61737-02131 |
| 61738D | Roof left inner reinforcement | 61738-02110 · 61738-02120 |
| 61747 | Roof right inner panel to wheel housing bracket | 61747-02080 |
| 61748C | Roof left inner panel to wheel arch bracket | 61748-02080 |
| 61764B | Seat belt anchor reinforcement for seat No. 2, right | 61077-02010 |
| 61765A | Seat belt anchor reinforcement for No. 2 left seat | 61078-02010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-02090 · 61766-02091 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-02070 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-02050 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-02040 |
| 61773B | Back door upper right opening frame | 61773-02030 · 61773-02040 |
| 61774B | Back door upper left opening frame | 61774-02030 · 61774-02040 |
| 61783B | No. 1 rear fender outer panel pad | 61783-02010 |
| 61783D | No. 1 rear fender outer panel pad | 61783-02010 |
| 62611F | Right wheel cover vibration isolation pad | 62611-02020 |
| 62612E | Left side wheel cover vibration isolation pad | 62612-02020 |
| 62613J | No. 2 right wheel cover vibration isolation pad | 62613-02010 |
| 62614G | No. 2 left wheel cover vibration isolation pad | 62614-02010 |
| 62622D | Left front side wheel housing lining block | 62622-02010 |
| 65565 | Right side panel rear end lining | 65565-02070 |
| 65566 | Left side panel rear end lining | 65565-02070 |
| 65637 | Right rear wheel house lining | 65637-02150 · 65637-02160 · 65637-02180 · 65637-02210 |
| 65638 | Left rear wheel house lining | 65638-02150 · 65638-02160 · 65638-02180 · 65638-02210 |
| 68981A | Back door right side support rod fixing | 68981-02070 · 68981-02080 |
| 68982A | Back door left support rod fixing | 68982-02070 · 68982-02080 |
