Toyota COROLLA 地板垫和地毯 — Figure 5804

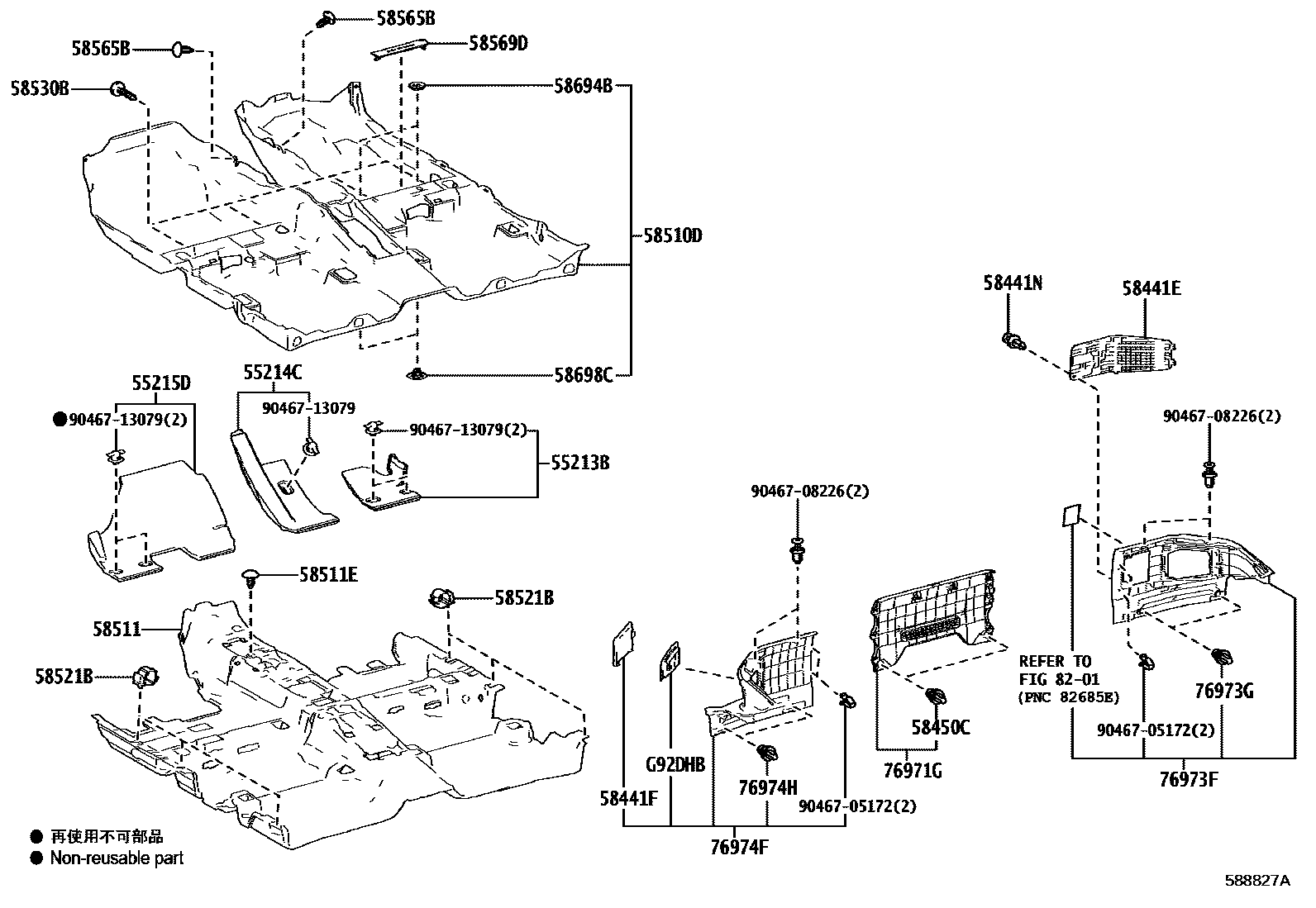

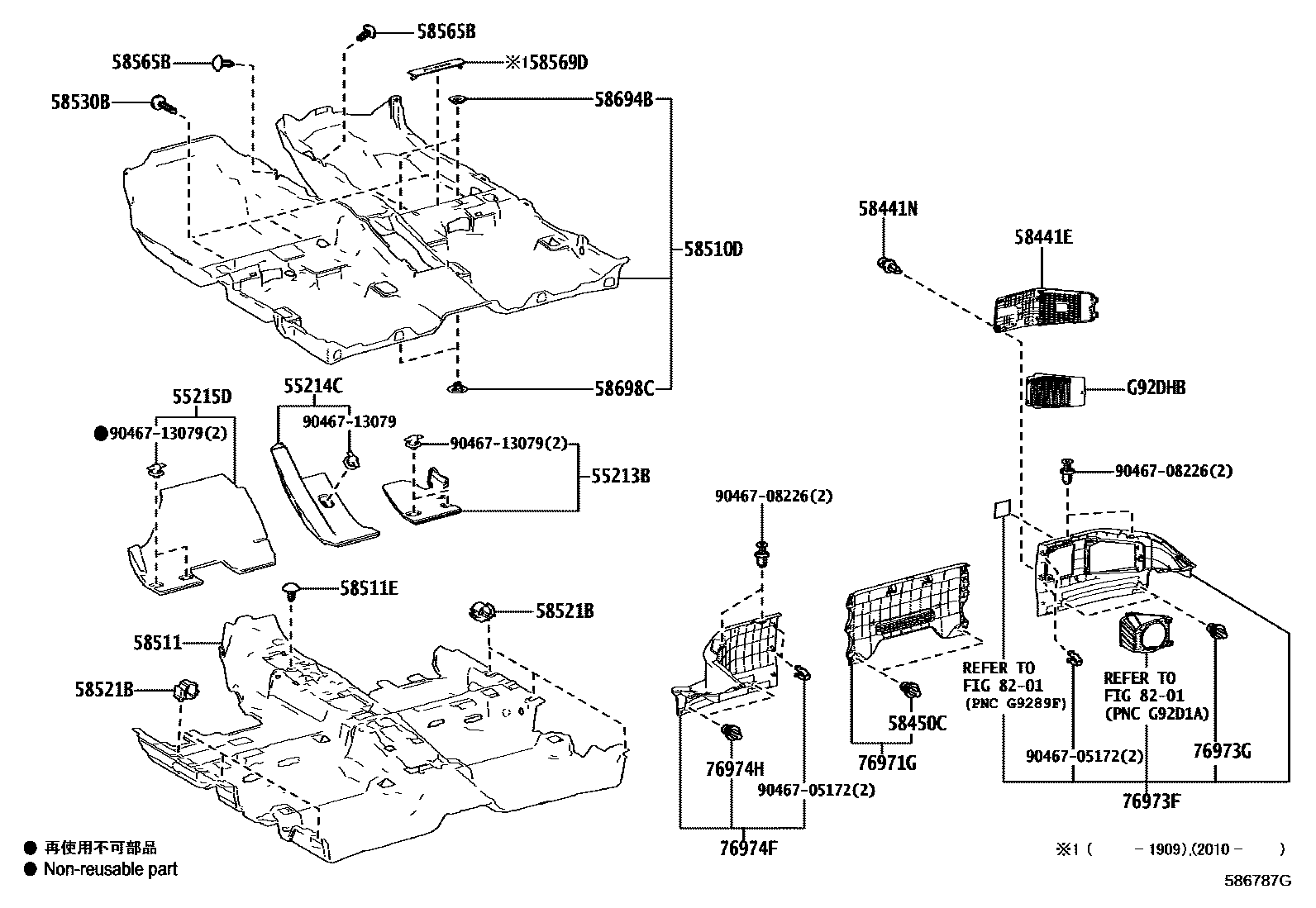

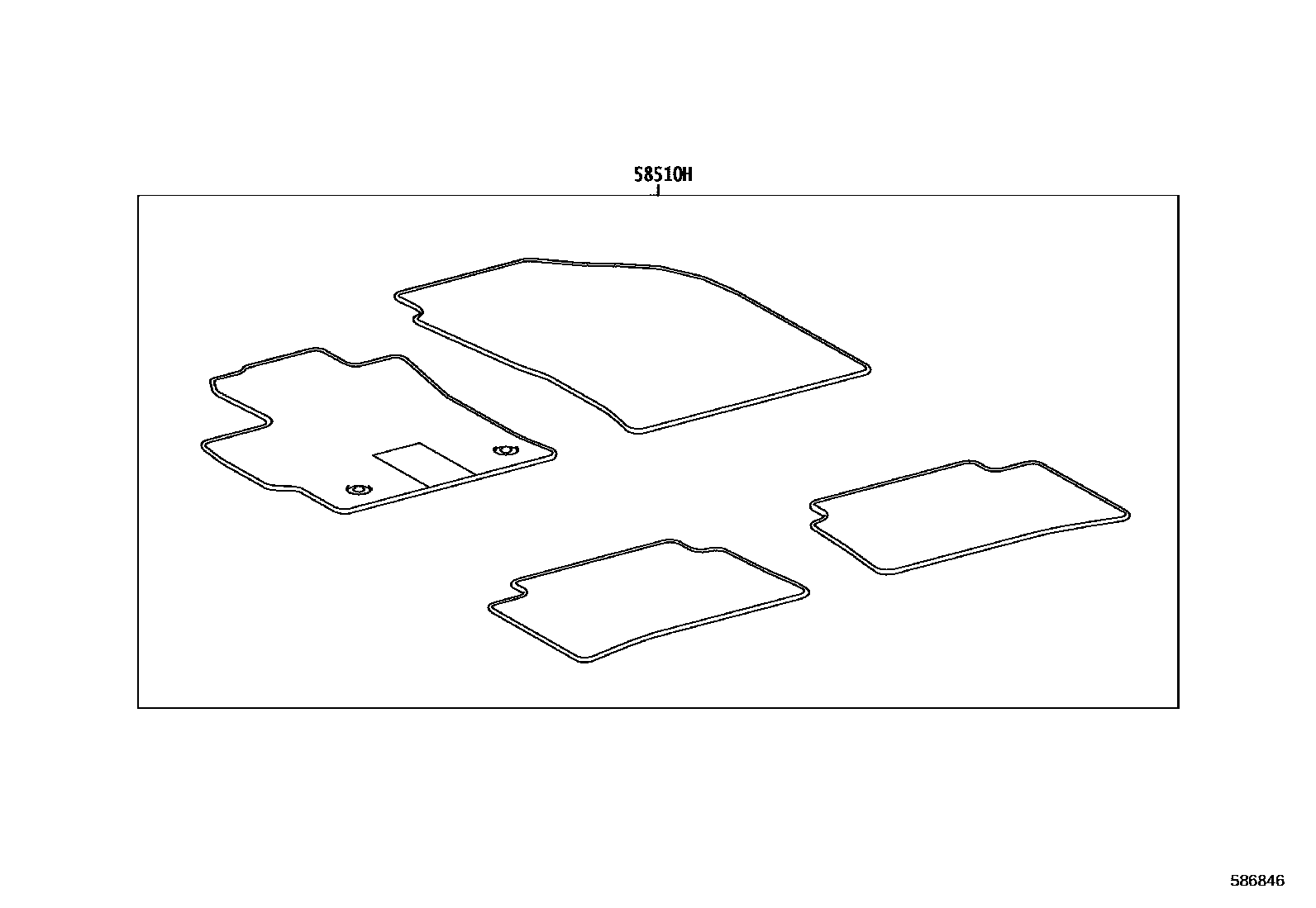

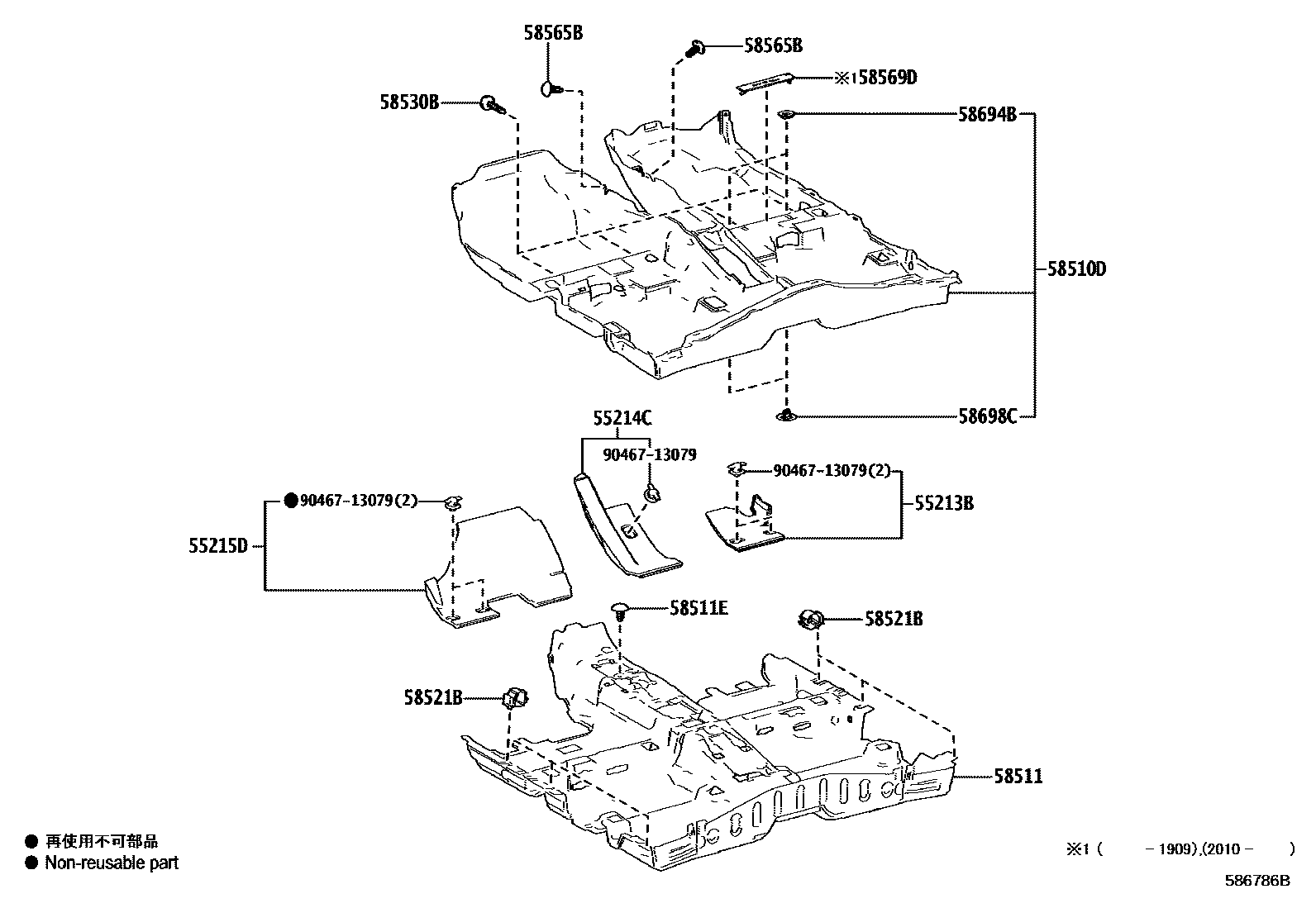

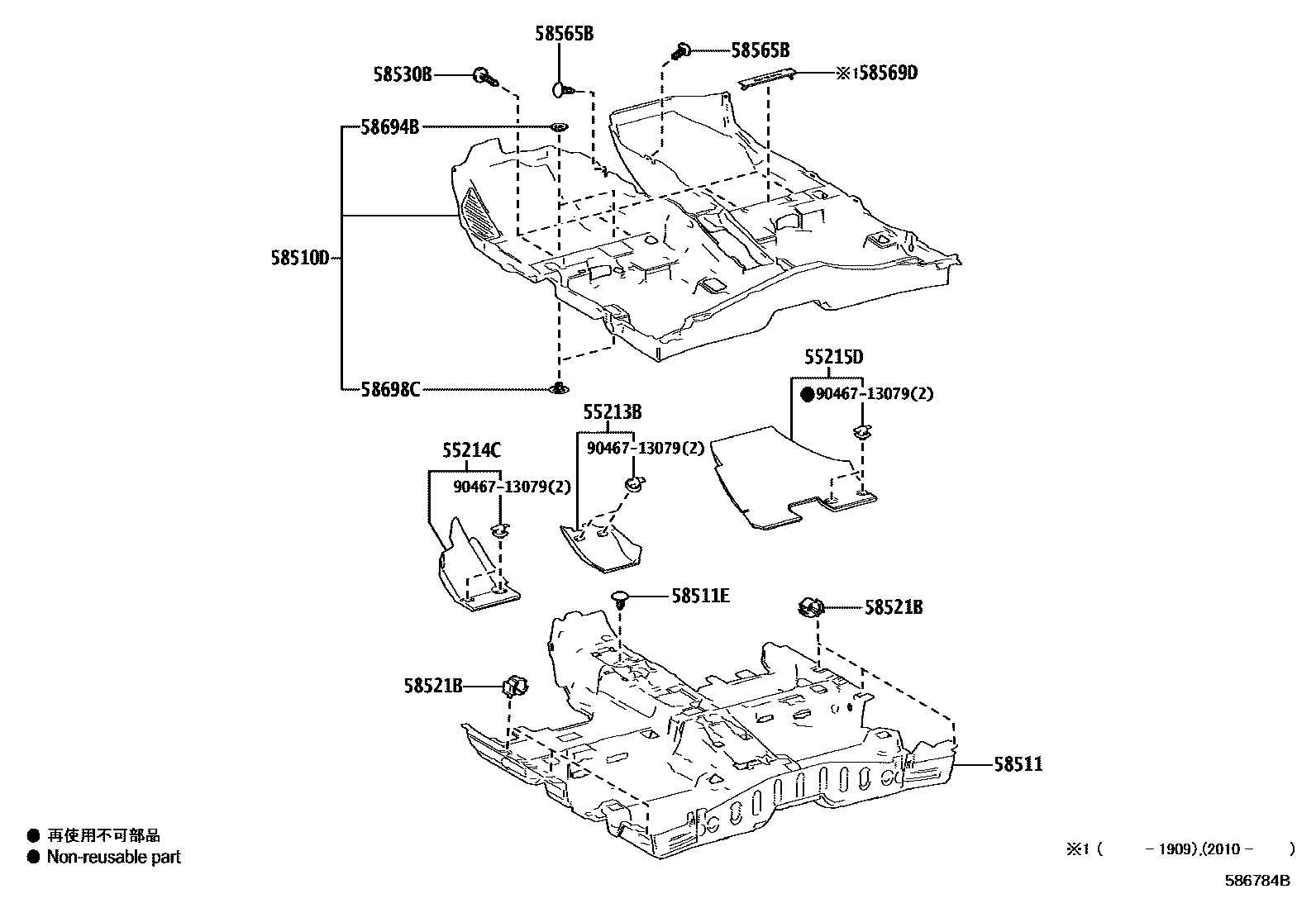

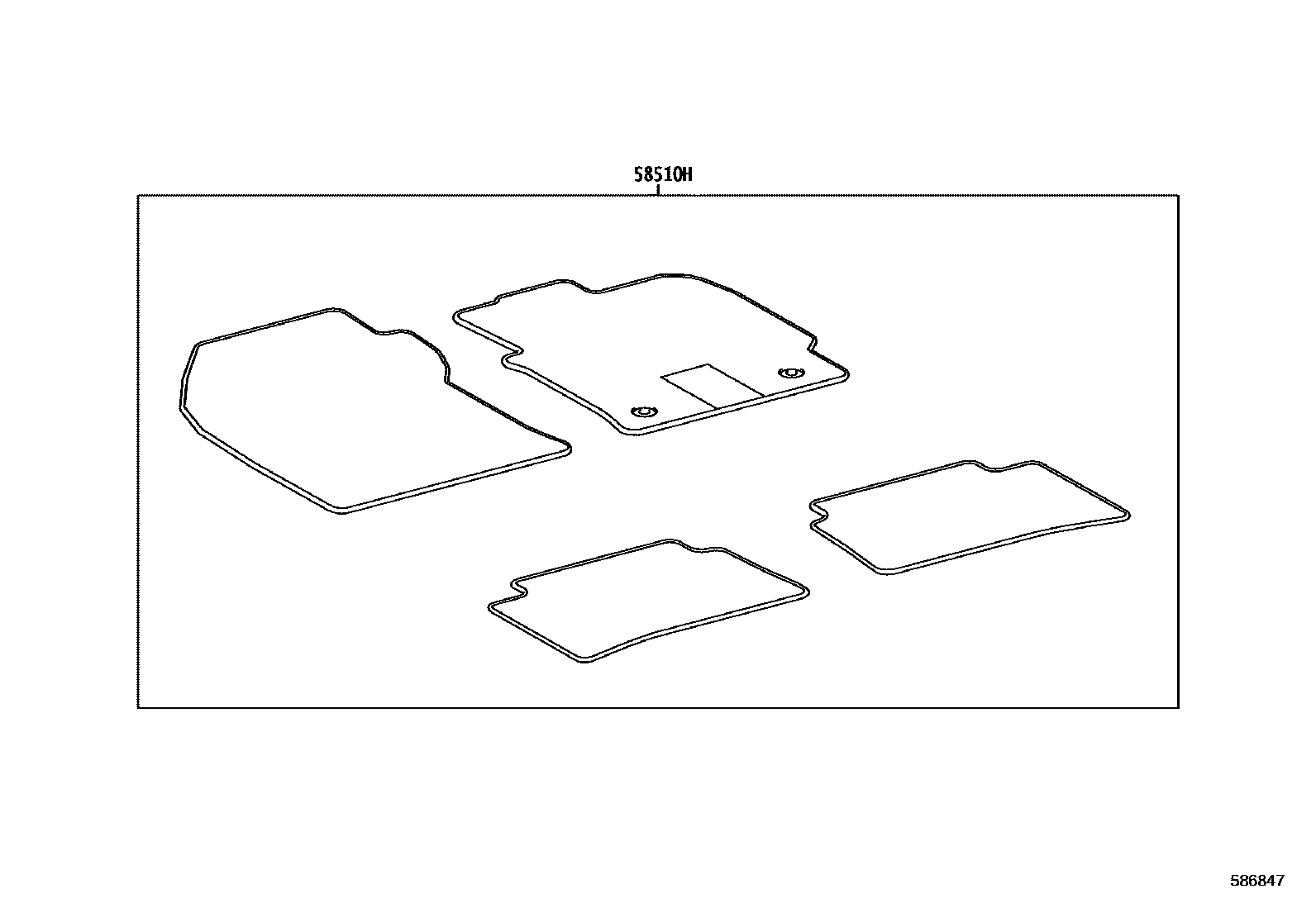

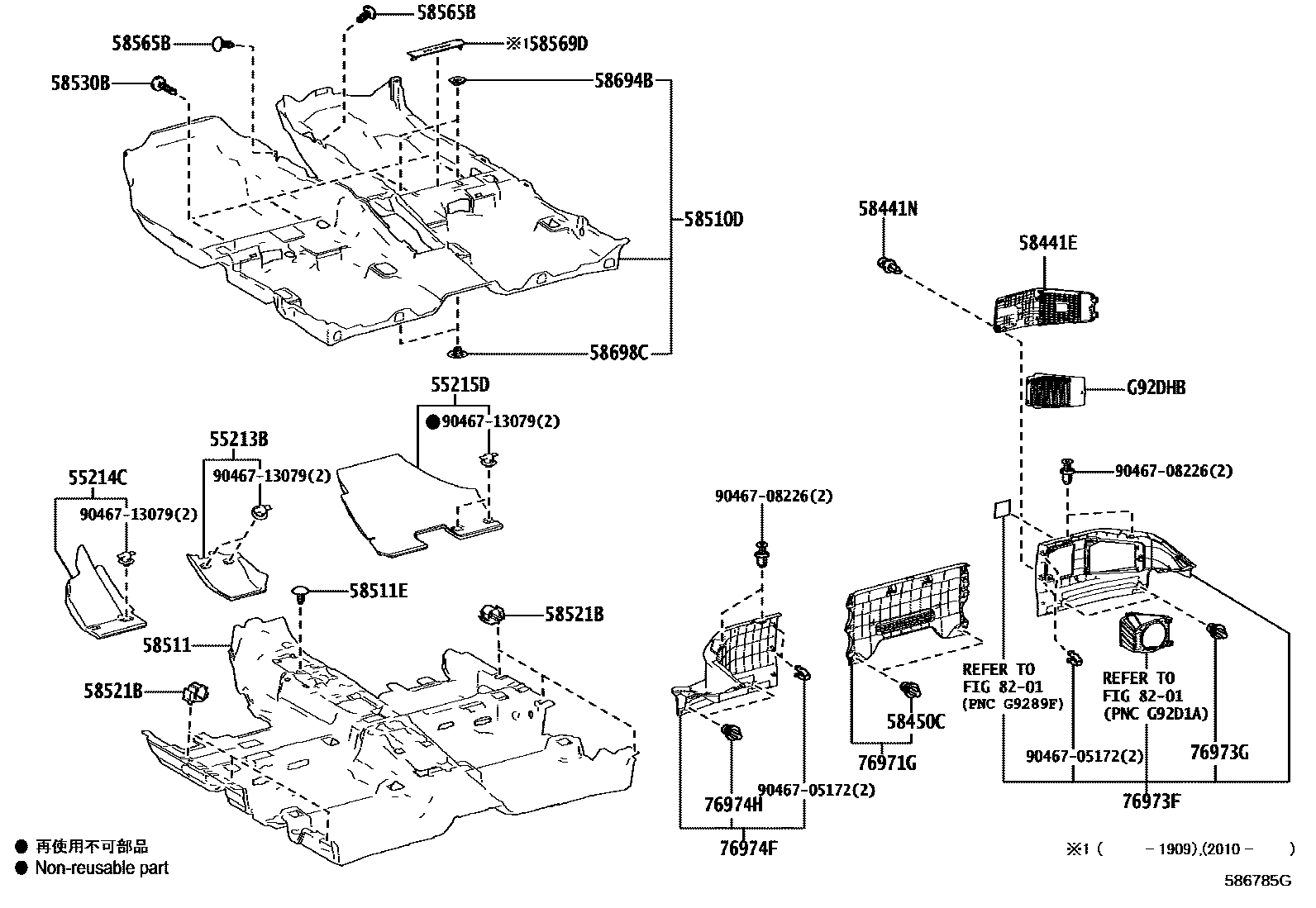

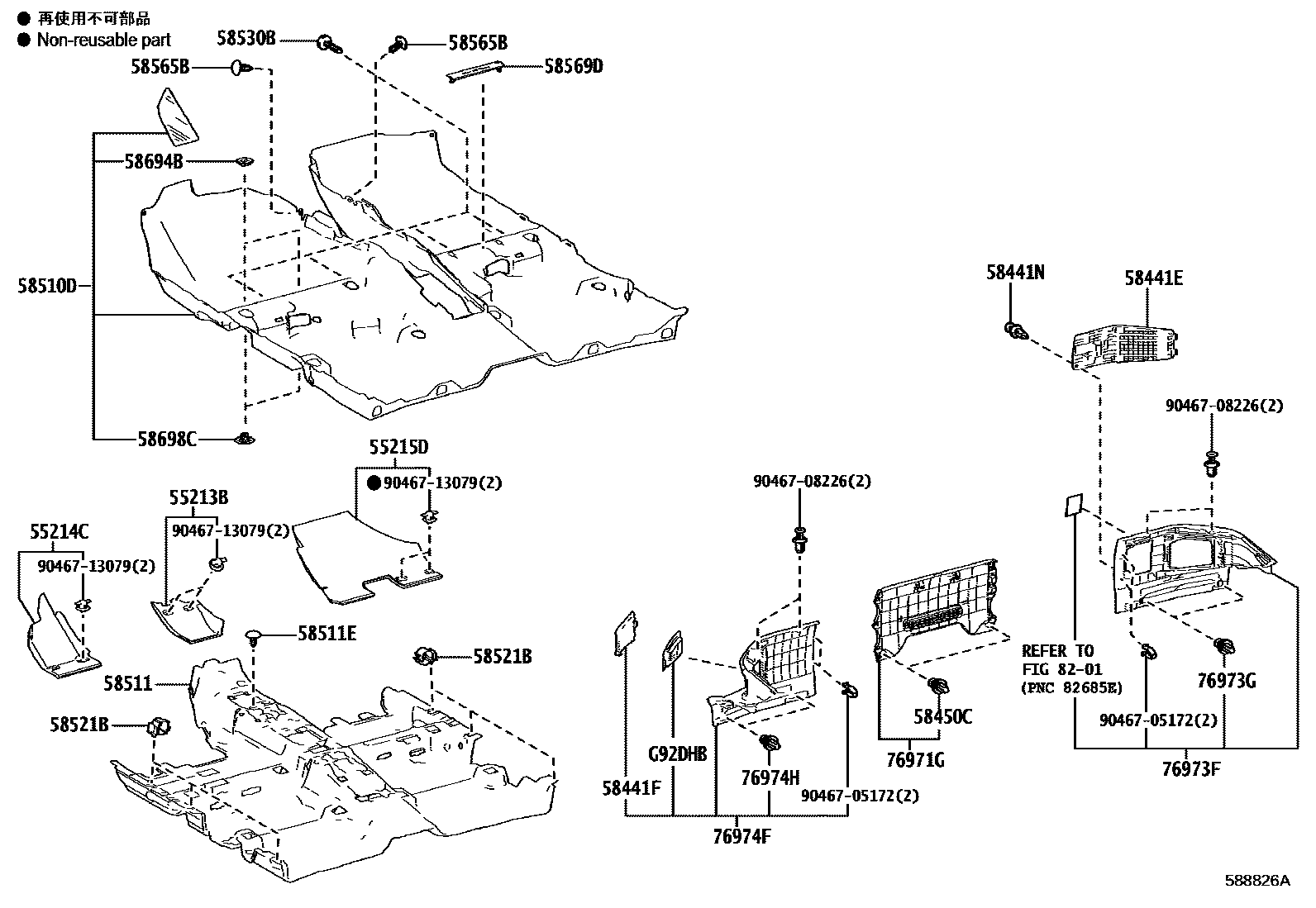

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 8 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55213B | No. 1 insulation pad for front wall panel | 55213-02280 · 55213-02290 |
| 55214C | No. 2 insulation pad for front wall panel | 55214-02220 · 55214-02240 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-02140 · 55215-02150 |
| 58450C | Air filter access hole cover sub-assembly | 90467-09206 · 90467-10161 · 90467-W0005 |
| 58511 | front floor mat | 58511-02160 · 58511-02170 · 58511-02180 · 58511-02190 · 58511-02310 · 58511-02320 · 58511-02330 · 58511-02340 |
| 58521B | carpet hook | 58521-02160 |
| 58694B | Pad the fixing plate | 58694-78010 |
| 58698C | Fixing plate under the pad | 58698-78010 |
| 76973G | CLIP, CACHE FACE INFERIEURE ARR, MD | 90467-09206 · 90467-10161 · 90467-W0005 |
| 76974H | CLIP, CACHE FACE INFERIEURE ARR, MG | 90467-09206 · 90467-10161 · 90467-W0005 |
| G92DHB | FILTRE, ADMISSION BATTERIE HT, NO.1 | G92DH-12050 · G92DH-12060 |
