Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

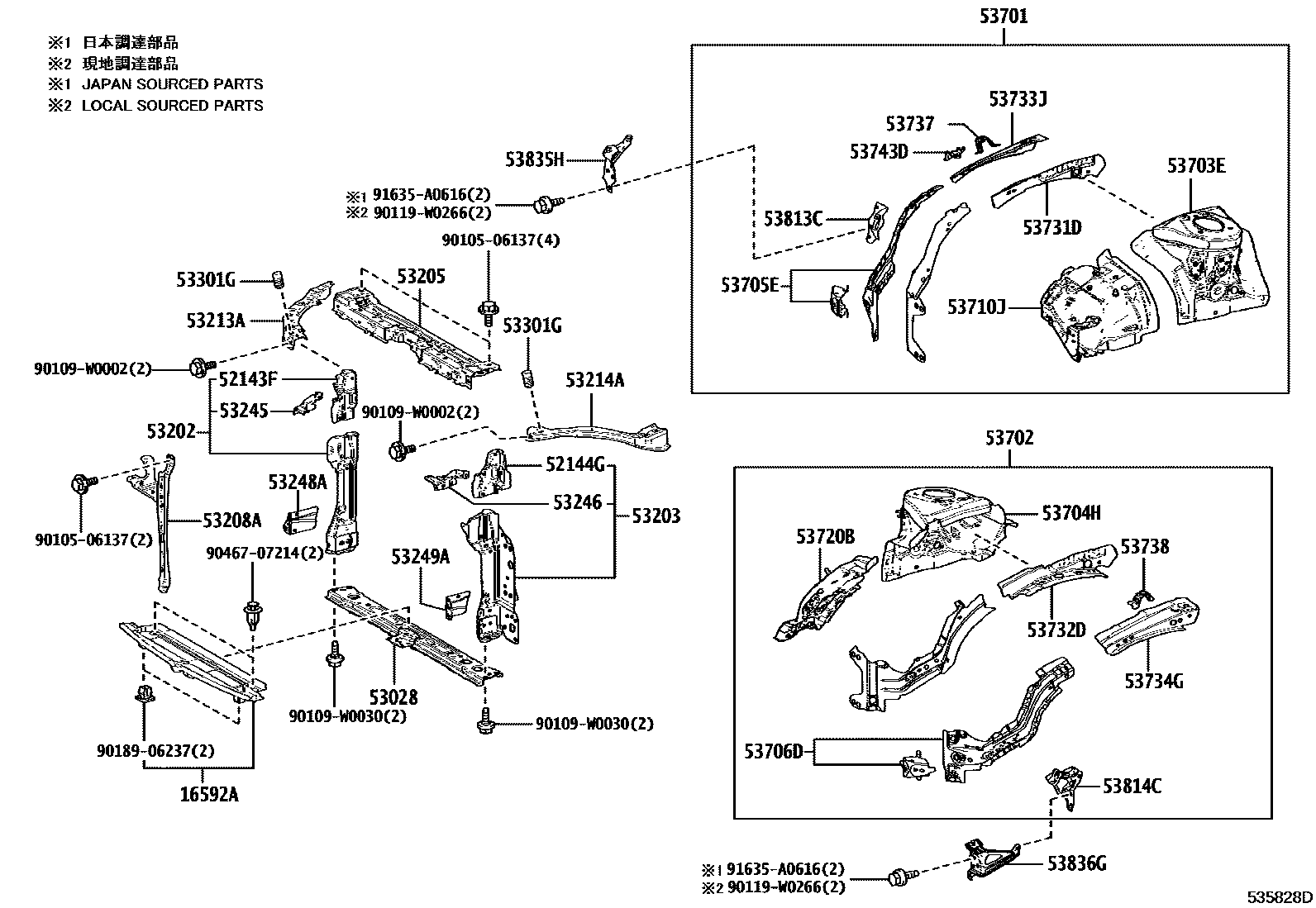

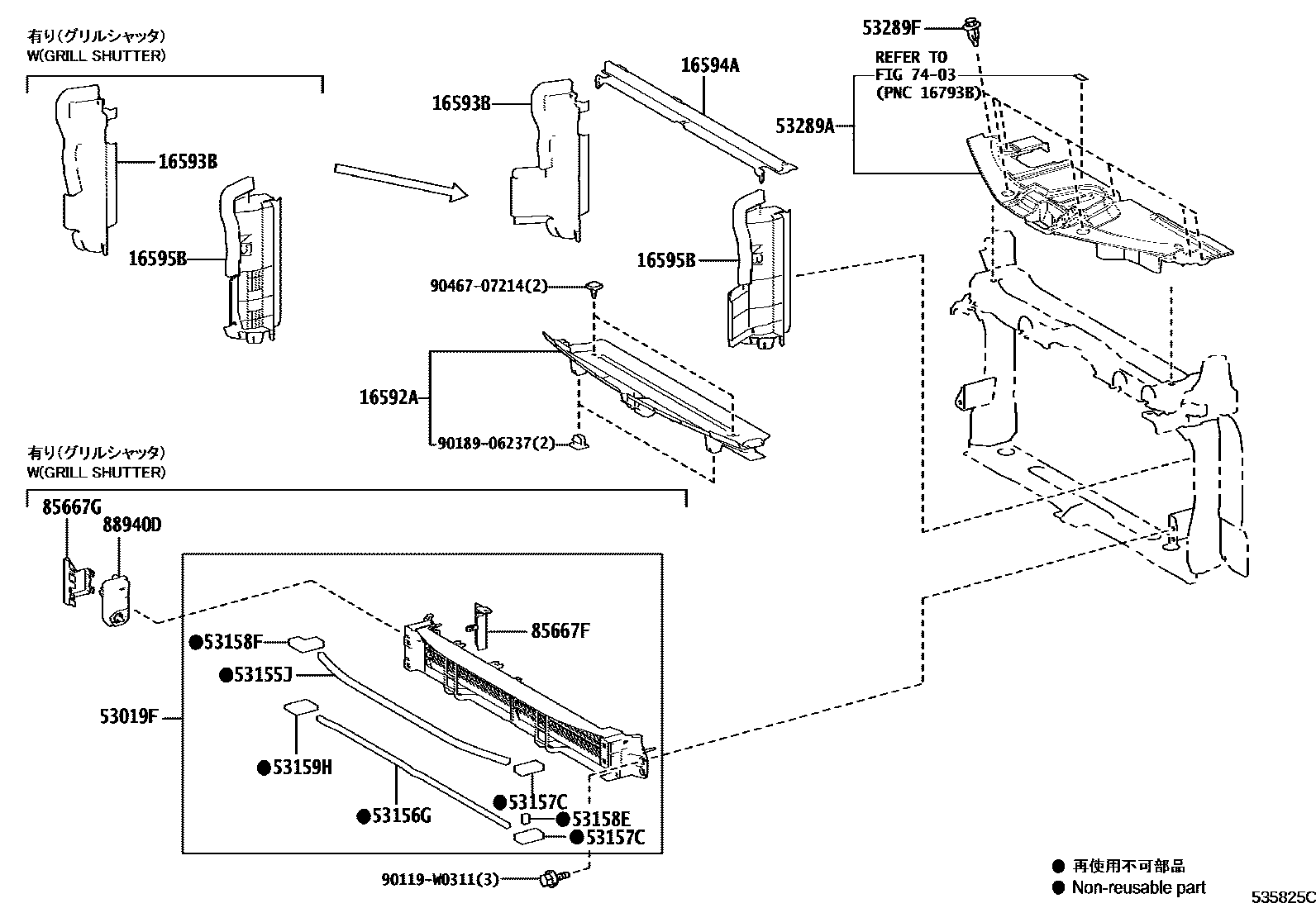

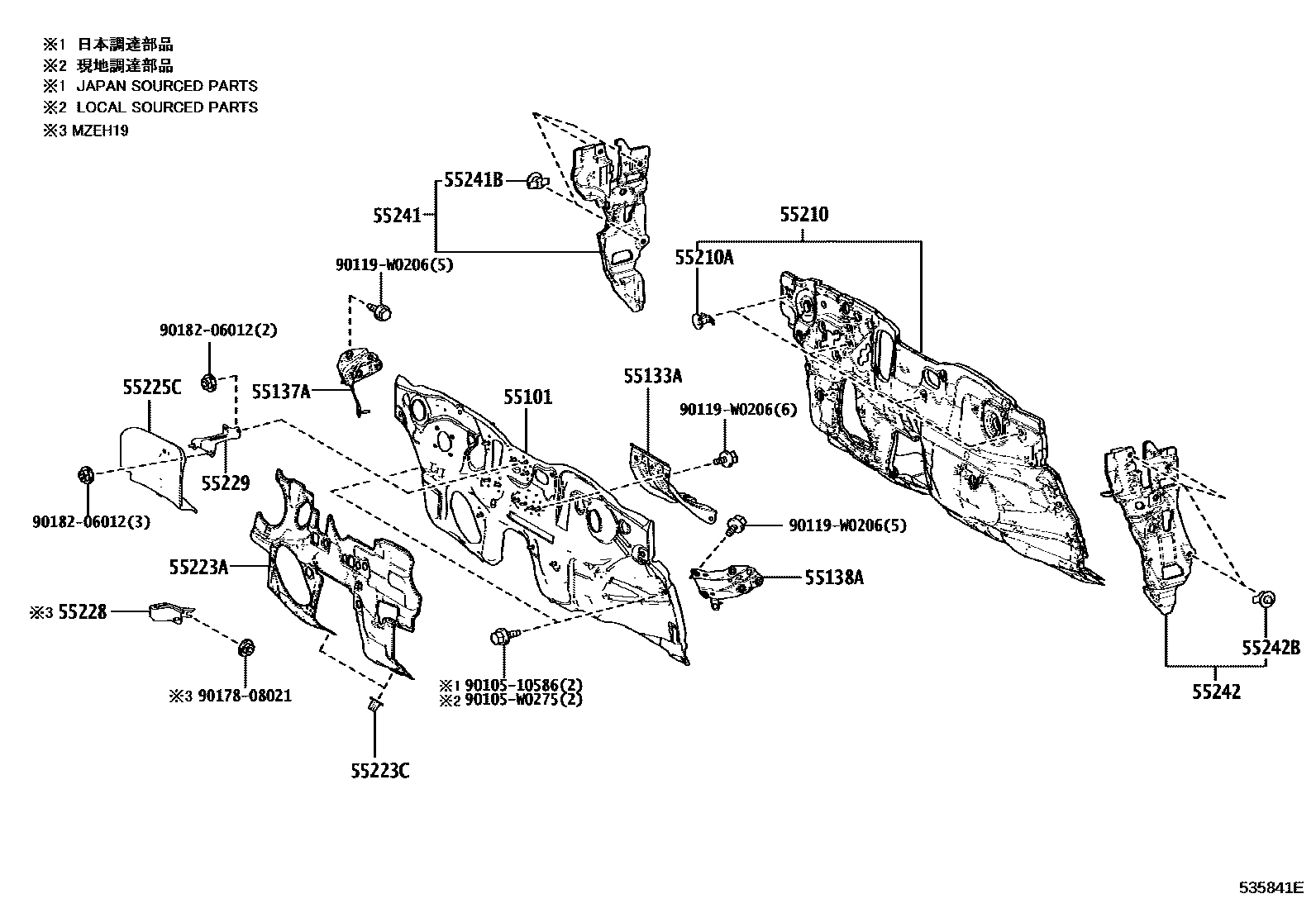

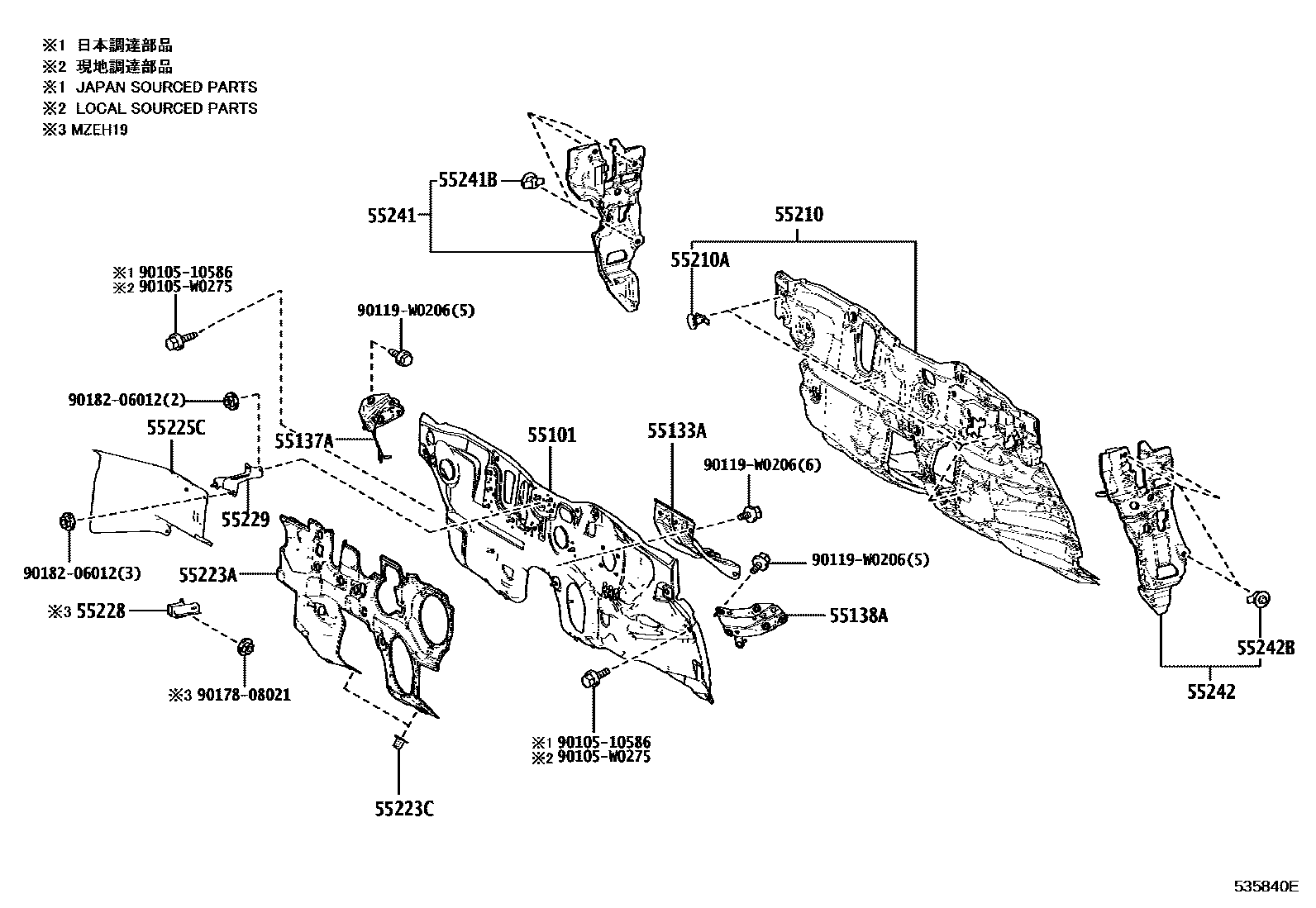

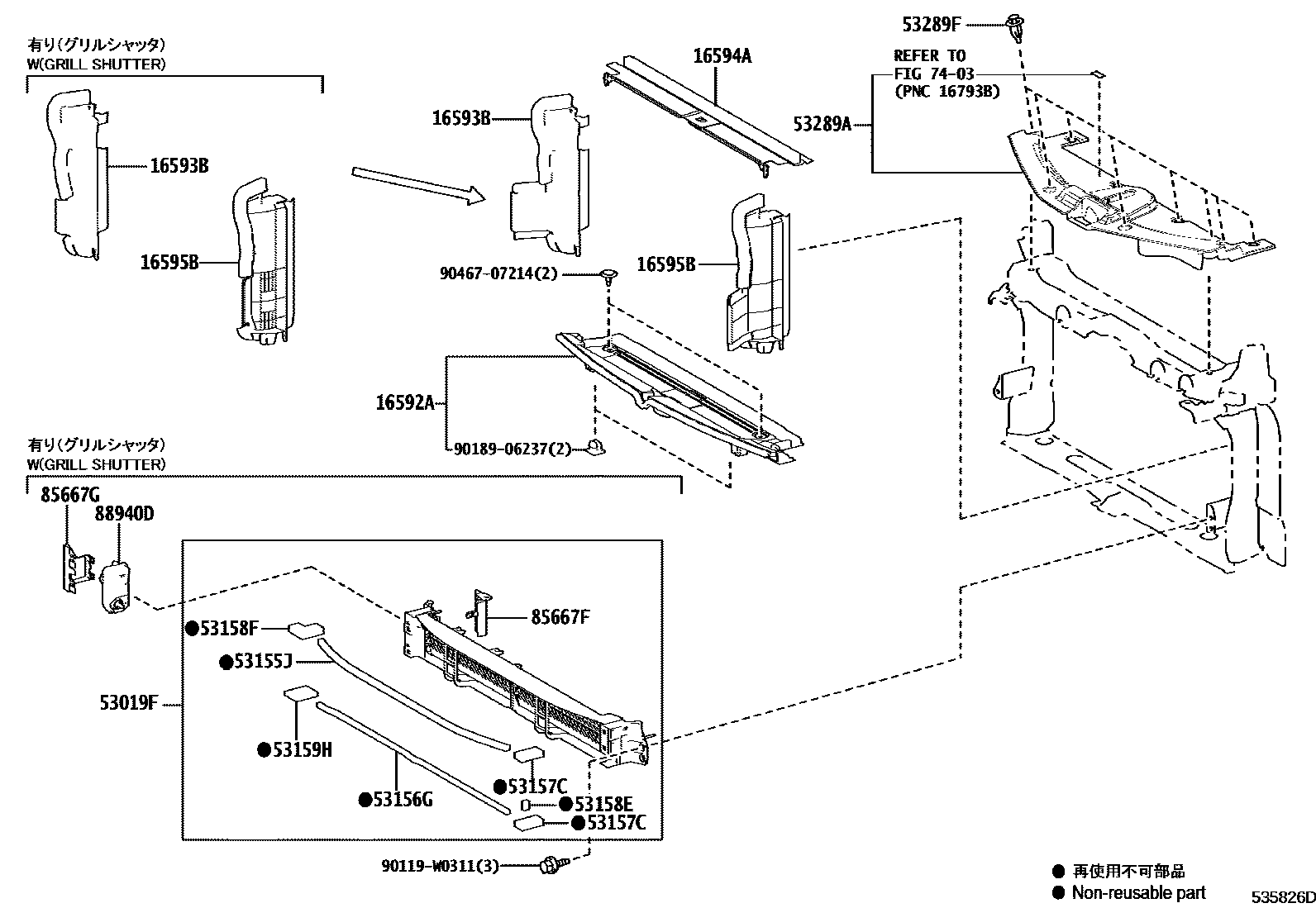

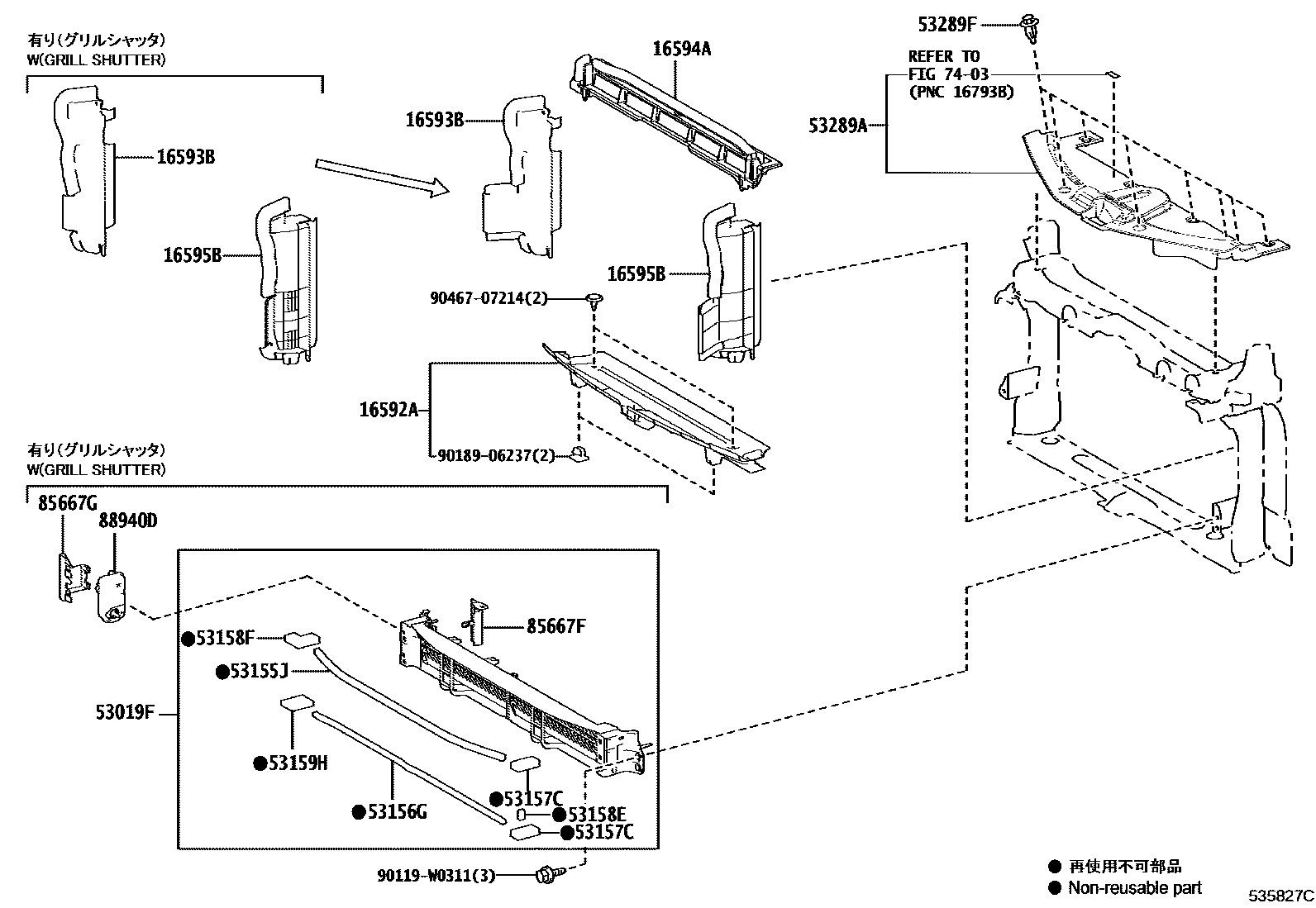

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 6 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16592A | GUIDE, AIR DU RADIATEUR, NO.3 | 16592-0T110 |
| 16593B | GUIDE, AIR DU RADIATEUR, NO.1 MD | 16593-0T140 · 16593-0T150 · 16593-F2040 · 16593-F2050 |
| 16594A | GUIDE, AIR DU RADIATEUR, NO.2 | 16594-0T090 · 16594-0Y070 · 16594-F2020 · 16594-F3040 |
| 16595B | GUIDE, AIR DU RADIATEUR, NO.1 MG | 16595-0T150 · 16595-0T160 · 16595-0Y120 · 16595-0Y130 · 16595-F2040 · 16595-F2050 |
| 52143F | Front bumper right side bracket | 52143-02070 |
| 52144G | Front bumper left bracket | 52144-02060 |
| 53019F | OBTURAT SS-ASS, RADIATEUR | 53019-12020 |
| 53028 | Radiator lower bracket sub-assembly | 53028-02060 · 53028-02070 |
| 53155J | JOINT ETANCHEITE NO.1 CALANDRE RADIATEUR | 53155-12100 |
| 53156G | JOINT ETANCHEITE NO.2 CALANDRE RADIATEUR | 53156-12040 |
| 53157C | JOINT, GRILLE DE CALANDRE, NO.3 | 53157-12010 |
| 53158E | JOINT, GRILLE RADIATEUR, NO.4 | 53158-12010 |
| 53158F | JOINT, GRILLE RADIATEUR, NO.4 | 53158-47010 |
| 53159H | JOINT, GRILLE DE CALANDRE, NO.5 | 53159-47030 |
| 53202 | Radiator right side bracket sub-assembly | 53202-02902 |
| 53203 | Radiator left bracket sub-assembly | 53203-02900 |
| 53205 | Radiator upper bracket sub-assembly | 53205-02320 · 53205-02330 · 53205-02490 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-02260 |
| 53213A | Radiator upper right bracket | 53213-02210 |
| 53214A | Radiator upper left bracket | 53214-02200 |
| 53245 | Right headlight bracket | 53245-02050 |
| 53246 | Left headlight bracket | 53246-02050 |
| 53248A | Radiator shutter right bracket | 53248-02020 |
| 53249A | Radiator shutter left bracket | 53249-02020 |
| 53289A | Radiator bracket opening cover | 53289-02060 · 53289-02070 · 53289-02071 · 53289-02270 · 53289-02280 |
| 53289F | CLIP(POUR CACHE OUVERTURE SUPPORT RADIATEUR) | 90467-07217 |
| 53301G | engine cover cushion | 90541-15037 |
| 53701 | Right front fender fender sub-assembly | 53701-02410 |
| 53702 | Left front fender fender sub-assembly | 53702-02340 |
| 53703E | SOUS-ENS. TABLIER, AILE AVANT, ARR MD | 53703-02200 |
| 53704H | SOUS-ENS. TABLIER, AILE AVANT, ARR MG | 53704-02200 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-02090 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-02090 |
| 53710J | Right front fender fender assembly | 53710-02140 |
| 53720B | Left front fender fender assembly | 53720-02160 |
| 53731D | Right front fender to cowl side upper beam | 53731-02130 |
| 53732D | Left front fender to cowl side upper beam | 53732-02130 |
| 53733J | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MD | 53733-F4010 |
| 53734G | TRVRSE, TABLIER AVNT AU COTE D'AUVENT, AVNT EXTER MG | 53734-F4010 |
| 53737 | Right front fender to front wall side sill | 53737-02210 |
| 53738 | Left front fender to front wall side sill | 53738-02180 |
| 53743D | RENFORT, EXTENSION AVANT TABLIER AILE AVANT, MD | 53743-F4010 |
| 53813C | Right front fender extension | 53813-F4010 |
| 53814C | Left front fender extension | 53814-F4010 |
| 53835H | ENTRETOISE, AILE AVANT A EXTENSION DROITE | 53835-02040 |
| 53836G | ENTRETOISE, AILE AVANT A EXTENSION GAUCHE | 53836-02040 |
| 55101 | Front apron sub-assembly | 55101-02D41 · 55101-02D51 · 55101-02E91 · 55101-02F01 |
| 55133A | Right reinforcement (front wall to floor) | 55133-F4010 |
| 55137A | Right side bracket (front wall to frame) | 55137-02210 |
| 55138A | Left side bracket (front wall to frame) | 55138-02200 |
| 55210 | Front wall insulation pad assembly | 55210-02670 · 55210-02680 |
| 55210A | clip | 90467-11122 |
| 55223A | Front wall outer heat insulation pad | 55223-02420 · 55223-02430 |
| 55223C | clip | 90467-06197 |
| 55225C | ISOLANT, THERMIQUE TABLEAU BORD | 55225-02030 · 55225-02050 · 55225-02140 · 55225-F4010 · 55225-F4020 |
| 55228 | PLAQUE, ISOLANTE TABLEAU DE BORD, NO.5 | 55228-02010 · 55228-02020 |
| 55229 | No. 4 heat insulation pad for front wall | 55229-02040 · 55229-F4010 |
| 55241 | Front panel No. 1 right side silencer | 55241-02040 · 55241-02050 |
| 55241B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 55242 | Front panel No. 1 left side silencer | 55242-02030 · 55242-02040 |
| 55242B | ATTACHE, SILENCIEUX COTE PANNEAU AVANT | 90467-13079 |
| 85667F | COUV, MOTEUR | 85667-12010 |
| 85667G | CACHE, MOTEUR | 85667-47010 |
| 88940D | ACTUAT ASS, GRILL ECHANG | 88940-12030 · 88940-12050 · 88940-12070 · 88940-12071 |
