Toyota COROLLA 后保险杠及附件 — Figure 5202

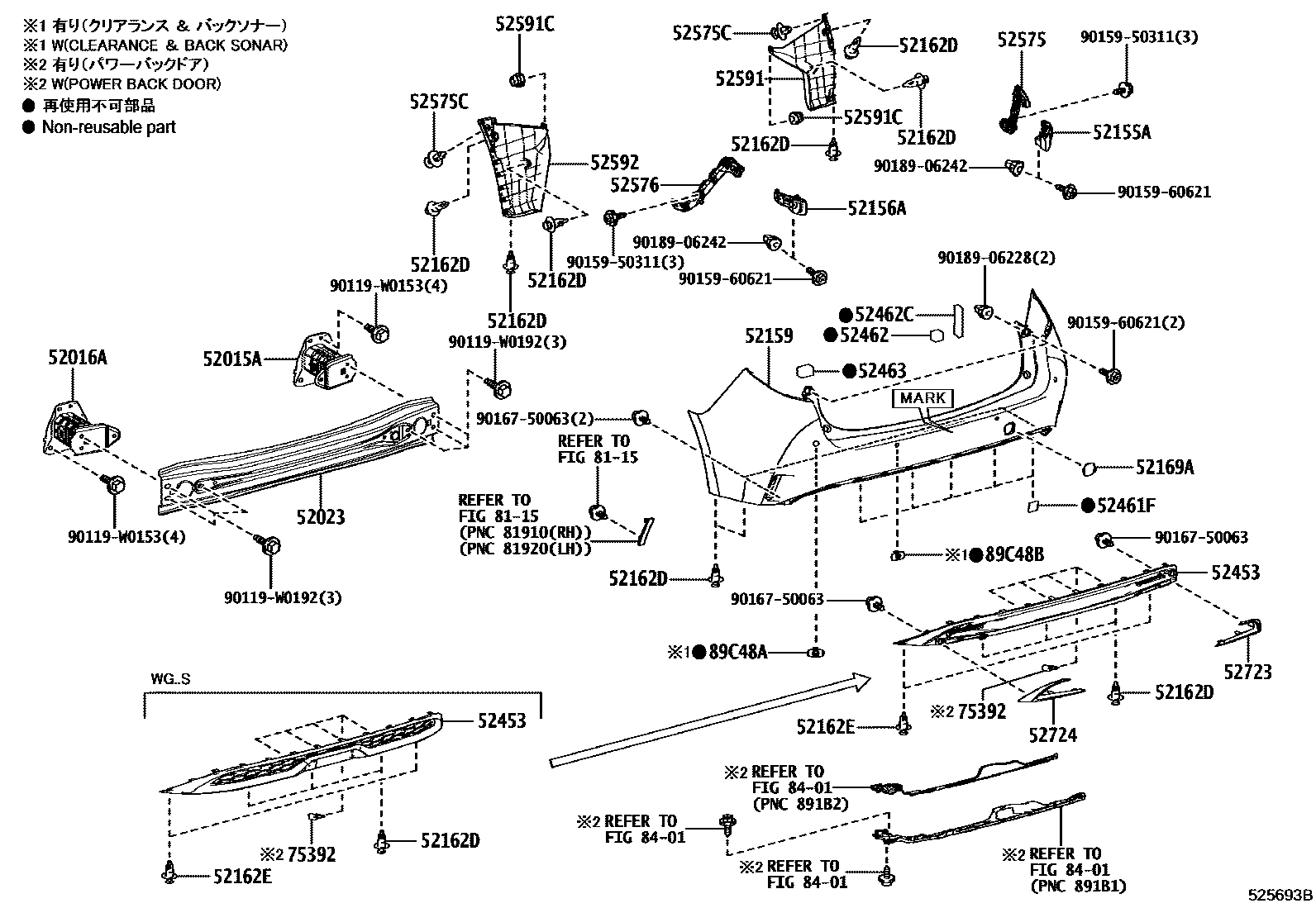

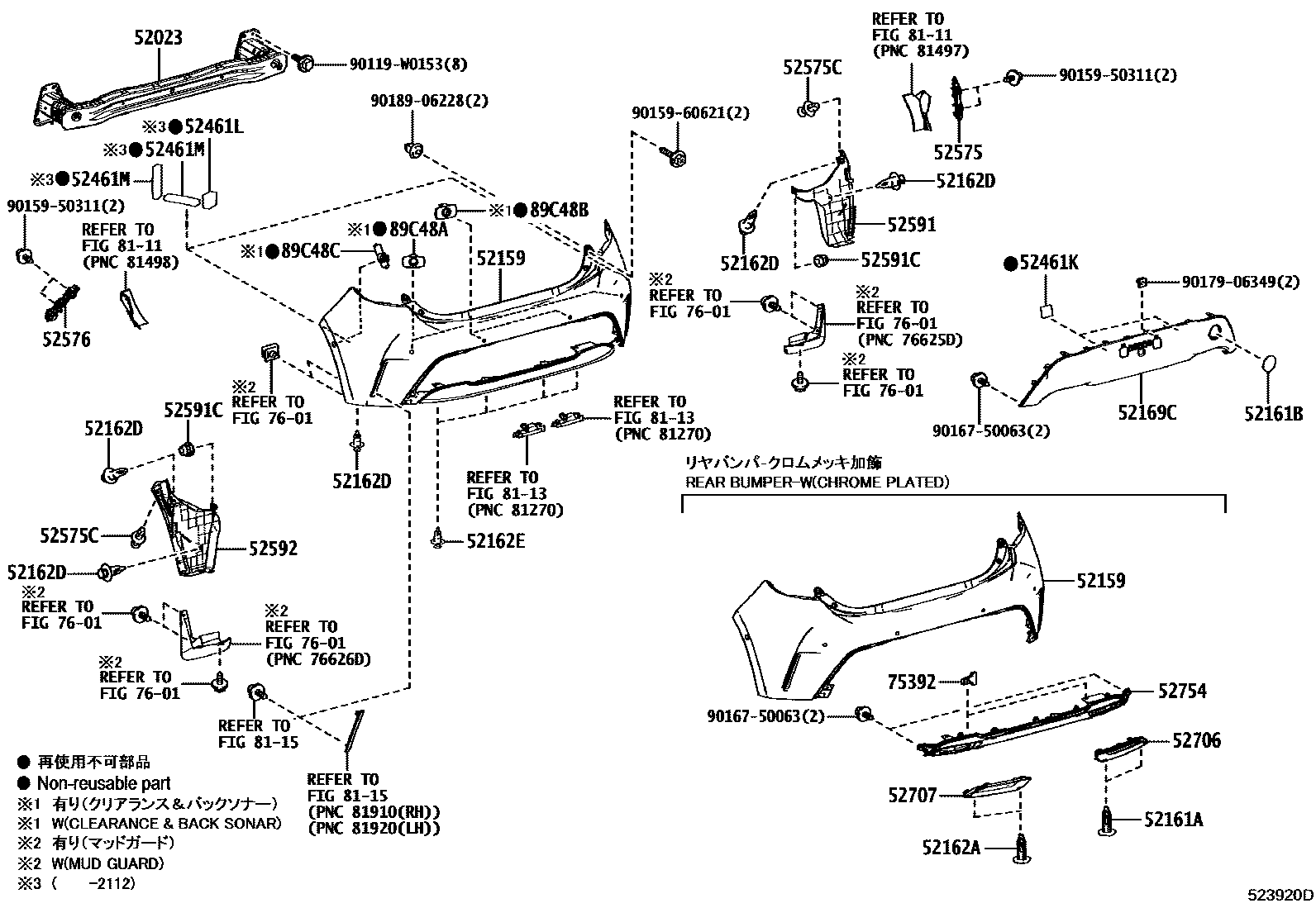

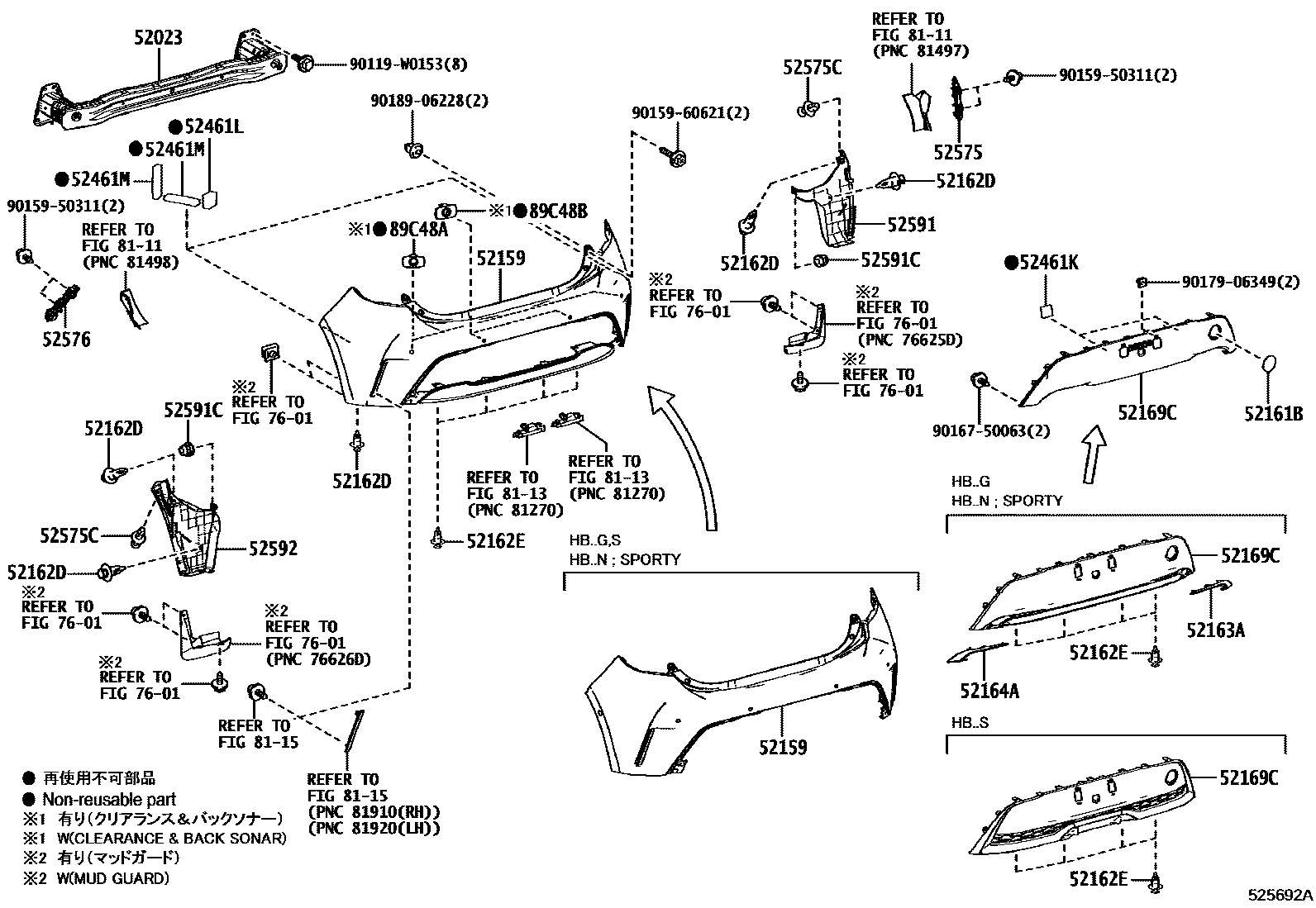

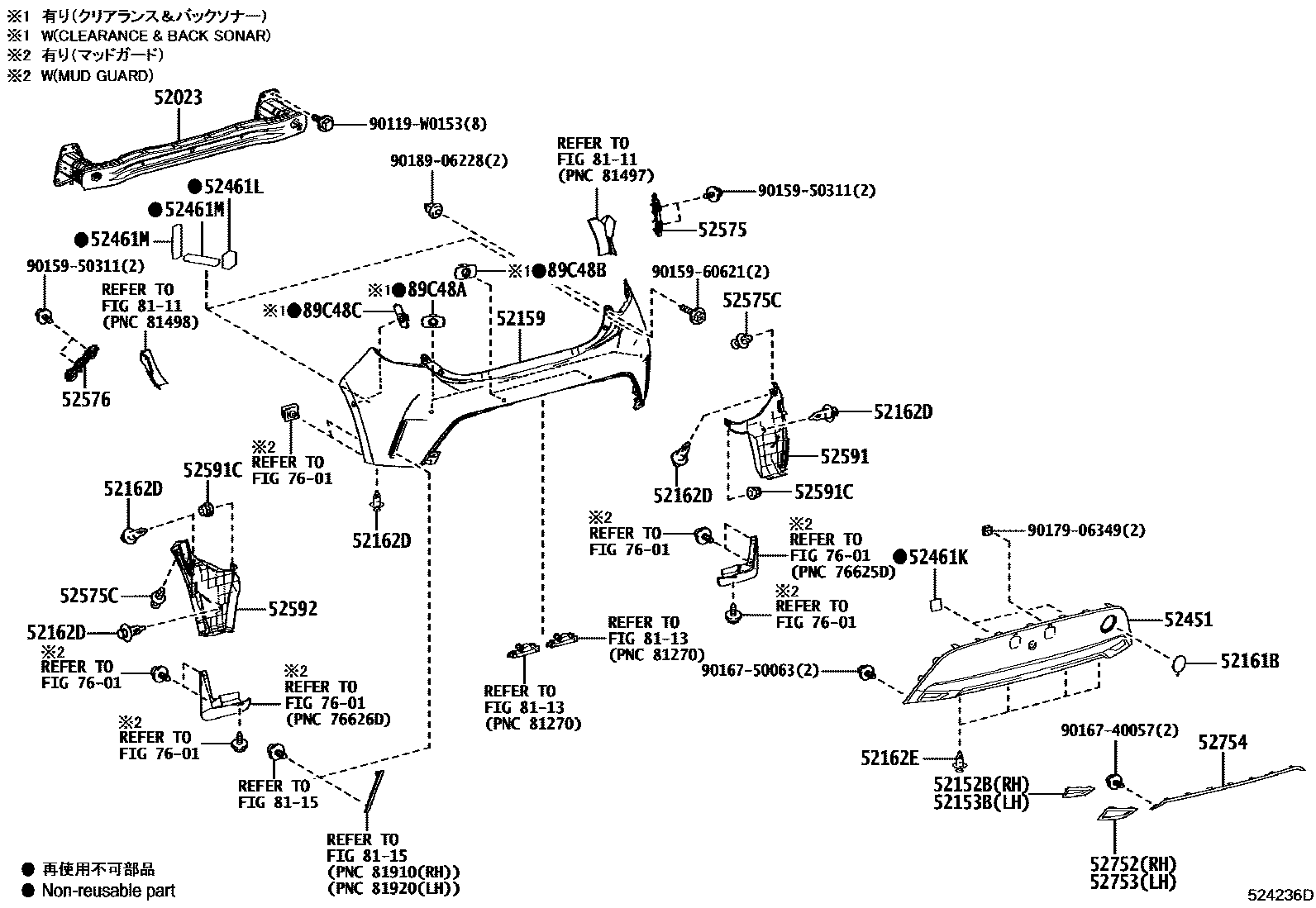

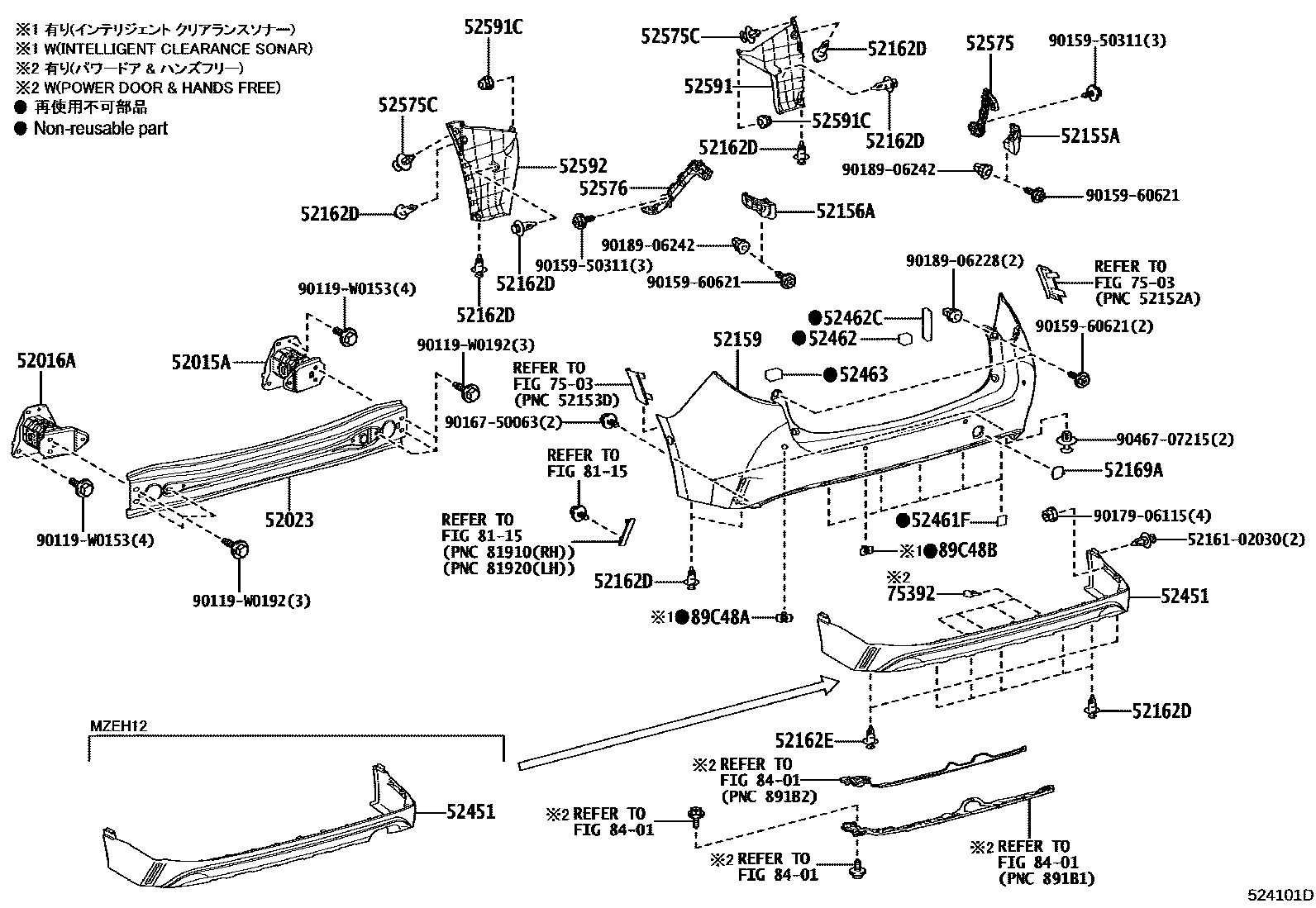

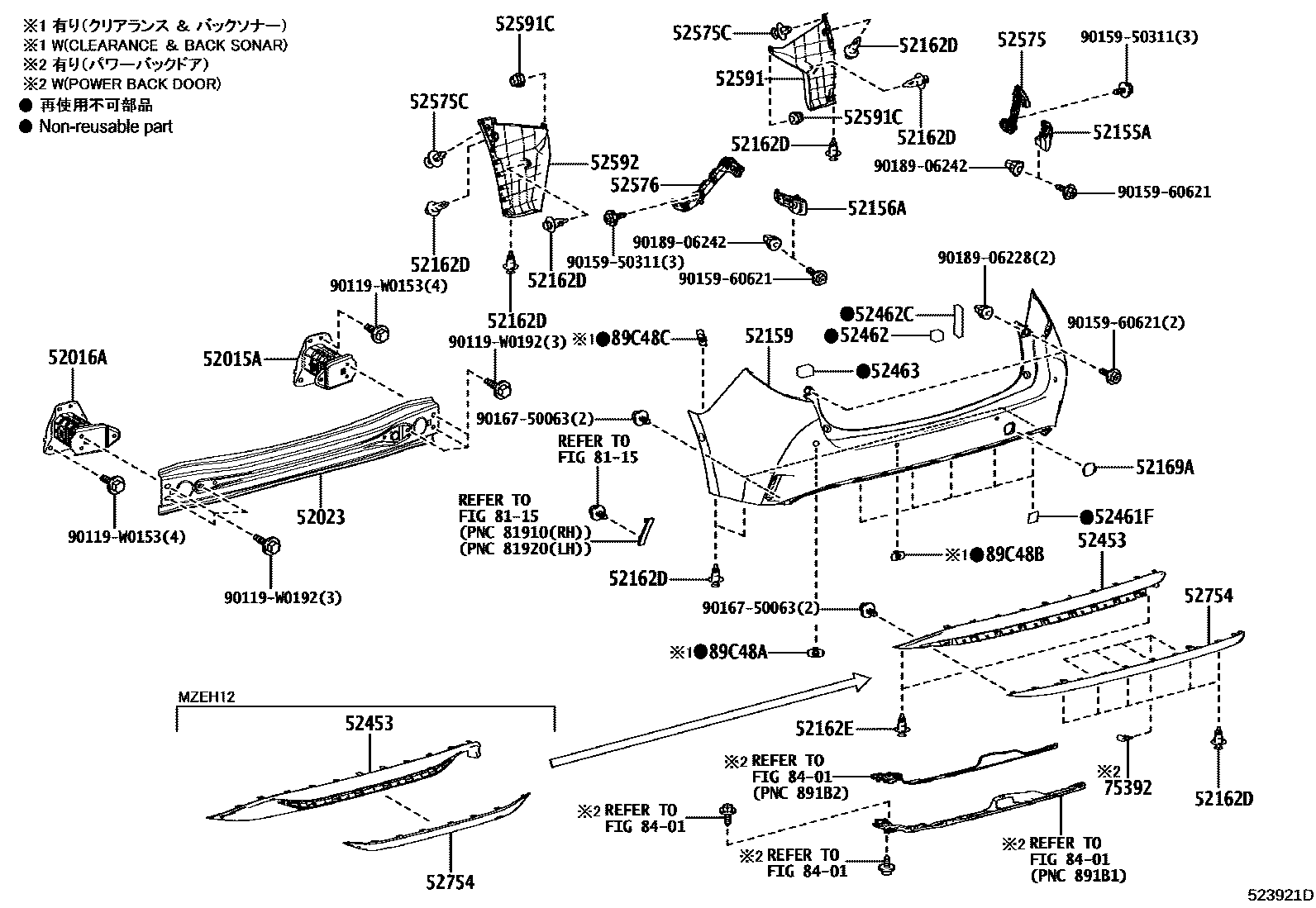

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 6 images and 42 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-02170 · 52015-02171 |
| 52016A | Rear bumper left arm sub-assembly | 52016-02150 · 52016-02151 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-02270 · 52023-02280 |
| 52152B | Rear bumper right extension | 52152-YY030 |
| 52153B | Rear bumper left extension | 52153-YY030 |
| 52155A | Rear bumper right side bracket | 52155-02150 |
| 52156A | Rear bumper left bracket | 52156-02140 |
| 52159 | rear bumper cover | 52159-0Z947 · 52159-0Z948 · 52159-0Z949 · 52159-0Z950 · 52159-0Z956 · 52159-0Z979 · 52159-0Z981 · 52159-0Z982 |
| 52161A | Rear bumper right side gap filler | 52161-02030 |
| 52161B | Rear bumper insert | 52161-02070 · 52161-02906 · 52161-YY010 |
| 52162A | Rear bumper left insert | 52161-02030 |
| 52162D | Rear bumper insert | 52161-02030 |
| 52162E | Rear bumper insert | 52161-02030 |
| 52163A | Rear bumper right side fender | 52163-02200 |
| 52164A | Rear bumper left fender | 52164-02150 |
| 52169A | Rear bumper No. 3 side bracket | 52169-02900 |
| 52169C | Rear bumper lower cover | 52169-02100 · 52169-02901 · 52169-02903 · 52169-YP903 |
| 52451 | Rear bumper anti-impact parts | 52451-YY010 · 52451-YY020 · 52451-YY030 |
| 52453 | PROTECTION, PARE-CHOCS ARRIERE, CENTRALE | 52453-02190 · 52453-02210 · 52453-02901 · 52453-02902 · 52453-02904 · 52453-YP900 |
| 52461F | rear bumper lining | 52461-02190 |
| 52461K | COUSSIN, PARE-CHOCS ARRIERE, NO.1 | 52461-02080 |
| 52461L | COUSSIN, PARE-CHOCS ARRIERE, NO.2 | 52461-02100 |
| 52461M | COUSSIN, PARE-CHOCS ARRIERE, NO.3 | 52461-02180 |
| 52462 | Rear bumper right side lining | 52462-02250 |
| 52462C | TAMPON, PARE-CHOCS ARR, MD | 52462-02300 |
| 52463 | Rear bumper left lining | 52462-02370 |
| 52575 | Rear bumper right side fixing bracket | 52575-02190 · 52575-02191 · 52575-02200 · 52575-02201 |
| 52575C | ATTACHE, RETENUE LATERALE PARE-CHOCS ARR | 90467-05170 |
| 52576 | Rear bumper left side fixing bracket | 52576-02190 · 52576-02191 · 52576-02200 · 52576-02201 |
| 52591 | Rear bumper right seal | 52591-02390 · 52591-02400 |
| 52591C | ATTACHE, JOINT LAT PARE-CHOCS ARR | 90467-06121 |
| 52592 | Rear bumper left seal | 52592-02360 · 52592-02370 |
| 52706 | Rear bumper right side protective strip sub-assembly | 52706-02010 |
| 52707 | Rear bumper left protection strip sub-assembly | 52707-02010 |
| 52723 | Rear bumper right extension protection strip | 52723-02020 · 52723-02030 |
| 52724 | Rear bumper left extension protection strip | 52724-02020 · 52724-02030 |
| 52752 | Rear bumper right side protective strip | 52752-YY010 |
| 52753 | Rear bumper left protective strip | 52753-YY010 |
| 52754 | Rear bumper No. 2 protective strip | 52754-02900 · 52754-02901 · 52754-02902 · 52754-YY010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 89C48A | ARRETOIR, CAPTEUR A ULTRASONS, D'ANGLE ARRIERE | 89348-33130 |
| 89C48B | ARRETOIR, CAPTEUR A ULTRASONS, CENTRAL ARRIERE | 89348-33130 · 89348-58110 |
