Toyota COROLLA 前保险杠及附件 — Figure 5201

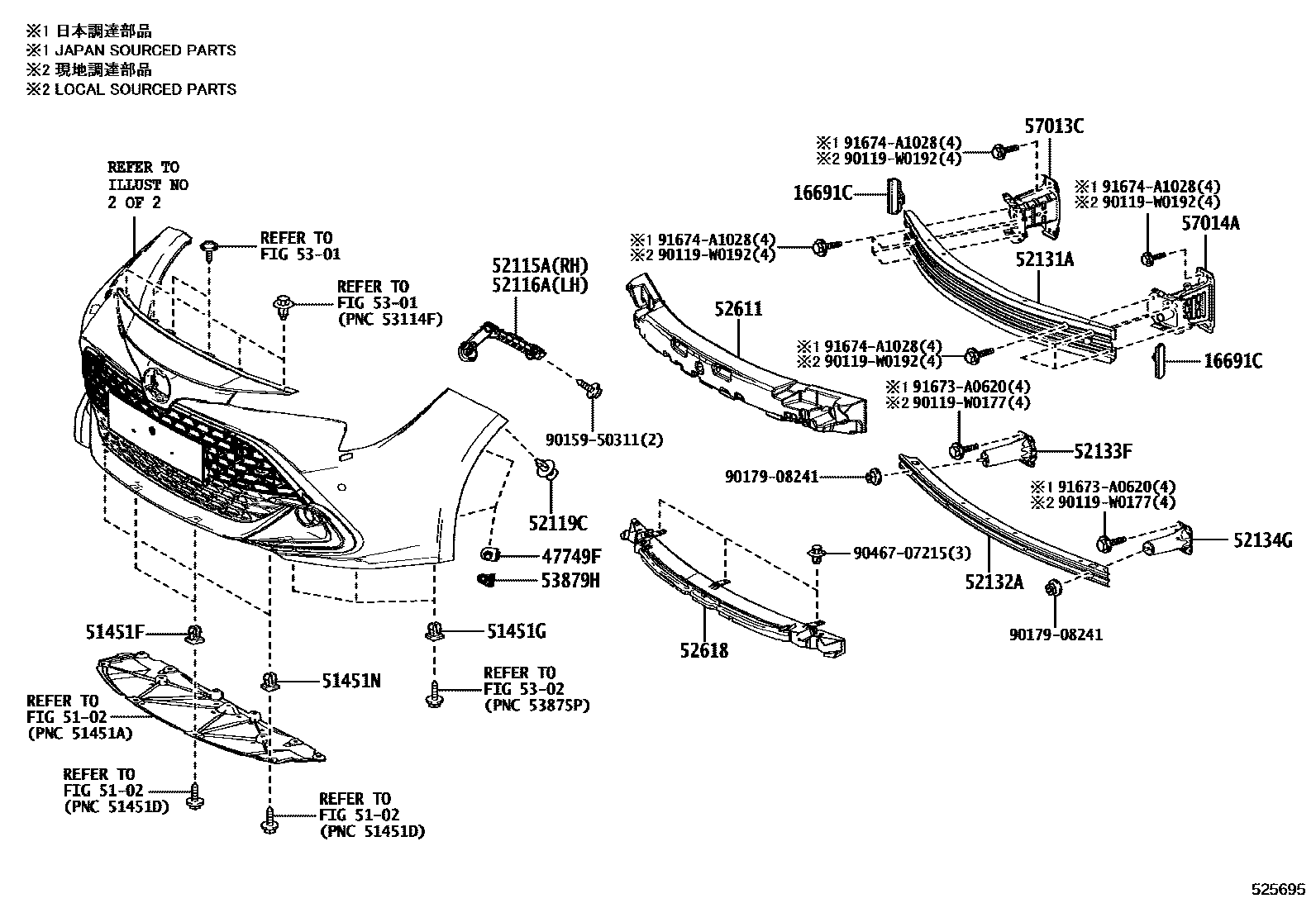

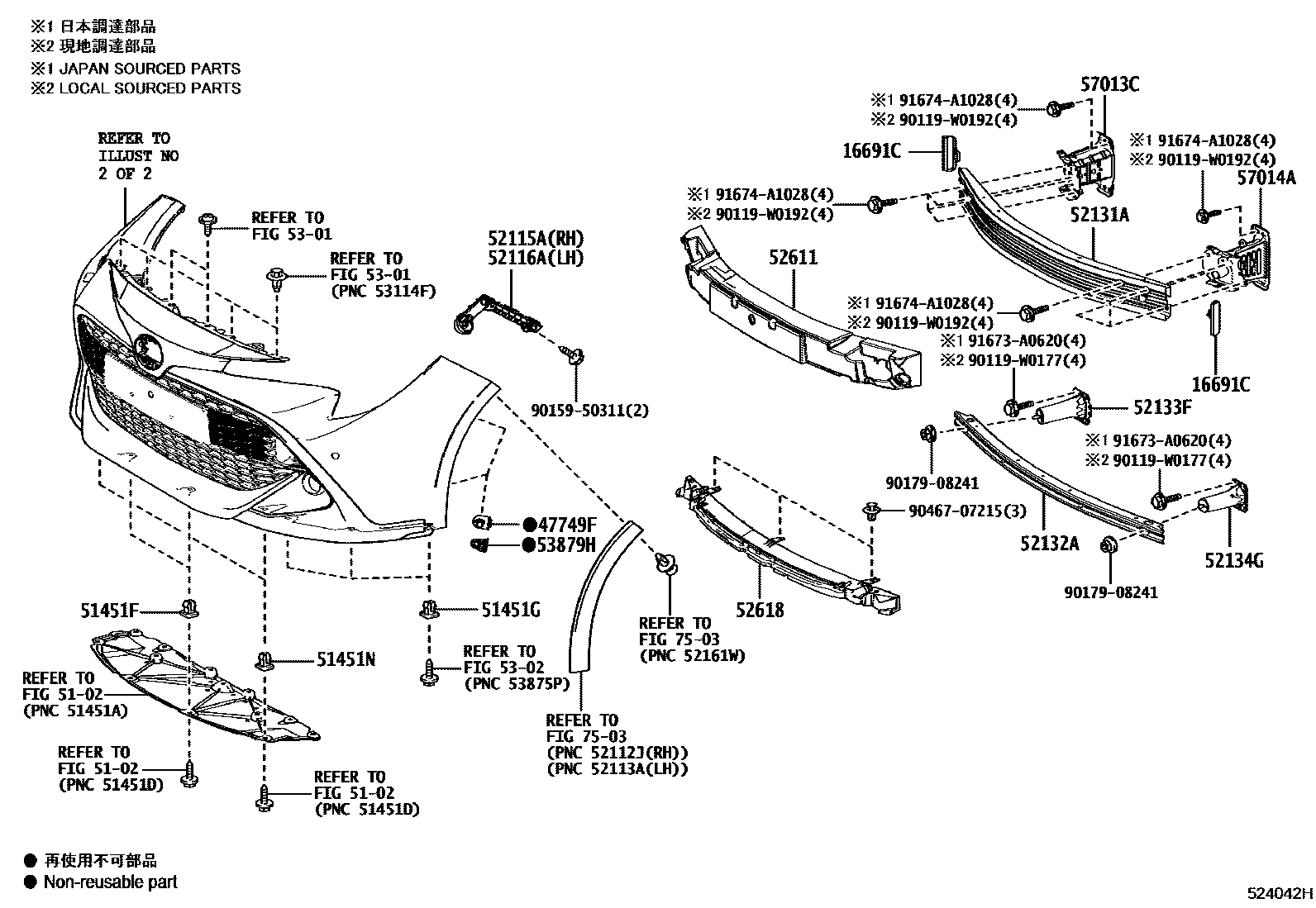

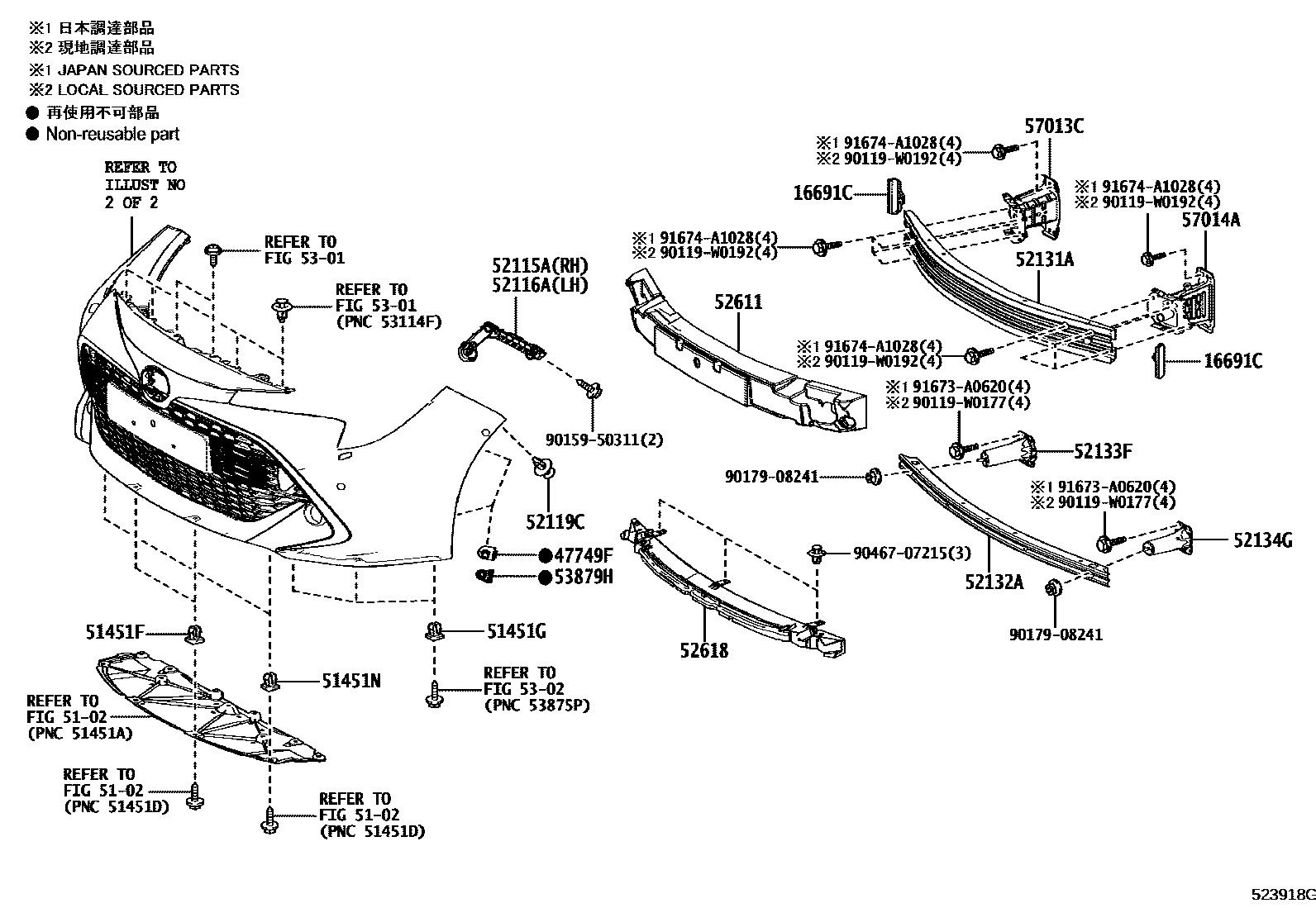

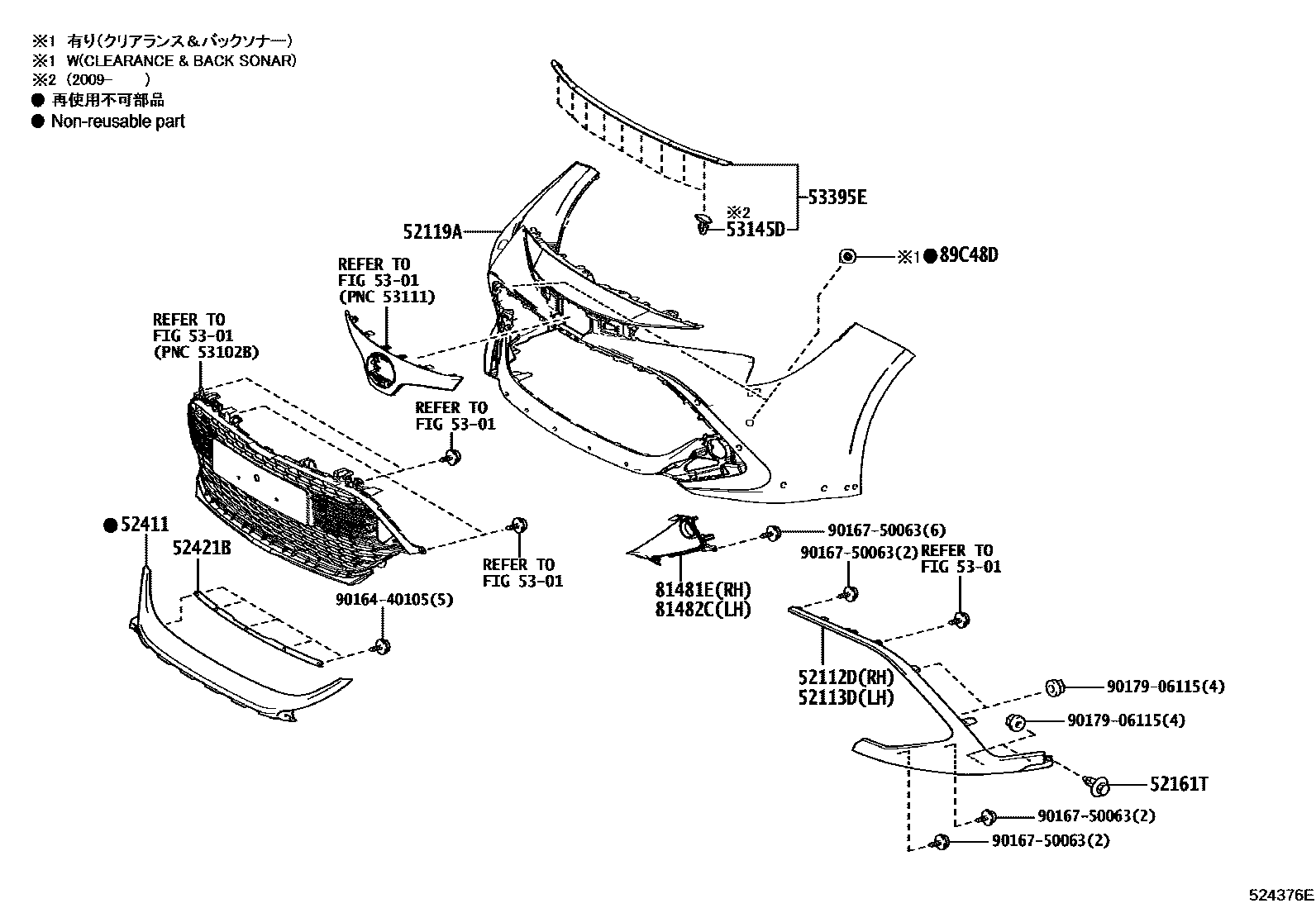

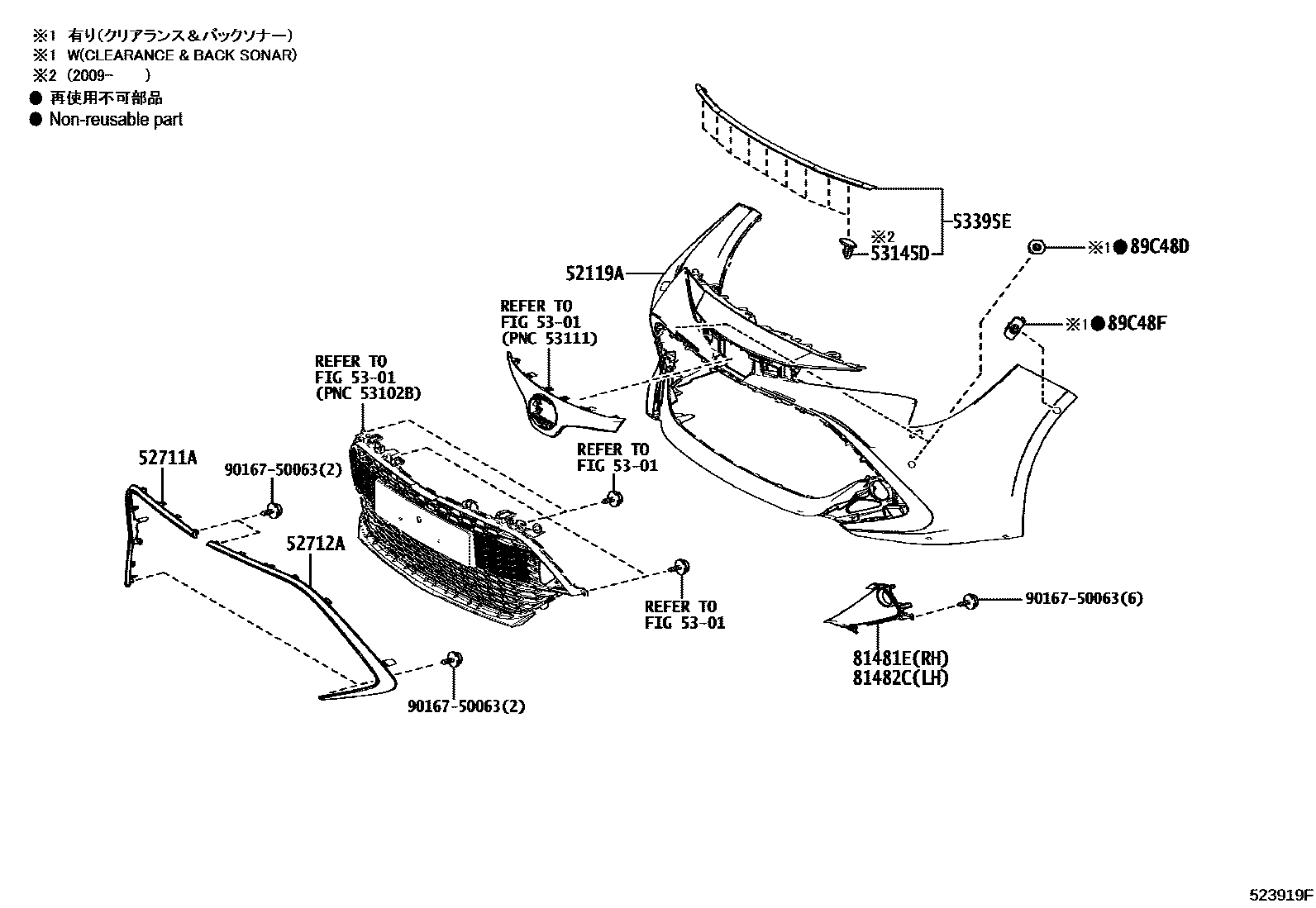

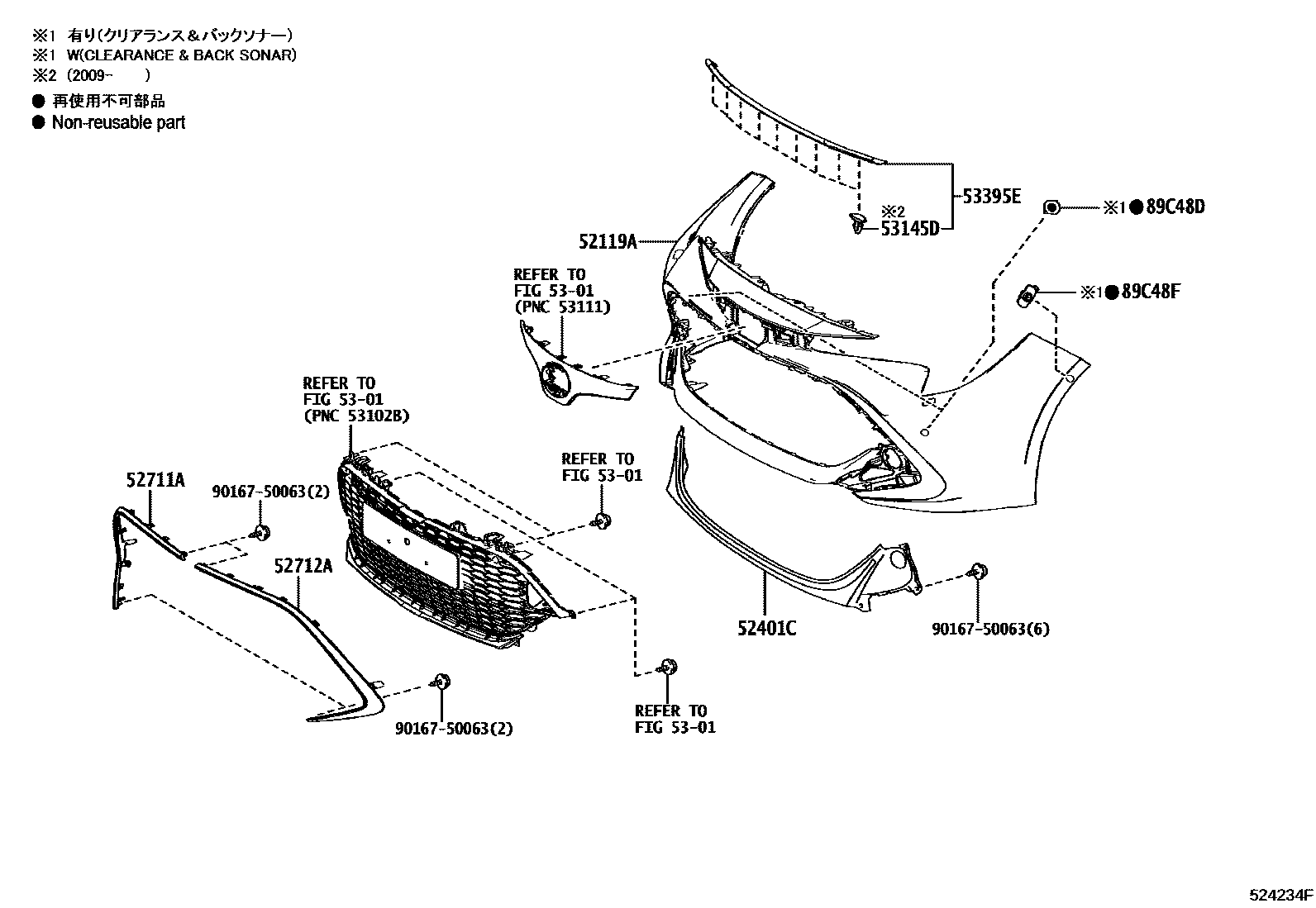

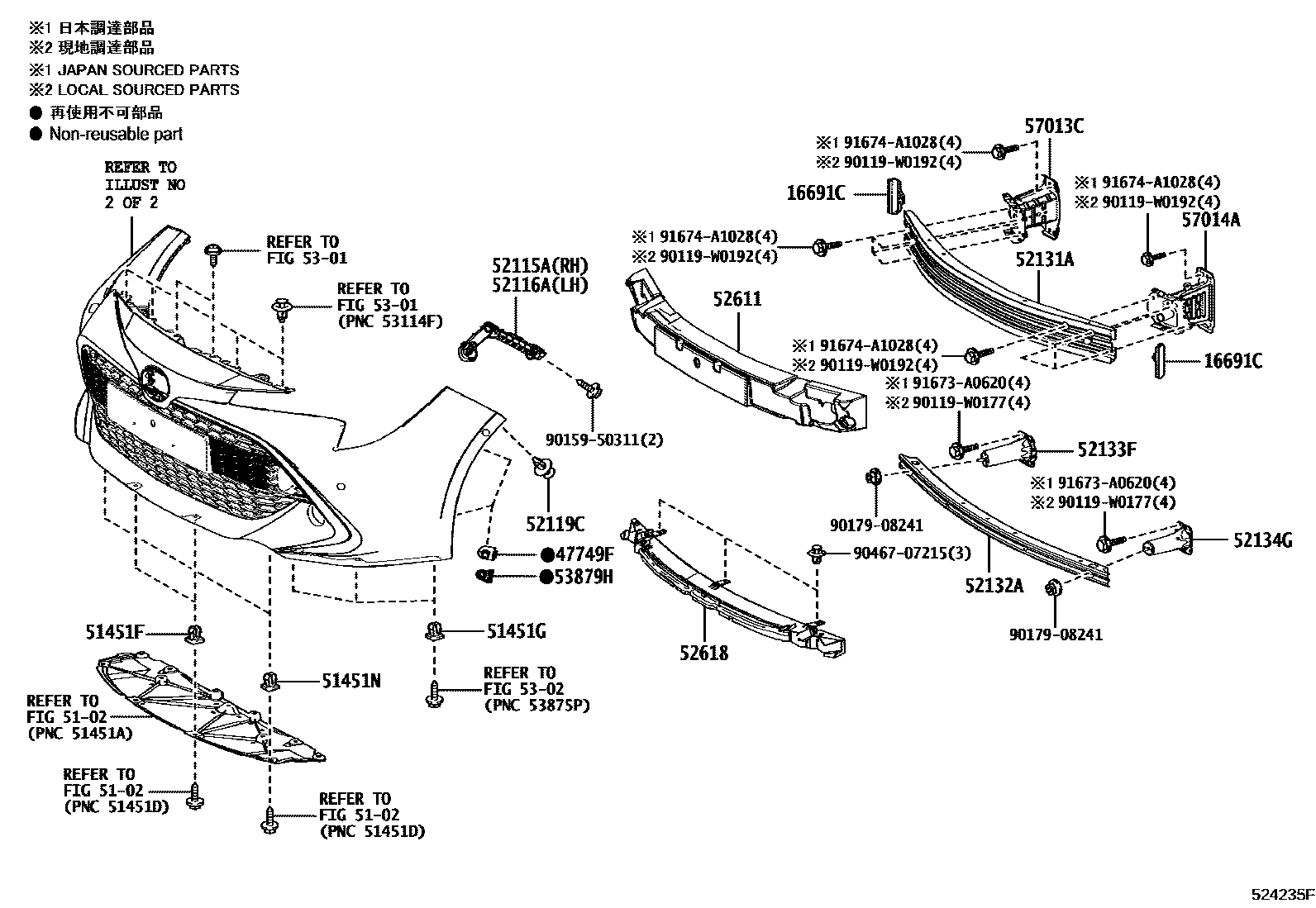

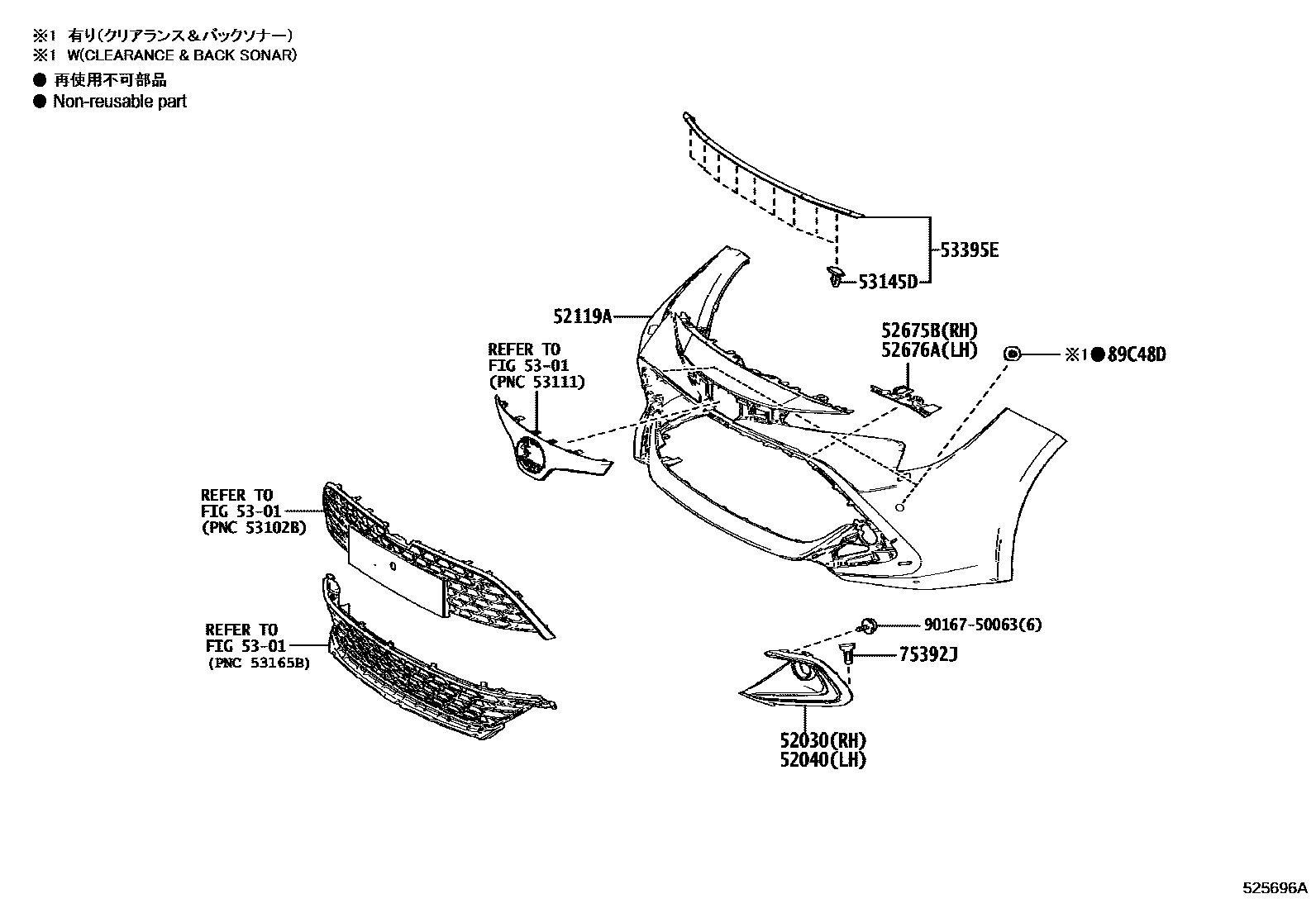

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 8 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16691C | PLAQUE, GUIDE AIR RADIATEUR SECONDAIRE, AVANT | 16691-0T030 |
| 47749F | ATTACHE, BROCHE FIXATION | 47749-02040 |
| 51451F | OEILLET, NO.1 | 90189-06193 |
| 51451G | OEILLET, NO.2 | 90189-06193 |
| 51451N | OEILLET, NO.3 | 90189-06193 |
| 52030 | Front bumper right hole cover assembly | 52030-02360 · 52030-02370 · 52030-02410 · 52030-02420 |
| 52040 | Front bumper left hole cover assembly | 52040-02390 · 52040-02420 · 52040-02450 · 52040-02460 |
| 52112D | Front bumper right extension | 52112-YY030 |
| 52113D | Front bumper left extension | 52113-YY030 |
| 52115A | Front bumper right side bracket | 52115-02330 |
| 52116A | Front bumper left bracket | 52116-02470 |
| 52119A | front bumper cover | 52119-F2907 · 52119-F2908 · 52119-F2909 · 52119-F2910 · 52119-F2917 · 52119-F2918 · 52119-F2919 · 52119-F2920 · 52119-F2944 · 52119-F2945 · 52119-F2946 · 52119-F2947 · 52119-F2951 · 52119-F2952 |
| 52119C | ATTACHE, PROTECTION PARE-CHOCS AVANT | 90467-05170 |
| 52131A | Front bumper reinforcement | 52131-02290 |
| 52132A | No. 2 front bumper reinforcement | 52132-02070 · 52132-02140 |
| 52133F | Front bumper right side bracket | 52133-02110 |
| 52134G | Front bumper left bracket | 52133-02110 |
| 52161T | front bumper insert | 52161-02030 |
| 52401C | SOUS-ENS. GARDE-BOUE, PARE-CHOCS AVANT | 52401-YP010 · 52401-YY010 |
| 52411 | Front bumper anti-collision bar | 52411-YY010 |
| 52421B | Front bumper No. 1 spacer | 52421-YY010 |
| 52611 | front bumper energy absorber | 52611-02520 · 52611-02720 |
| 52618 | Front bumper lower shock absorber | 52618-02180 |
| 52675B | SUPPORT, COTE PARE-CHOCS AVANT, NO.1 MD | 52675-02010 |
| 52676A | SUPPORT, COTE PARE-CHOCS AVANT, NO.1 MG | 52676-02010 |
| 52711A | front bumper decorative panel | 52711-02220 · 52711-02230 · 52711-02240 · 52711-02320 |
| 52712A | Front bumper left decorative panel | 52712-02030 · 52712-02040 · 52712-02050 · 52712-02160 |
| 53145D | Radiator grille clip | 53145-60030 |
| 53395E | Engine cover to front end plate seal | 53395-02260 |
| 53879H | Front fender lining fixing parts | 53879-02160 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-02190 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-02190 |
| 75392J | External protective strip fixings | 75392-35220 |
| 81481E | Right fog light cover | 81481-02890 · 81481-02A00 · 81481-02A10 · 81481-02A11 · 81481-02A20 · 81481-02A21 |
| 81482C | Left fog light cover | 81482-02880 · 81482-02890 · 81482-02A00 · 81482-02A01 · 81482-02A10 · 81482-02A11 |
