Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

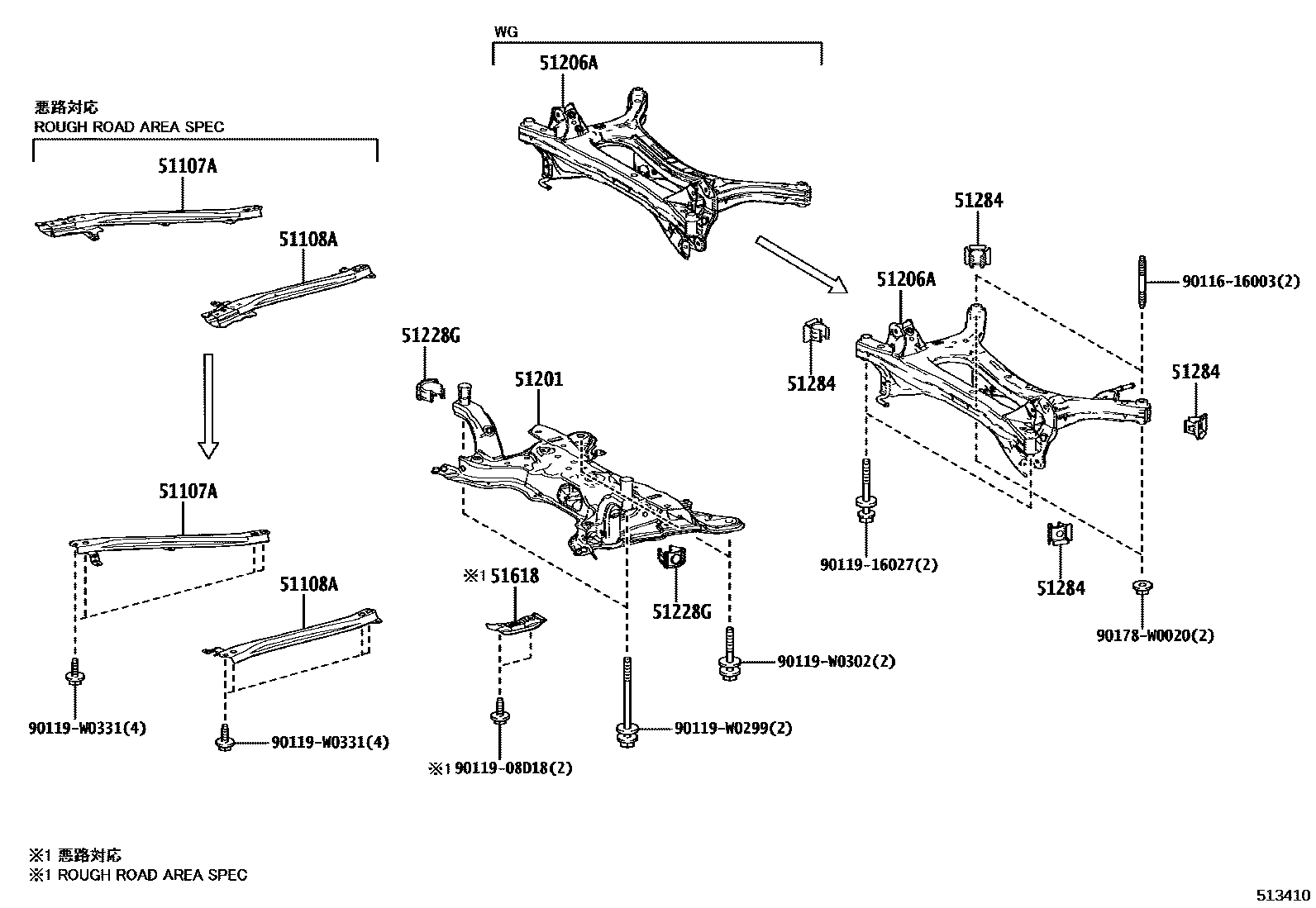

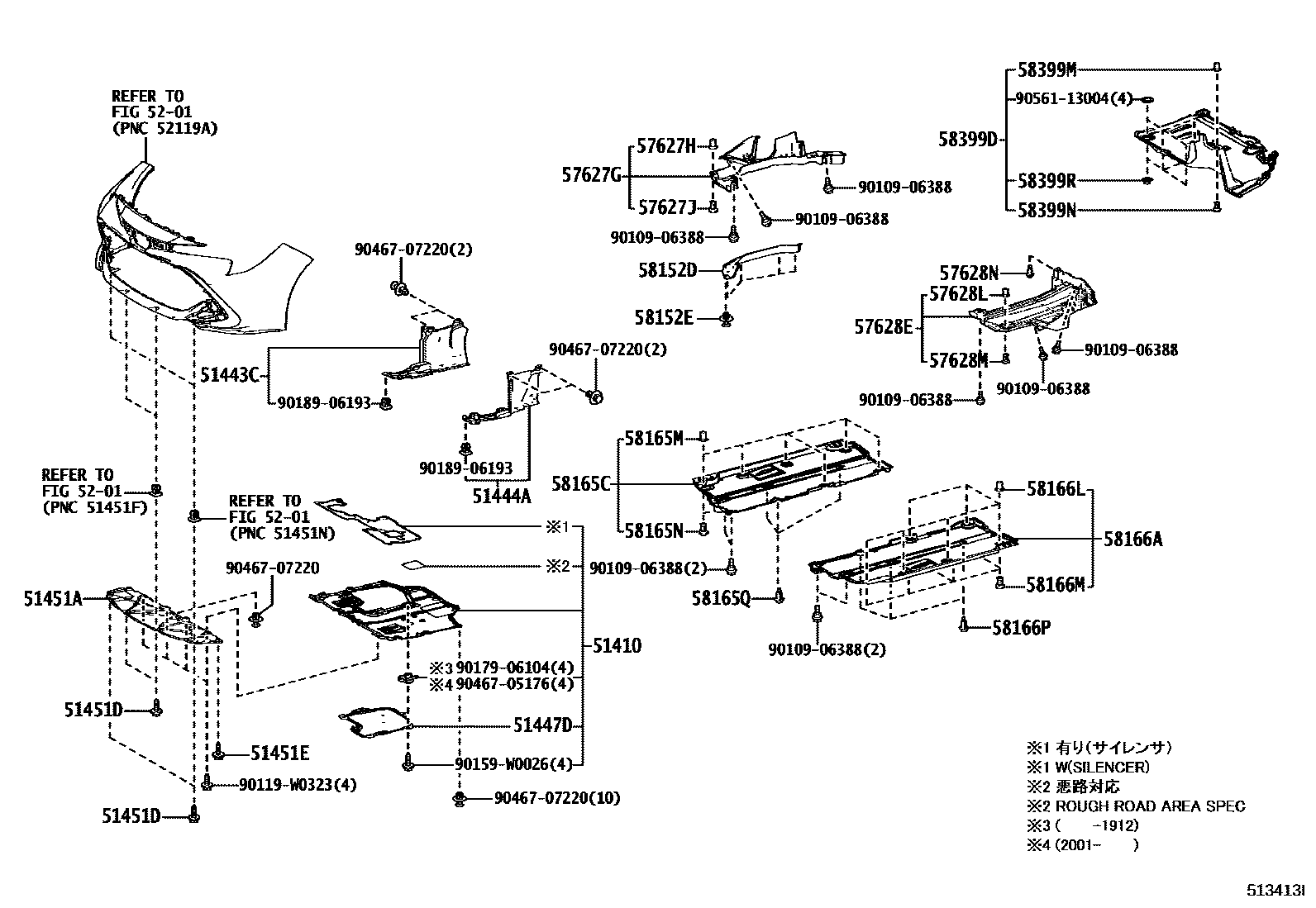

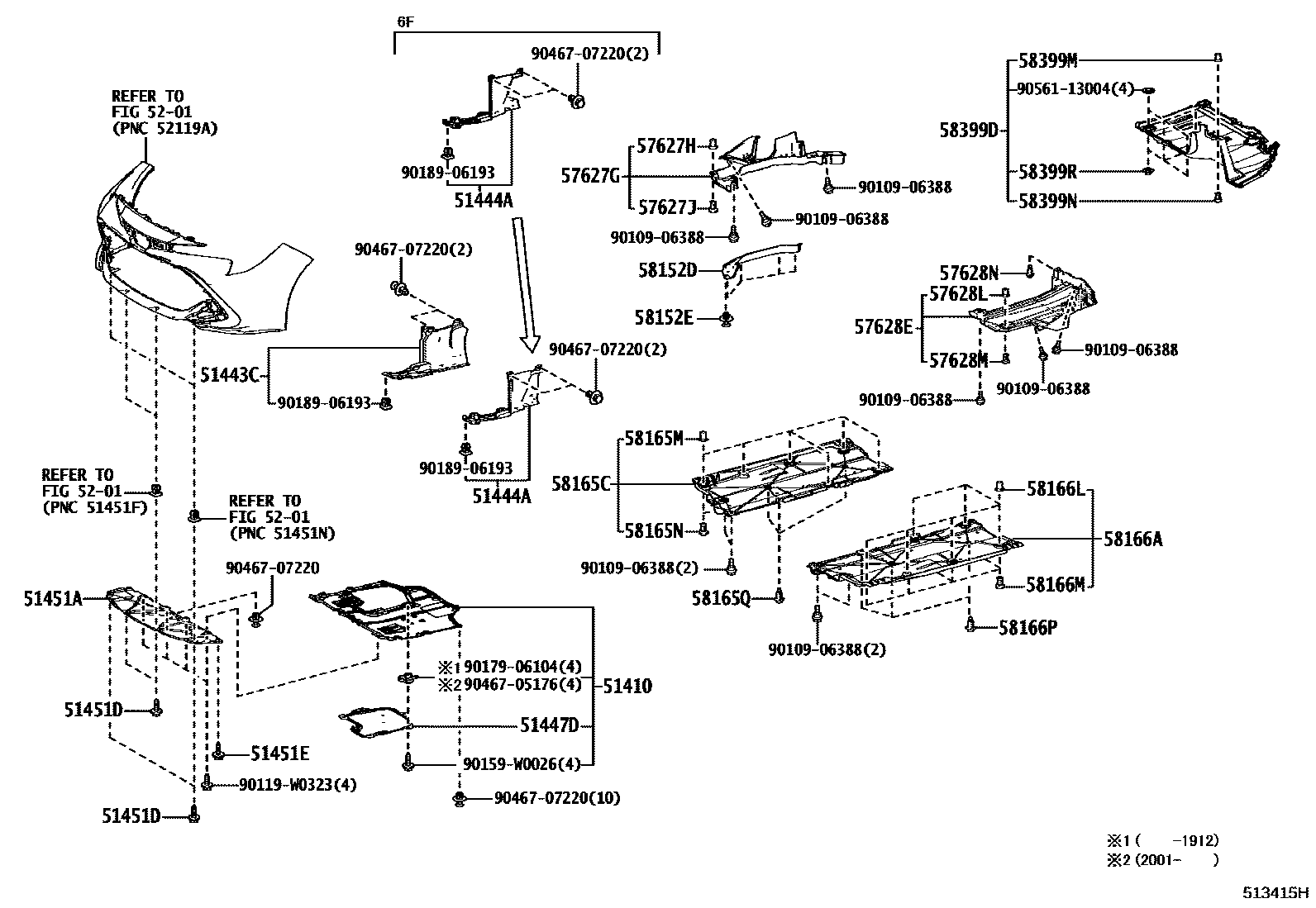

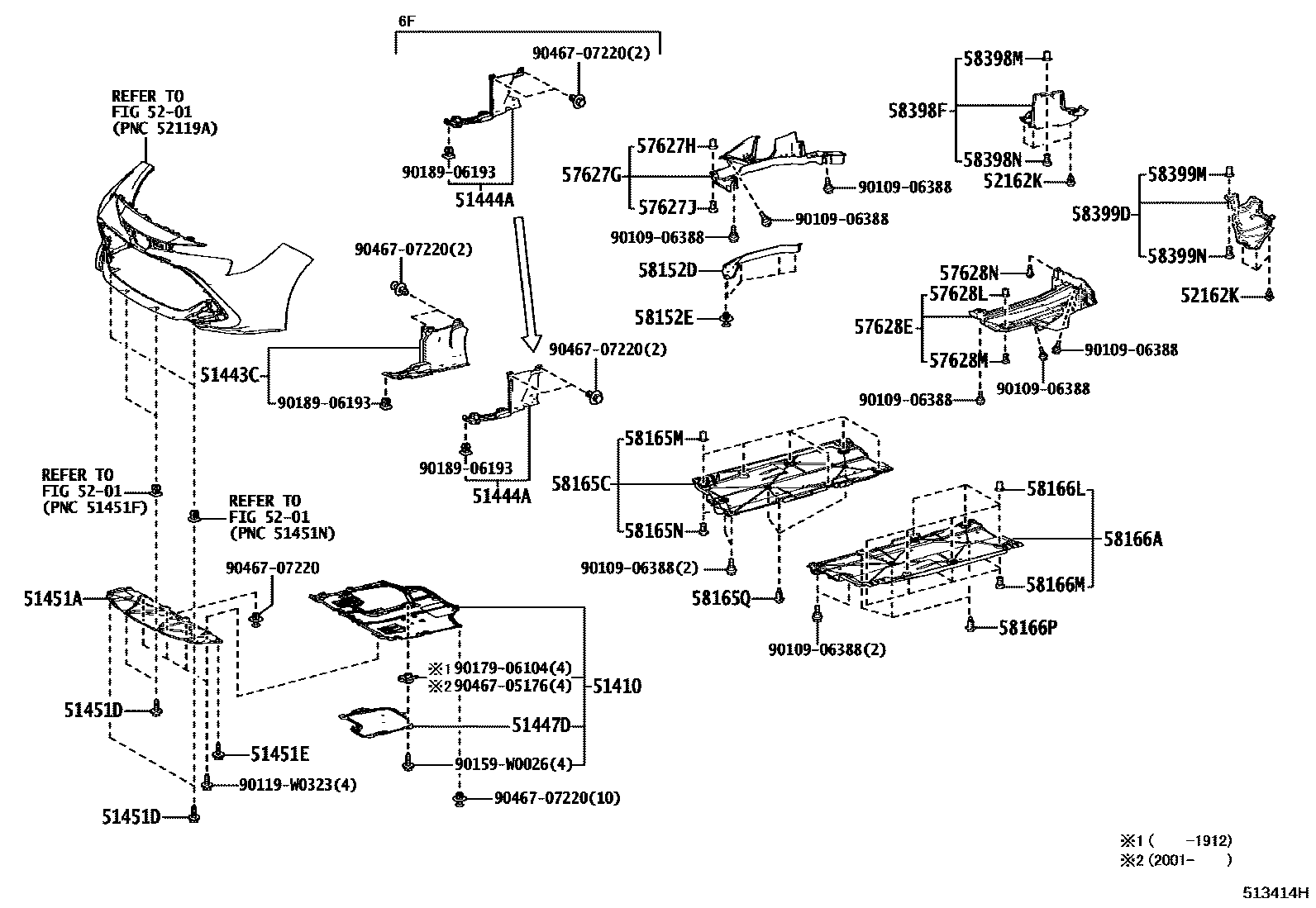

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 5 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51107A | Right rear longitudinal beam reinforcement sub-assembly | 51107-02110 · 51107-02120 |
| 51108A | Left rear longitudinal beam reinforcement sub-assembly | 51108-02110 · 51108-02120 |
| 51201 | Front suspension cross member sub-assembly | 51201-02240 · 51201-02241 |
| 51206A | Rear suspension cross member sub-assembly | 51206-02080 · 51206-02081 · 51206-02090 · 51206-02091 |
| 51228G | PLAQUE LONGERON SUSPENSION AVANT | 51228-F4010 |
| 51284 | Rear suspension cross member hole cover | 51284-F4010 |
| 51410 | Engine No. 1 bottom cover assembly | 51410-02310 · 51410-02320 · 51410-02430 |
| 51443C | Engine right rear bottom cover | 51443-02150 |
| 51444A | Engine left rear bottom cover | 51444-02190 · 51444-02320 |
| 51447D | No. 4 engine center bottom cover | 51447-02100 |
| 51451A | Engine center cover | 51451-02170 |
| 51451D | VIS, NO.1 | 90159-W0026 |
| 51451E | VIS, NO.2 | 90159-W0026 |
| 51618 | Left front differential bracket guard | 51618-47010 |
| 52162K | PIECE PARE-CHOCS ARRIERE | 52161-02030 |
| 57627G | COUVERCLE DE MEMBRE LATERAL DROIT DE PLANCHER AR | 57627-02160 |
| 57628E | Rear floor left longitudinal member cover | 57628-02160 |
| 57628N | CLIP, CACHE LONGERON PLANCHER ARR | 90467-07220 |
| 58152D | ISOLANT, THERMIQUE PLANCHER AVANT, INFERIEUR NO.1 | 58152-02030 |
| 58152E | CLIP, ISOLANT THERMIQUE PLANCHER AVANT | 90467-07220 |
| 58165C | Front floor right cover | 58165-02170 · 58165-02190 · 58165-02200 · 58165-02220 · 58165-02330 · 58165-02340 |
| 58165Q | CLIP, CACHE PLANCHER AVANT | 90467-07220 |
| 58166A | Front floor left cover | 58166-02150 · 58166-02160 · 58166-02170 · 58166-02180 |
| 58166P | CLIP, CACHE PLANCHER AVANT | 90467-07220 |
| 58398F | No. 1 floor under cover | 58398-02160 · 58398-02170 |
| 58399D | Floor No. 2 lower cover | 58399-02150 · 58399-02160 · 58399-02170 · 58399-02180 |
| 58399R | ATTACHE, CACHE SOUS PLANCHER, NO.3 | 90467-14053 · 90467-14054 |
