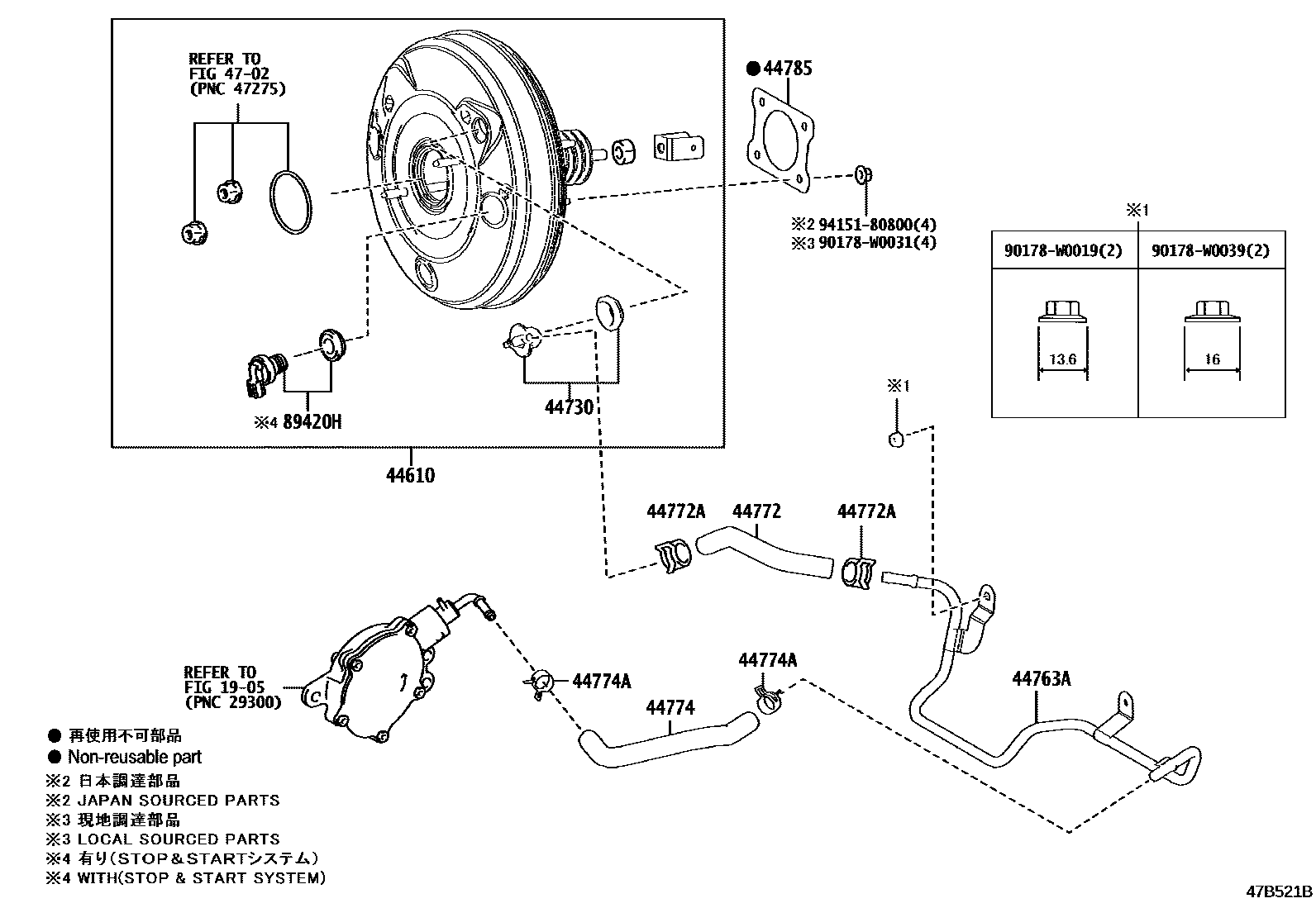

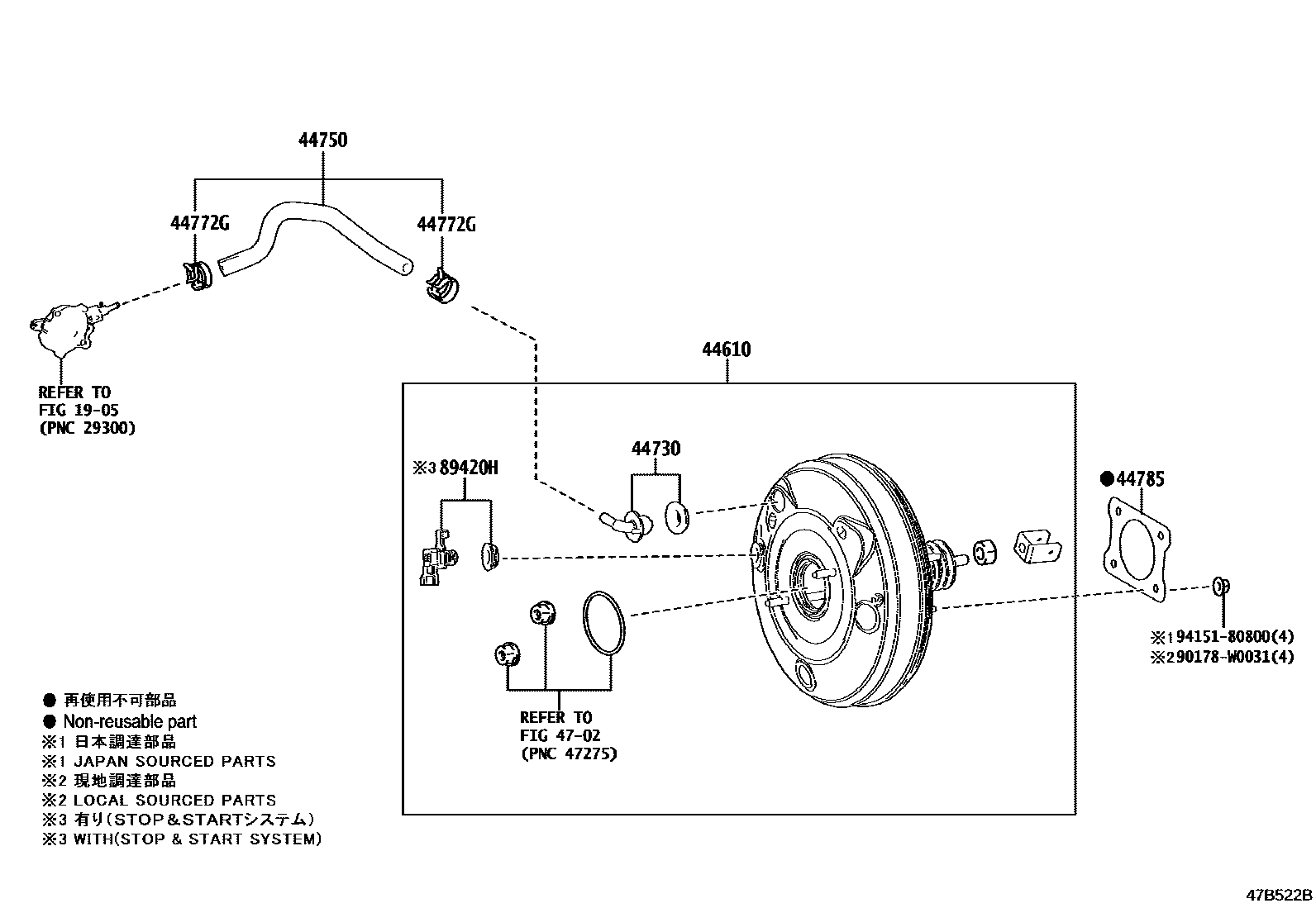

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-09F70 · 44610-09F80 · 44610-09F90 · 44610-09G00 · 44610-09G10 · 44610-09G20 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-F9010 |
| 44750 | Vacuum hose assembly | 44750-12E80 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-12570 |
| 44772 | Hoses (check valve to connector tube) | 44772-10220 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 |
| 44772G | Clamp (for check valve to check valve hose) | 90467-16014 |
| 44774 | Hoses (joints to connector tubes) | 44774-12800 |
| 44774A | Clip (for fitting to connector tube hose) | 90467-16014 |
| 44785 | brake booster pad | 44785-05020 · 44785-12040 |
| 89420H | Vacuum sensor assembly | 89421-09010 |
