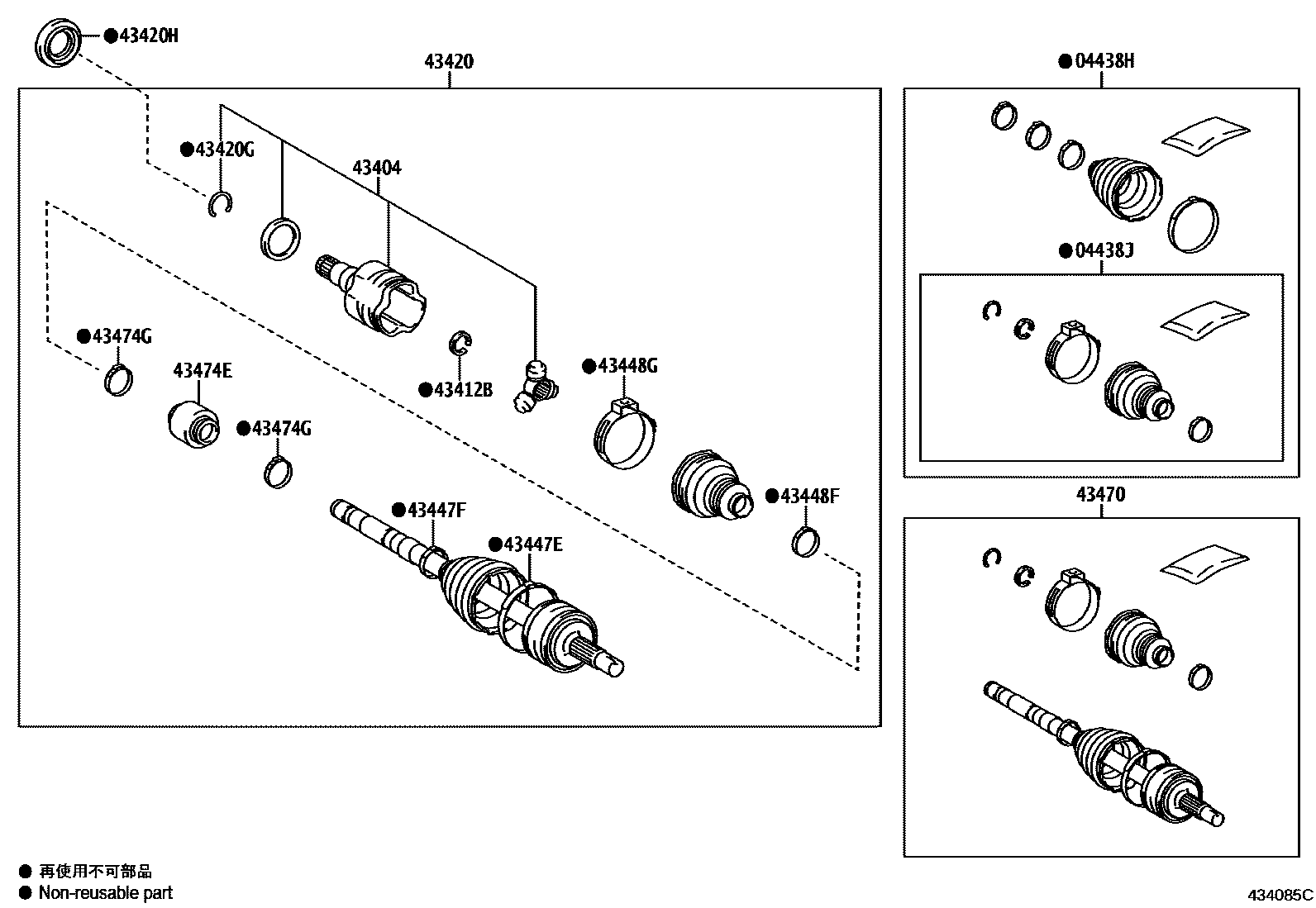

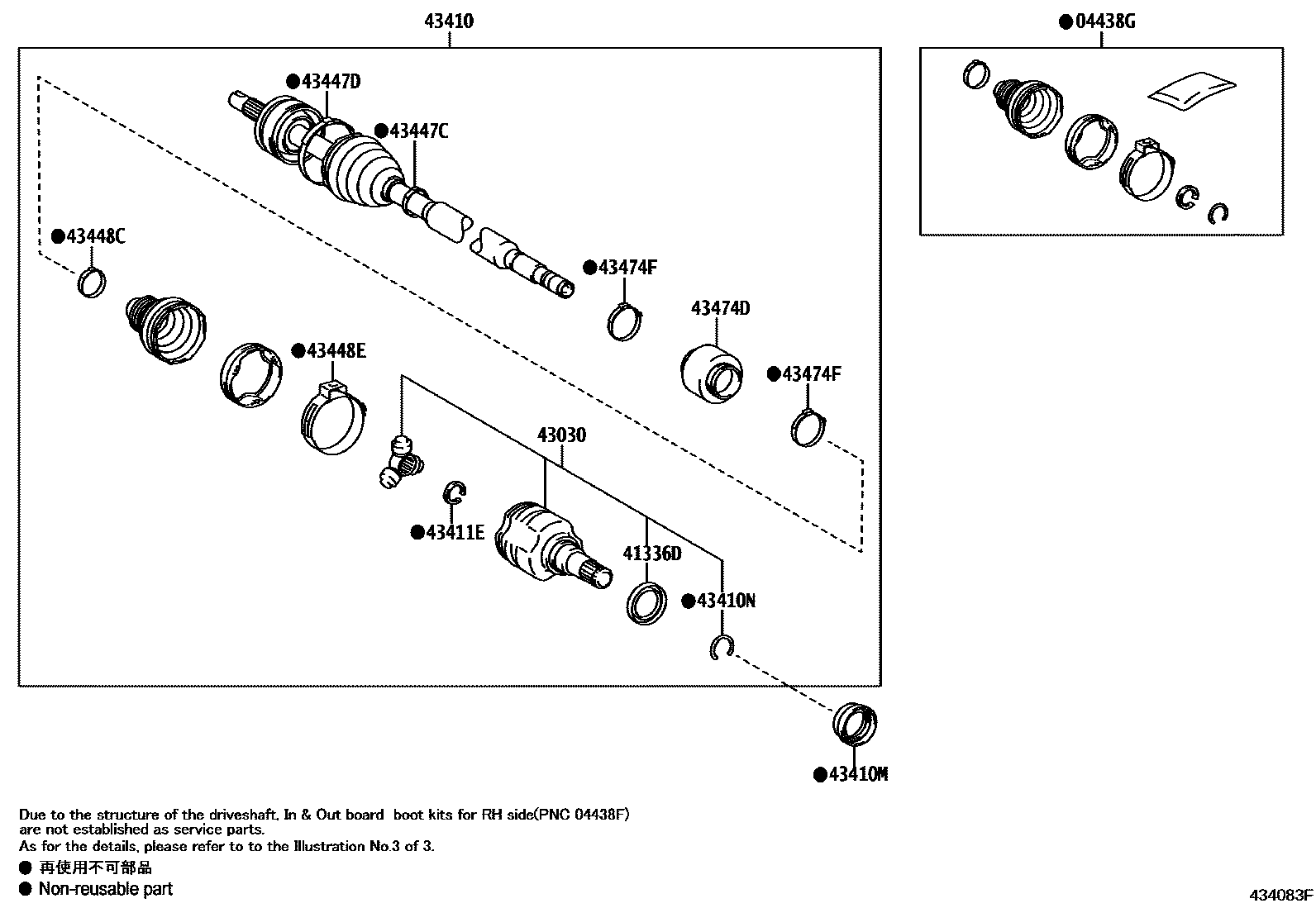

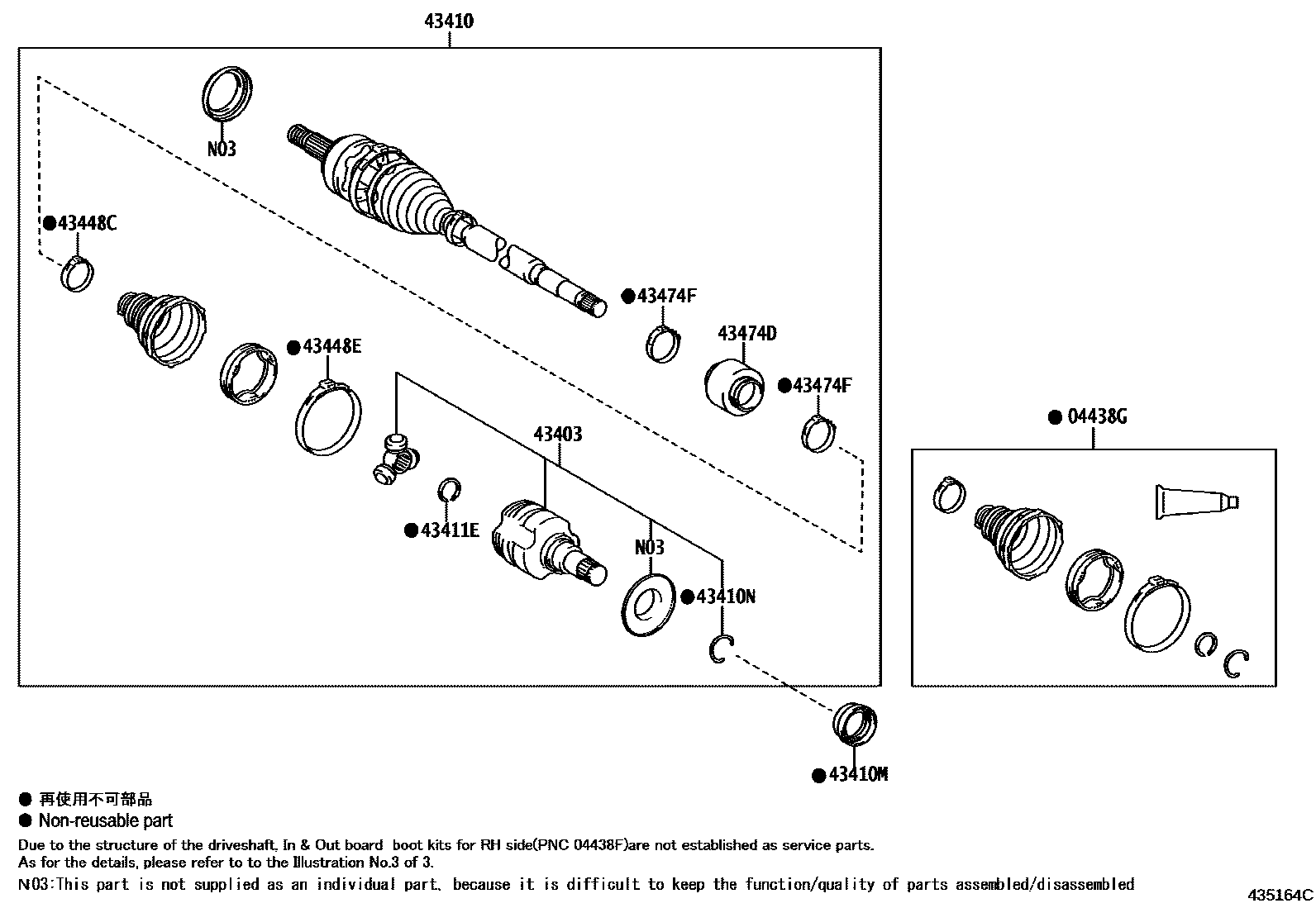

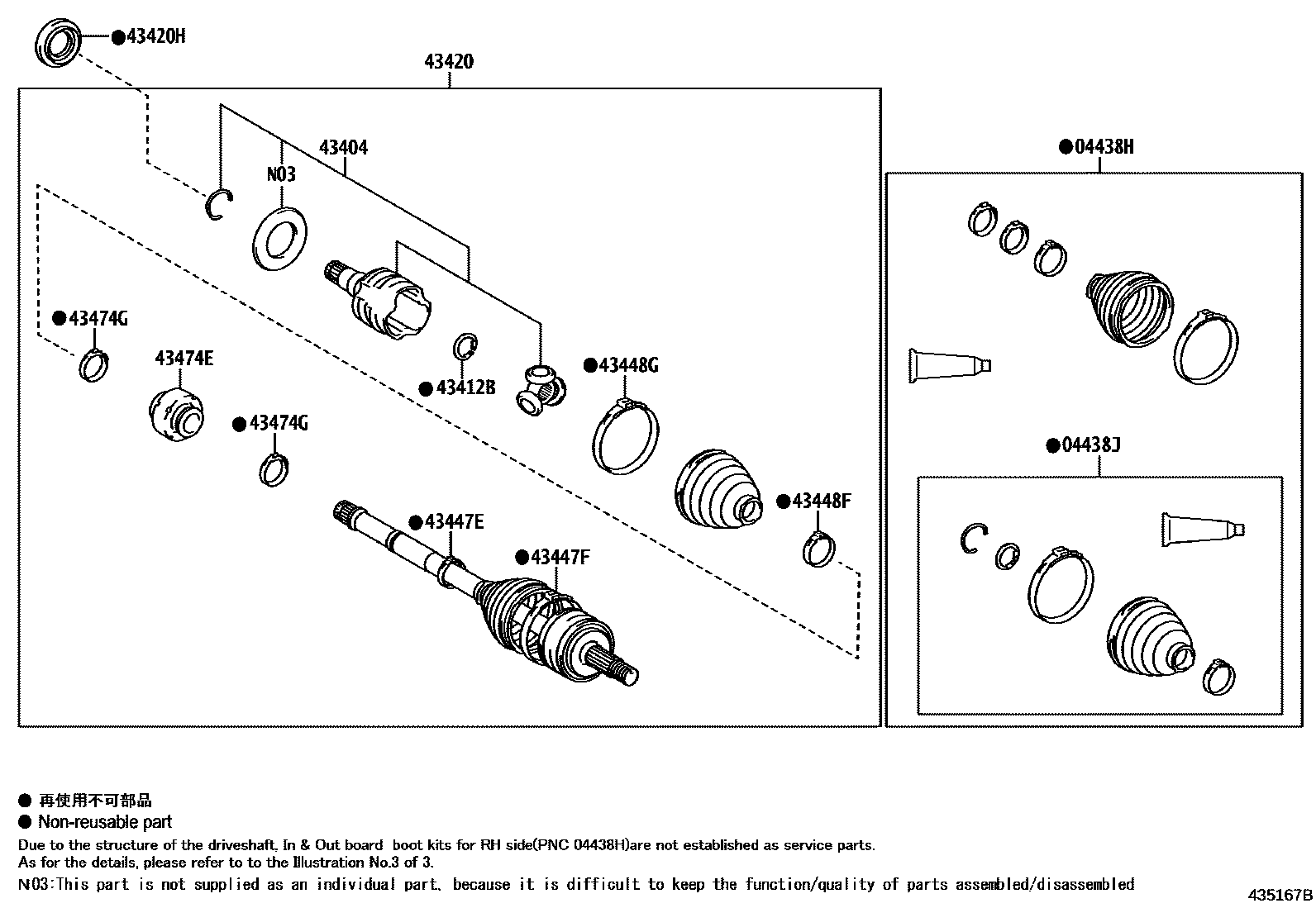

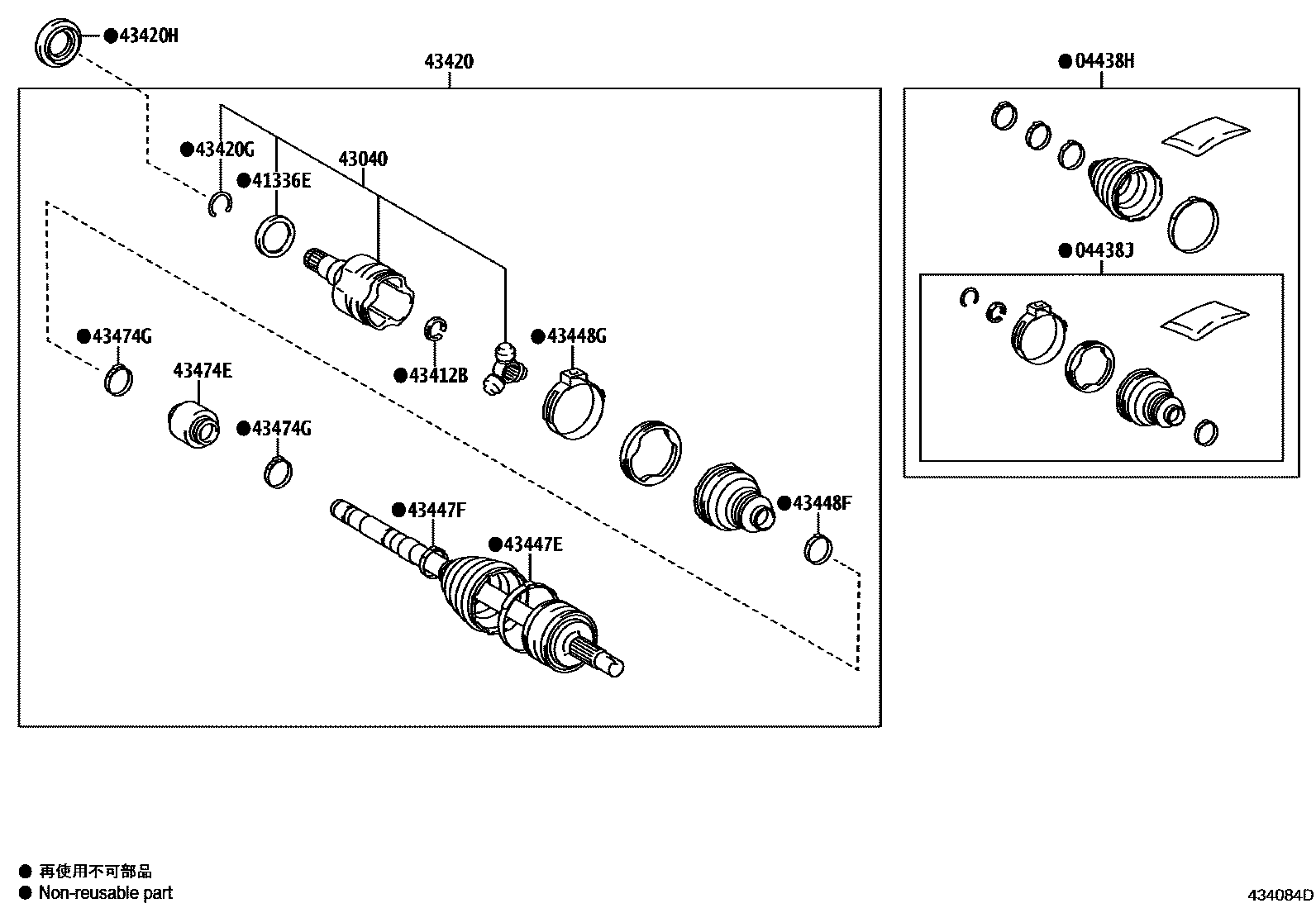

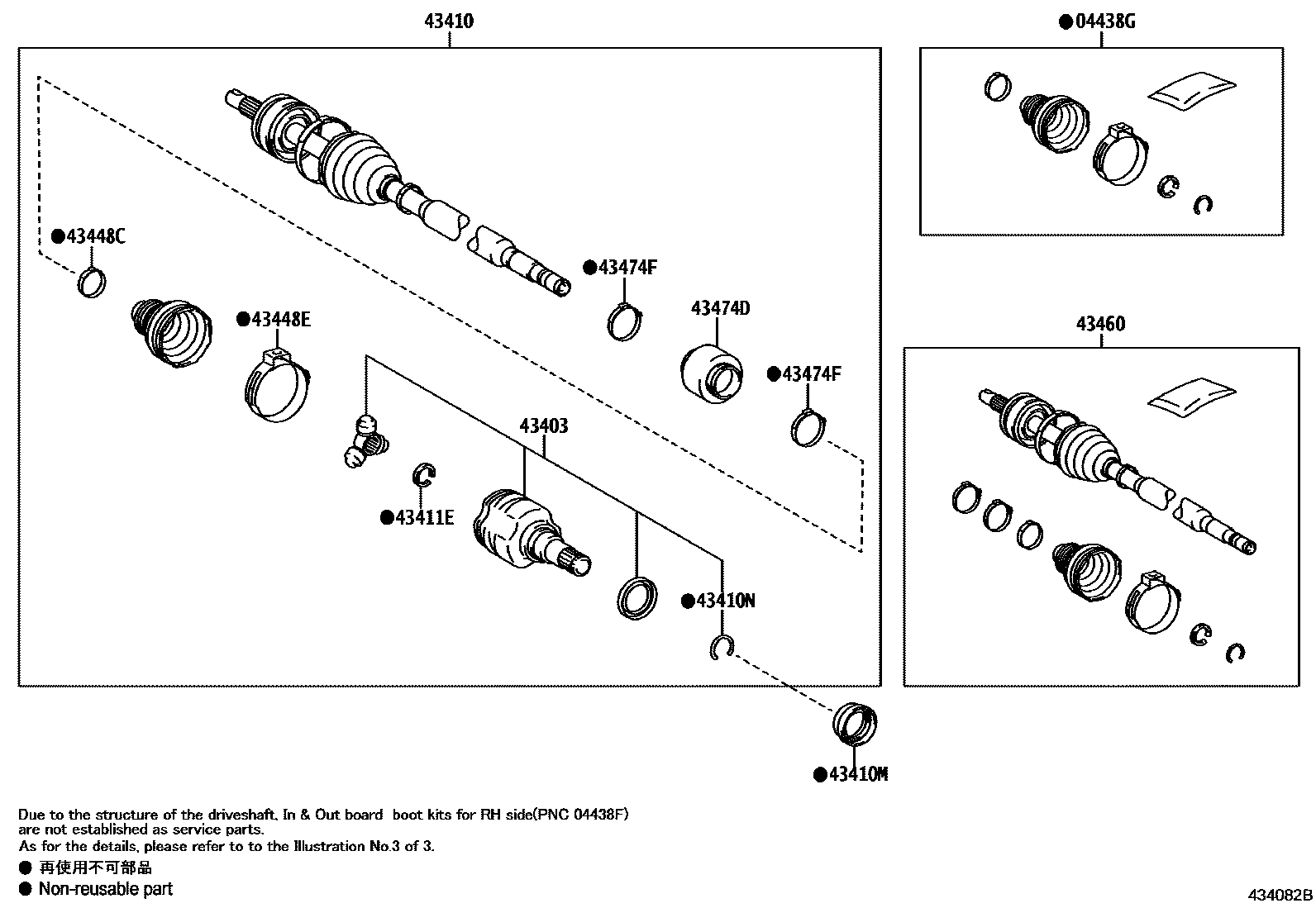

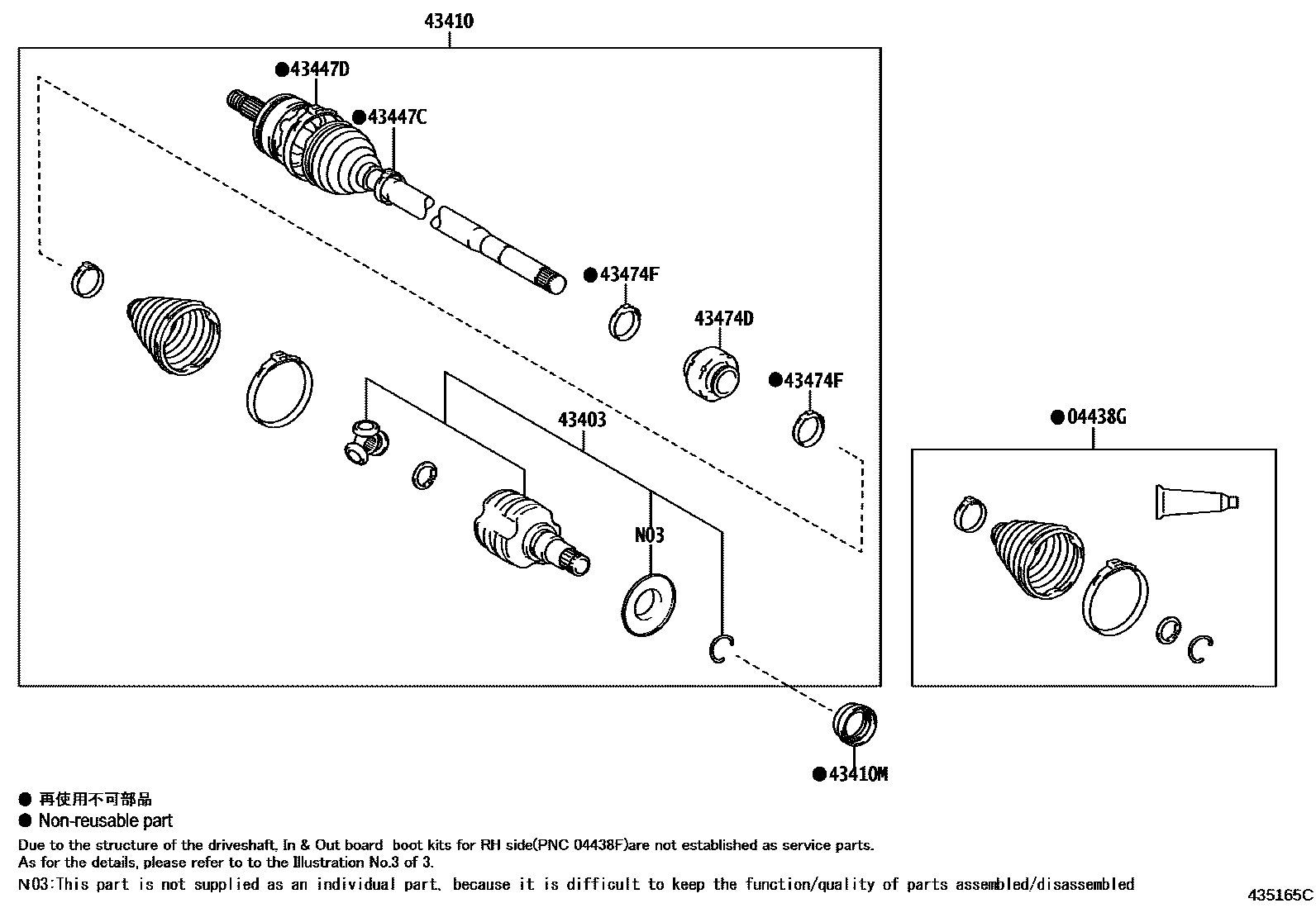

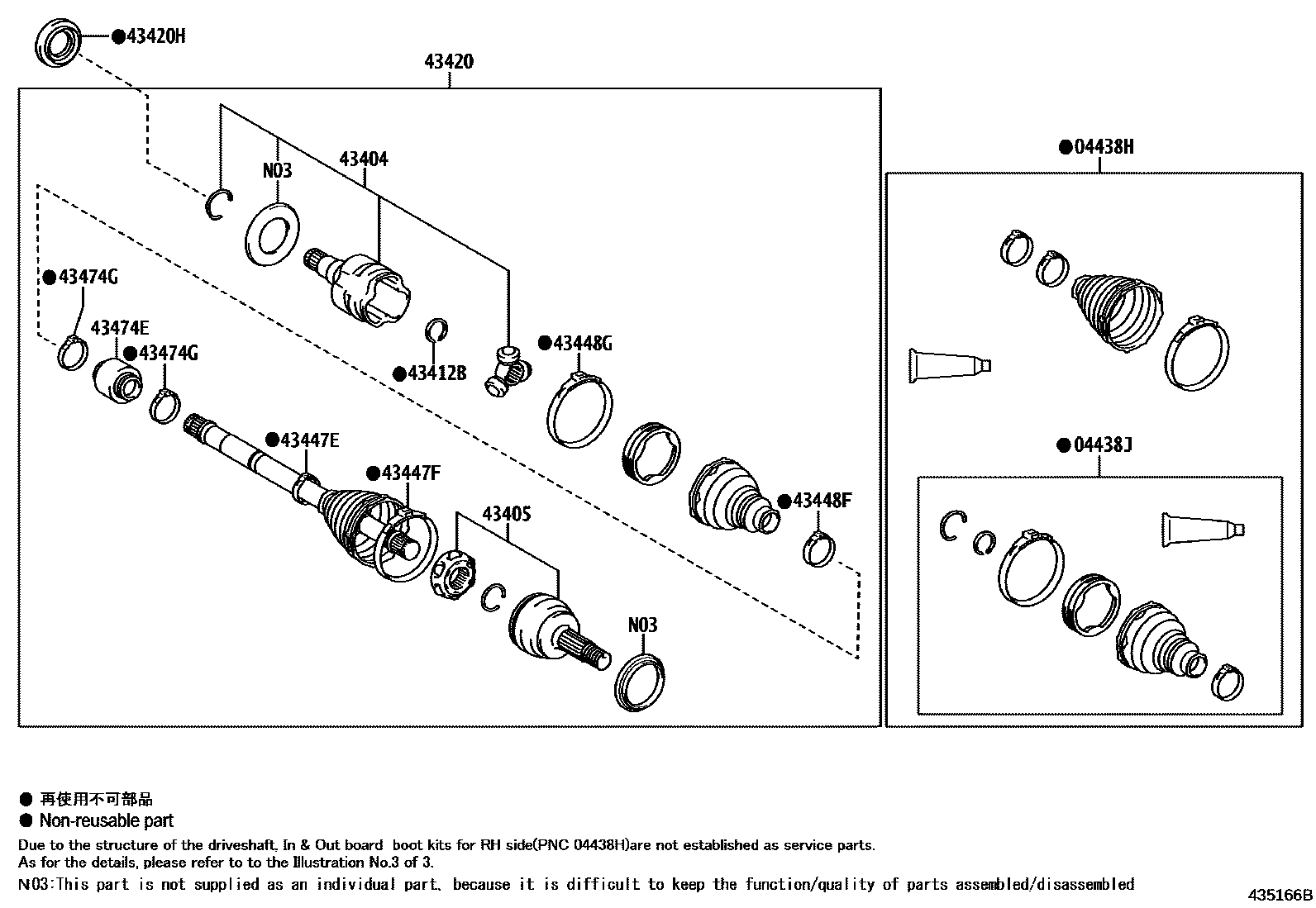

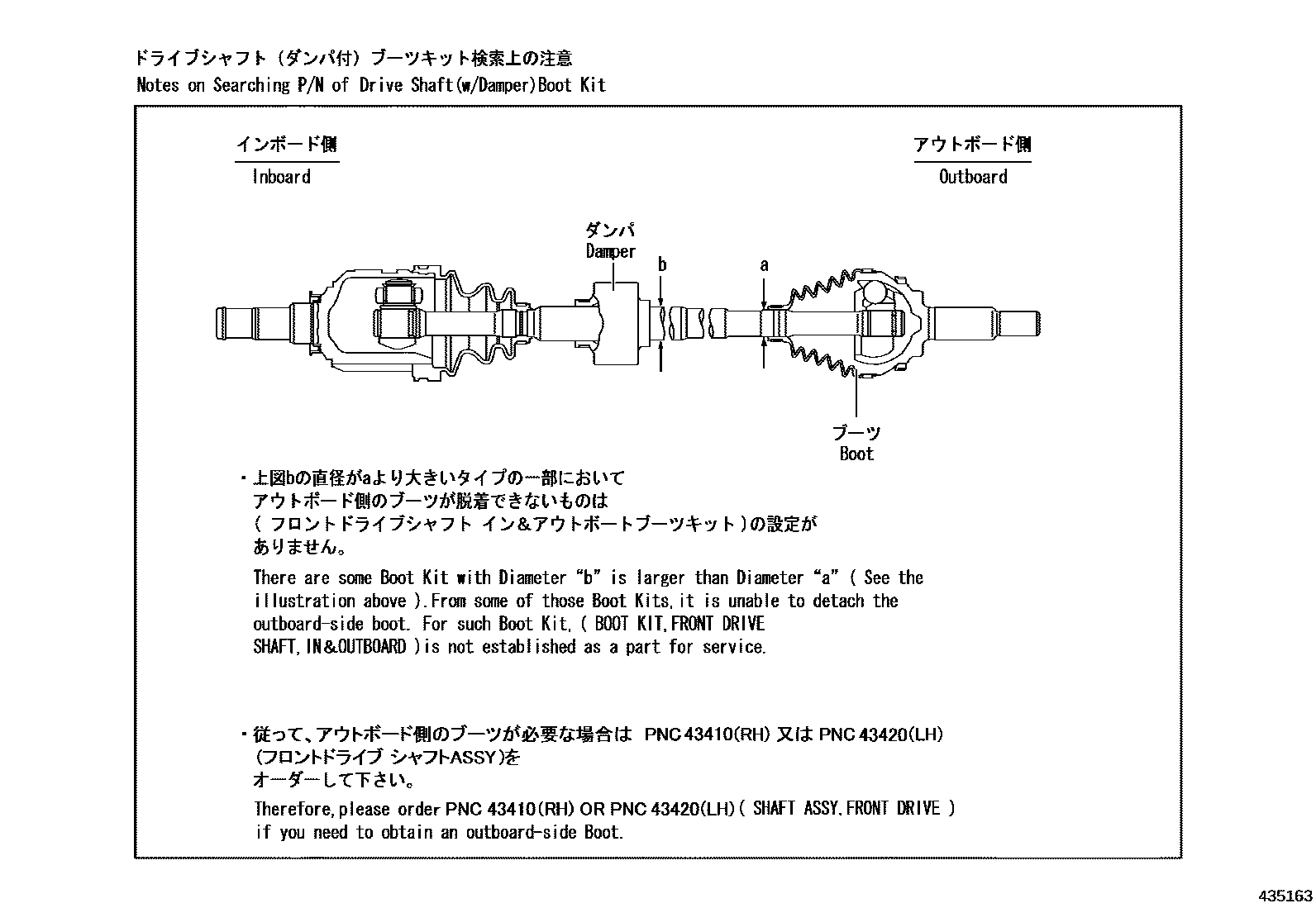

Toyota COROLLA Front Drive Shaft — Figure 4302
Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 10 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-02690 · 04437-02740 · 04438-02630 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04428-02870 · 04428-02A50 · 04428-02A60 · 04428-02B70 · 04428-02B80 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04437-02690 · 04437-02740 · 04438-02630 |
| 41336D | Right front driveshaft dust cover | 41336-05080 · 41336-05140 |
| 41336E | Left front driveshaft dust cover | 41336-02290 · 41336-05140 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-02150 · 43030-02151 · 43040-02450 · 43040-02451 |
| 43040 | Left front drive shaft inner universal joint assembly | 43040-02410 · 43040-02411 · 43040-02450 · 43040-02451 |
| 43403 | Right front axle inner universal joint assembly | 43403-02110 · 43403-02160 · 43403-02161 · 43403-02200 · 43403-02201 |
| 43404 | Left front axle inner universal joint assembly | 43404-02010 · 43404-02011 · 43404-02140 · 43404-02141 |
| 43405 | Front axle outer shaft sub-assembly | 43405-02450 |
| 43410 | Right front driveshaft assembly | 43410-02C20 · 43410-02C30 · 43410-02C40 · 43410-02E80 · 43410-02G10 |
| 43410M | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD | 90311-35065 · 90311-35076 · 90311-40038 · 90311-40049 · 90311-40051 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-05070 · 90080-52017 · 90080-52055 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-02230 · 43425-05080 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-02230 · 43425-05080 |
| 43420 | Left front drive shaft assembly | 43420-02E90 · 43420-02F10 · 43420-02F20 · 43420-02F30 · 43420-02L00 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-05070 · 90080-52017 · 90080-52055 |
| 43420H | JOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG | 90311-35075 · 90311-35080 · 90311-50045 · 90311-50058 · 90311-50062 · 90311-50064 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-02820 · 42345-02C50 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-02C60 · 42345-F4010 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-02810 · 42345-02C50 · 42345-02C60 · 42345-08040 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-02820 · 42345-02C50 · 42345-02C60 · 42345-0F070 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-02820 · 42345-02C50 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-02G70 · 42345-F4010 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-02820 · 42345-02C50 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-02G70 · 42345-F4010 |
| 43460 | Right front outer drive universal joint shaft assembly | 43460-80189 · 43460-8Z014 |
| 43470 | Left front outer drive universal joint shaft assembly | 43470-80471 · 43470-8Z851 |
| 43474D | Right front driveshaft shock absorber | 43474-02600 · 43474-F4010 |
| 43474E | Left front driveshaft shock absorber | 43474-02610 · 43474-02820 |
| 43474F | Clamp (for right front driveshaft shock absorber) | 42345-02590 · 42345-02F70 |
| 43474G | Clamp (for left front driveshaft shock absorber) | 42345-02F80 · 42345-05250 |
