Toyota COROLLA 车轮和车轮盖 — Figure 4103

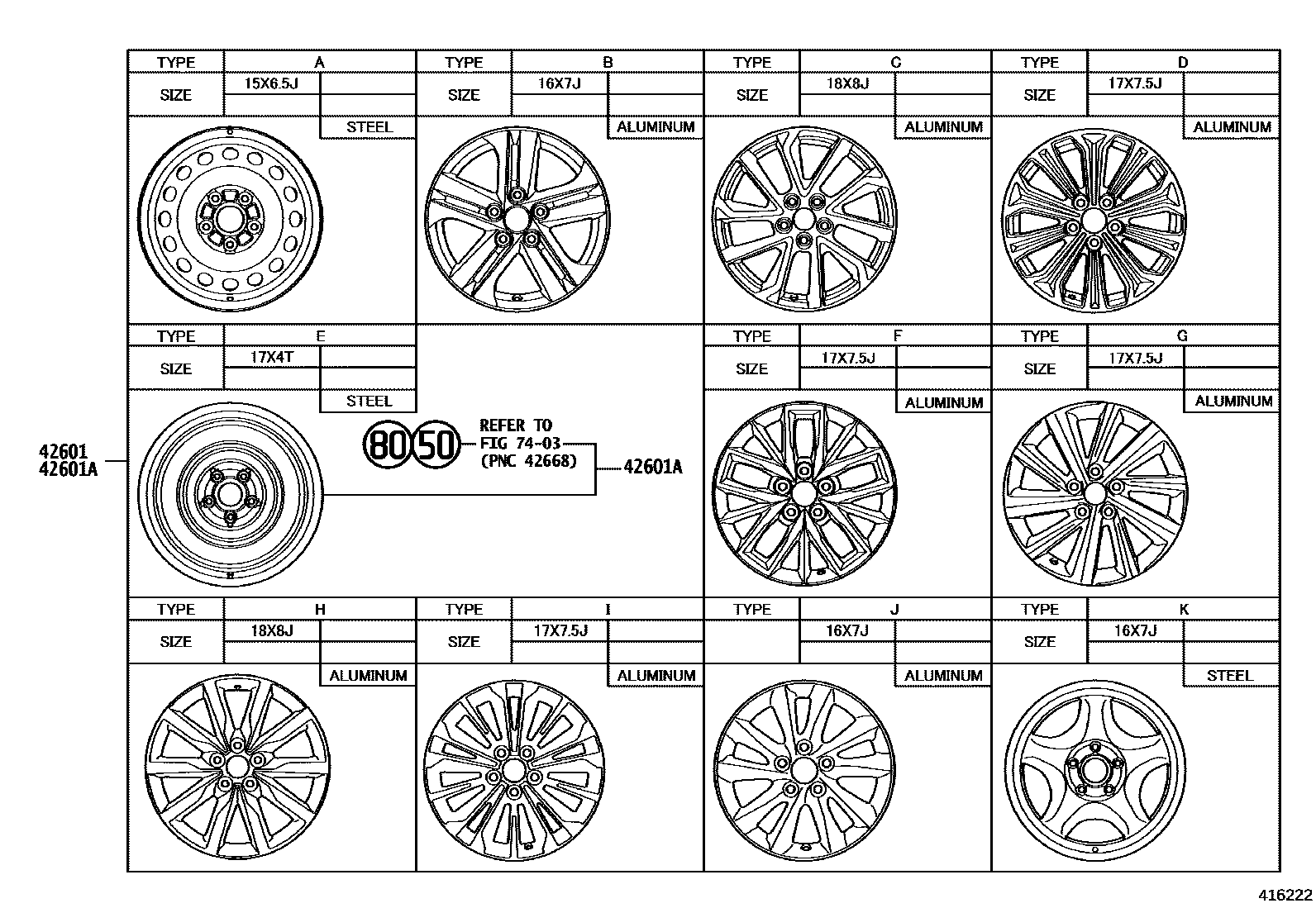

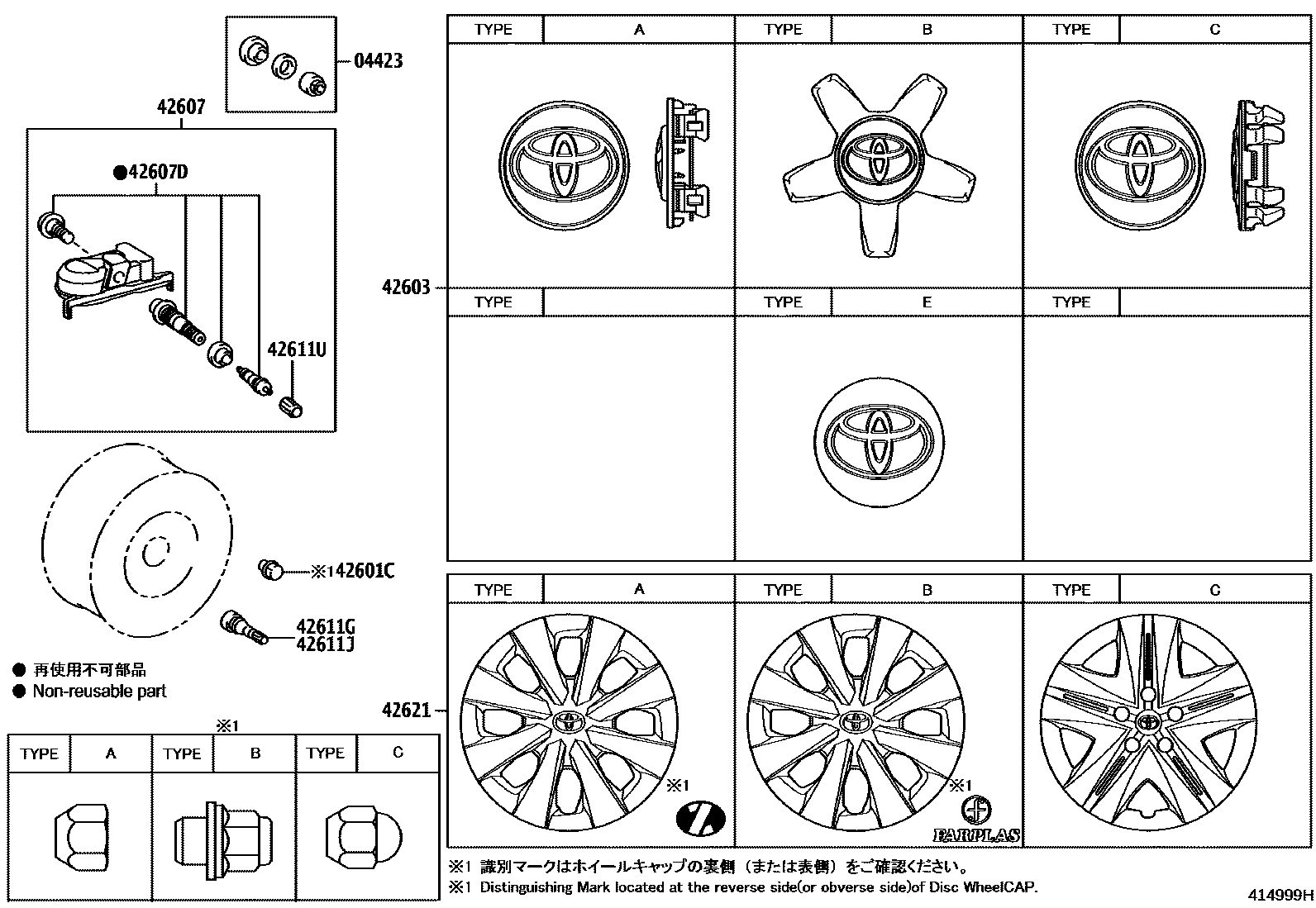

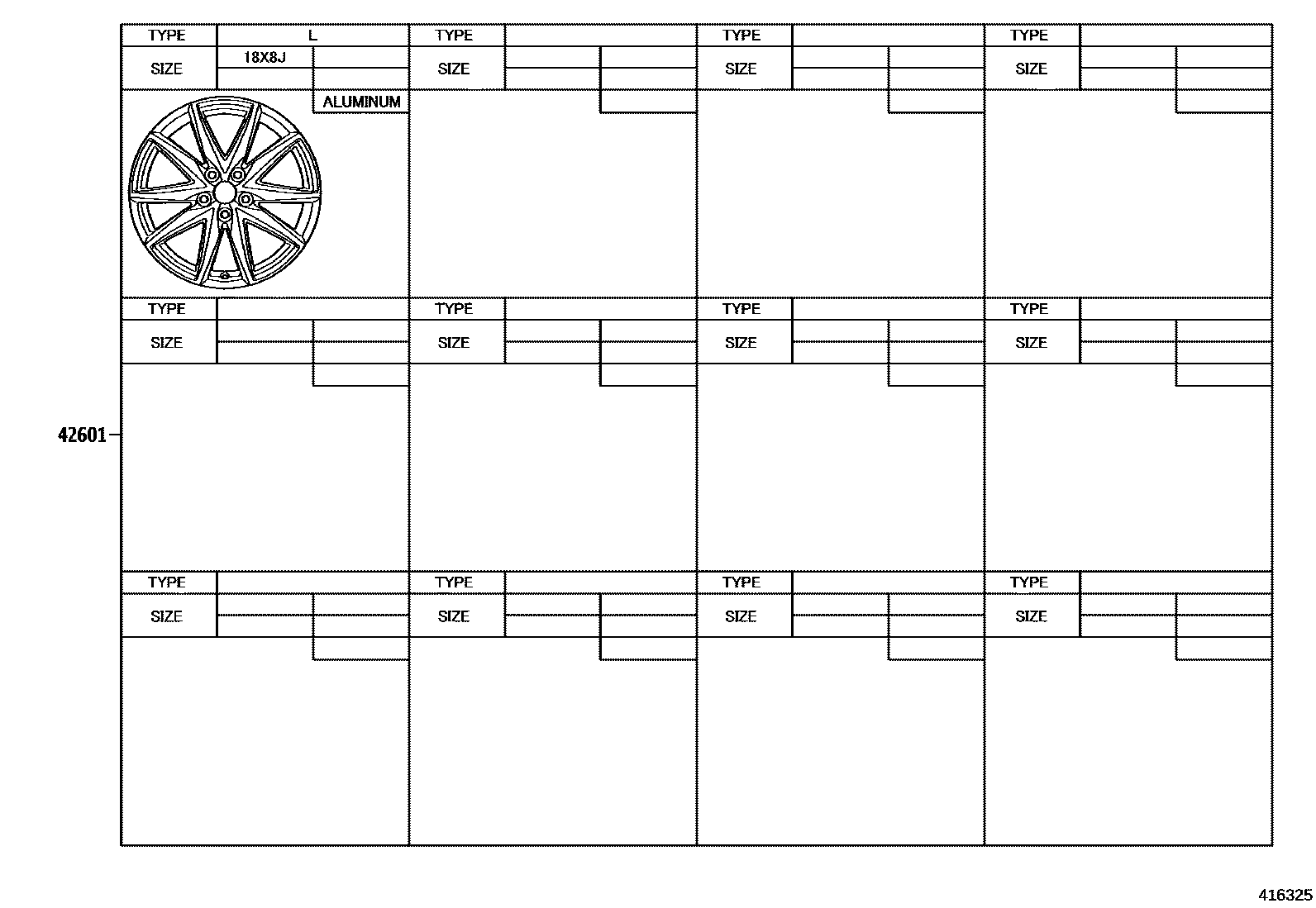

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-02010 |
| 42601 | spoke wheel | 42611-02Q90 · 42611-02R00 · 42611-02R20 · 42611-02R30 · 42611-02R40 · 42611-02V60 · 42611-02V70 · 42611-02X20 · 42611-02Y50 · 42611-YP420 · 42611-YP430 · 42611-YY570 · 42611-YY850 · 42611-YYC00 · 42611-YYD50 |
| 42601A | Spoke wheel (for spare tire) | 42611-02Q90 · 42611-02R00 · 42611-02R20 · 42611-02R30 · 42611-02V60 · 42611-02X20 · 42611-02Y50 · 42611-05361 · 42611-0F091 · 42611-YP430 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01082 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-42130 · 42603-48140 · 42603-48150 · 42603-YY300 · 42603-YY330 · 42603-YY390 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-02060 · 42607-02070 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-W5002 · 90942-W5003 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-W5001 |
| 42621 | wheel cover | 42602-02550 · 42602-02551 · 42602-YP010 |
