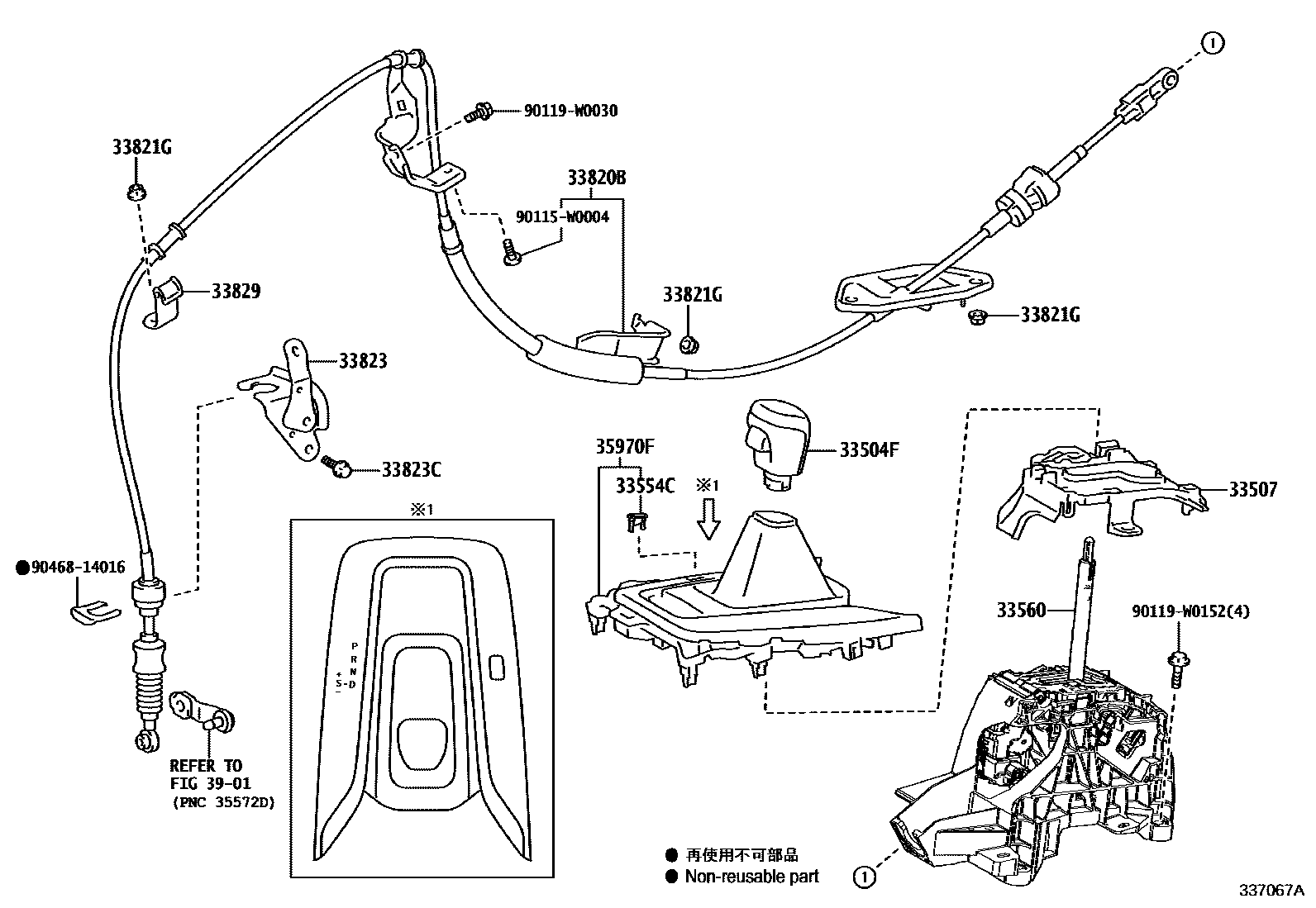

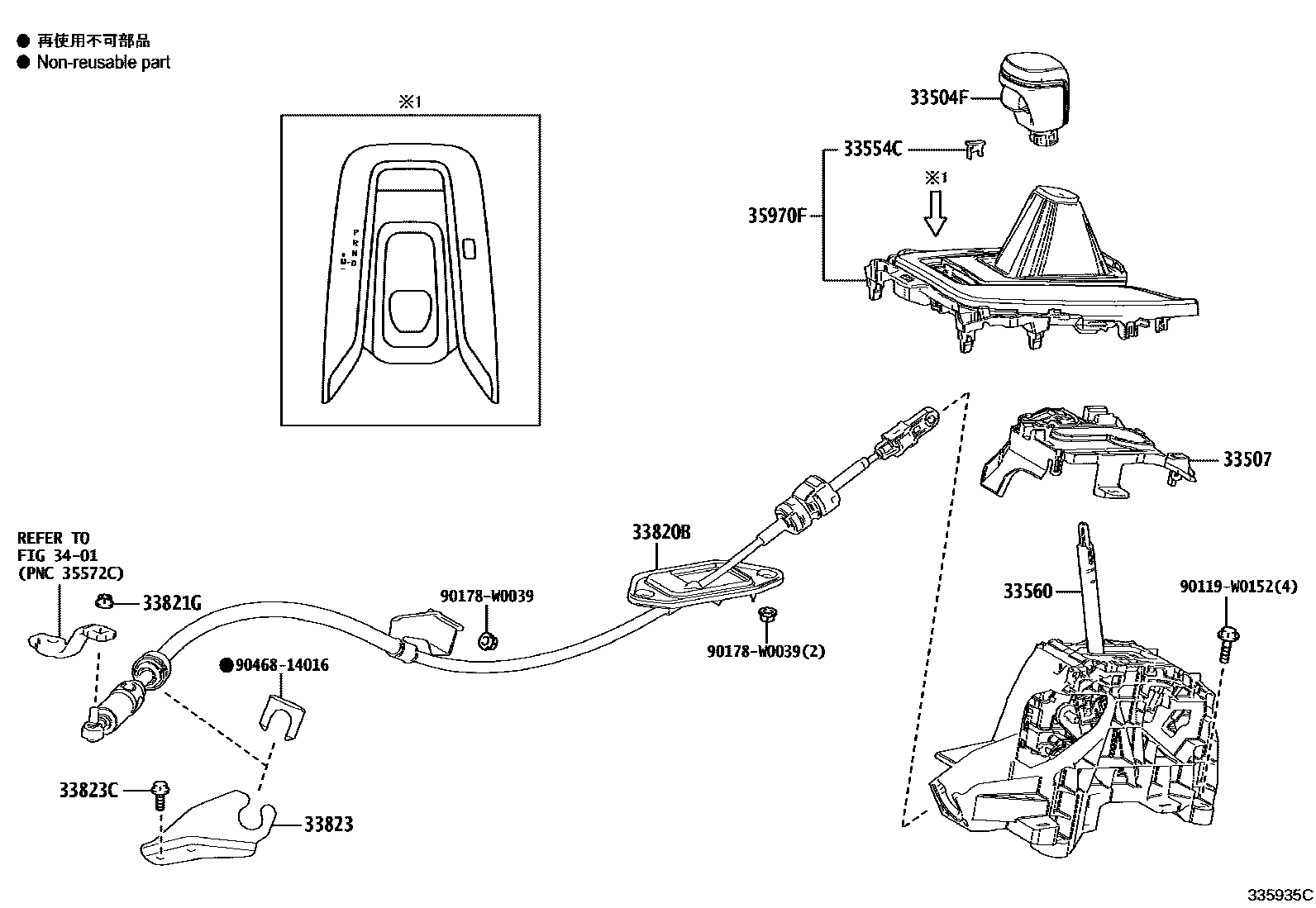

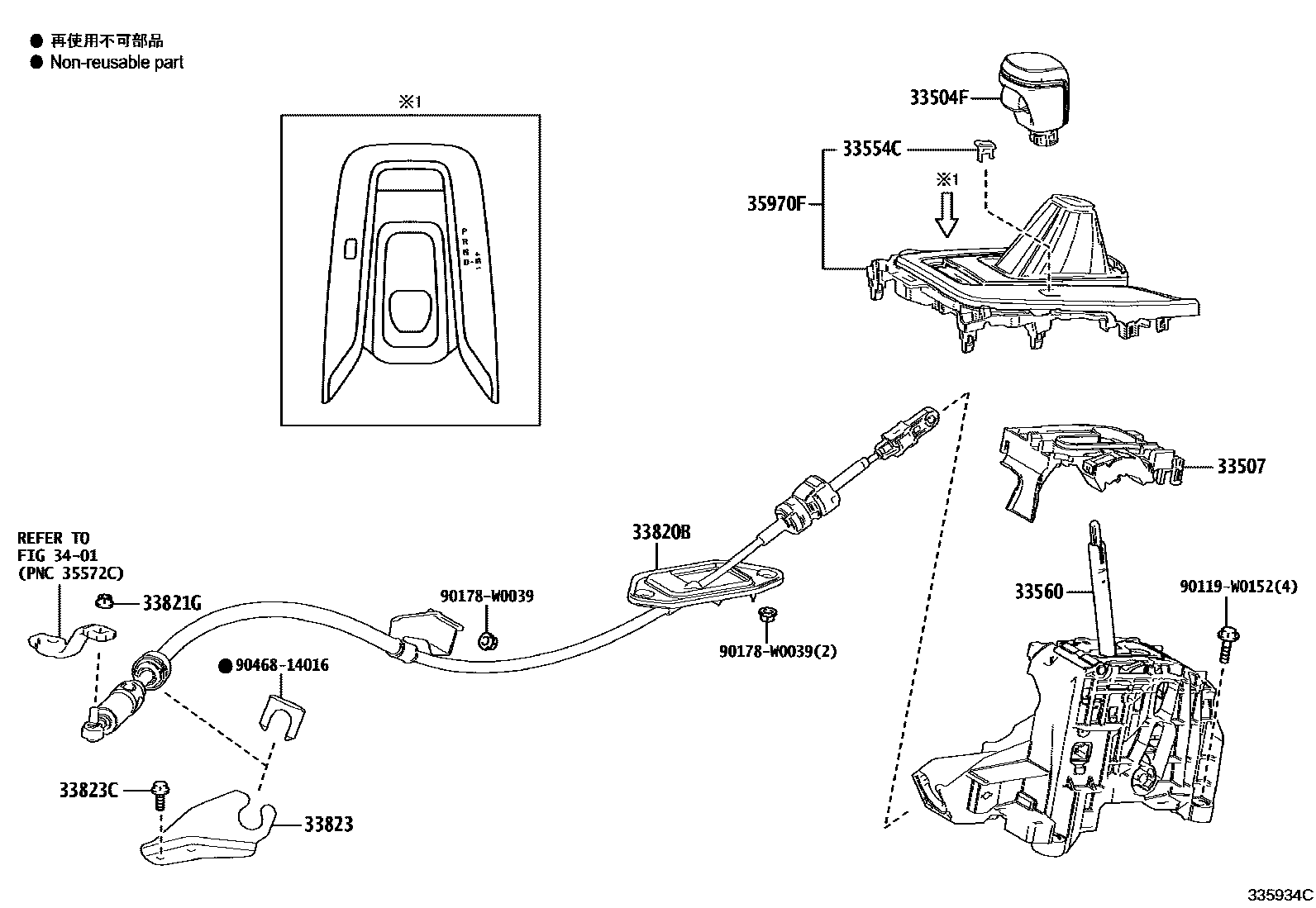

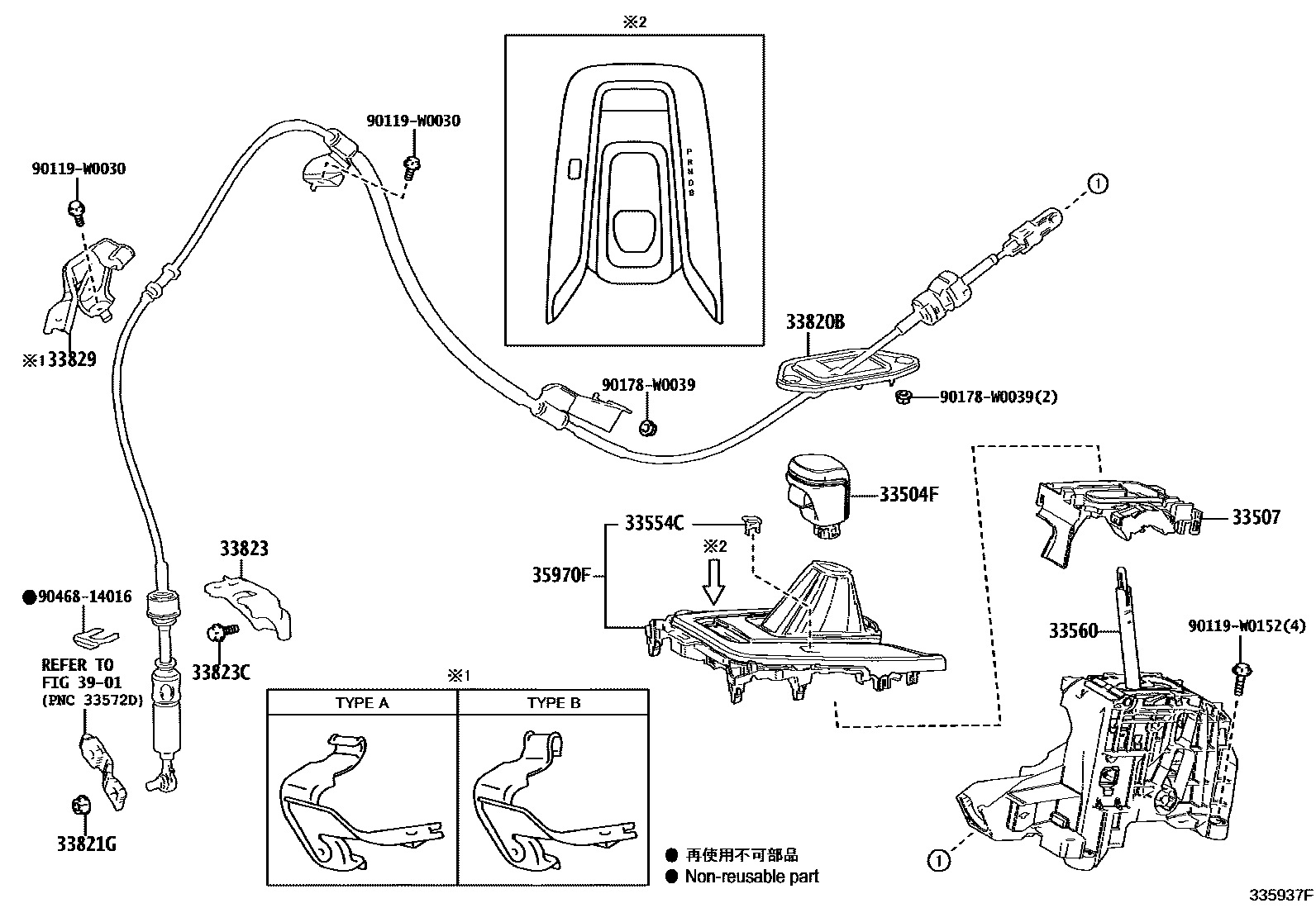

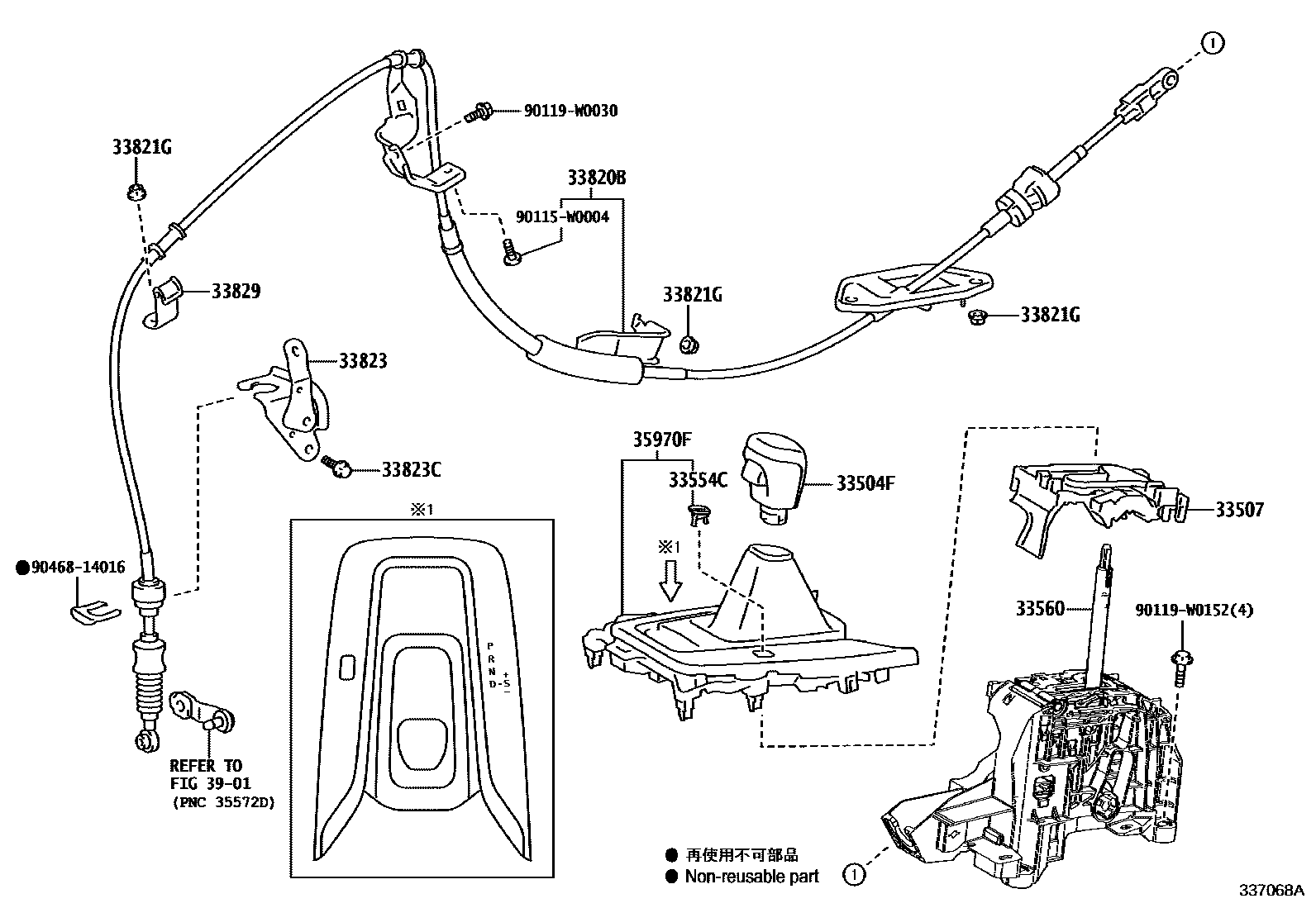

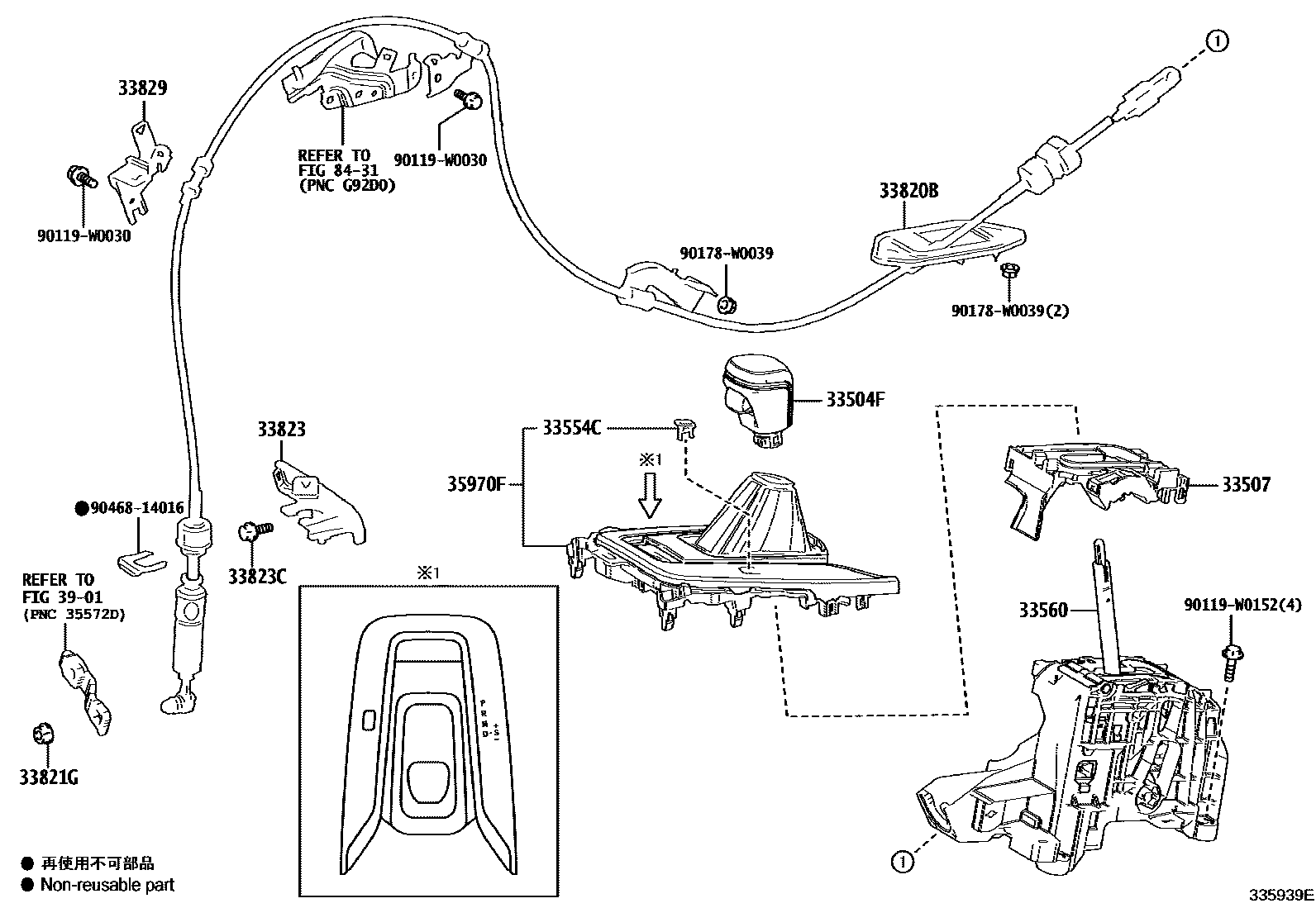

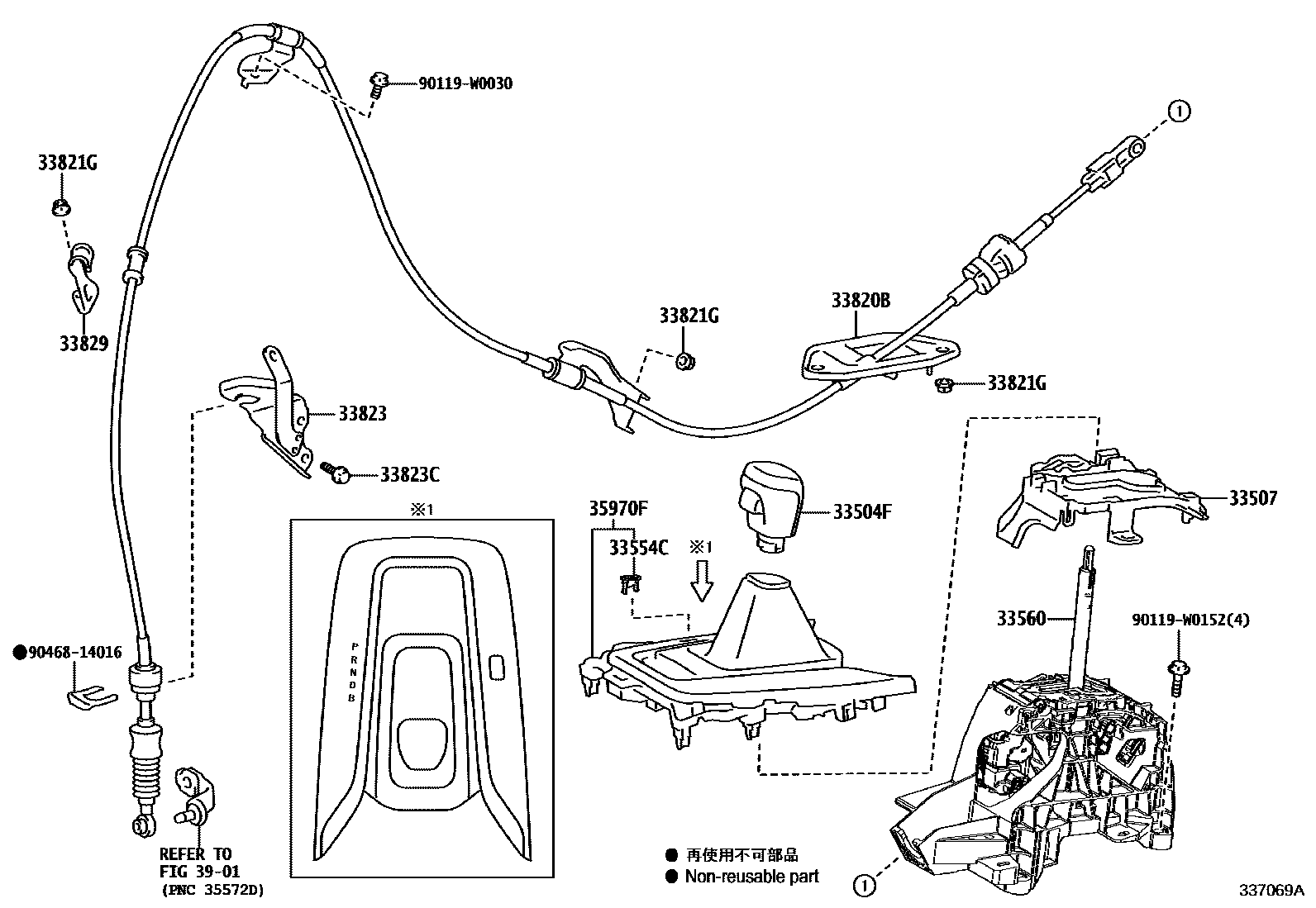

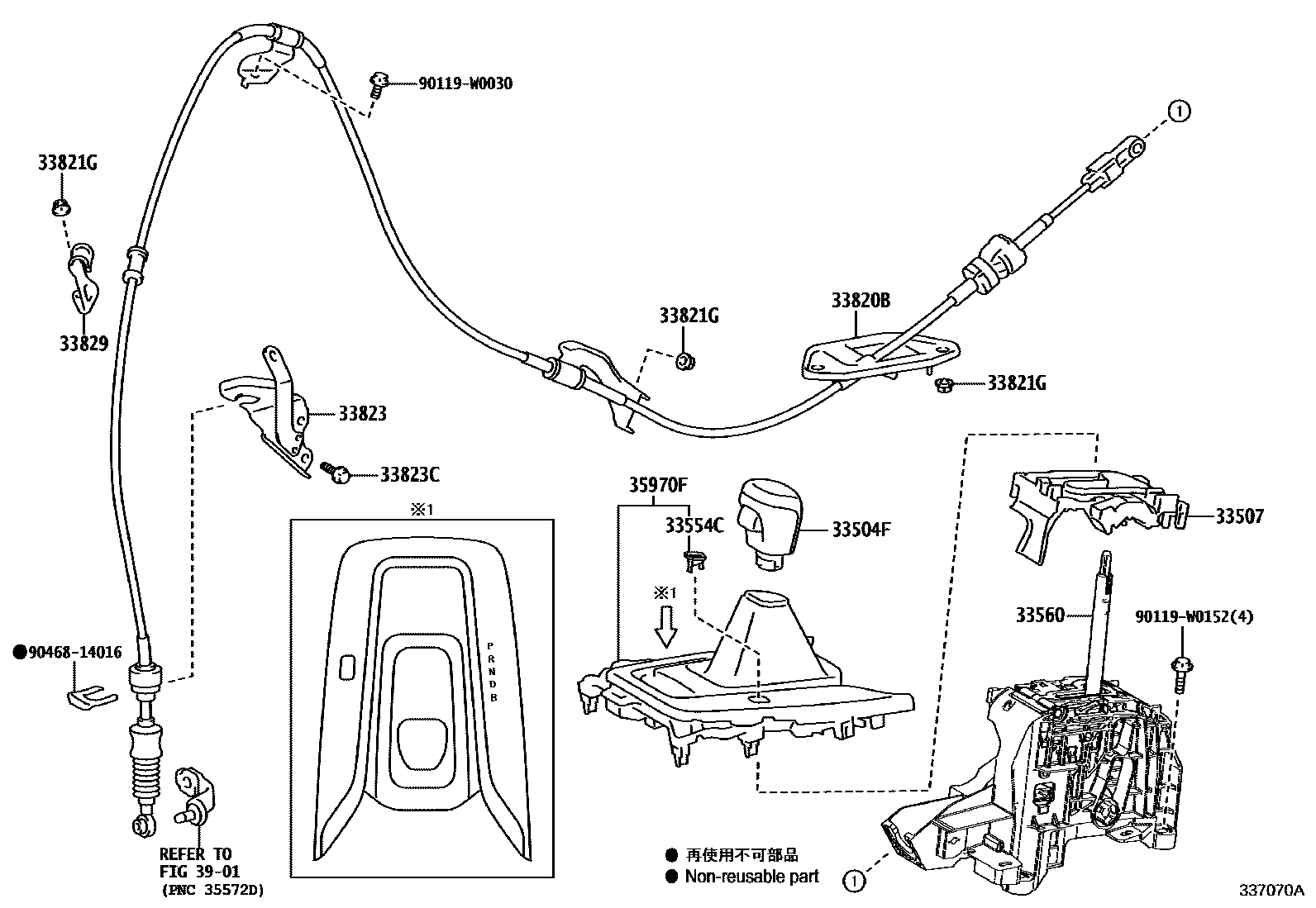

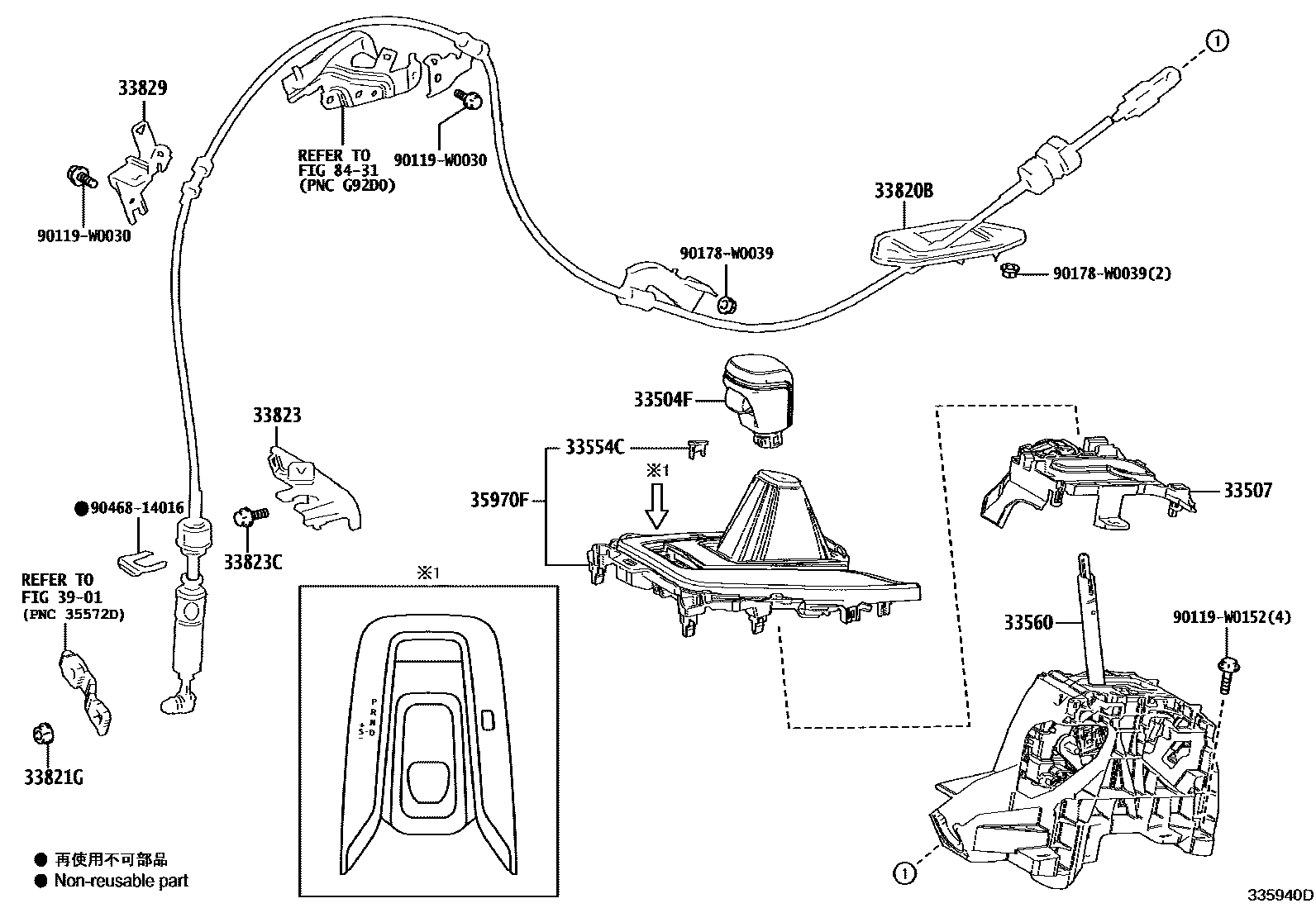

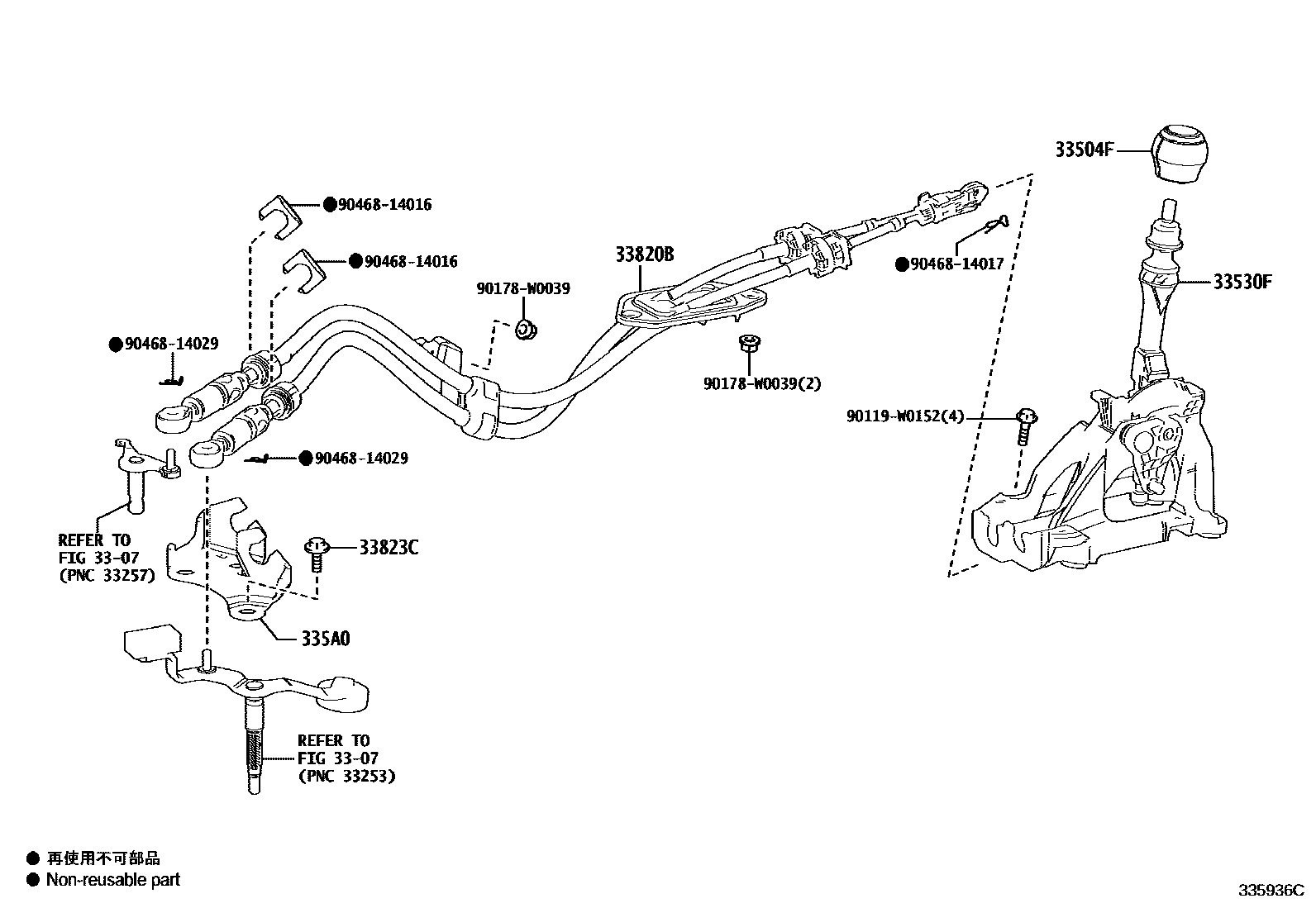

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 11 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-02020 · 33507-02030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-02360 |
| 33554C | Shift lock release button cover | 33554-02190 · 33554-02200 |
| 33560 | Shift lock control unit assembly | 33560-F4010 · 33560-F4020 · 33560-F4030 · 33560-F4040 · 33560-F4050 · 33560-F4060 |
| 335A0 | Control cable bracket assembly | 335A0-0D010 |
| 33820B | Transmission control cable assembly | 33820-02A71 · 33820-02A80 · 33820-02A90 · 33820-02B00 · 33820-02D40 · 33820-02D80 · 33820-02E30 · 33820-02E70 |
| 33821G | Nut (for transmission control cable) | 90178-W0031 · 90179-06274 |
| 33823 | No. 1 transmission control cable bracket | 33823-02460 · 33823-02490 · 33823-12190 · 33823-12350 · 33823-F4010 |
| 33823C | Bolt (for transmission control cable bracket) | 90119-08C60 · 90119-W0016 · 90119-W0255 |
| 33829 | Transmission control cable bracket | 33829-02370 · 33829-02400 · 33829-12180 · 33829-F4010 · 33829-F4040 · 33829-F4041 |
