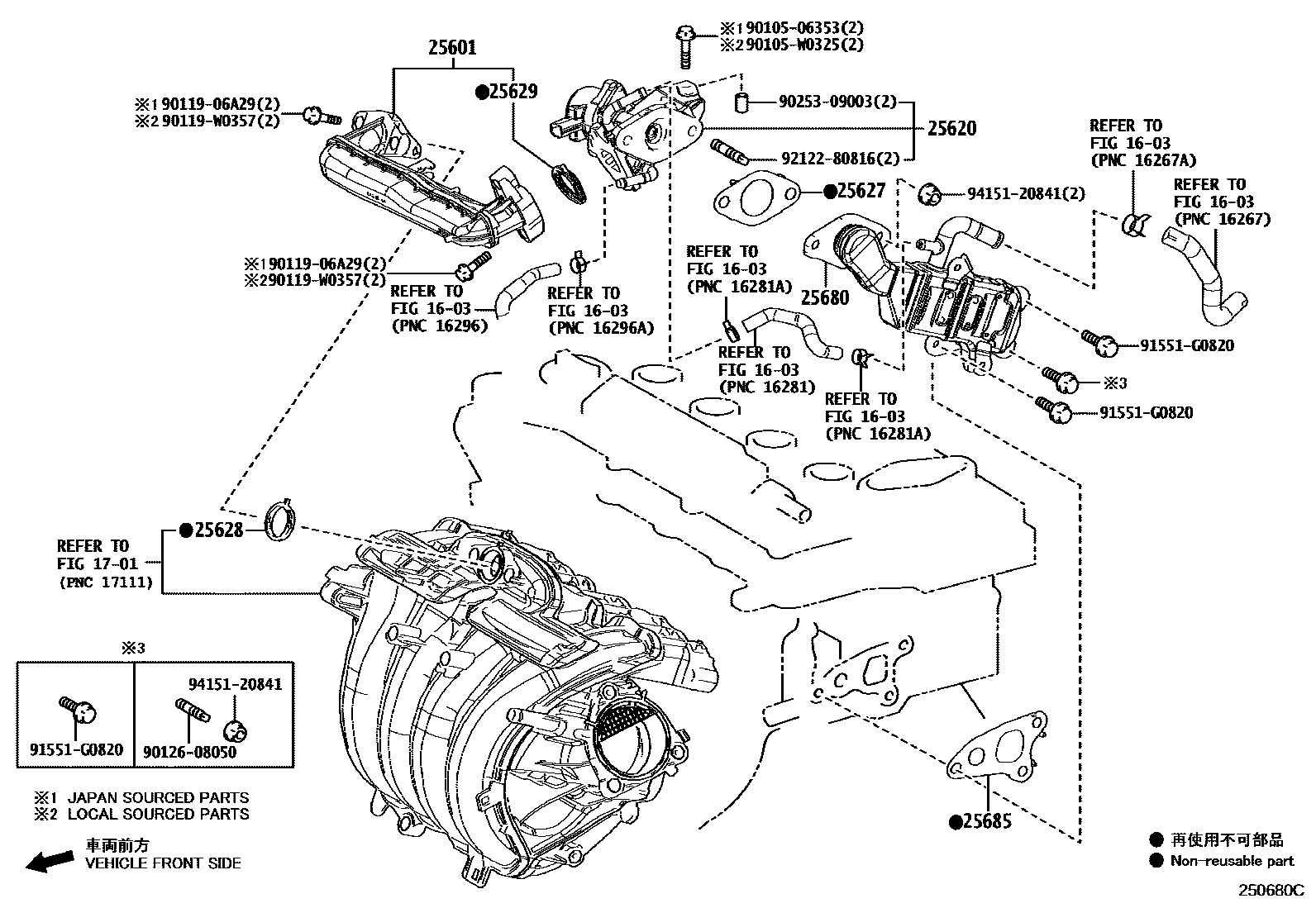

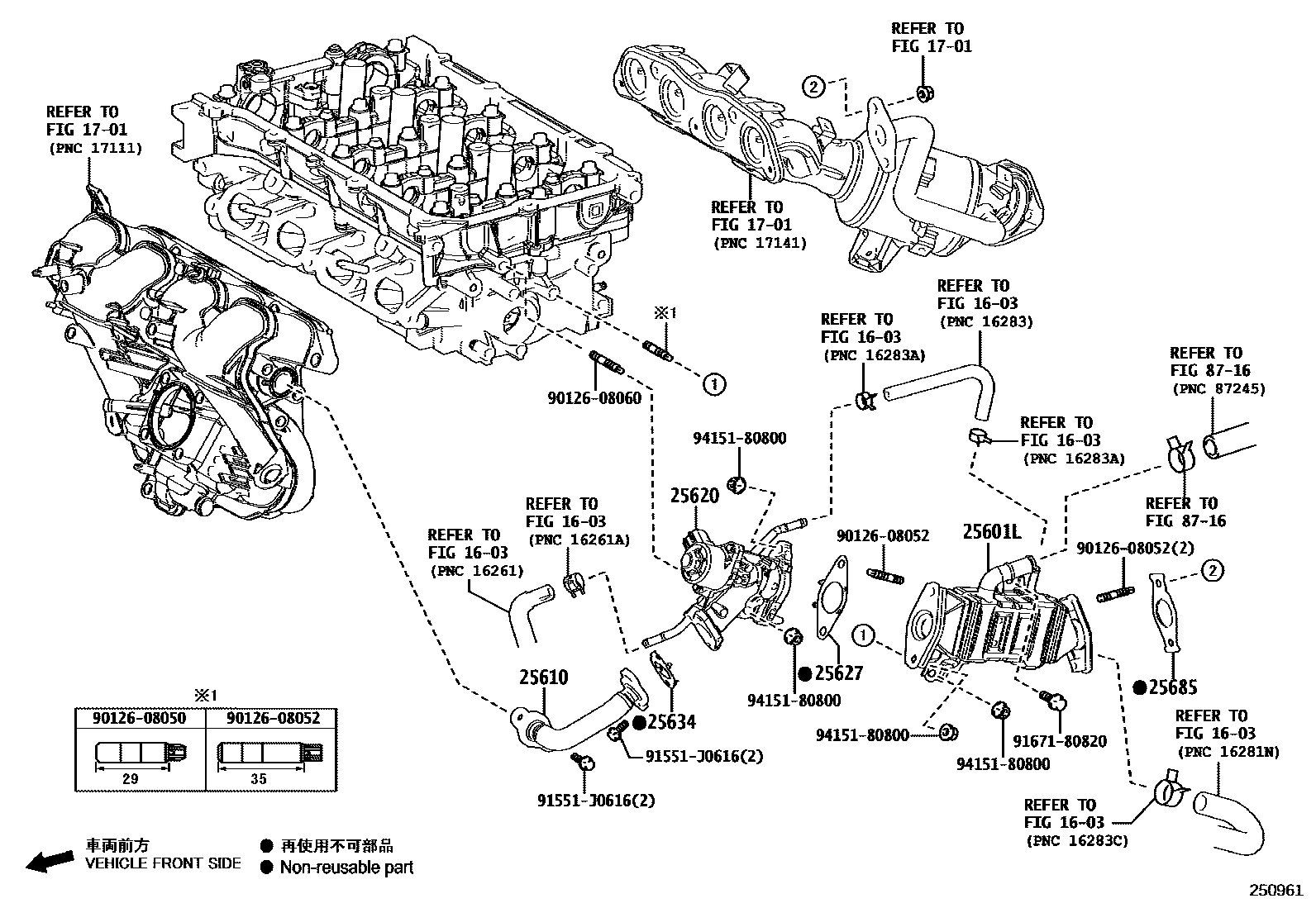

Toyota COROLLA 废气再循环系统 — Figure 2501
Toyota COROLLA EPC diagram 2501, 废气再循环系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25601-24030 · 25601-F2020 |
| 25601L | EGR pipe assembly with cooler | 25601-0T010 · 25601-0T030 · 25601-37020 · 25601-37030 · 25601-37050 · 25601-37060 |
| 25610 | EGR tube assembly | 25610-37020 · 25610-37030 |
| 25620 | EGR valve assembly | 25620-24050 · 25620-37140 · 25620-37150 · 25620-F2020 |
| 25627 | EGR valve gasket | 25627-24010 · 25627-37020 · 25627-F2040 |
| 25628 | EGR air intake gasket | 25628-25010 · 25628-F2040 |
| 25629 | EGR valve adapter gasket | 25629-25010 |
| 25634 | EGR tube gasket | 25634-37020 |
| 25680 | EGR cooler assembly | 25680-24030 |
| 25685 | No. 1 EGR Cooler Gasket | 25685-25011 · 25685-37020 |
