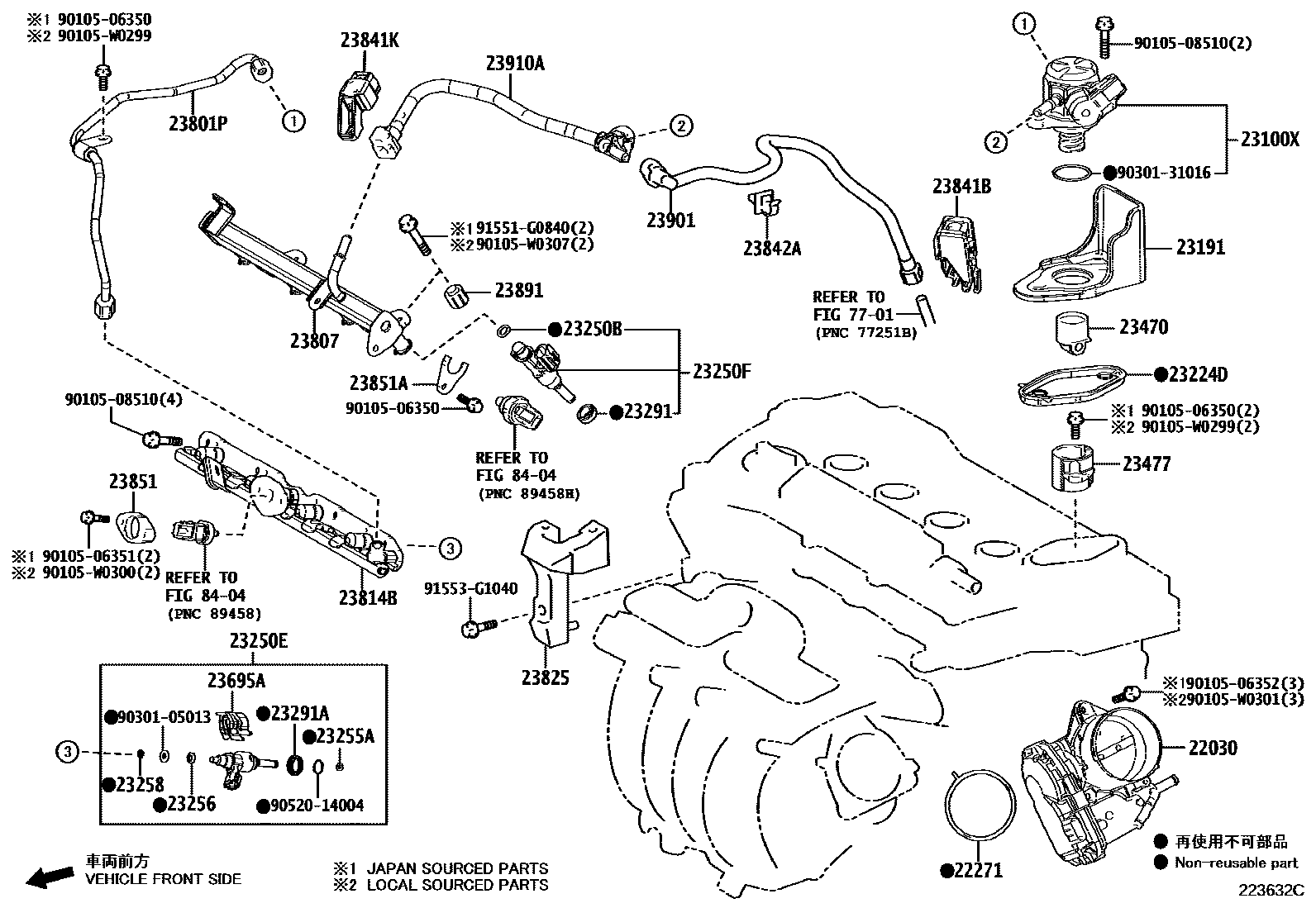

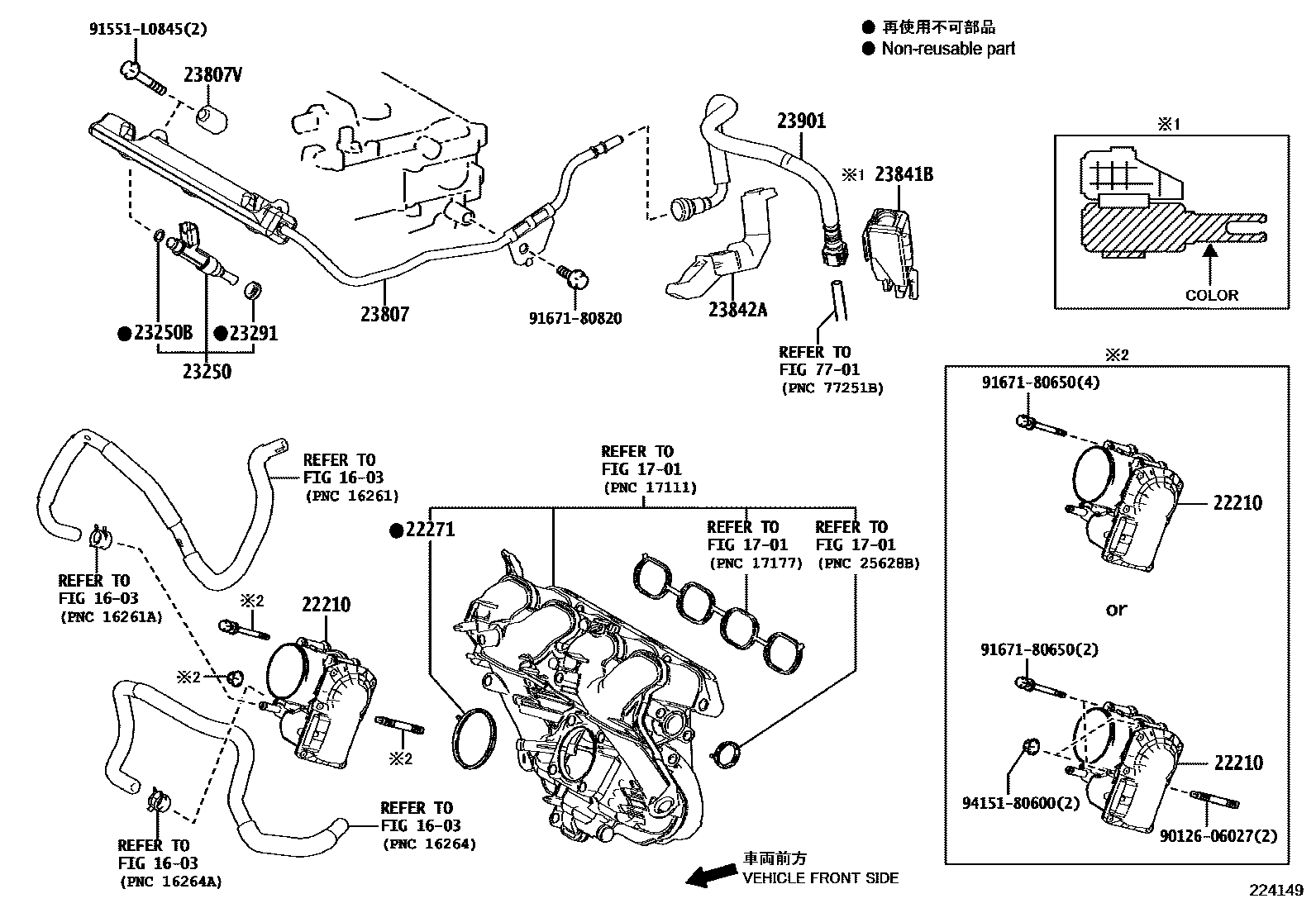

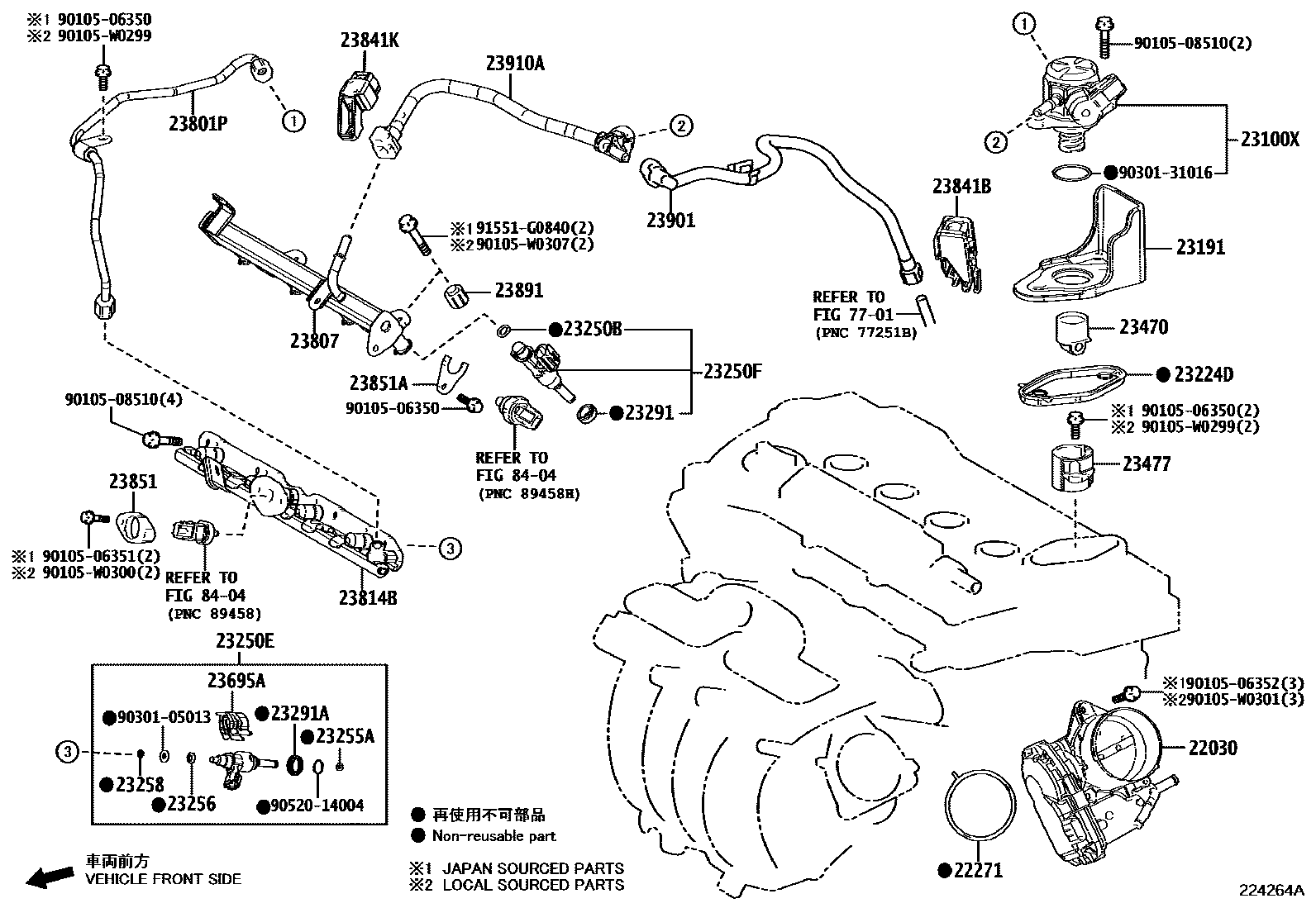

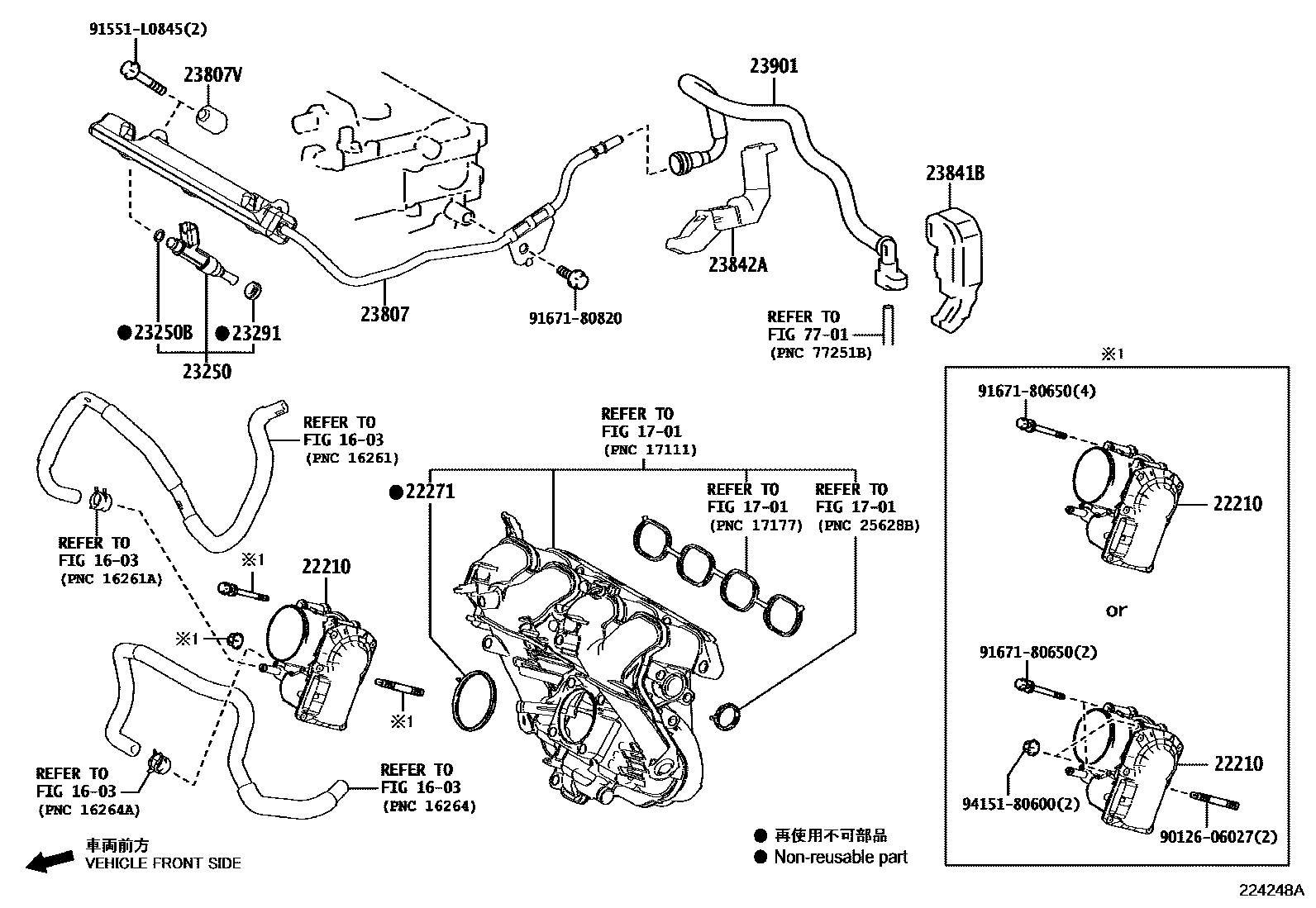

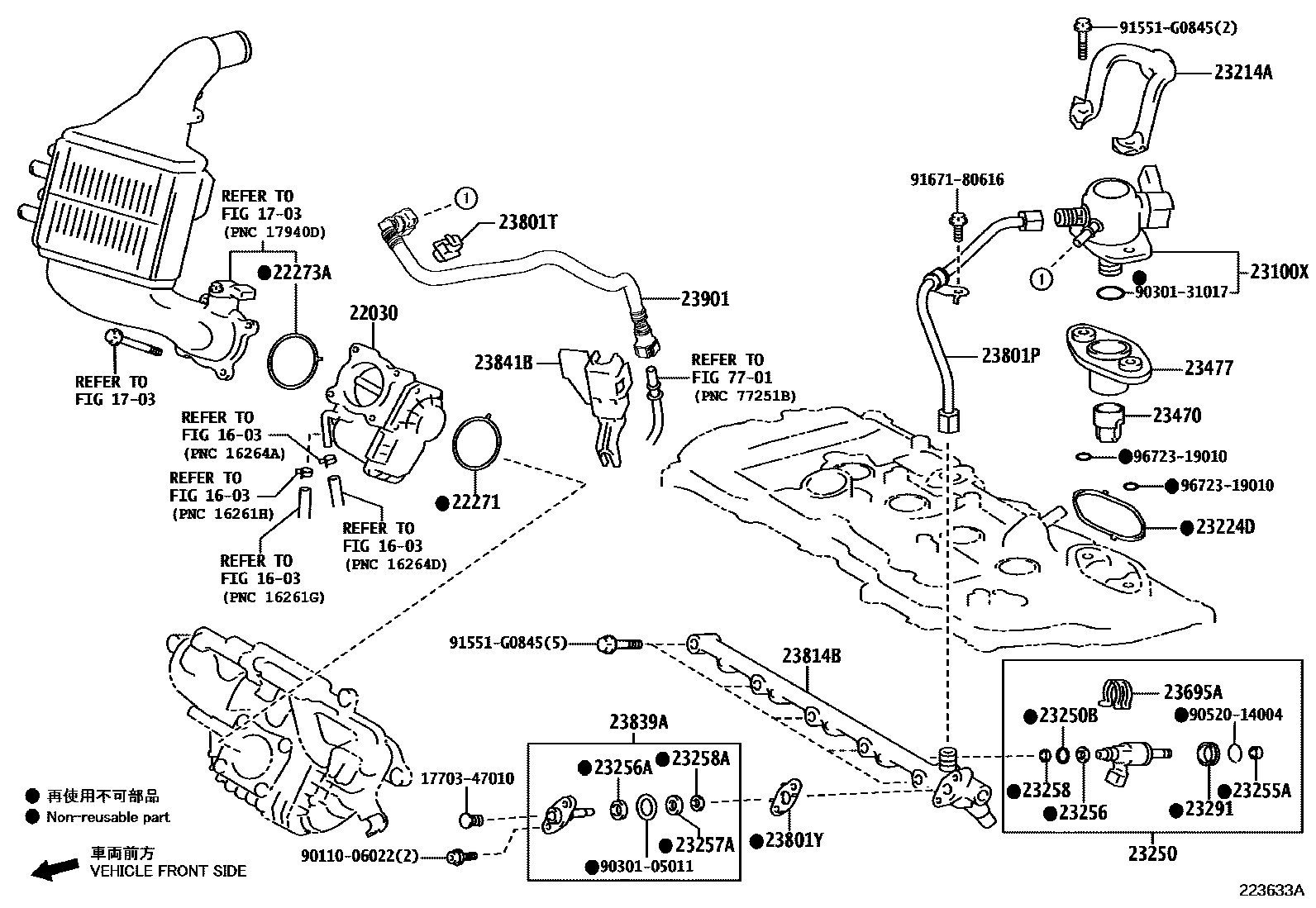

Toyota COROLLA 燃油喷射系统 — Figure 2211
Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 5 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-24010 · 22030-47080 · 22030-F2040 |
| 22210 | Throttle body assembly | 22030-0T110 · 22030-37060 |
| 22271 | Throttle body gasket | 22271-0Y050 · 22271-24020 · 22271-37020 · 22271-47060 |
| 22273A | No. 2 throttle body gasket | 22271-47060 |
| 23100X | fuel pump assembly | 23101-25040 · 23101-47020 · 23101-F2010 |
| 23191 | BRIDE, POMPE CARBURANT | 23191-25050 · 23214-F2020 |
| 23214A | PROTECTEUR, POMPE A CARBURANT | 23214-47010 |
| 23224D | JOINT D'ETANCHEITE, ENTRETOISE DE POMPE A CARBURANT | 23224-25010 · 23224-25011 · 23224-47010 |
| 23250 | Fuel injector assembly | 23209-09370 · 23209-39295 |
| 23250B | O-ring (for fuel injector) | 90301-05013 · 90301-07037 · 90301-A0036 · 90301-C0072 |
| 23250F | ENS INJECTEUR, CARBURANT(POUR PORT) | 23209-29125 · 23209-29185 · 23209-F9010 |
| 23255A | Injector seal | 23255-25010 · 23255-31030 |
| 23256 | No. 1 injector retaining ring | 23256-25010 |
| 23256A | No. 1 fuel pipe ring | 23256-31010 |
| 23257A | No. 2 fuel pipe ring | 23257-47010 |
| 23258 | No. 3 injector retaining ring | 23258-36010 · 23258-47010 · 23258-47030 |
| 23258A | No. 3 fuel pipe ring | 23258-31010 |
| 23291 | Injector vibration isolation pad | 23291-0D020 · 23291-23010 · 23291-28020 · 23291-31020 |
| 23291A | Injector vibration isolation pad | 23291-31020 |
| 23470 | Fuel pump tappet assembly | 23470-25010 · 23470-36020 · 23470-F2010 |
| 23477 | fuel pump tappet guide | 23477-25010 · 23477-47010 · 23477-F2060 |
| 23695A | Injector body clamp | 23695-24010 · 23695-70010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-24070 · 23801-47030 |
| 23801T | Fuel hose clamp or clip (for EFI) | 23841-0Y070 |
| 23801Y | padding | 23893-47010 |
| 23807 | Oil pipe sub-assembly | 23814-24020 · 23814-37100 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23814B | oil pipeline | 23800-47030 · 23814-24010 · 23814-24011 |
| 23825 | PROTECTION, ALIM CARBURANT | 23825-24010 |
| 23839A | No. 1 fuel pipe plug | 23809-47010 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-37081 · 23841-37090 · 23841-37160 |
| 23841K | ATTACH, TUY ESS | 23841-25040 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23841-37131 · 23841-47050 |
| 23851 | SUPPORT, CAPTEUR PRESSION CARBURANT, NO.1 | 23851-25020 · 23851-F2050 |
| 23851A | SUPPORT, CAPTEUR PRESSION CARBURANT, NO.2 | 23851-25030 · 23851-F2030 |
| 23891 | oil pipe septum | 23891-24010 |
| 23901 | Fuel pipe sub-assembly | 23901-0T221 · 23901-0Y371 · 23901-24040 · 23901-37350 · 23901-F2040 · 23901-F2041 · 23901-F2120 |
| 23910A | Fuel pipe sub-assembly | 23901-24080 · 23901-24081 · 23901-F2130 |
