Toyota COROLLA 起动机 — Figure 1904

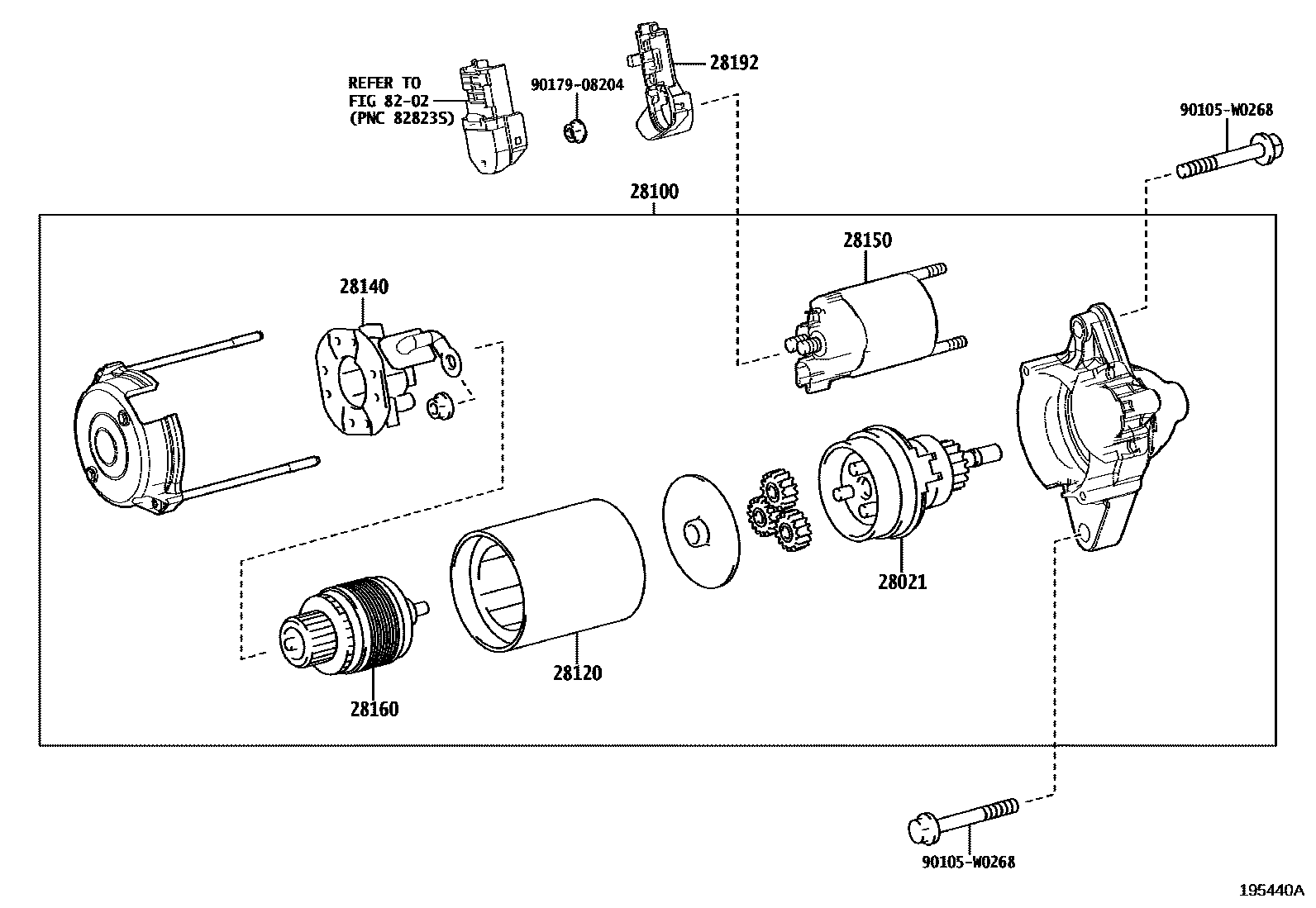

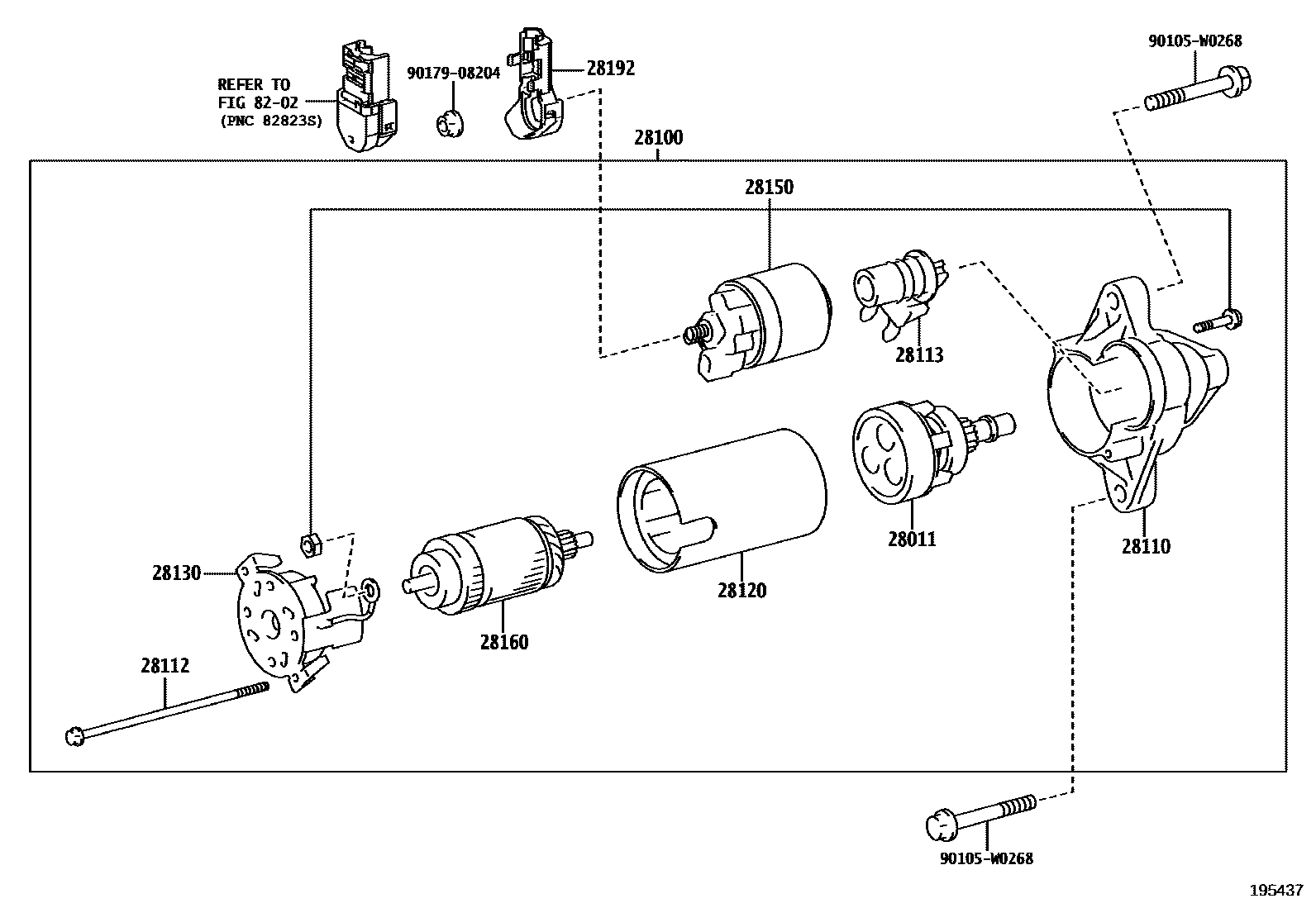

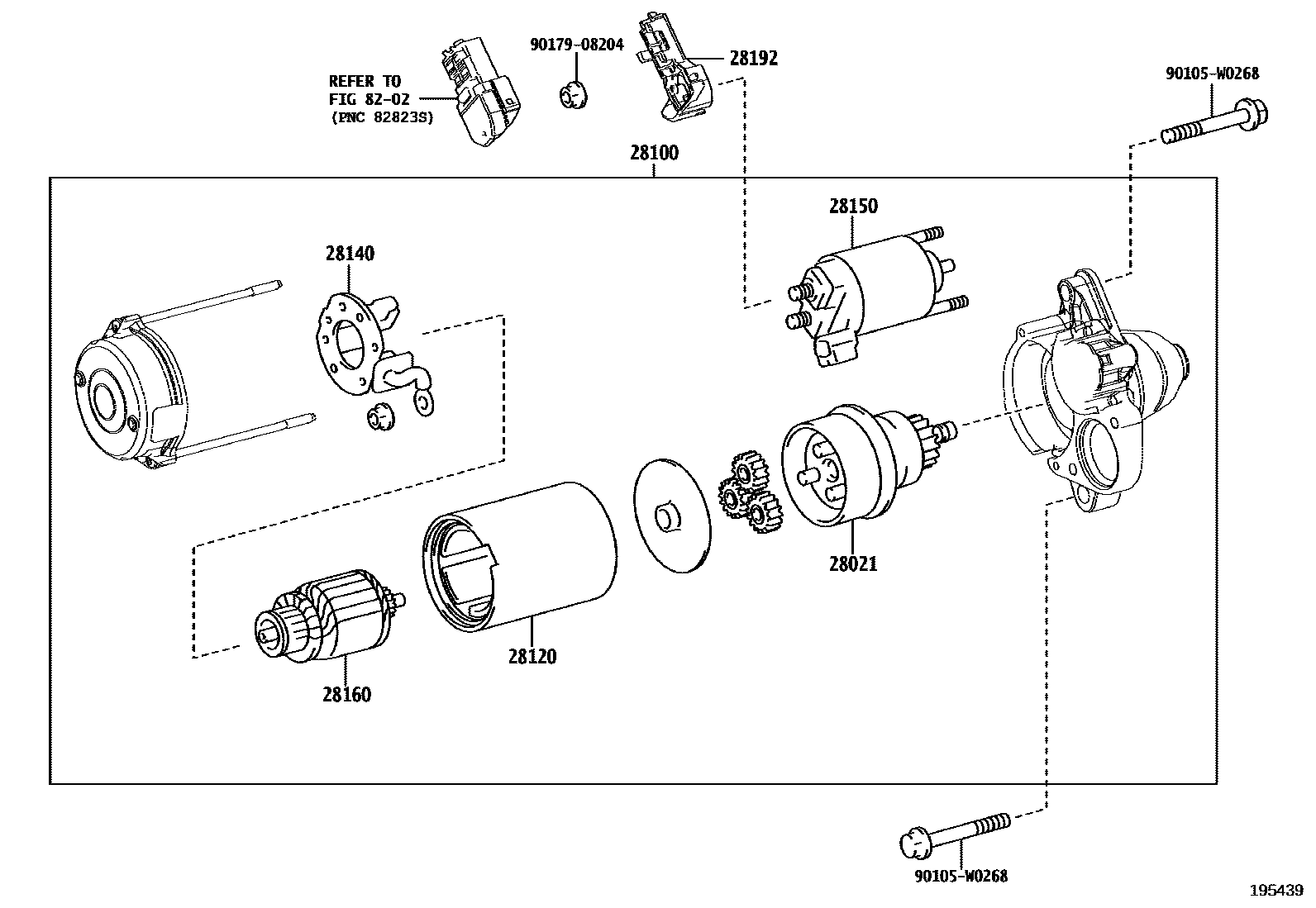

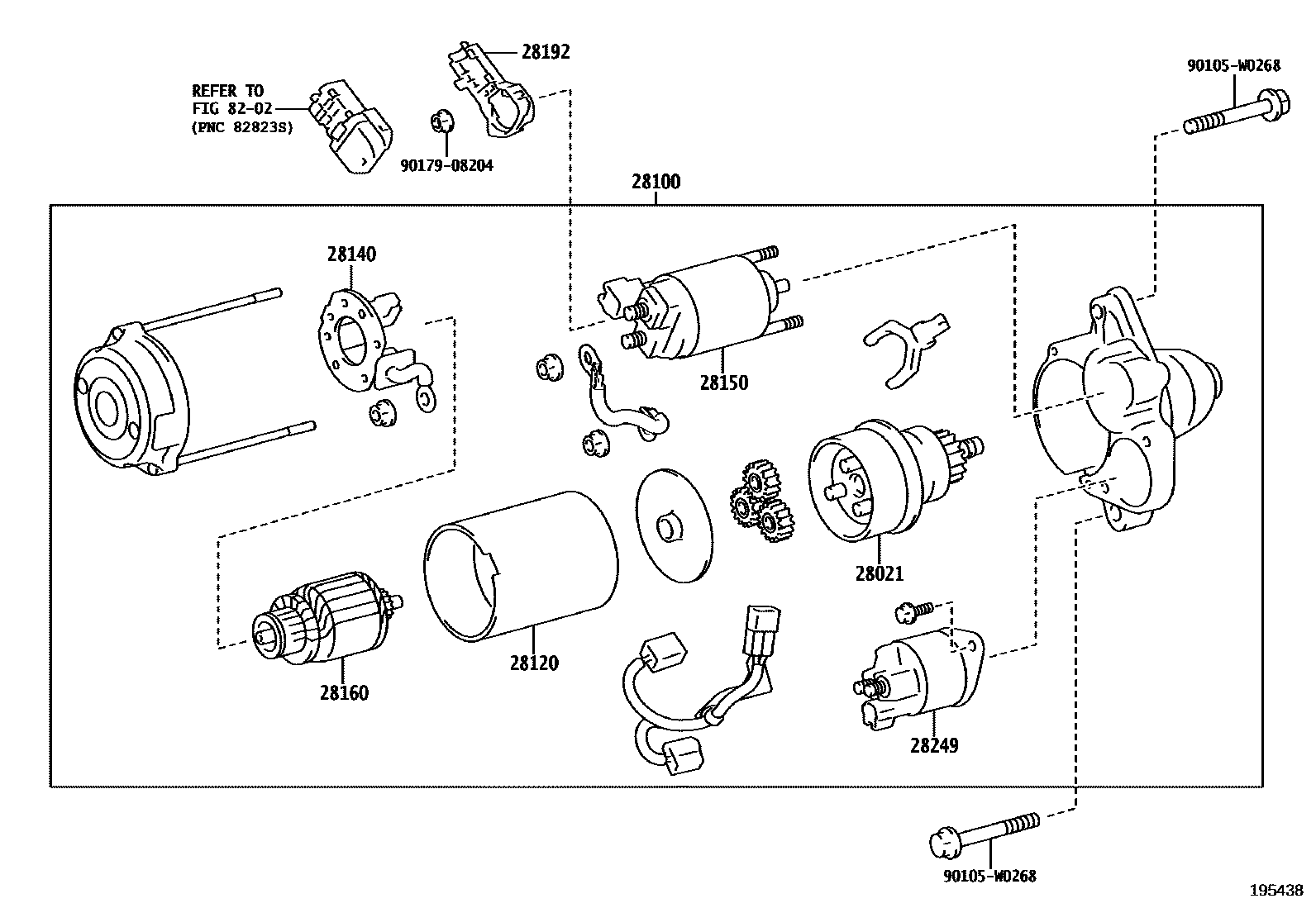

Toyota COROLLA EPC diagram 1904, 起动机, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0Y270 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21100 · 28021-47270 |
| 28100 | Starter assembly | 28100-0Y240 · 28100-0Y270 · 28100-0Y440 · 28100-47280 |
| 28110 | Starter drive end housing assembly | 28110-0Y270 |
| 28112 | Housing fixing bolts | 28112-0Y270 |
| 28113 | starter pinion drive rod | 28113-0Y270 |
| 28120 | Starter yoke assembly | 28120-0Y270 · 28120-37050 · 28120-37100 · 28120-47240 |
| 28130 | Starter commutator end frame assembly | 28130-0Y270 |
| 28140 | Starter brush holder assembly | 28140-21100 · 28140-37050 |
| 28150 | Starter electromagnetic switch assembly | 28150-0Y270 · 28150-21120 · 28150-37050 · 28150-47240 |
| 28160 | Starter armature assembly | 28160-0Y270 · 28160-36110 · 28160-38070 · 28160-38080 · 28160-47270 · 28160-47280 |
| 28192 | starter cover | 28192-47020 |
| 28249 | RELAIS, REDUCTION DU COURANT D'APPEL DU DEMARREUR | 28249-47280 |
