Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 12 PNC and OE references.

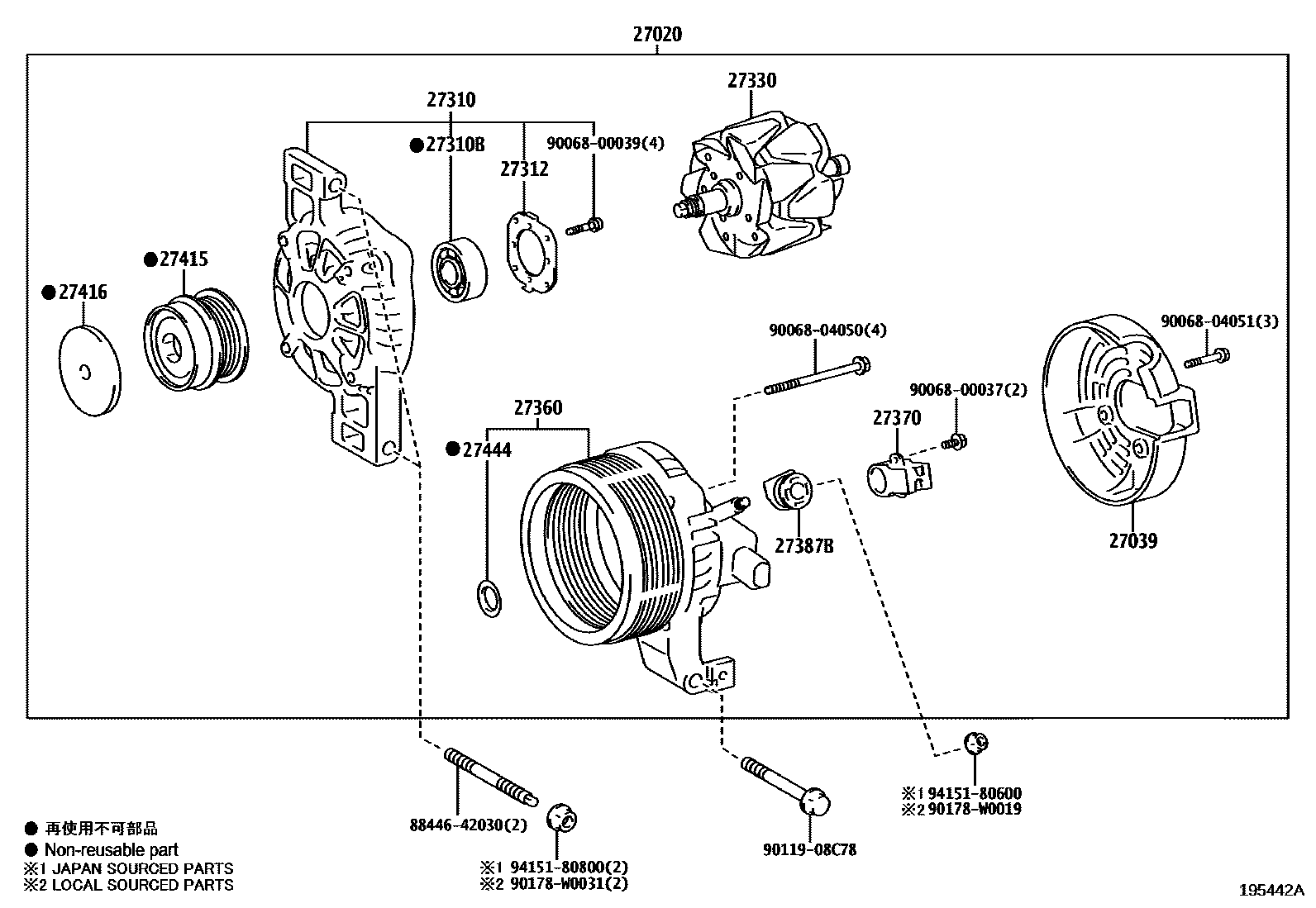

Toyota COROLLA Alternator EPC diagram — 195442A
Alternator — 195442A (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-0Y230
27039Alternator Rear End Cover27039-0Y150
27310Alternator Drive End Frame Assembly27310-0Y210
27310BBearing (for Alternator Drive End Frame)90068-10033
27312Retainer Plate27312-0T300
27330Alternator Rotor Assembly27330-0Y150
27360Alternator Stator Coil Assembly27360-0Y210
27370Alternator Brush Holder Assembly27370-0Y150
27387BGenerator terminal insulation pad27387-0Y150
27415PULLEY, ALTERNATOR W/CLUTCH27415-0Y030
27416Generator pulley cover27416-0Q010
27444Generator bearing cap seals27444-0T300
