Toyota COROLLA 点火线圈和火花塞 — Figure 1901

Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 3 images and 3 PNC and OE references.

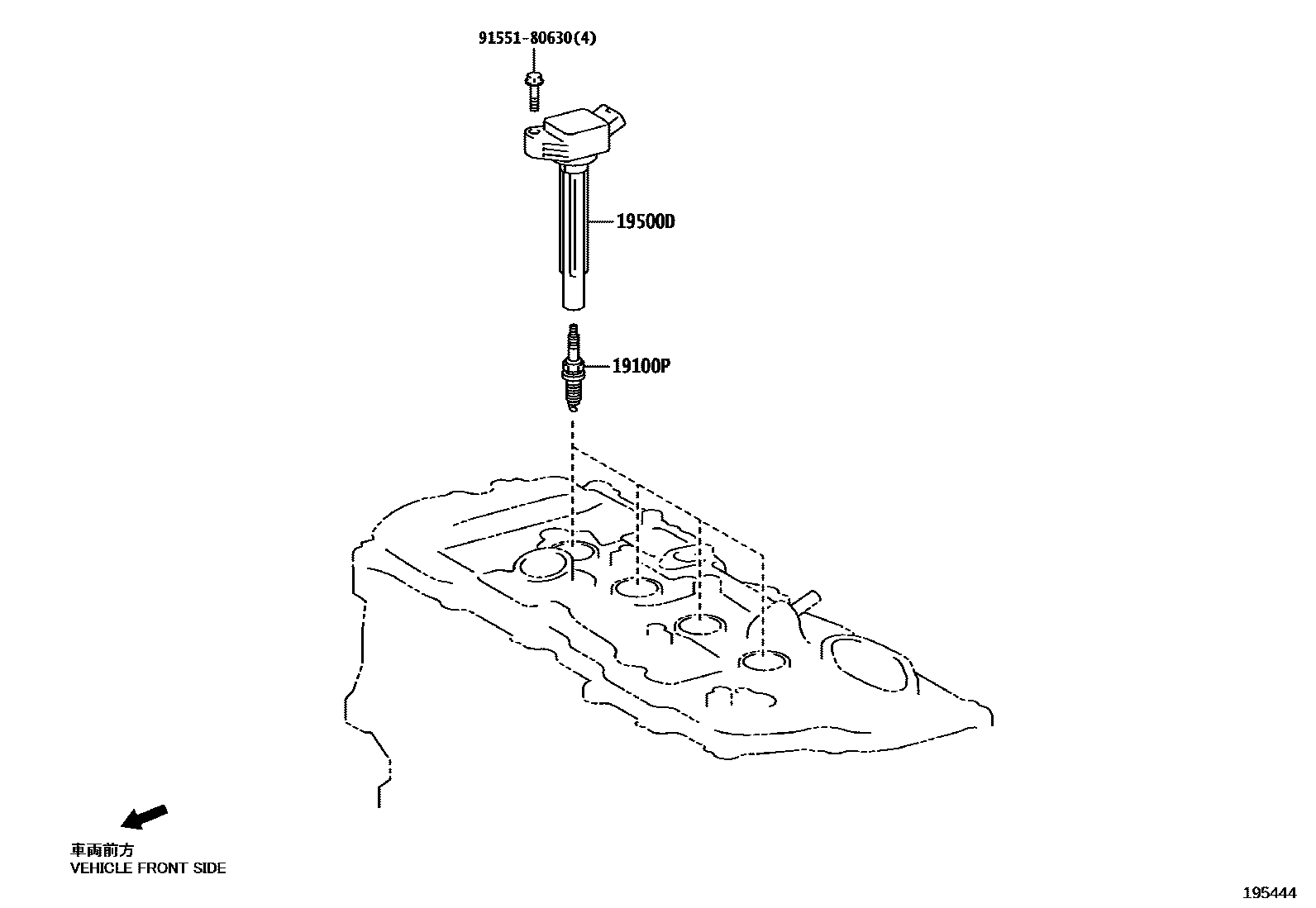

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195444
点火线圈和火花塞 — 195444 (201901 – 999999)

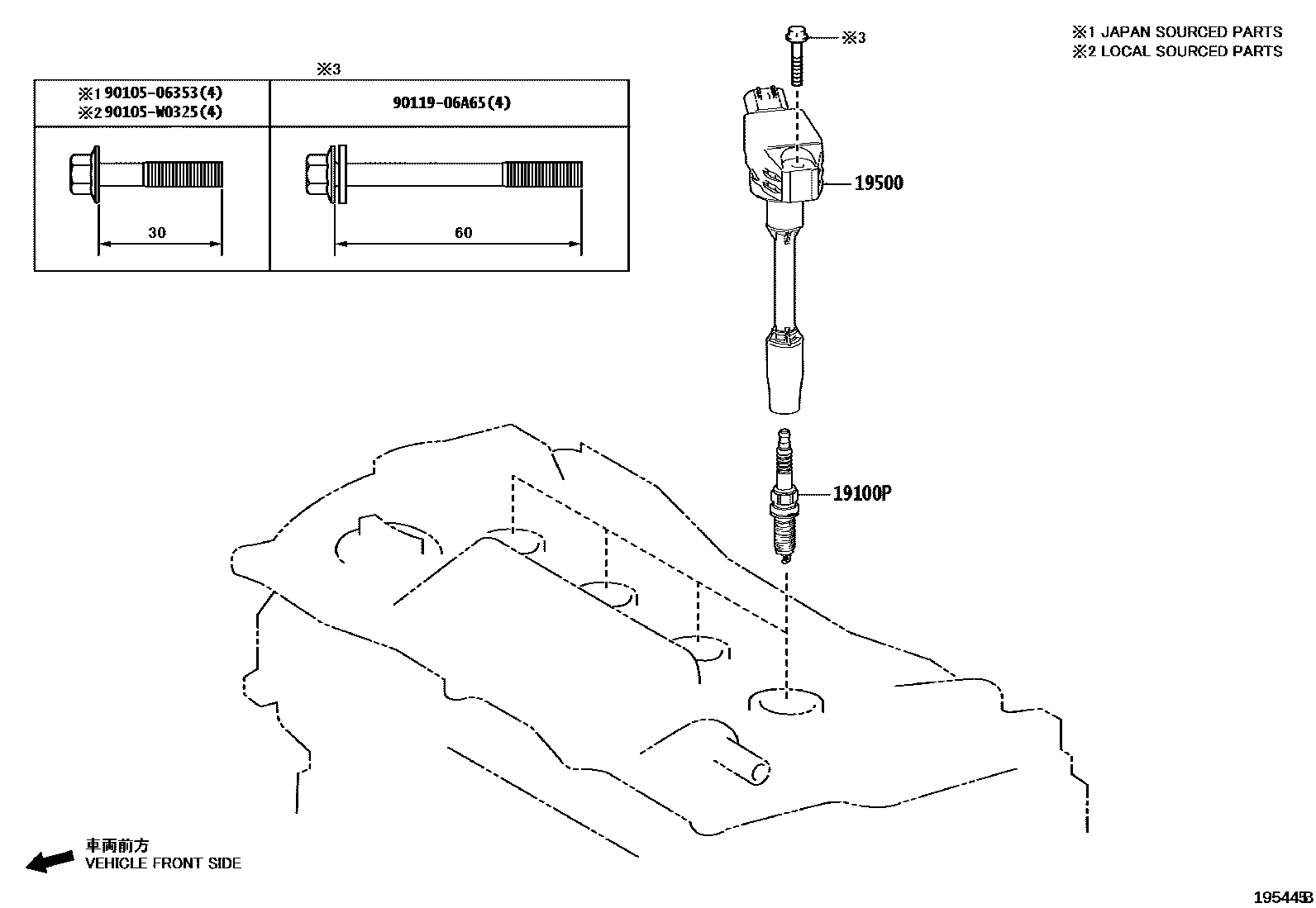

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 195445B
点火线圈和火花塞 — 195445B (201902 – 999999)

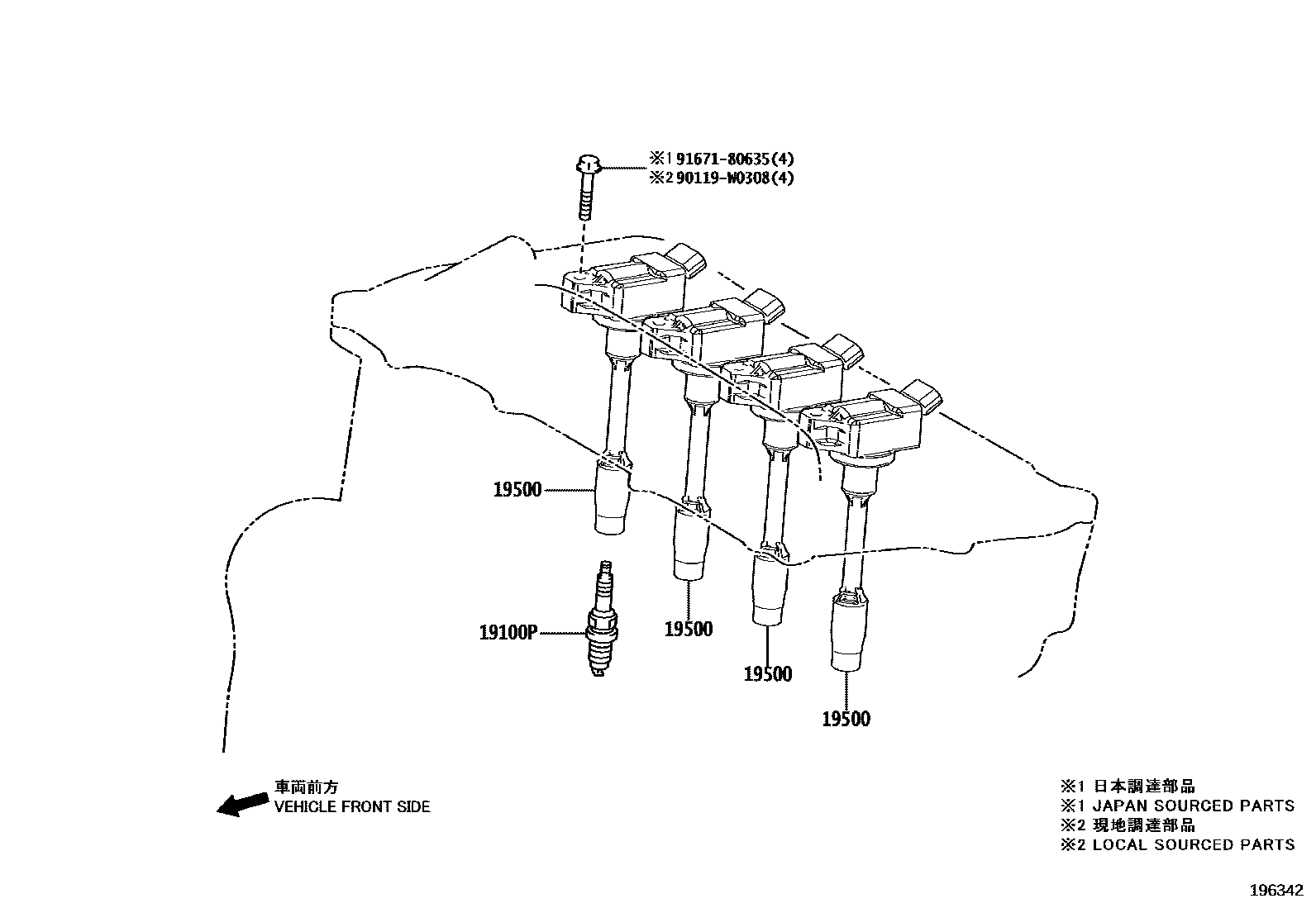

Toyota COROLLA 点火线圈和火花塞 EPC diagram — 196342
点火线圈和火花塞 — 196342 (201901 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01285 · 90919-01289 · 90919-01298 · 90919-W1009
19500Ignition coil assembly90919-02272 · 90919-02277
19500DNo. 1 ignition coil90919-02271
