Toyota COROLLA Air Cleaner — Figure 1703

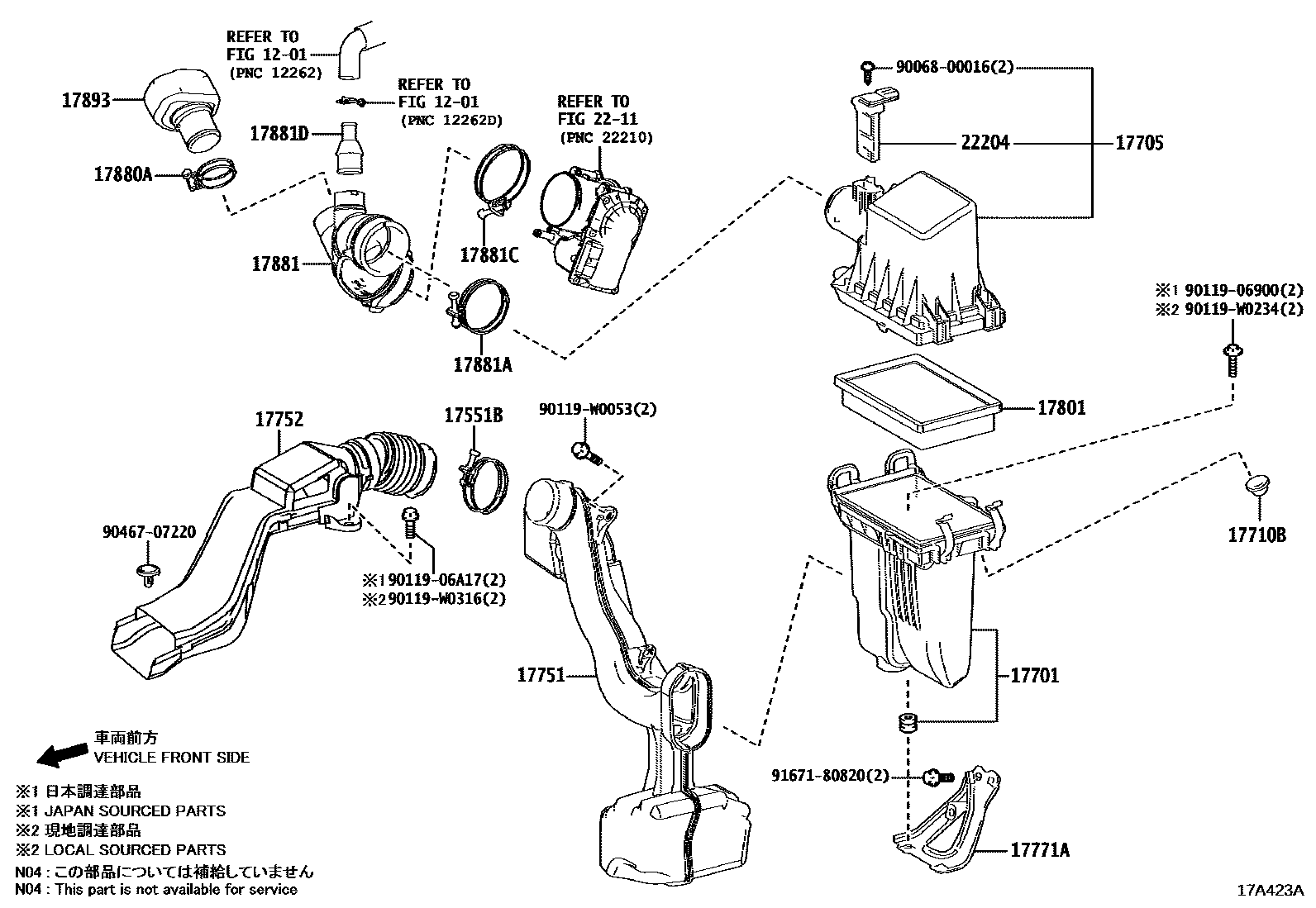

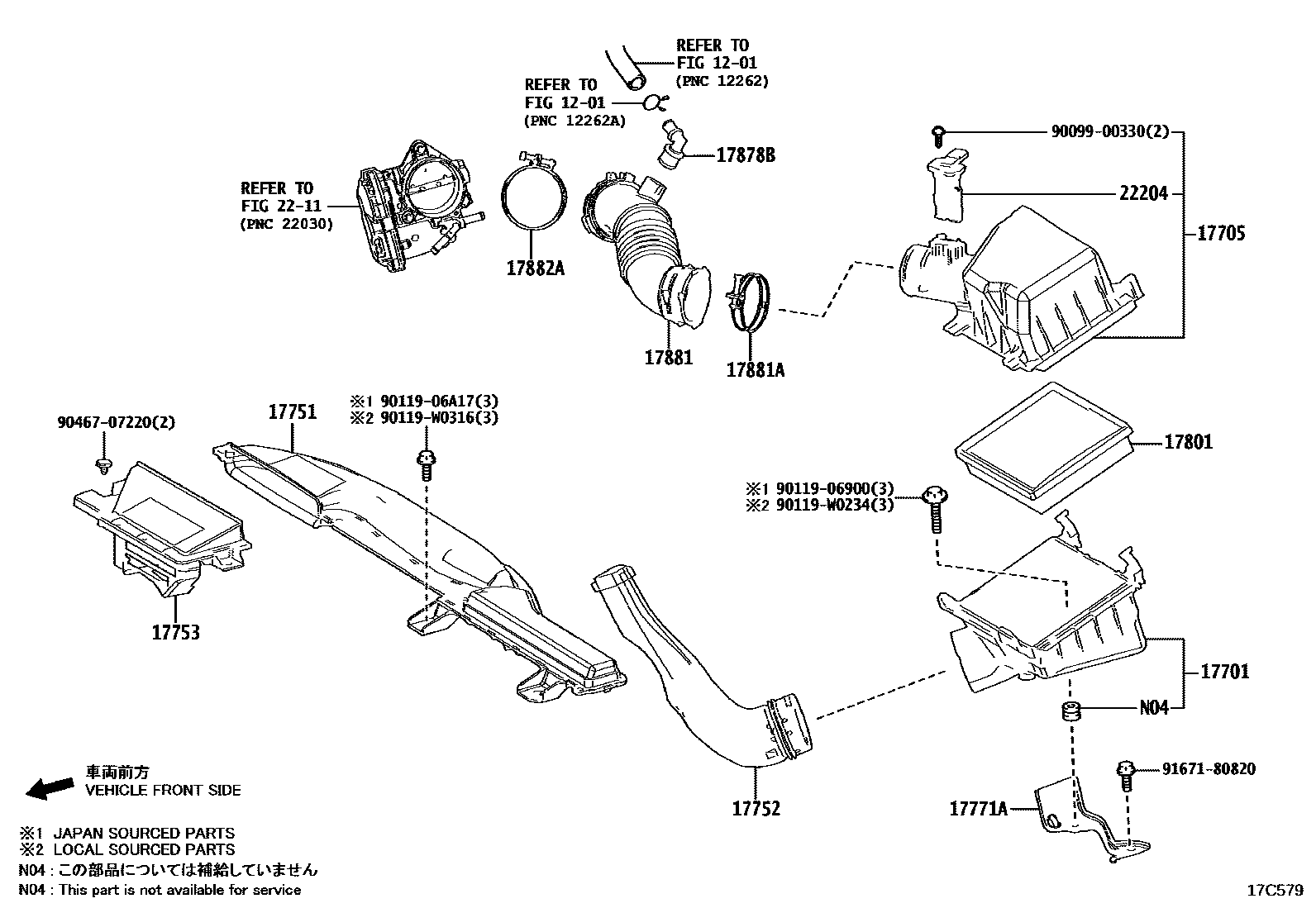

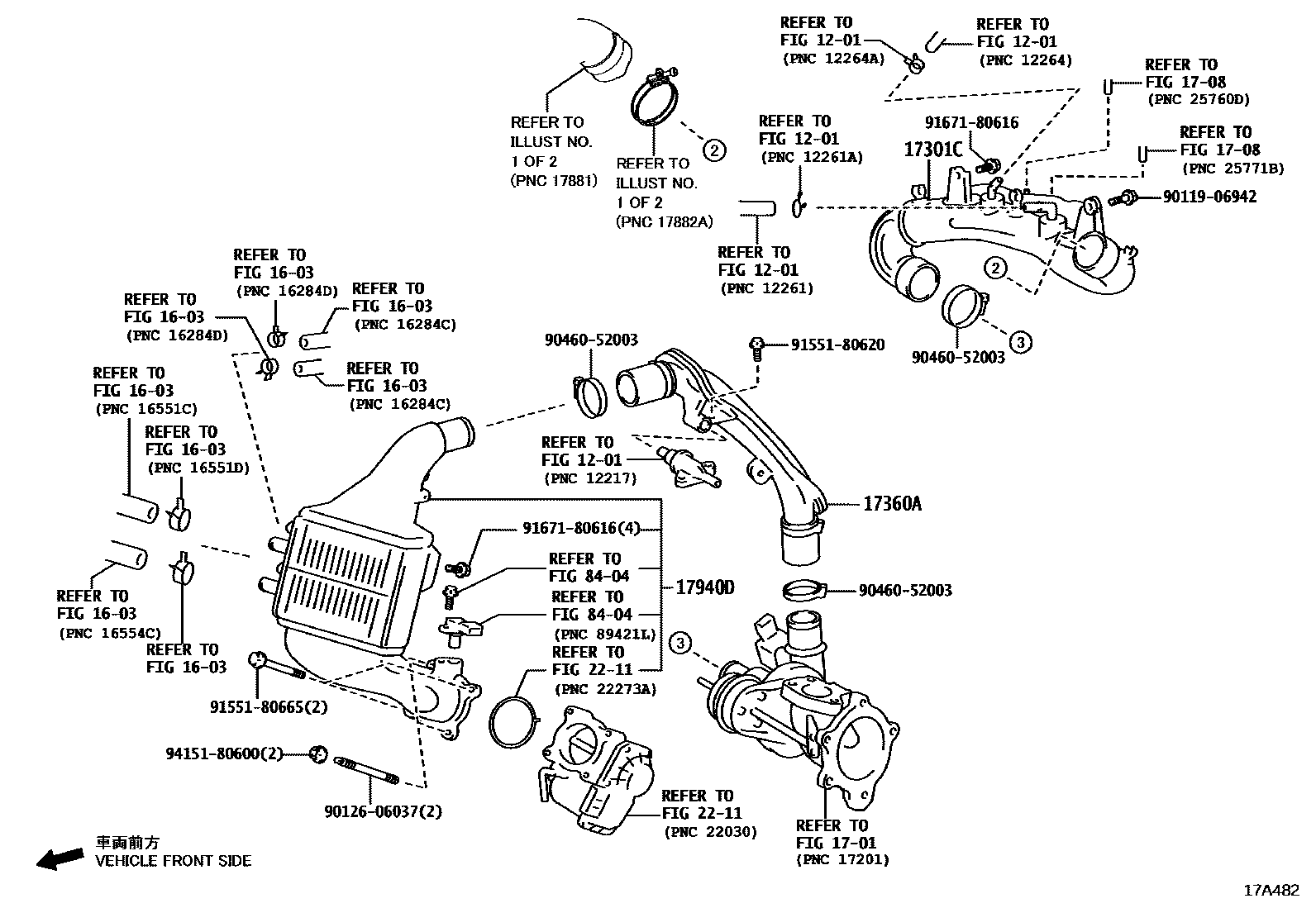

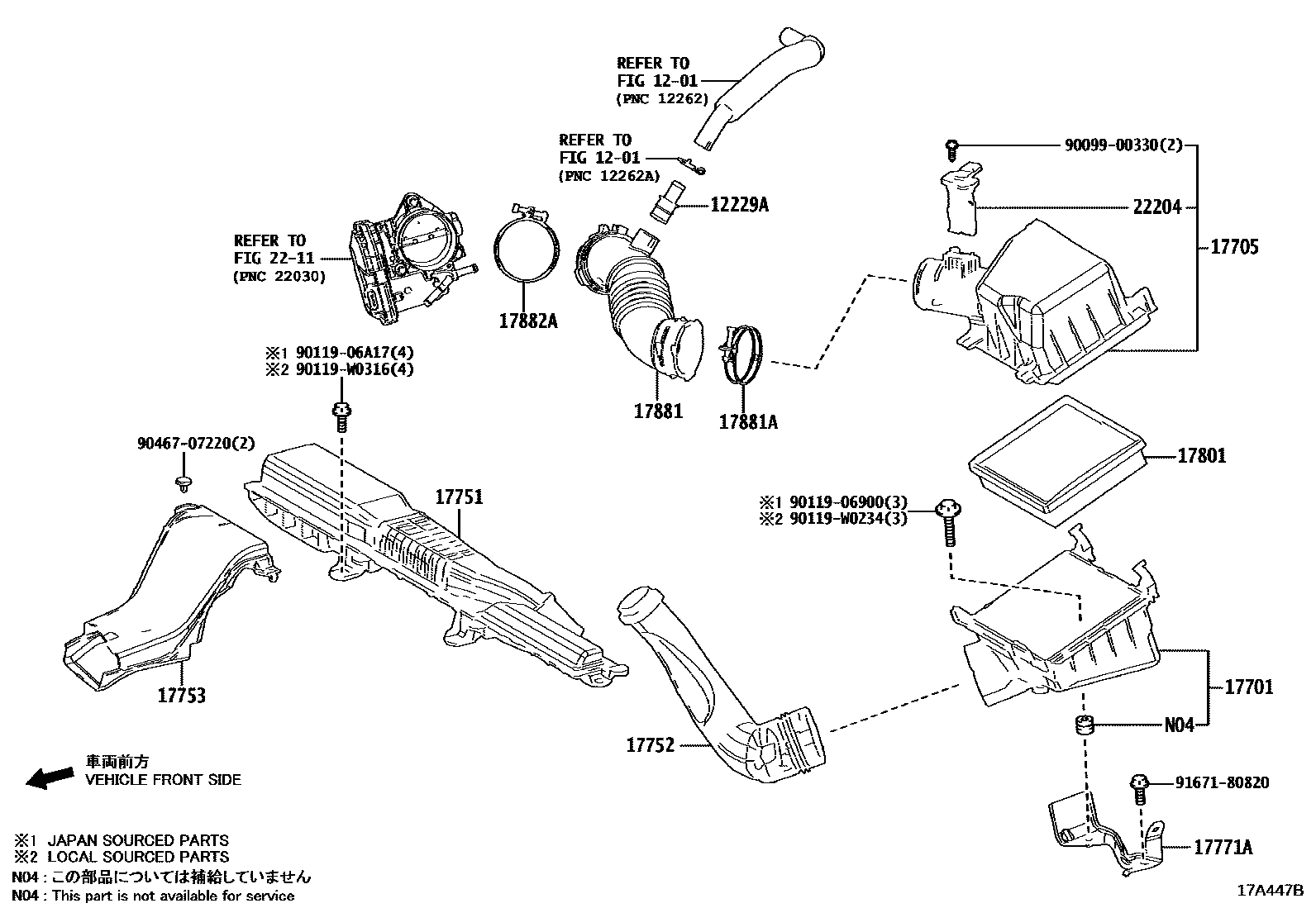

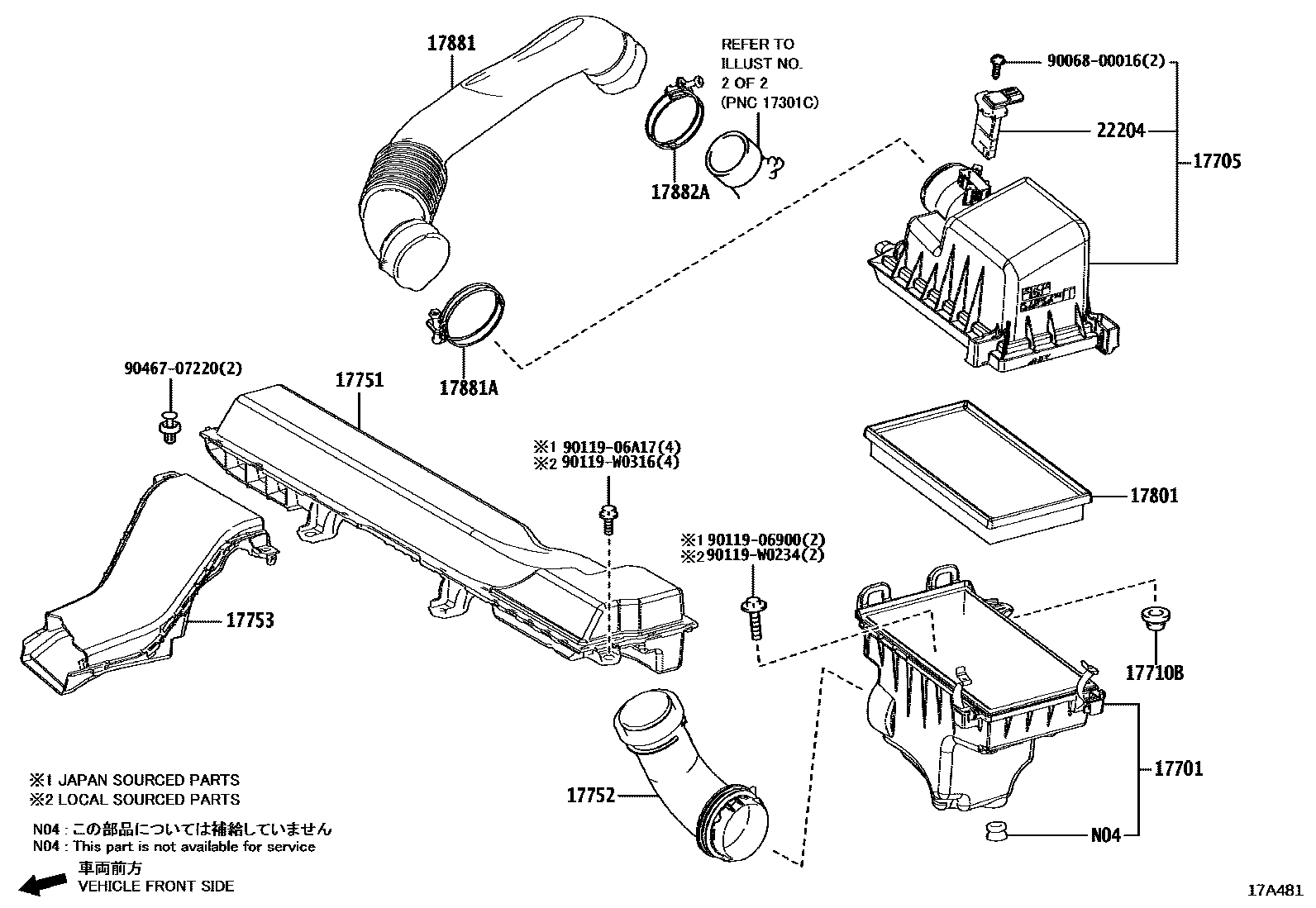

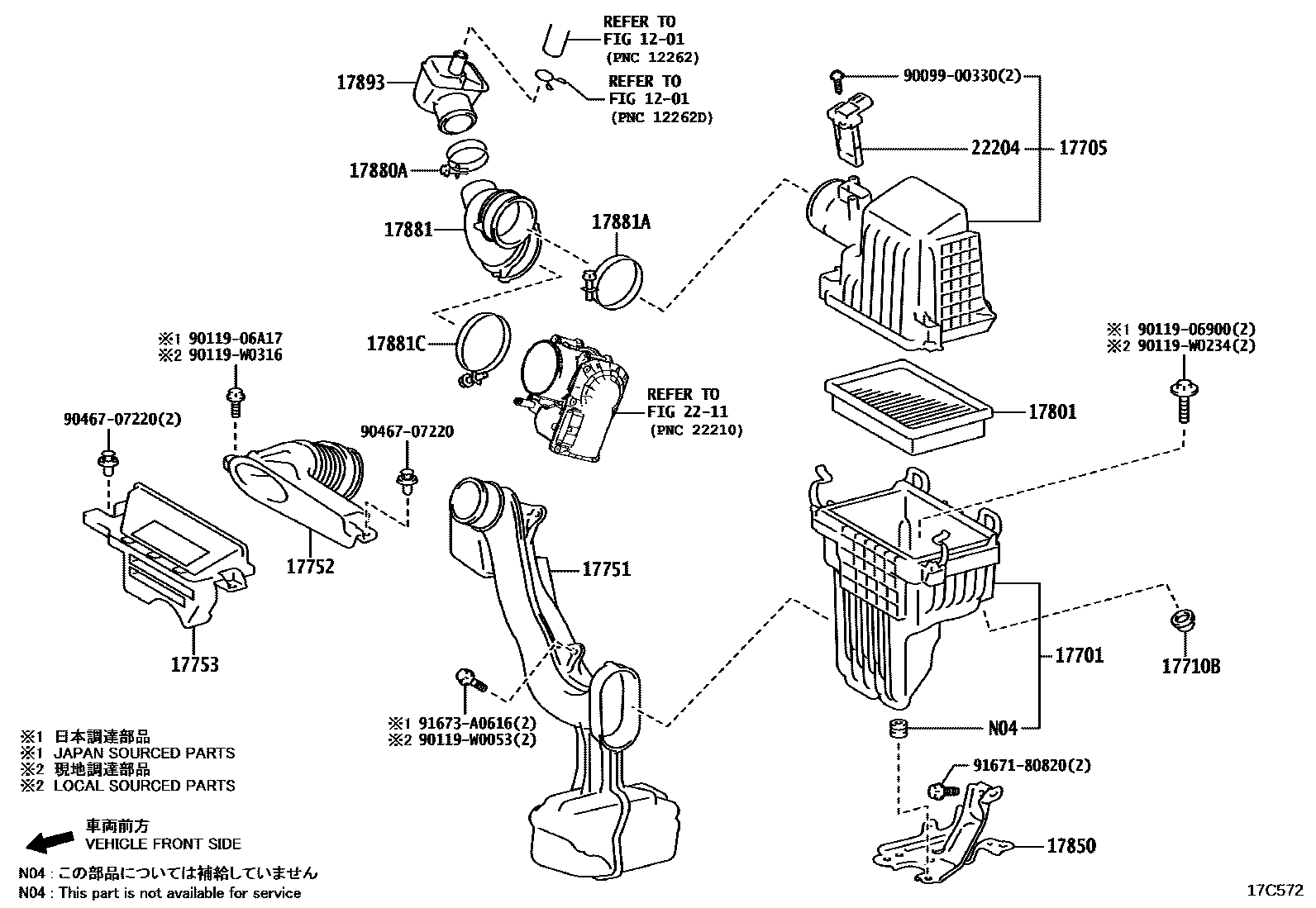

Toyota COROLLA EPC diagram 1703, Air Cleaner, with 6 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-21010 |
| 17301C | No. 1 air inlet duct sub-assembly | 17301-47020 |
| 17360A | air pipe assembly | 17360-47011 |
| 17551B | Clip (for No. 1 air cleaner air inlet) | 96111-10650 |
| 17701 | Air filter housing sub-assembly | 17701-0T240 · 17701-0Y210 · 17701-F2050 · 17701-F2140 |
| 17705 | Air filter cover sub-assembly | 17705-0T290 · 17705-0Y300 · 17705-F2070 · 17705-F2180 |
| 17710B | gasket | 90480-18006 |
| 17751 | No. 1 air filter air inlet | 17751-0T190 · 17751-0T340 · 17751-0Y160 · 17751-F2050 · 17751-F2130 |
| 17752 | No. 2 air filter air inlet | 17752-0T070 · 17752-0T120 · 17752-0T210 · 17752-37170 · 17752-F2050 · 17752-F2100 |
| 17753 | No. 3 air filter air inlet | 17753-0T140 · 17753-0Y010 |
| 17771A | air filter bracket | 17771-0T010 · 17771-F2010 · 17771-F2050 |
| 17801 | Air filter element sub-assembly | 17801-0M040 · 17801-0T060 · 17801-21060 · 17801-24040 · 17801-77050 |
| 17850 | ENS. SUPPORT, SUPPORT FILTRE A AIR | 17850-0T010 |
| 17878B | ventilation duct | 17878-31020 |
| 17880A | hose clamp | 96111-10430 · 96111-10460 |
| 17881 | No. 1 air cleaner hose | 17881-0T440 · 17881-0T660 · 17881-0Y040 · 17881-F2050 · 17881-F2100 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10650 · 96111-10730 |
| 17881C | Clamp (for No. 1 air cleaner hose) | 96111-10750 |
| 17881D | Connector tube (for air cleaner hose) | 90904-06008 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10670 · 96111-10800 |
| 17893 | Intake resonator | 17893-0T050 · 17893-0T170 |
| 17940D | Intercooler assembly | 17940-47021 |
| 22204 | Intake air flow meter assembly | 22204-24010 · 22204-75030 · 22204-F2010 |
