Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 27 PNC and OE references.

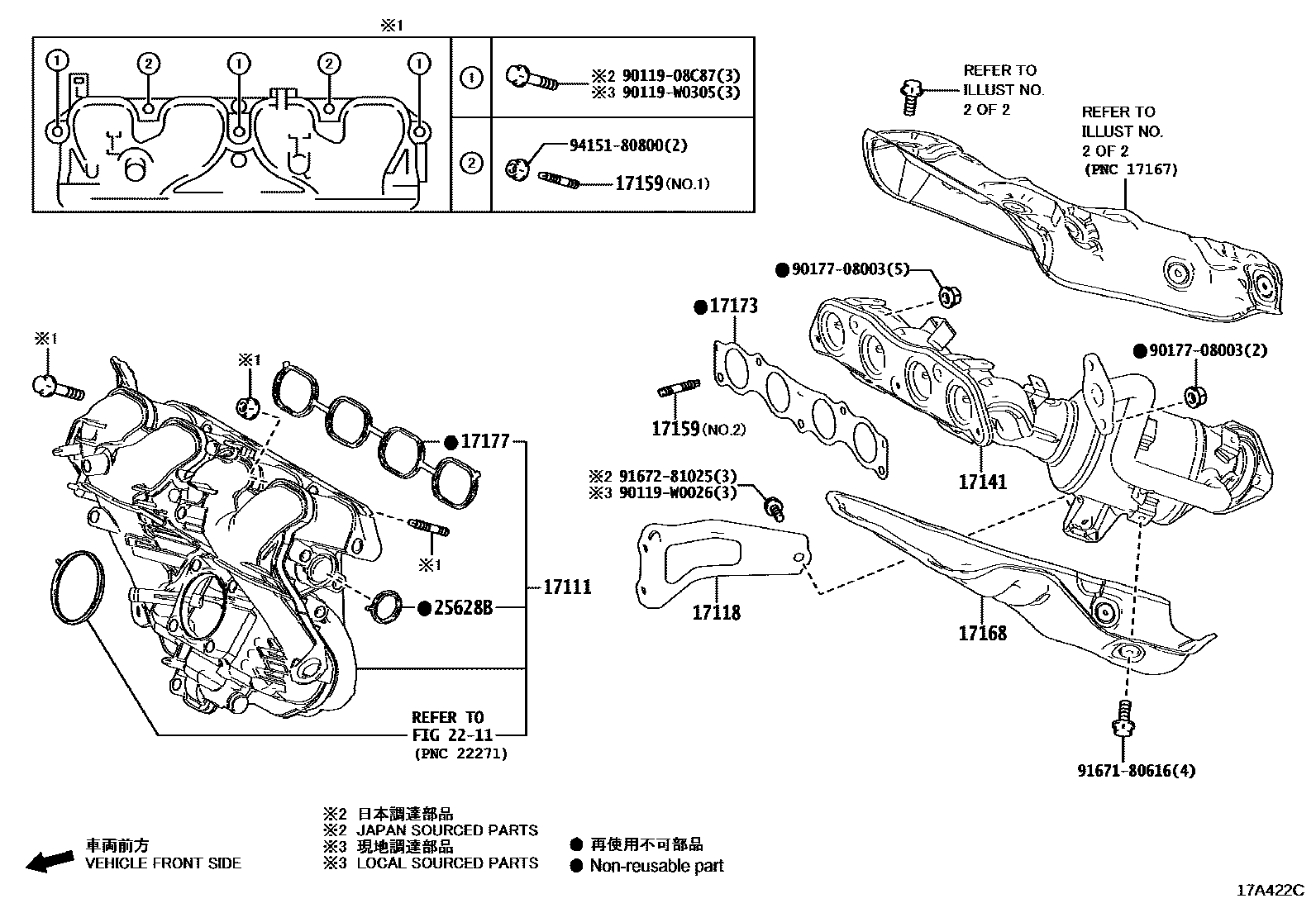

Toyota COROLLA Manifold EPC diagram — 17A422C — Manifold — 17A422C (201901 – 999999)

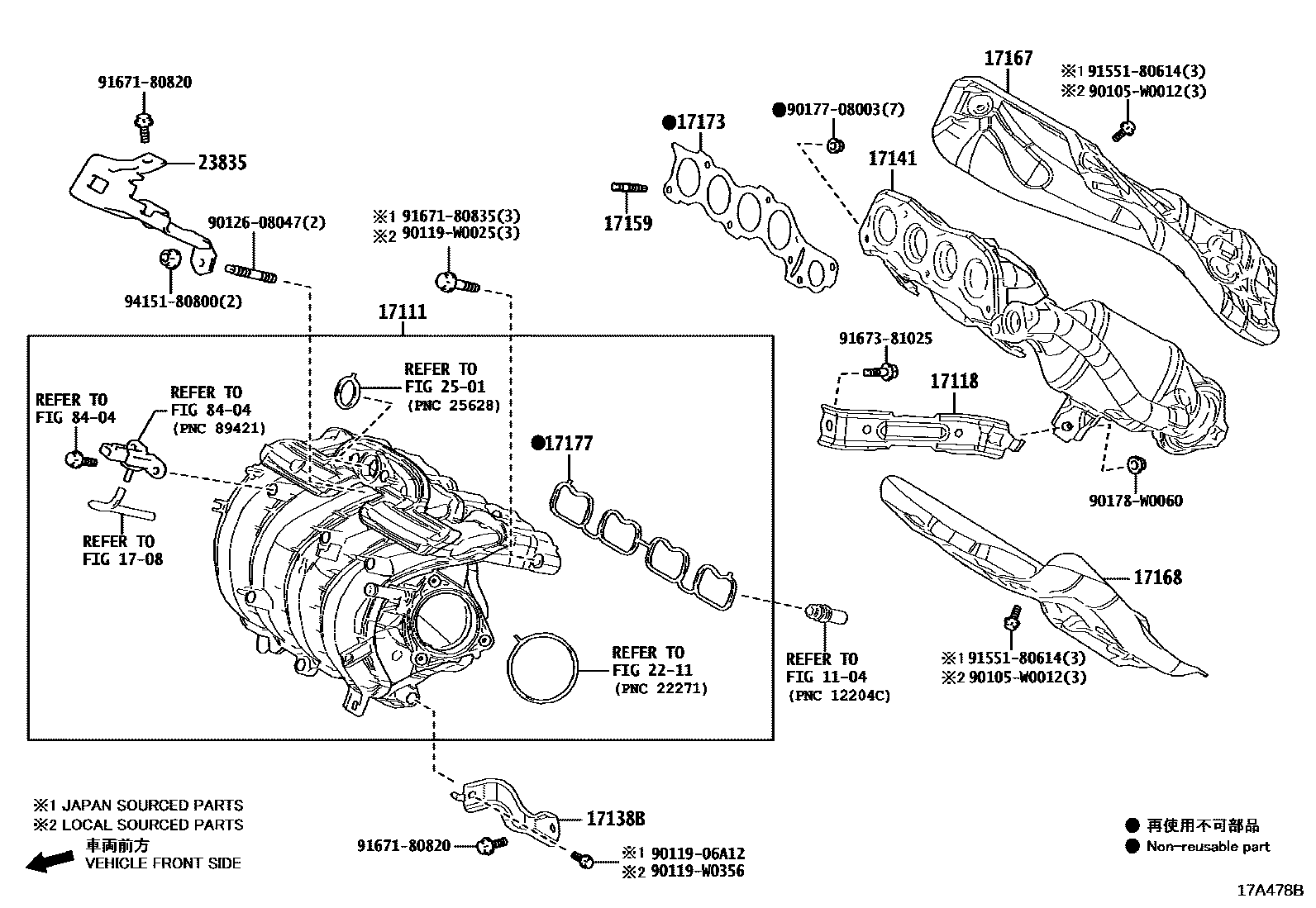

Toyota COROLLA Manifold EPC diagram — 17A478B — Manifold — 17A478B (201902 – 999999)

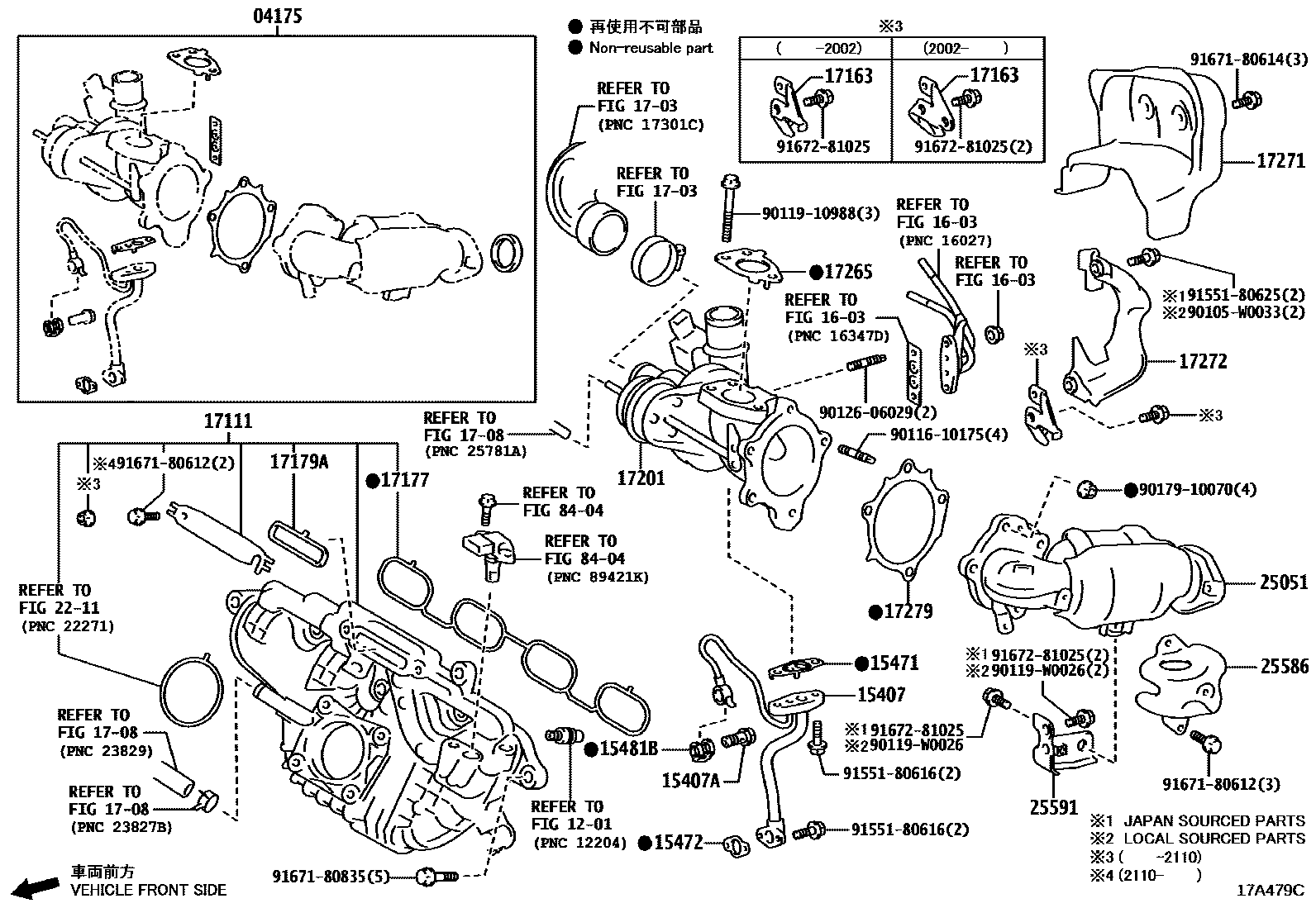

Toyota COROLLA Manifold EPC diagram — 17A479C — Manifold — 17A479C (201901 – 999999)

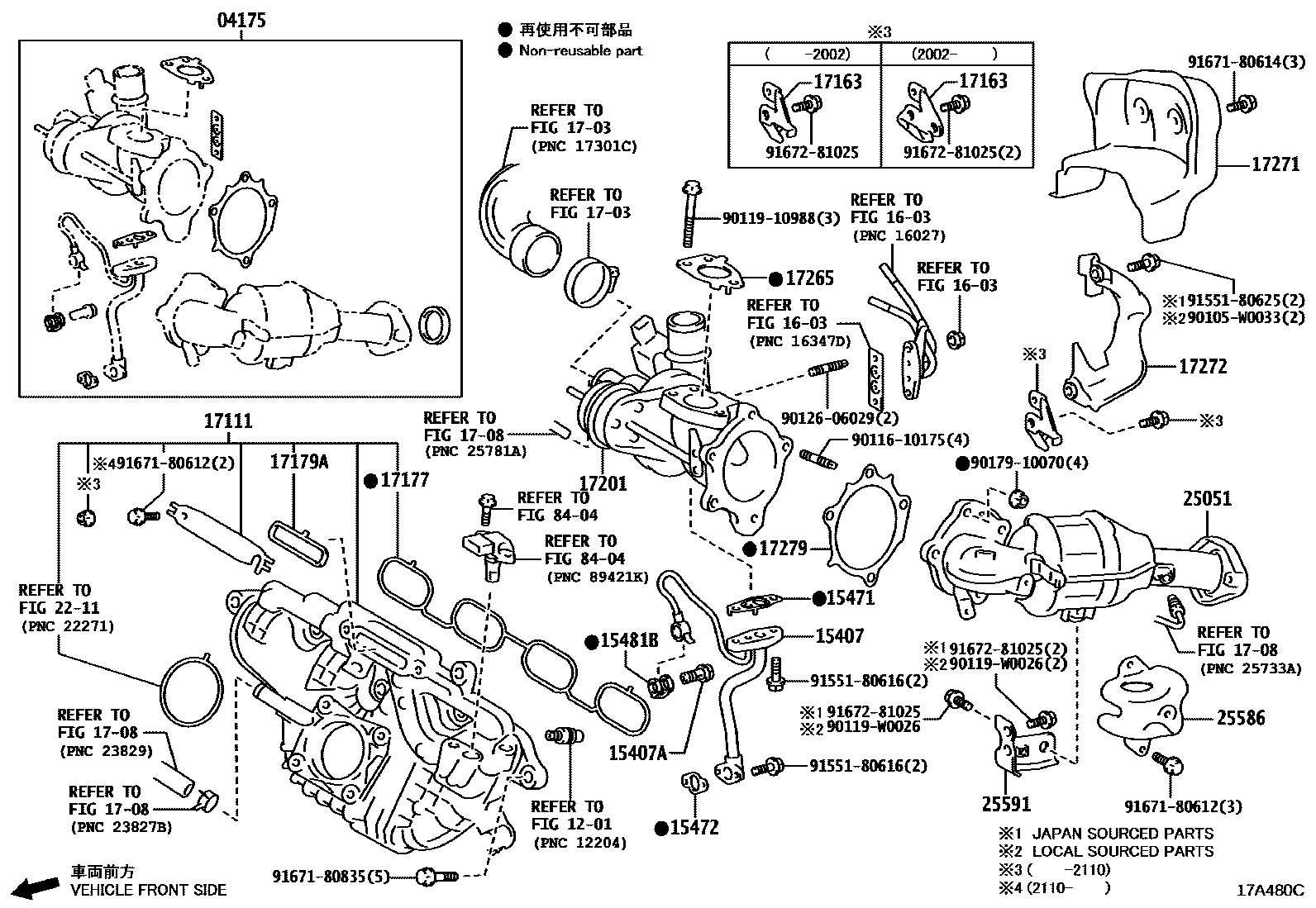

Toyota COROLLA Manifold EPC diagram — 17A480C — Manifold — 17A480C (201901 – 999999)

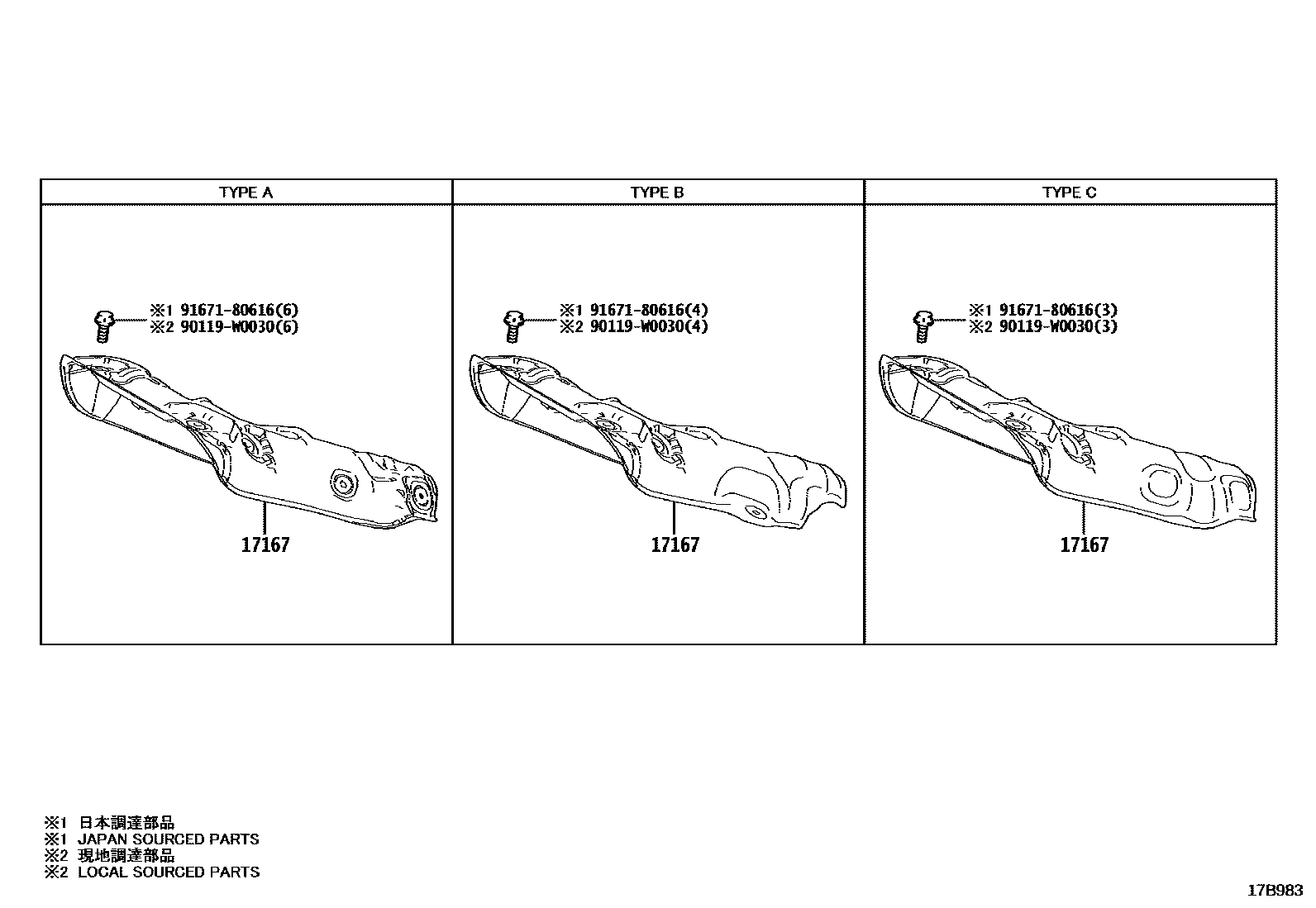

Toyota COROLLA Manifold EPC diagram — 17B983 — Manifold — 17B983 (201901 – 999999)

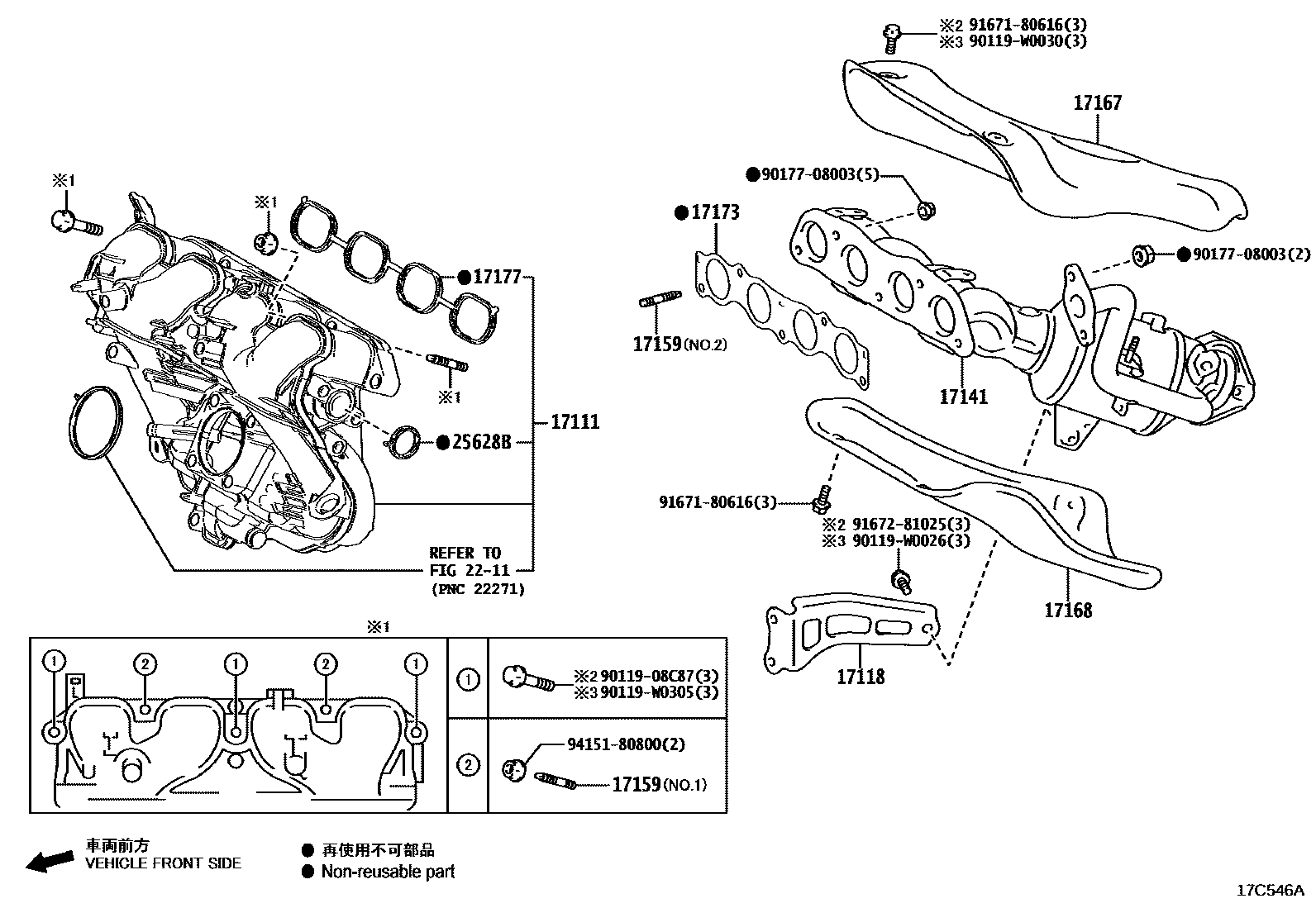

Toyota COROLLA Manifold EPC diagram — 17C546A — Manifold — 17C546A (202301 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-47010
15407	Turbine oil inlet pipe sub-assembly	15407-47011
15407A	Connector bolt (for turbine oil inlet pipe)	96341-11200
15471	Turbine oil inlet pipe gasket	15471-47010
15472	No. 1 turbine oil outlet pipe gasket	15472-47010
15481B	Gasket (for No. 1 joint bolt)	90430-12037
17111	Intake Manifold	17120-0T180 · 17120-0Y090 · 17120-24020 · 17120-37110 · 17120-47100 · 17120-F2050
17118	Manifold stays	17118-0T080 · 17118-0T110 · 17118-24010 · 17118-37100 · 17118-F2030
17138B	Intake manifold stay	17138-24020 · 17138-F2050
17141	exhaust manifold	17141-0T120 · 17141-0T160 · 17141-0T170 · 17141-0T180 · 17141-0T250 · 17141-0T260 · 17141-24170 · 17141-24310 · 17141-37260 · 17141-37290 · 17141-37310 · 17141-37360 · 17141-37370 · 17141-F2050 · 17141-F2210
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08052
17163	No. 1 insulation pad bracket	17586-47011 · 17586-47020
17167	Exhaust manifold No. 1 heat shield	17167-24060 · 17167-24061 · 17167-37040 · 17167-37090 · 17167-37120 · 17167-37140
17168	Exhaust manifold No.2 insulation pad	17168-24030 · 17168-37120 · 17168-37150 · 17168-F2050
17173	Gasket (exhaust manifold to cylinder head)	17173-0T020 · 17173-24010 · 17173-37010
17177	No. 1 gasket (intake manifold to cylinder head)	17171-24020 · 17171-F2070 · 17177-0Y070 · 17177-37030 · 17177-47050
17179A	No. 2 intake manifold gasket	17179-0Y010 · 17179-47010
17201	Turbocharger sub-assembly	17201-47011
17265	JOINT D'ETANCHEITE, TURBOCOMPRESSEUR	17265-47010
17271	No. 1 turbine vibration isolation pad	17271-47010
17272	No. 2 turbine vibration isolation pad	17272-47010
17279	Turbine outlet elbow gasket	17279-47010
23835	PROTECTION, ALIM CARBURANT, NO.2	23835-24010 · 23835-F2010
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-47190 · 25051-47210
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-47010
25591	Manifold bracket	25591-47010
25628B	EGR air intake gasket	25628-36020
