Toyota COROLLA Engine Oil Cooler — Figure 1503

Toyota COROLLA EPC diagram 1503, Engine Oil Cooler, with 1 images and 3 PNC and OE references.

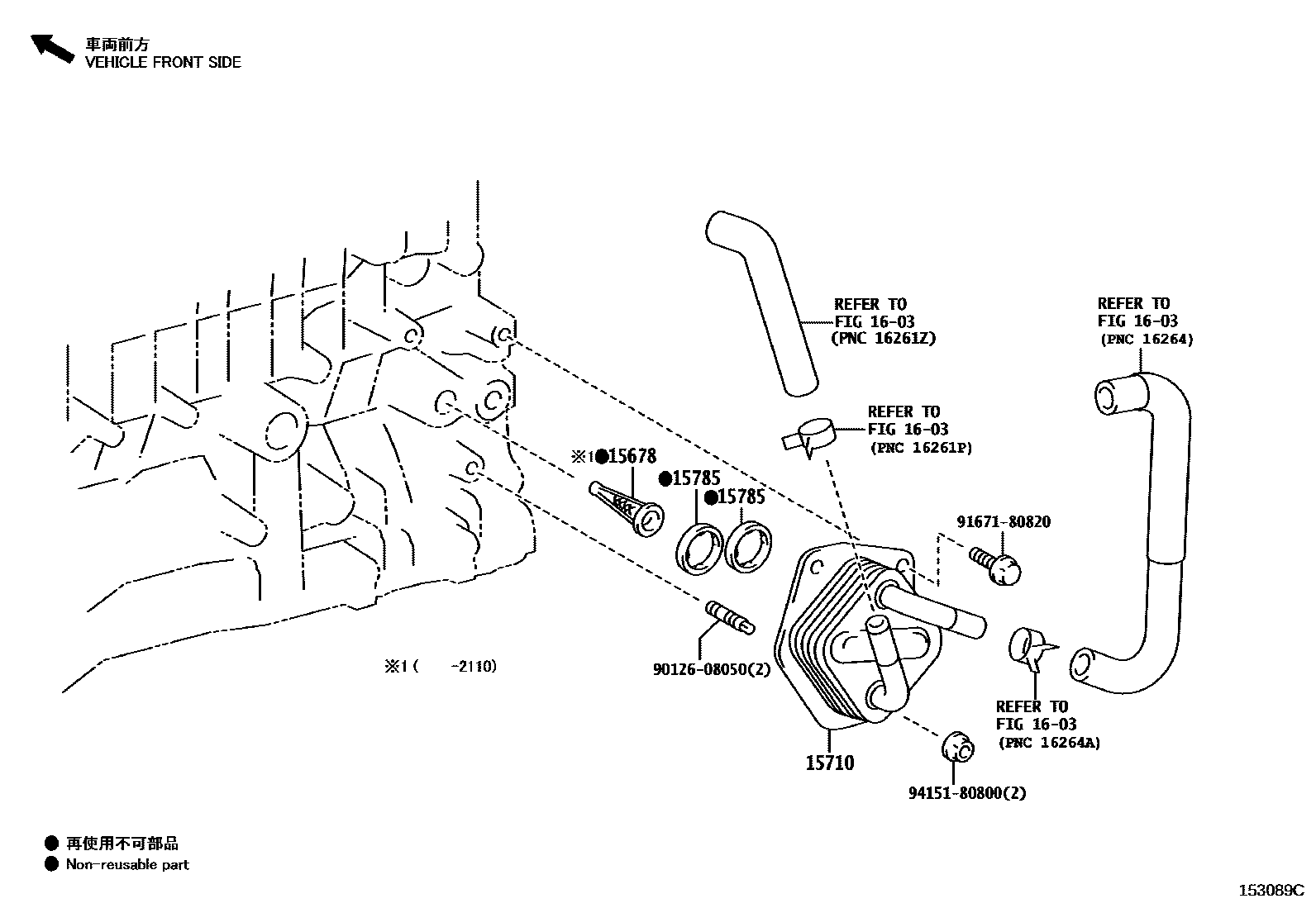

Toyota COROLLA Engine Oil Cooler EPC diagram — 153089C — Engine Oil Cooler — 153089C (201902 – 999999)

PNC and OE references

PNC	Part name	OE numbers
15678	Oil control valve filter	15678-25010
15710	Oil cooler assembly	15710-24010 · 15710-F2020
15785	oil cooler gasket	15785-25010
