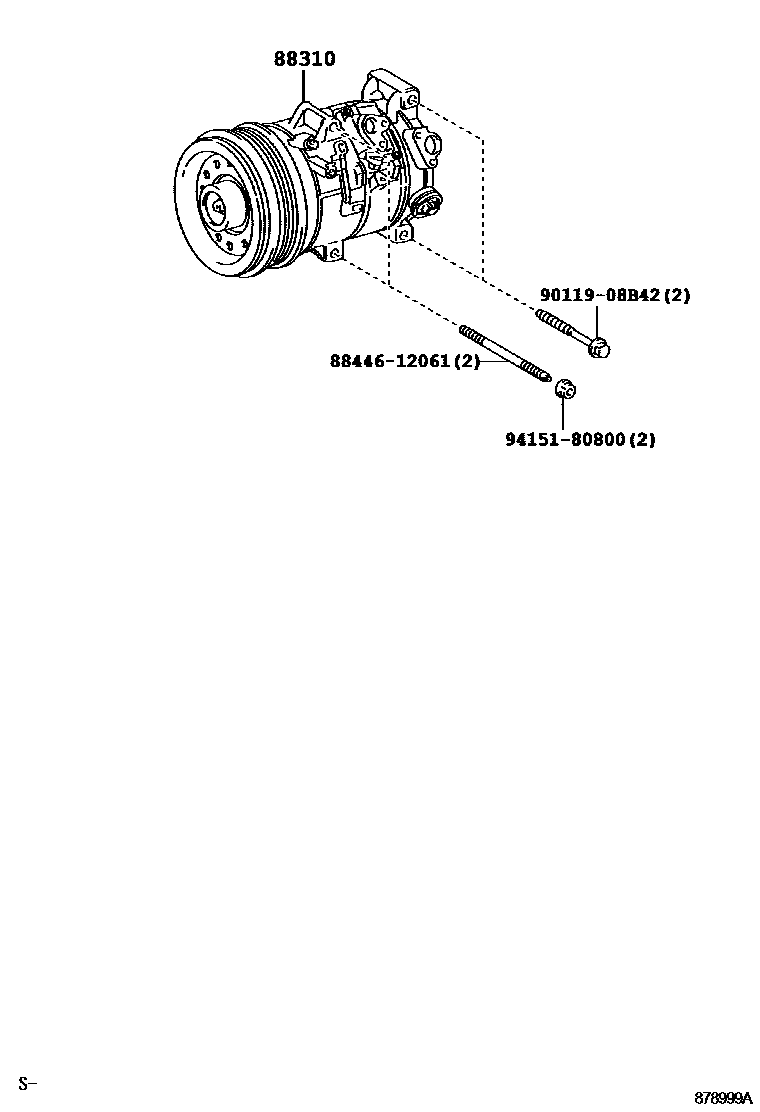

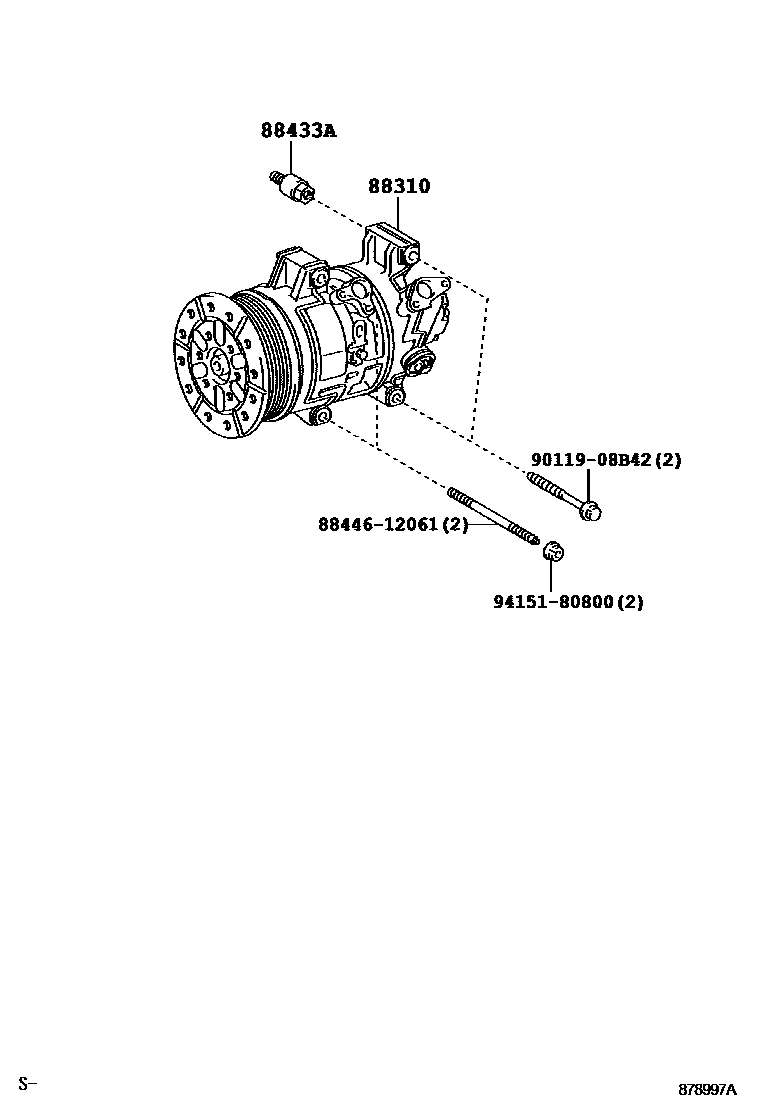

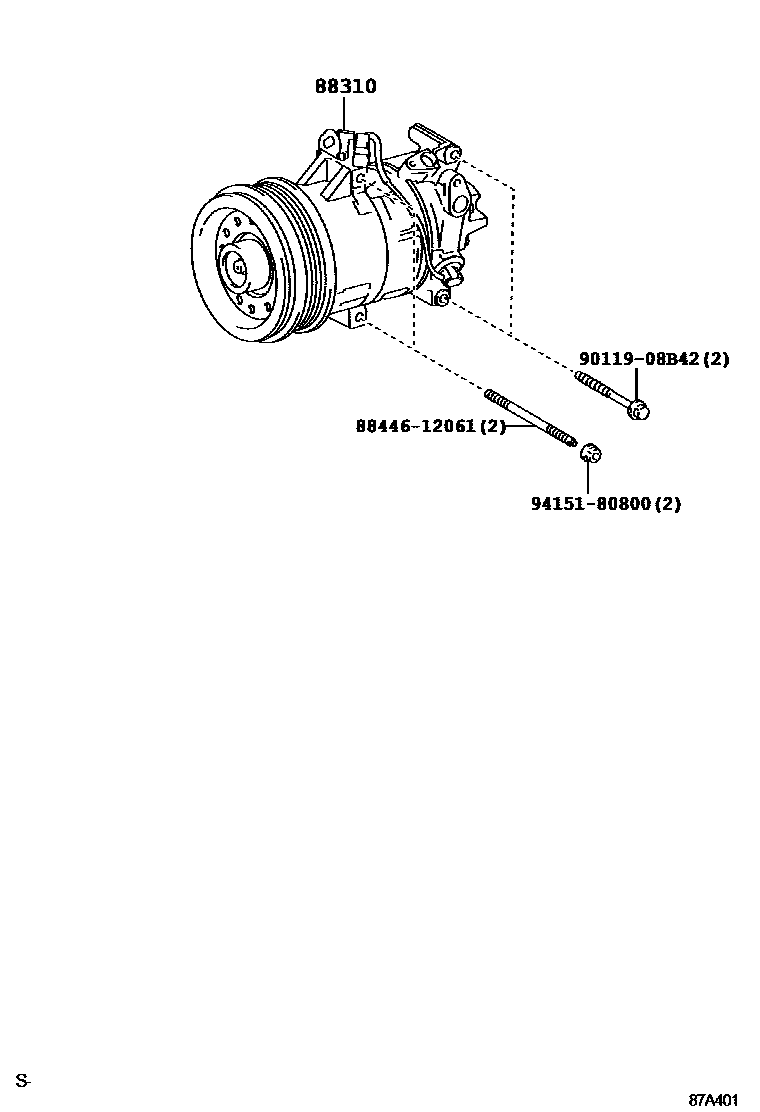

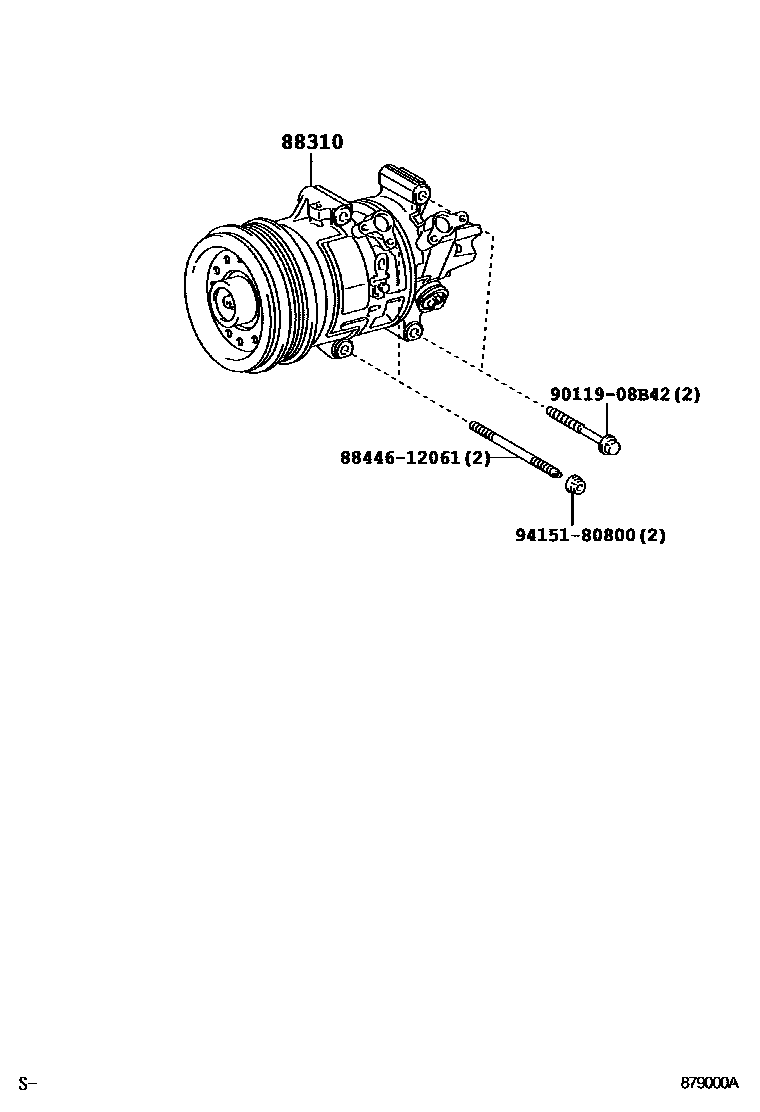

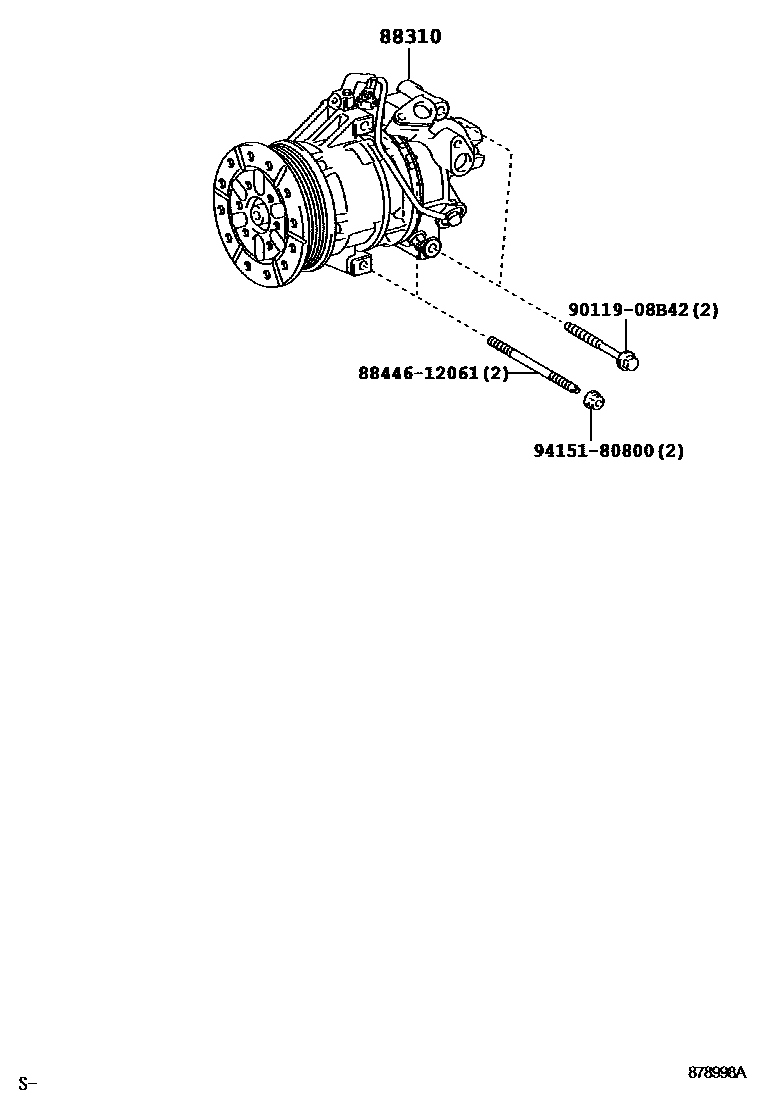

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-1A660 · 88310-1A680 · 88310-1A760 · 88310-1A800 · 88310-1A820 · 88310-42250 |
| 88433A | Compressor stays | 88433-20040 |
