Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 5 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

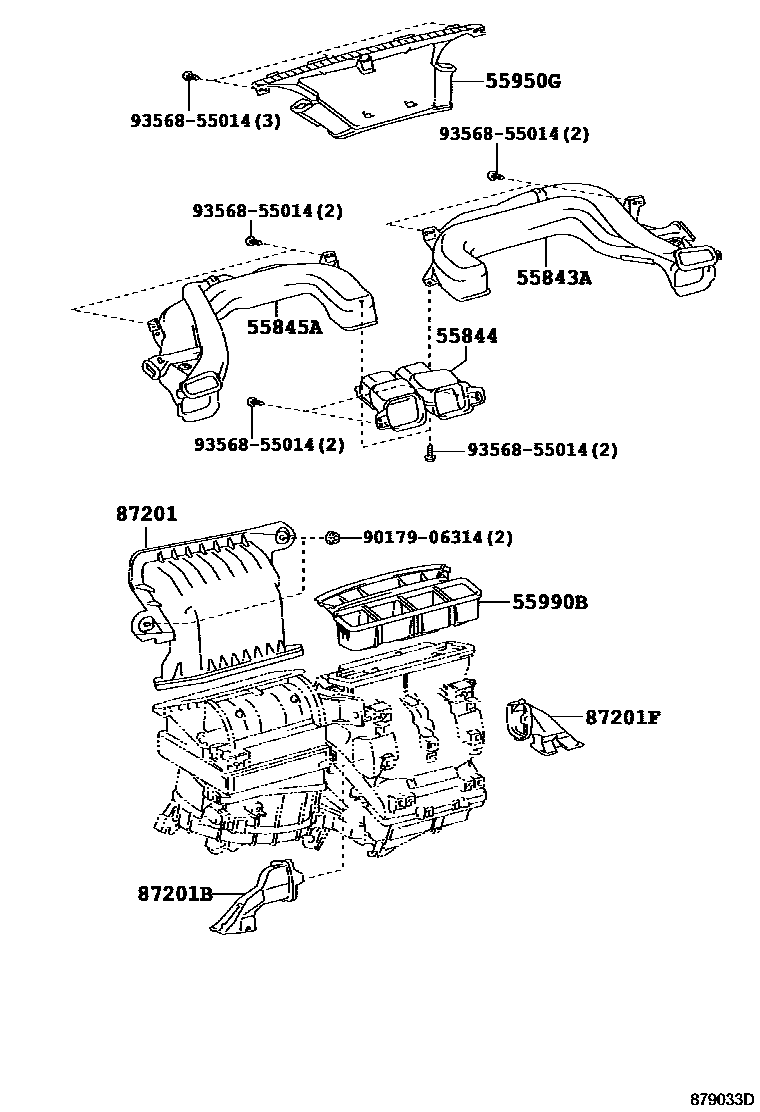

| 55843A | Air duct No. 1 from heater to air register | 55843-12330 · 55843-12340 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-12490 · 55844-12510 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-12220 · 55845-12230 |

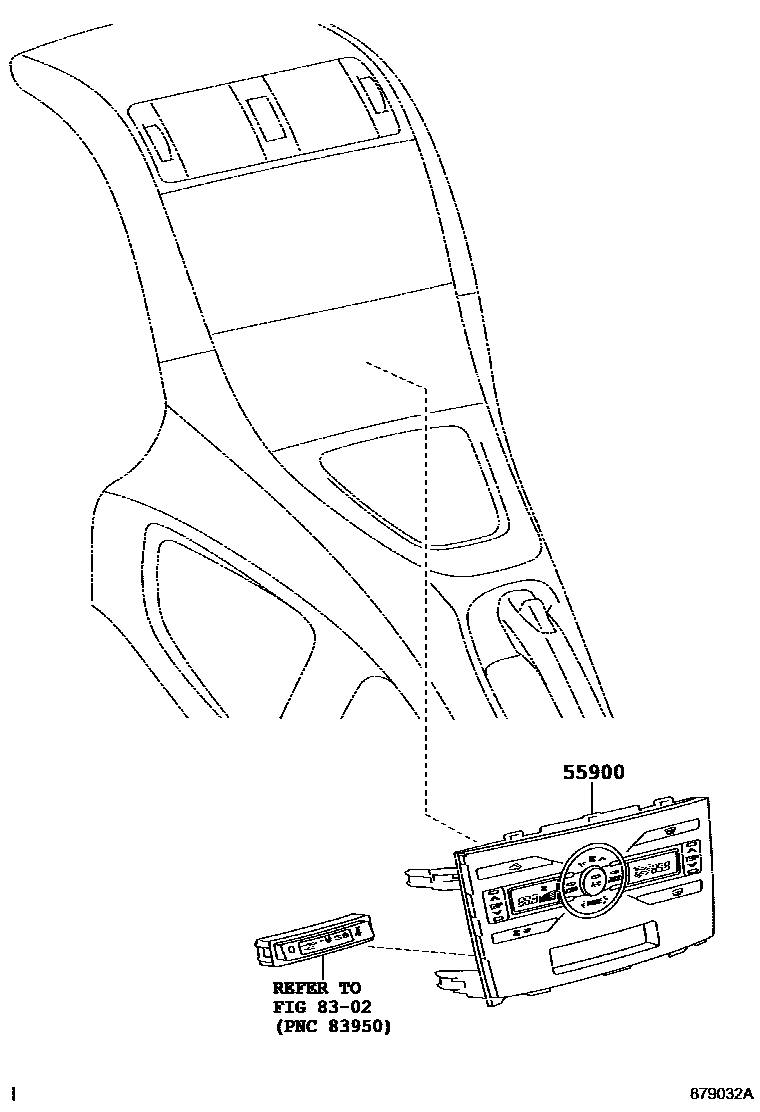

| 55900 | Air conditioning control assembly | 55900-12A30 · 55900-12A31 · 55900-12A40 · 55900-12A41 · 55900-12A90 |

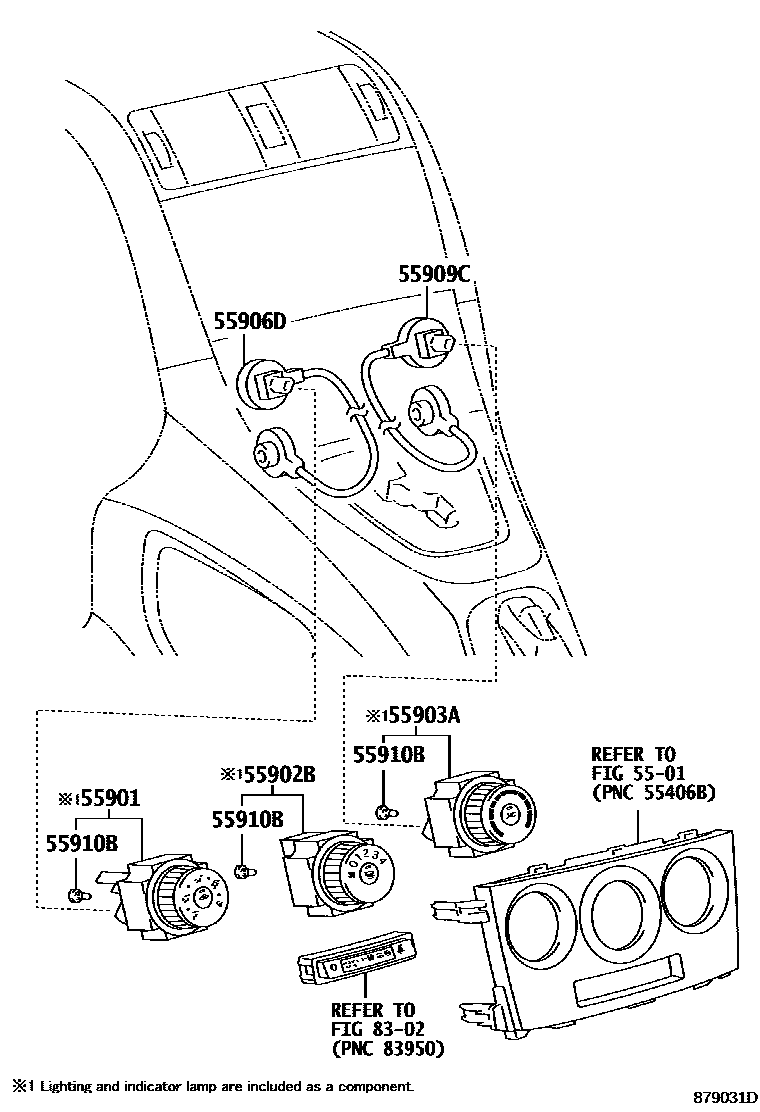

| 55901 | Heater controller base sub-assembly | 55901-12140 |
| 55902B | Heater control sub-assembly | 55902-12060 · 55902-12070 |
| 55903A | No. 3 heater control sub-assembly | 55903-12010 · 55903-12020 · 55903-12030 · 55903-12040 |
| 55906D | No. 2 heater control cable sub-assembly | 55906-26060 |
| 55909C | Air mix damper control cable sub-assembly | 55909-26080 |
| 55910B | heater control light bulb | 90010-01122 |
| 55950G | Defroster nozzle assembly | 55950-12260 |
| 55990B | Lower defroster nozzle assembly | 55990-12060 |
| 87201 | No. 1 air duct sub-assembly | 87220-12010 · 87220-12020 |
| 87201B | No. 2 air duct sub-assembly | 87211-12330 · 87211-12350 |
| 87201F | No. 3 air duct sub-assembly | 87211-12320 · 87211-12321 · 87211-12340 · 87211-12370 · 87211-12380 · 87211-12440 |

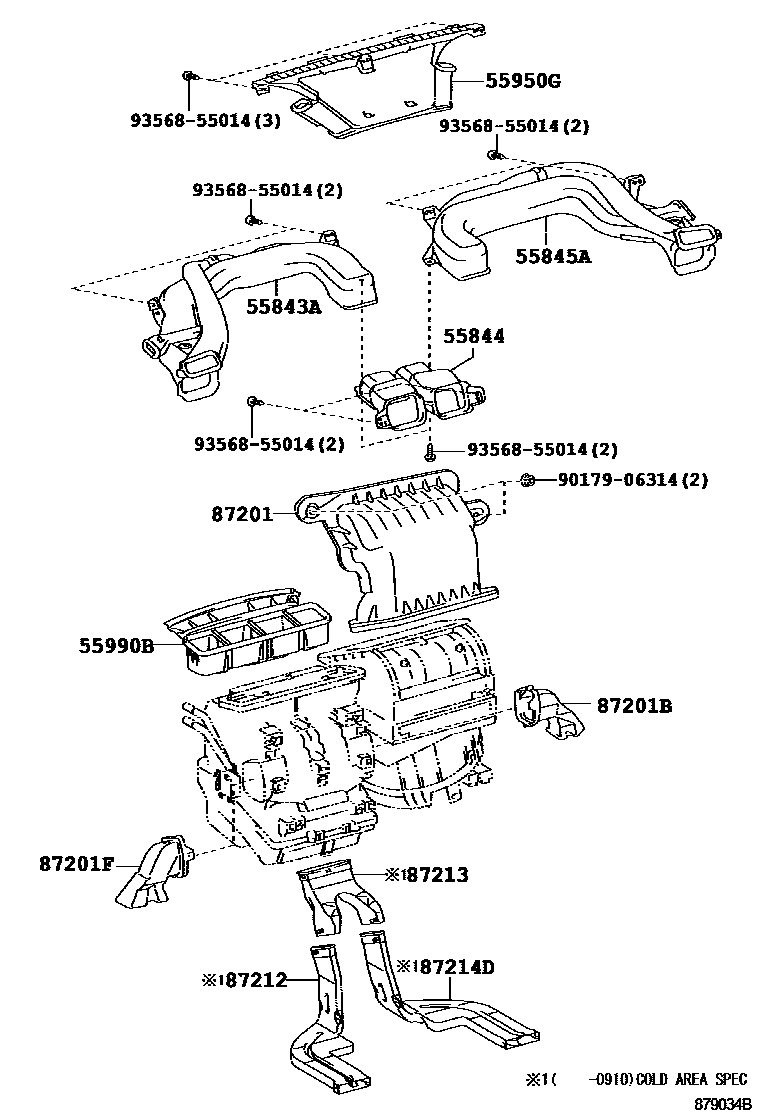

| 87212 | No. 1 rear air duct | 87213-12090 |
| 87213 | No. 2 rear air duct | 87215-12050 |
| 87214D | No. 3 rear air duct | 87212-12130 |

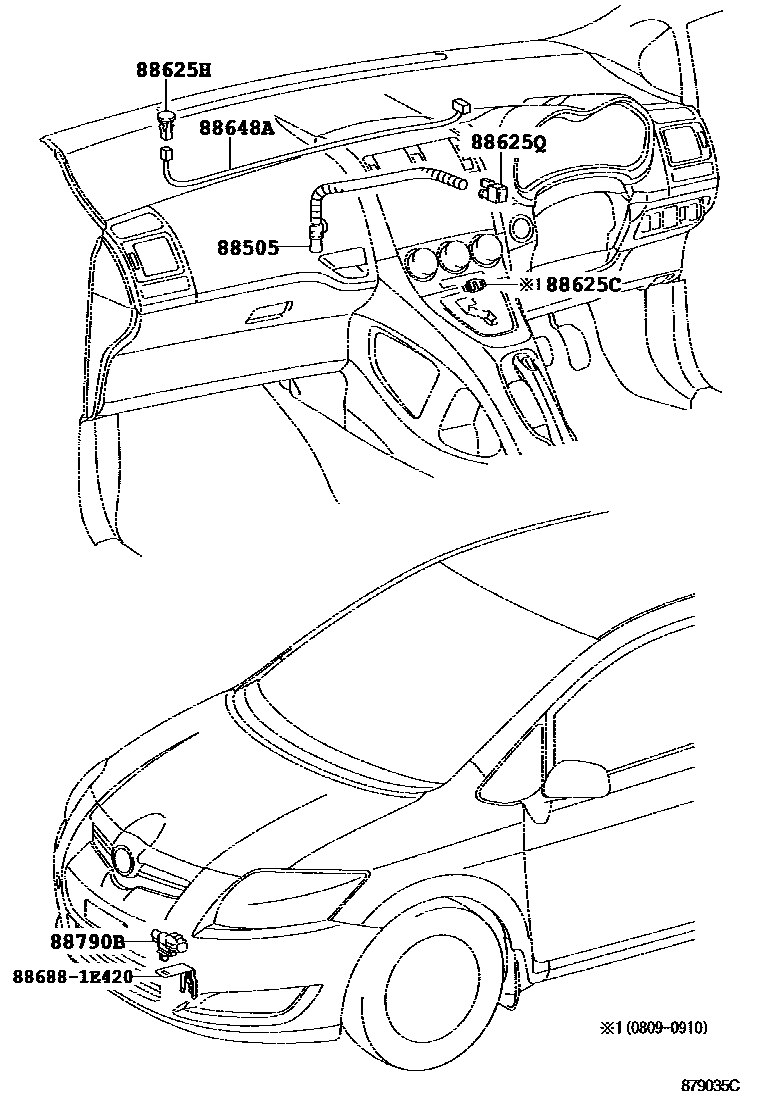

| 88505 | Air conditioning duct sub-assembly | 88505-12010 · 88505-12020 |
| 88625C | Cooler thermistor | 88625-50130 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-51010 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-12710 · 88648-12760 |
| 88790B | Thermistor assembly | 88790-22131 |
