Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 10 PNC and OE references.

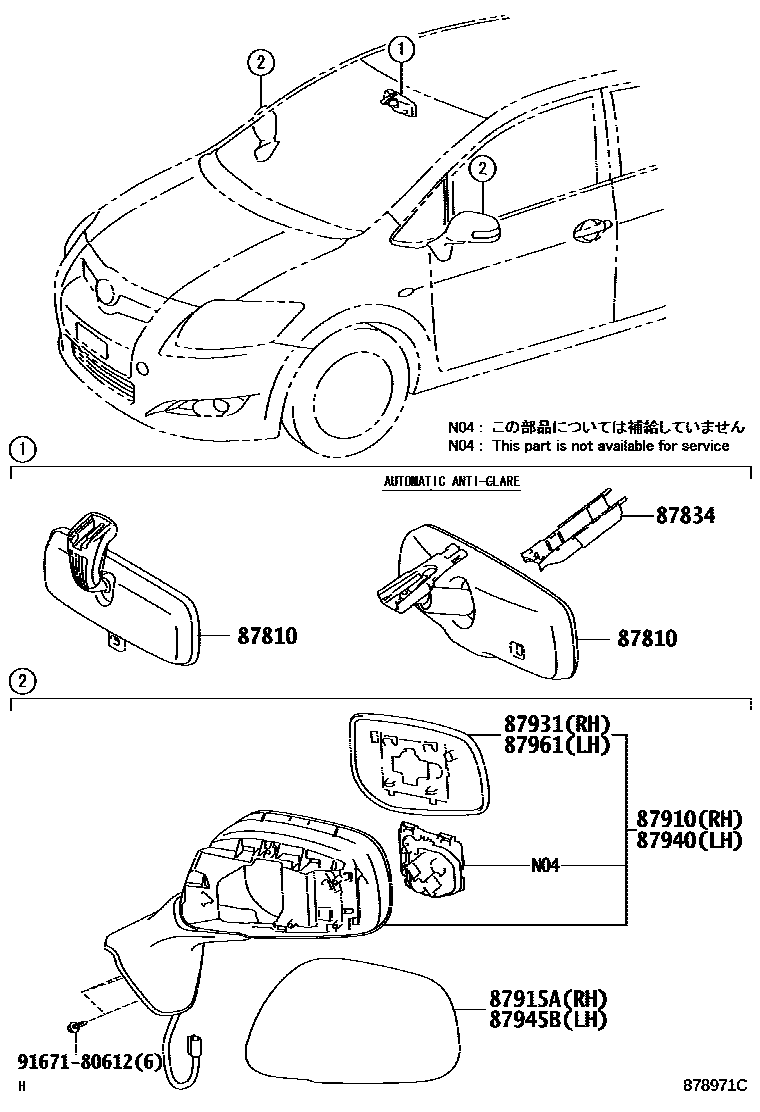

Toyota COROLLA 后视镜 EPC diagram — 878971C
后视镜 — 878971C (200610 – 200910)

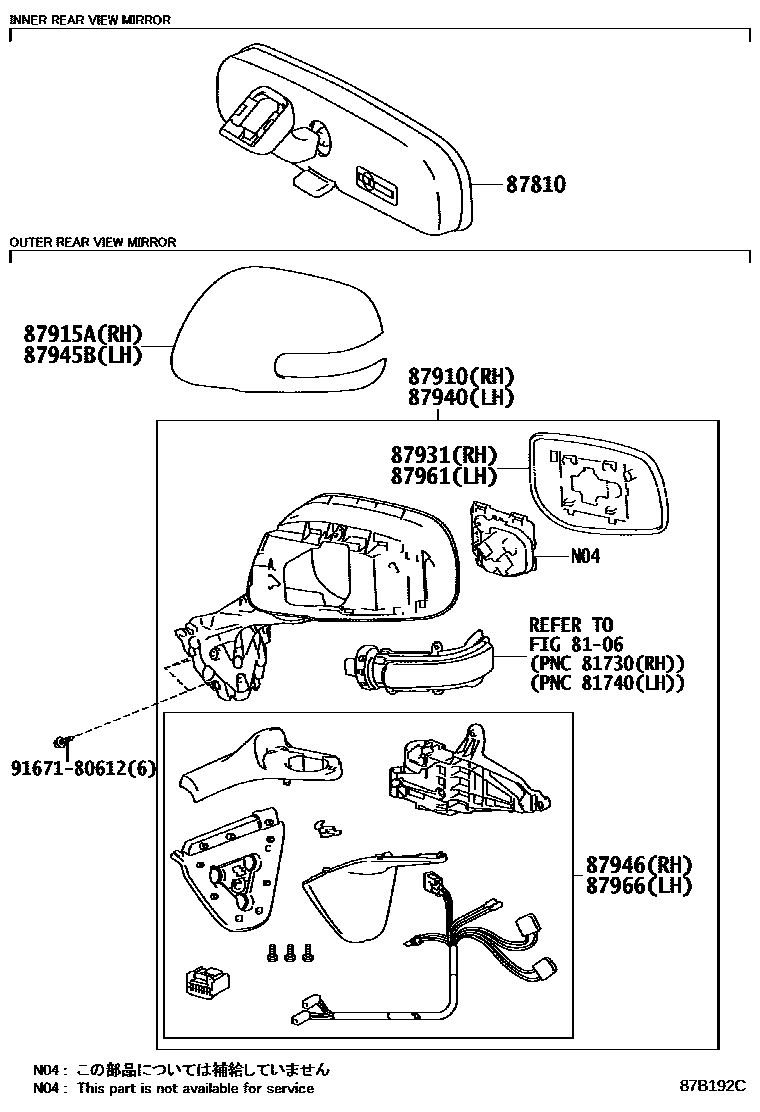

Toyota COROLLA 后视镜 EPC diagram — 87B192C
后视镜 — 87B192C (200910 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810Interior rearview mirror assembly87810-02090 · 87810-0D011 · 87810-0F050
87834Interior rearview mirror stay fixing cover87818-33010
87910Right exterior rearview mirror assembly87910-12A80 · 87910-12A90 · 87910-12B00 · 87910-12B10 · 87910-12D70 · 87910-12D90 · 87910-12E10 · 87910-12E20 · 87910-12E30 · 87910-12E40
87915ARight exterior rearview mirror cover87915-12050 · 87915-44040
87931Right exterior rearview mirror87931-12A80 · 87931-12A90 · 87931-12B00 · 87931-12B10 · 87931-12E20 · 87931-12E40 · 87931-22A10 · 87931-44340
87940Left exterior rearview mirror assembly87940-12A90 · 87940-12B00 · 87940-12B10 · 87940-12B20 · 87940-12C20 · 87940-12E10 · 87940-12E30 · 87940-12E40 · 87940-12E50 · 87940-12E60
87945BLeft exterior rearview mirror cap87945-12050 · 87945-44040
87946Right exterior rearview mirror retractor87946-12D90 · 87946-12E30 · 87946-12E40
87961Left exterior rearview mirror87961-12A90 · 87961-12B00 · 87961-12B10 · 87961-12B20 · 87961-12C20 · 87961-12E60 · 87961-22A20 · 87961-44360
87966Left exterior rearview mirror retractor87966-12E10 · 87966-12E50 · 87966-12E60
