Toyota COROLLA antenna — Figure 8604

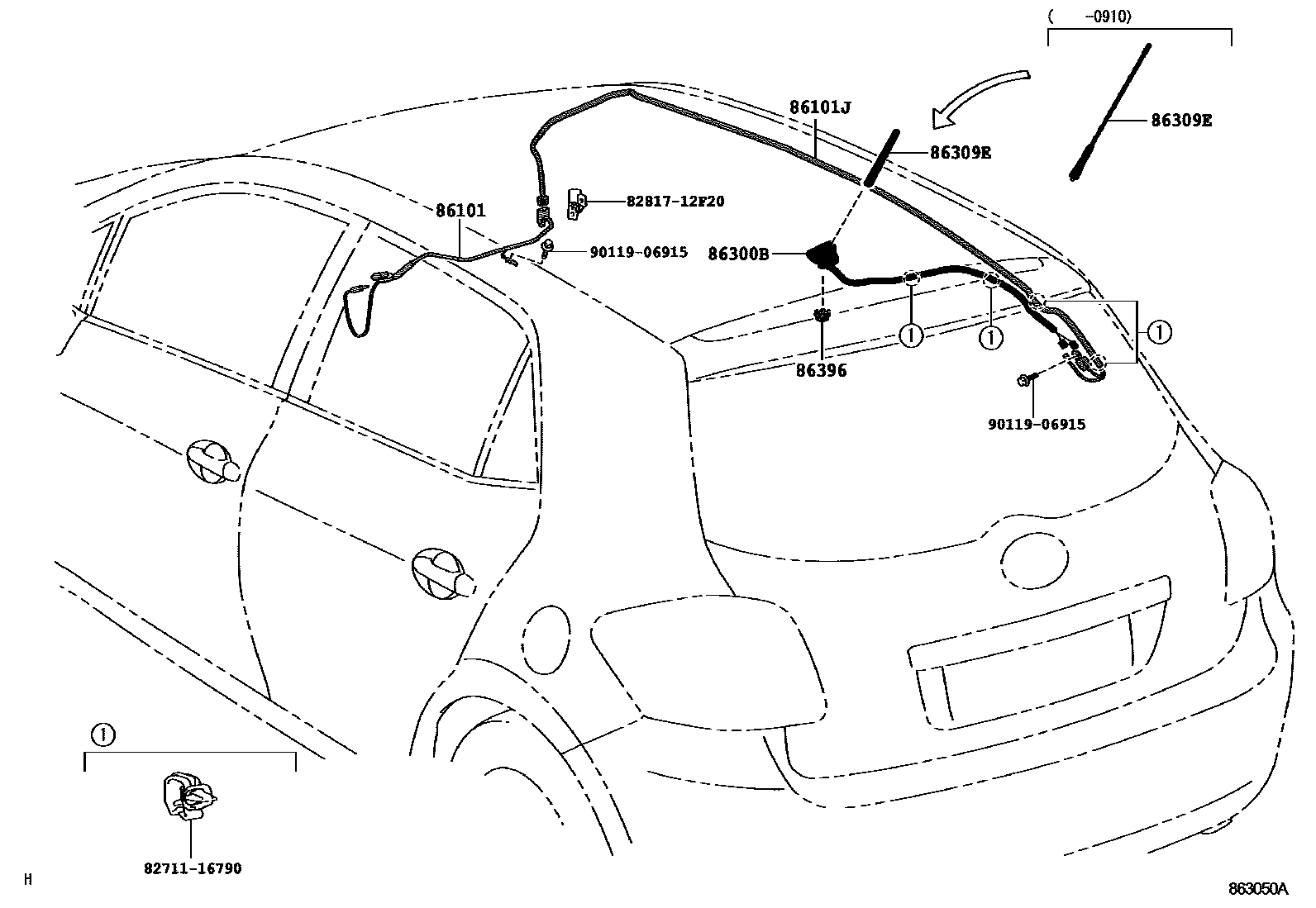

Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12450 · 86101-12460 · 86101-12520 · 86101-12530 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-12410 |
| 86300B | Amplifier antenna assembly | 86300-12840 · 86300-12A60 |
| 86309E | Roof antenna sub-assembly | 86309-42080 · 86309-52040 |
| 86396 | Antenna nut | 86396-20040 |
