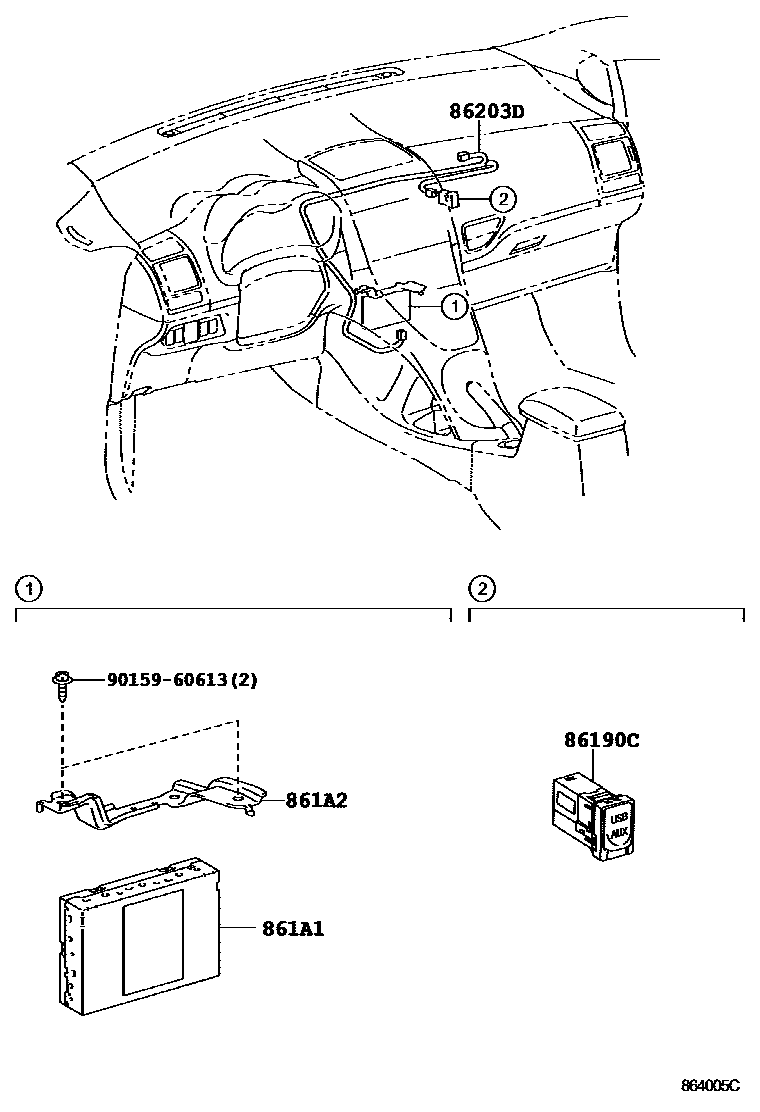

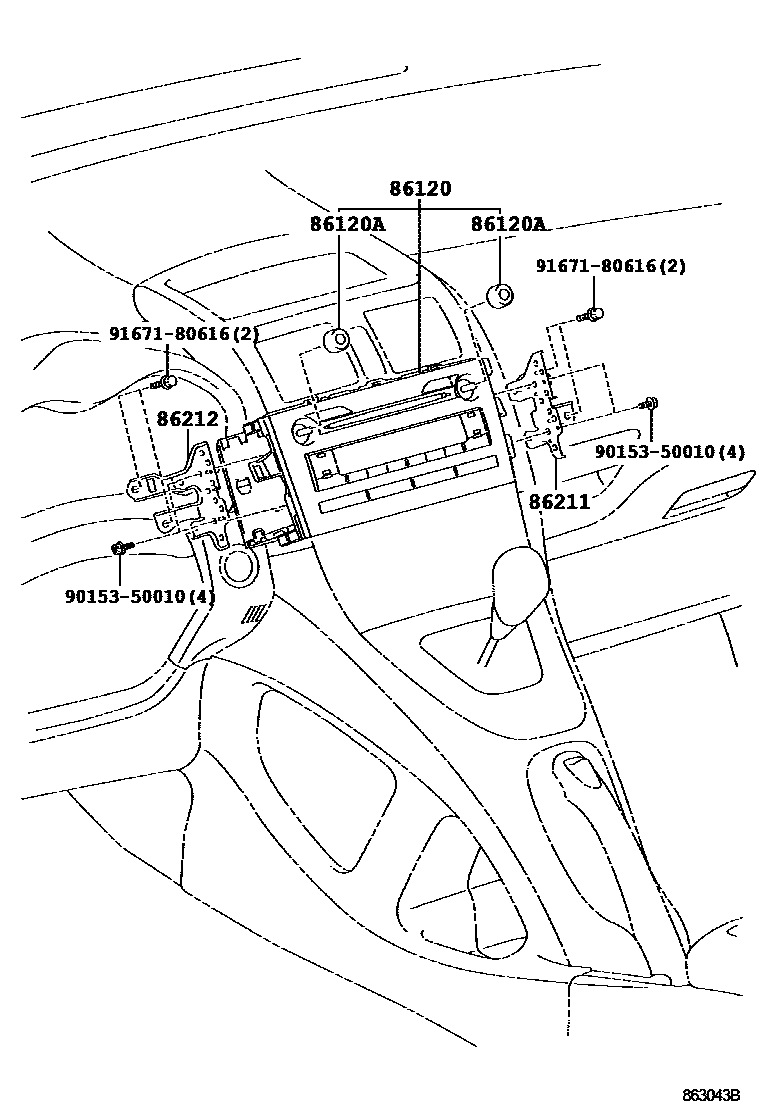

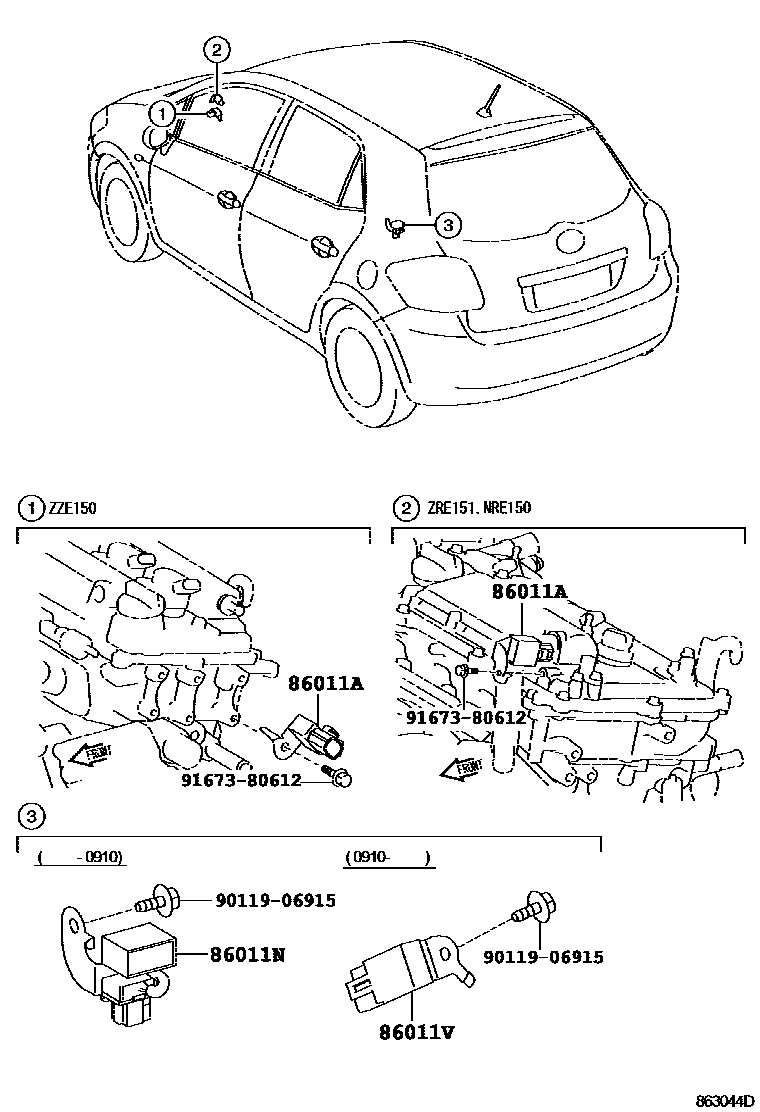

Toyota COROLLA 收音机、放大器和冷凝器 — Figure 8601
Toyota COROLLA EPC diagram 8601, 收音机、放大器和冷凝器, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04165 · 90980-04194 · 90980-04196 |
| 86011N | Noise filter | 90980-05357 |
| 86011V | radio settings phase modulator | 90980-04179 |
| 86120 | Radio assembly | 86120-12A70 · 86120-12A71 · 86120-12C50 · 86120-12C70 · 86120-1A230 · 86120-1A240 · 86120-1A241 |
| 86120A | Radio switch knob | 90010-23031 · 90010-24142 · 90011-23018 · 90011-23019 |
| 86190C | Stereo socket connector assembly No. 1 | 86190-53040 |
| 861A1 | Multimedia interface ECU | 861A0-48030 |
| 861A2 | Multimedia interface bracket No. 1 | 861A2-12010 |
| 86203D | Stereo Part 1 Wire Harness | 86203-12320 · 86203-12330 |
| 86211 | No. 1 radio bracket | 86211-12400 · 86211-12450 |
| 86212 | No. 2 radio bracket | 86212-12380 · 86212-12440 |
