Toyota COROLLA 挡风玻璃刮水器 — Figure 8501

Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 2 images and 14 PNC and OE references.

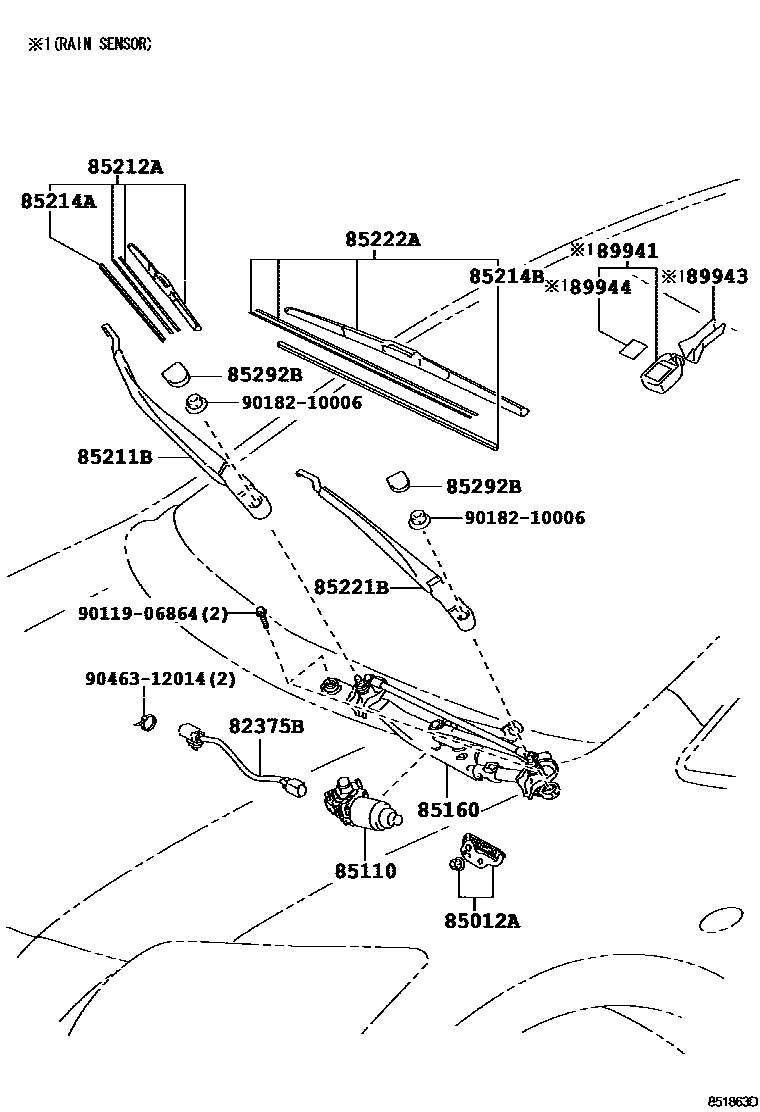

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 851863D
挡风玻璃刮水器 — 851863D (200610 – 999999)

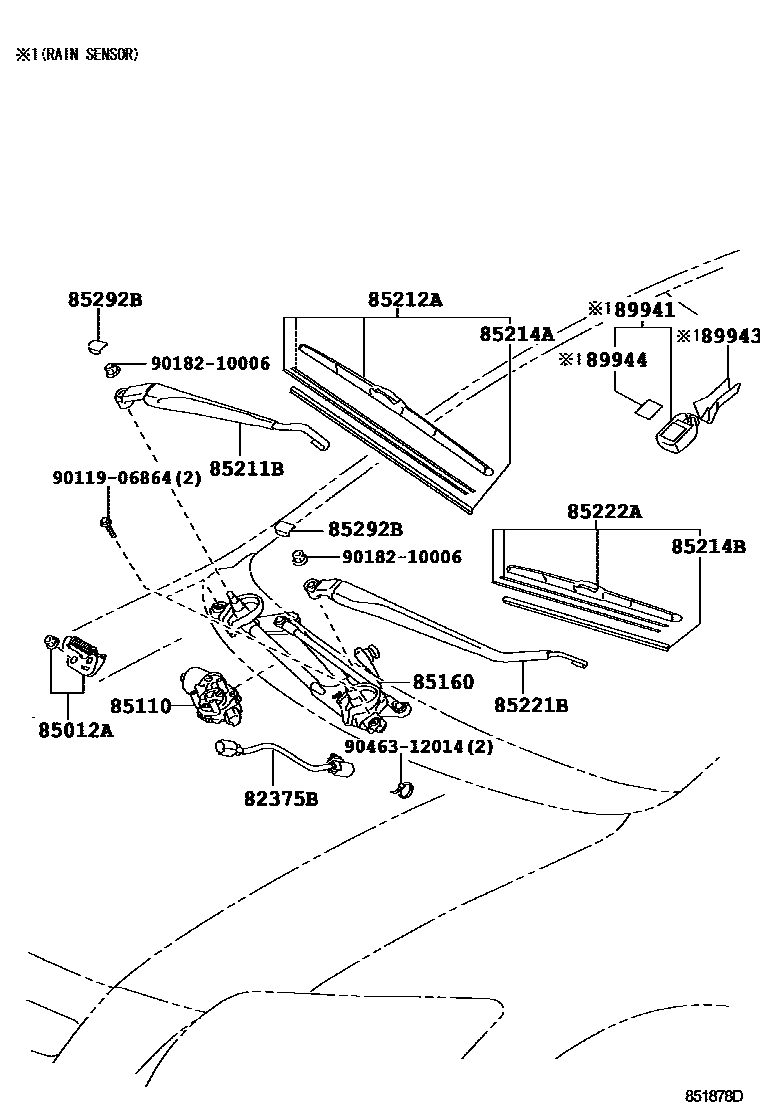

Toyota COROLLA 挡风玻璃刮水器 EPC diagram — 851878D
挡风玻璃刮水器 — 851878D (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
82375BWiper motor wiring harness82375-12320
85012AFront wiper elbow tie rod sub-assembly85012-50010 · 85012-58030
85110Windshield wiper motor assembly85110-12A00 · 85110-12A10
85160Windshield wiper connecting rod assembly85150-12A10 · 85150-12A20
85211BRight front wiper arm85211-12500 · 85211-12501 · 85211-12510 · 85211-12511
85212ARight front wiper blade85212-12450 · 85212-28170
85214ARight wiper rubber strip85214-28090 · 85214-68020
85214BLeft wiper rubber strip85214-28090 · 85214-68020
85221BLeft front wiper arm85221-12440 · 85221-12441 · 85221-12450 · 85221-12451
85222ALeft front wiper blade85222-12840 · 85222-28160
85292BFront wiper arm cap85292-13010
89941rain sensor89941-42010
89943Rain sensor cover89943-28010
89944Rain sensor tape89944-42010
