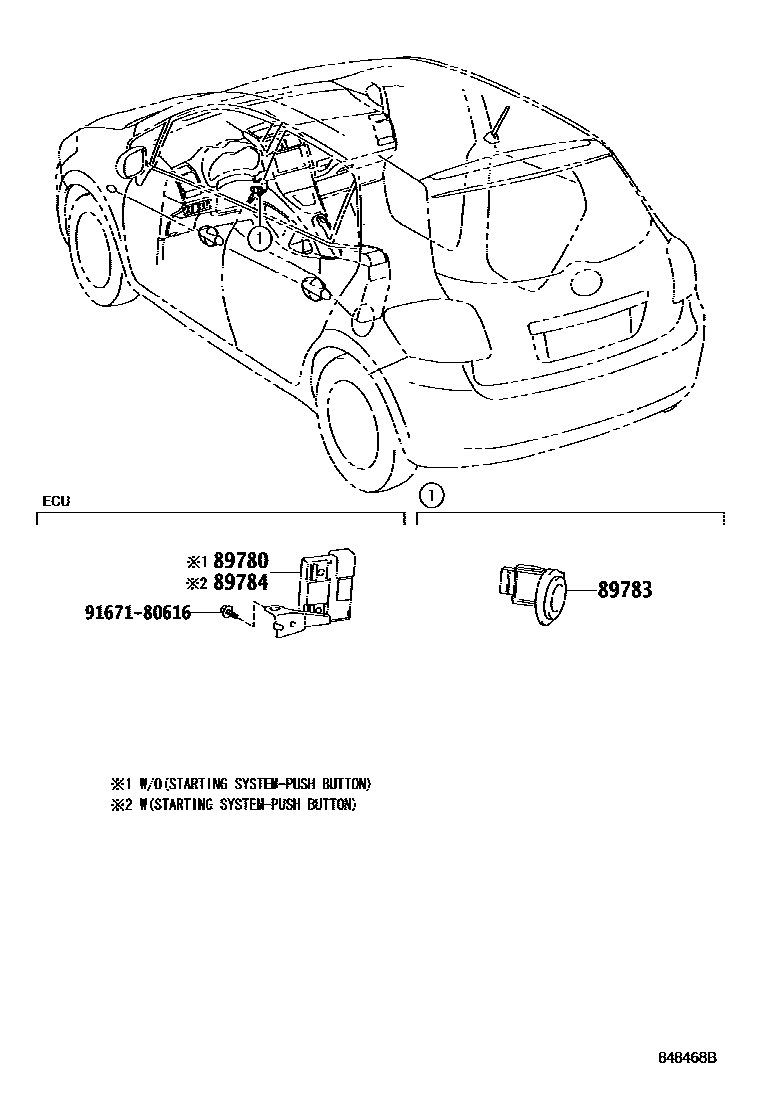

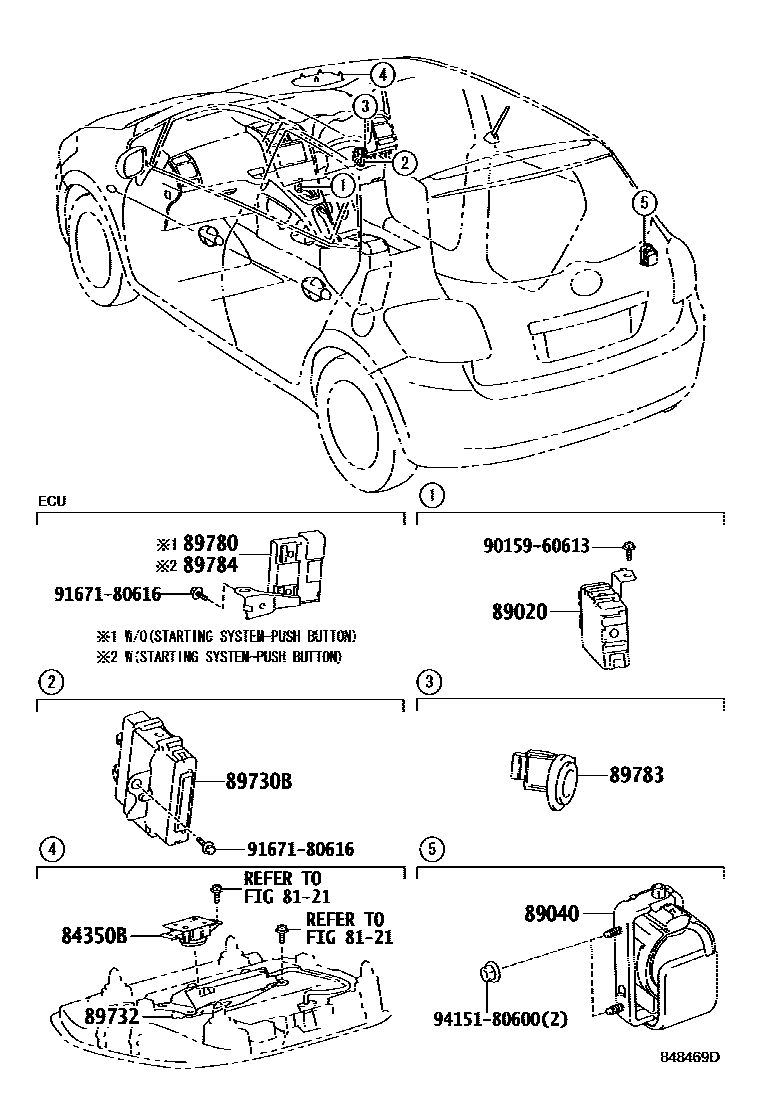

Toyota COROLLA 防盗装置 — Figure 8424
Toyota COROLLA EPC diagram 8424, 防盗装置, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89020 | Glass break sensor ECU assembly | 89020-12010 |
| 89040 | Anti-theft alarm assembly | 89040-12010 |
| 89730B | Anti-theft warning ECU assembly | 89730-12090 |
| 89732 | Anti-theft warning radar sensor | 89732-12011 · 89732-12012 · 89732-12021 · 89732-12022 |
| 89780 | Transceiver key ECU assembly | 89780-12180 · 89780-12260 |
| 89783 | transceiver key amplifier | 89783-35040 · 89783-35041 · 89783-42020 · 89783-42040 |
| 89784 | Shutdown code system ECU | 89784-12030 |
