Toyota COROLLA 遥控门锁 — Figure 8420

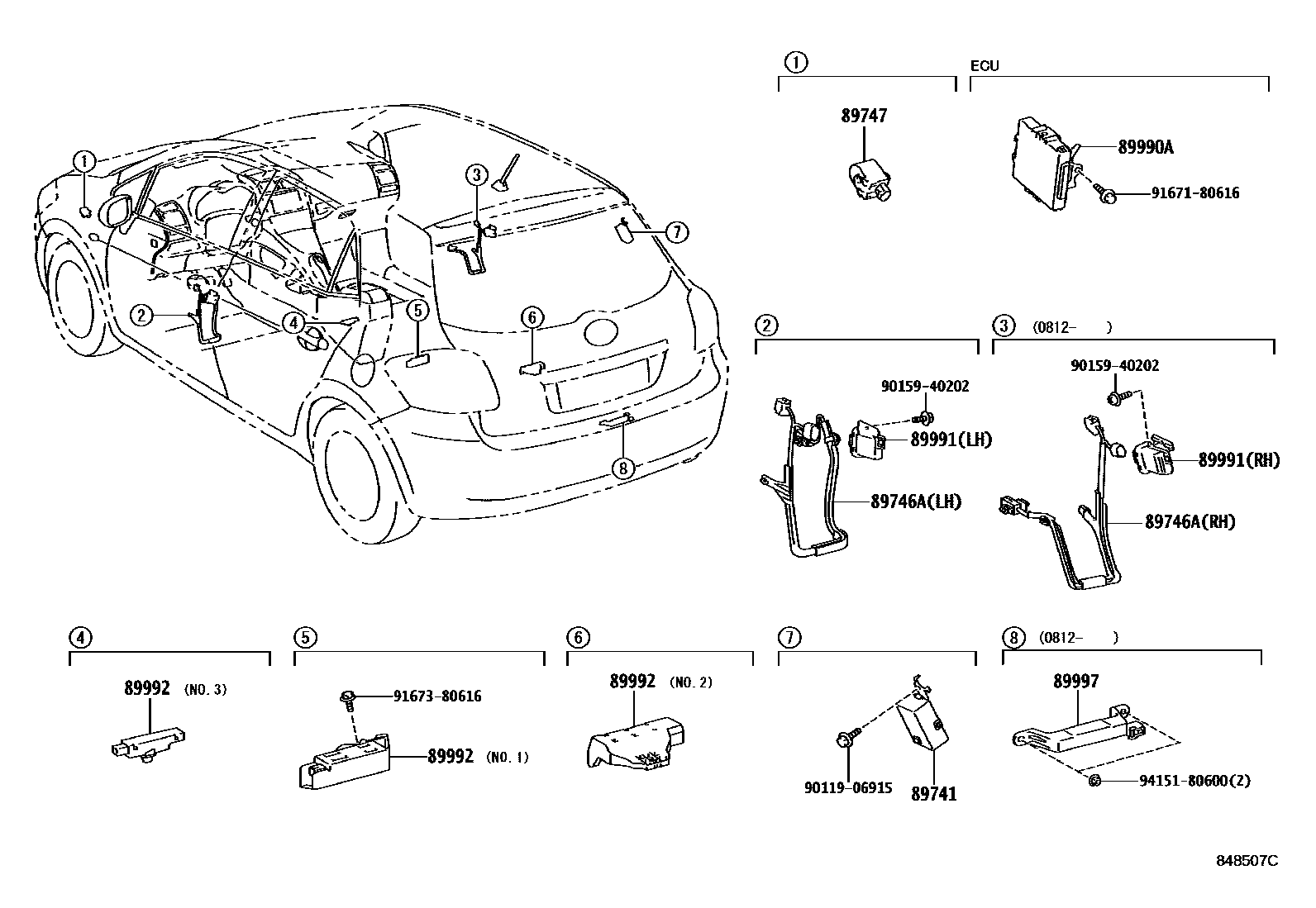

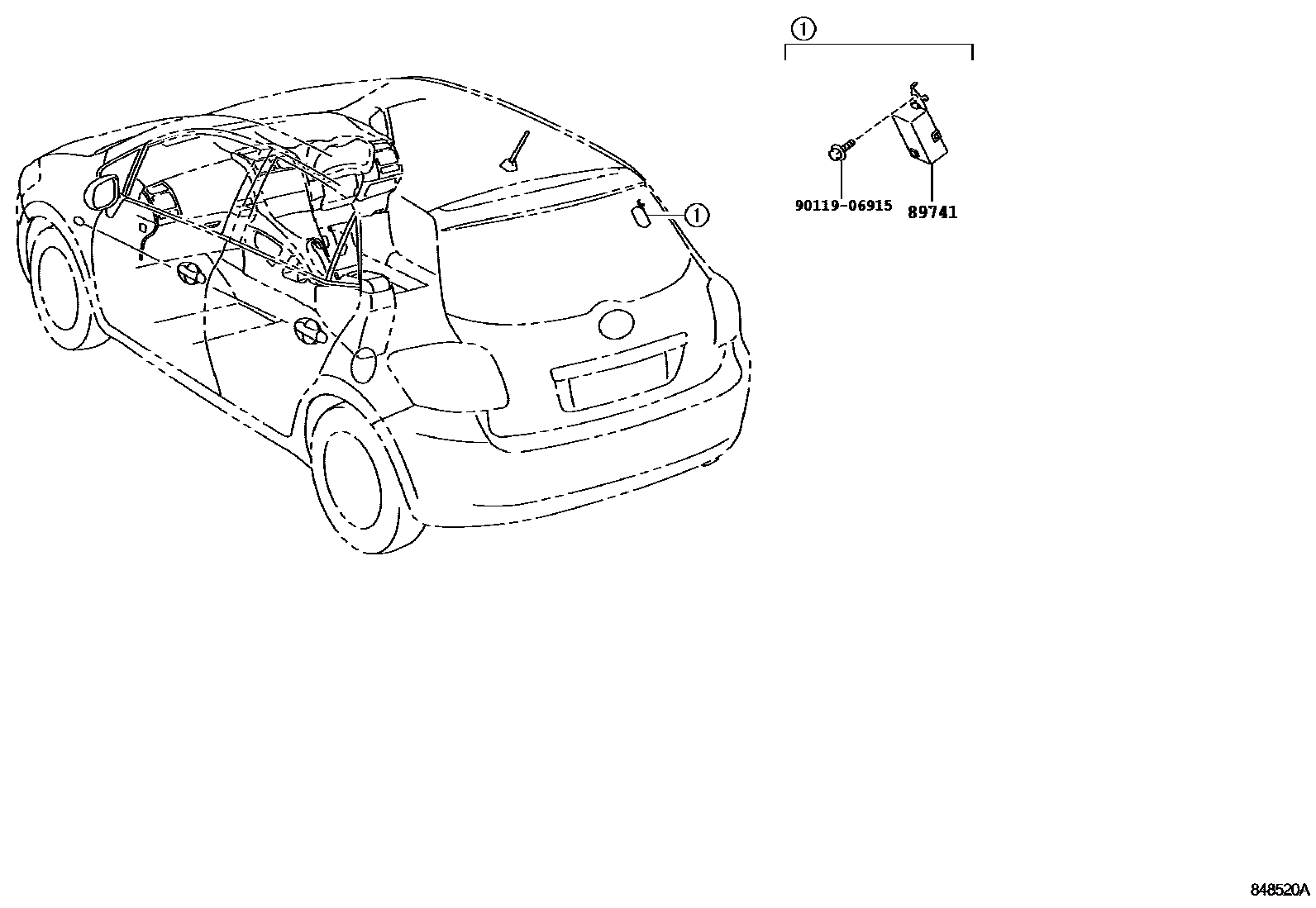

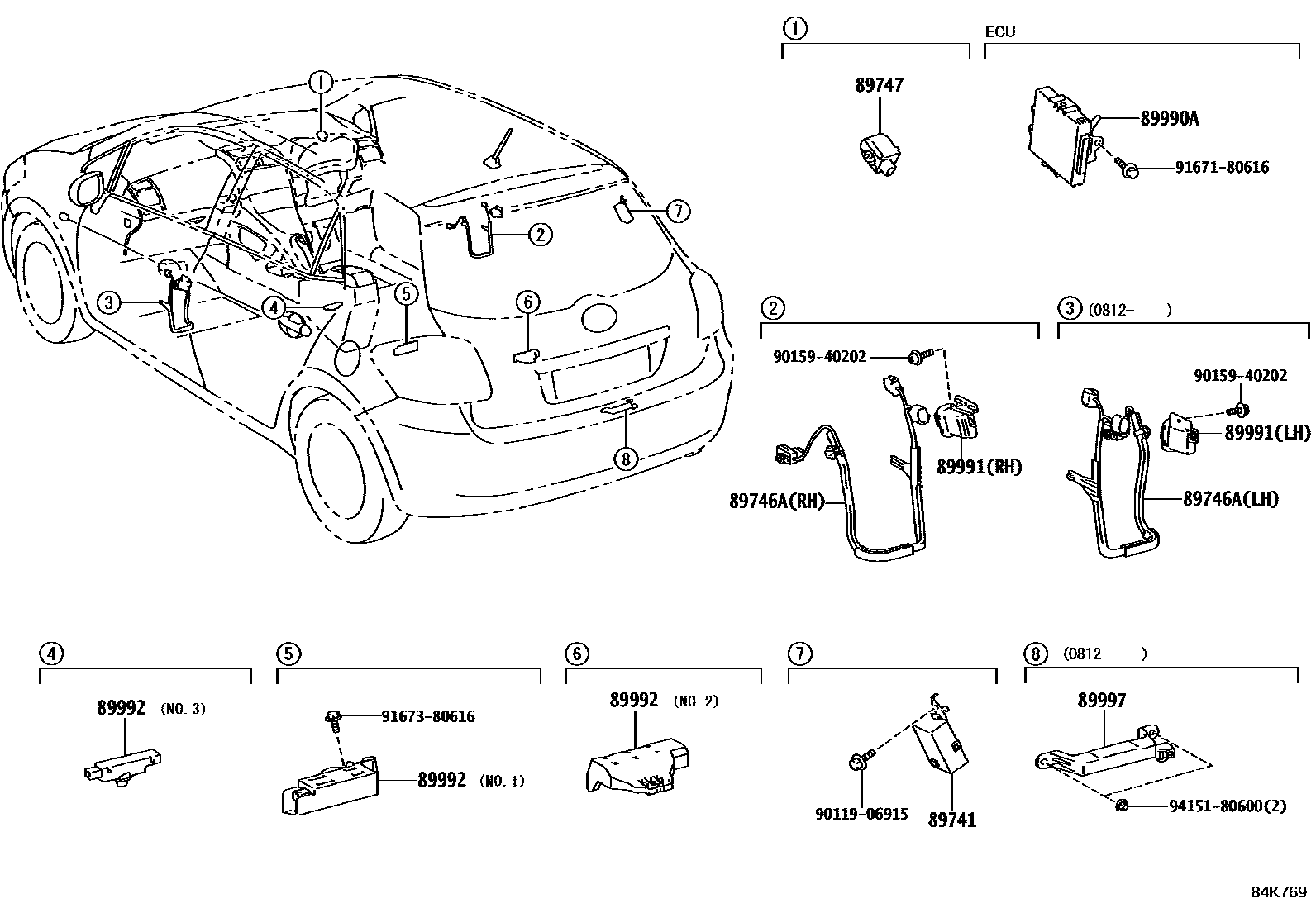

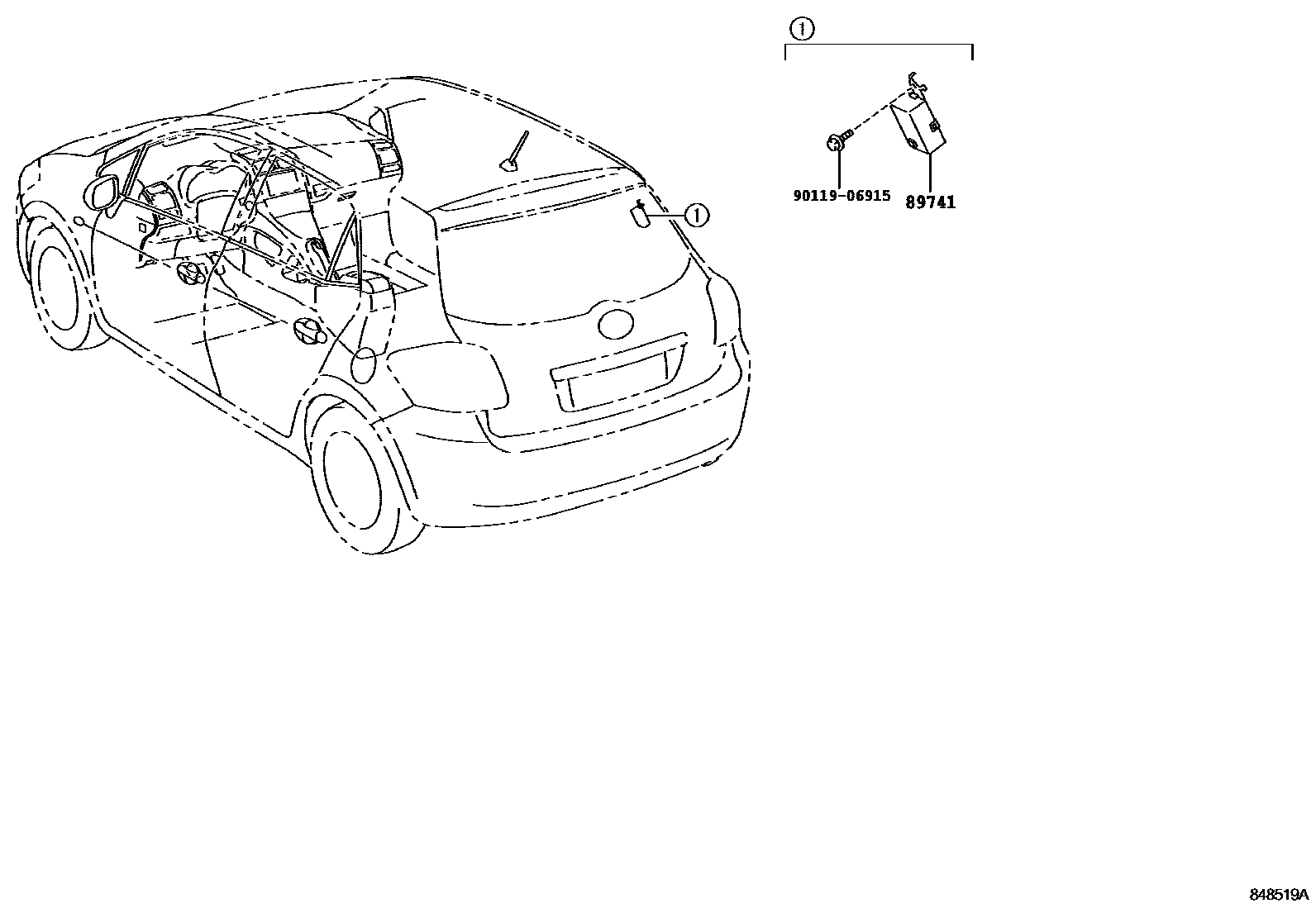

Toyota COROLLA EPC diagram 8420, 遥控门锁, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89741 | door control receiver | 89740-12040 · 89740-12120 · 89741-12330 · 89741-12360 · 89741-12430 · 89741-12440 · 89741-12470 · 89741-12480 · 89741-12490 · 89741-12500 |
| 89746A | Electronic key wiring harness | 89746-12040 · 89746-12050 |
| 89747 | Remote door lock buzzer | 89747-52010 |
| 89990A | Smart key ECU assembly | 89990-12010 · 89990-12011 · 89990-12012 · 89990-12070 |
| 89991 | Door electronic key oscillator | 89991-30040 · 89991-30050 |
| 89992 | Car electronic key oscillator | 89992-12030 · 89992-12040 · 89992-52020 |
| 89997 | electronic key antenna | 89997-41010 |
