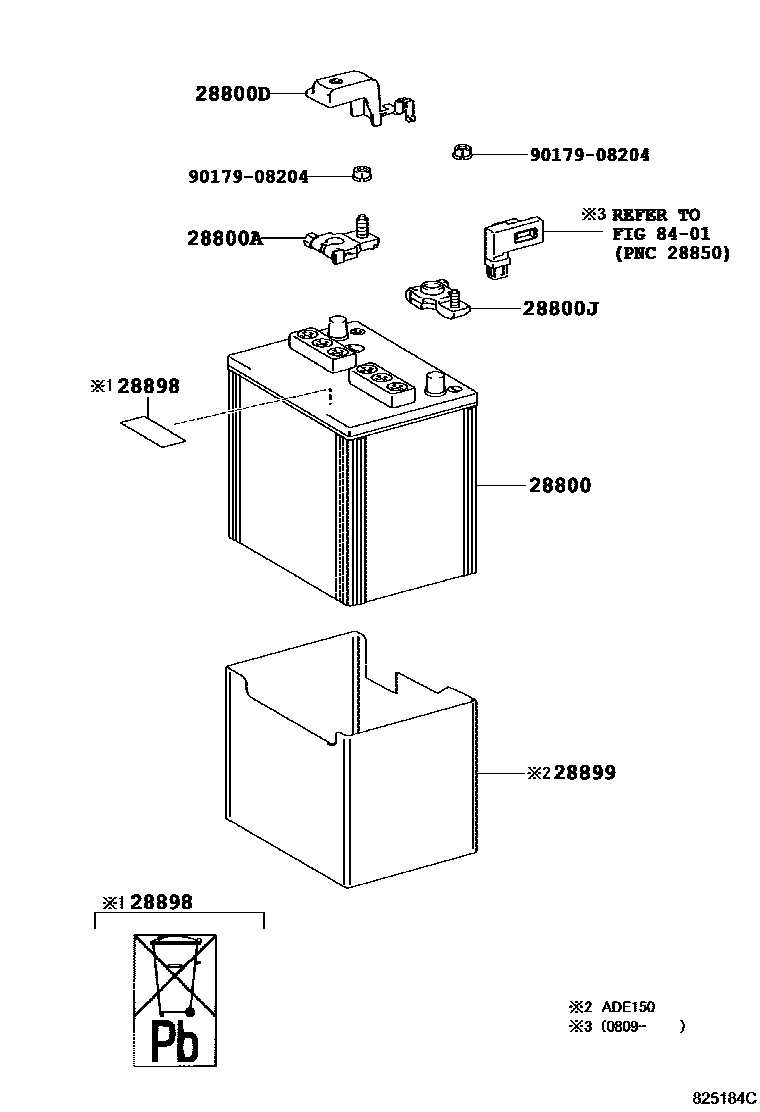

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-22040 · 28800-26140 · 28800-42041 · 28800-42042 · 28800-42061 · 28800-42062 · 28800-47030 · 28800-54020 · 28800-74261 |
| 28800A | battery positive terminal | 90982-05054 · 90982-05056 |
| 28800D | Connector cover (for battery terminals) | 82821-12490 · 82821-52060 |
| 28800J | battery negative terminal | 90982-06070 |
| 28898 | battery plates | 28898-16020 · 28898-46020 |
| 28899 | Battery insulation cover | 28899-26040 |
