Toyota COROLLA 挡泥板和扰流板 — Figure 7601

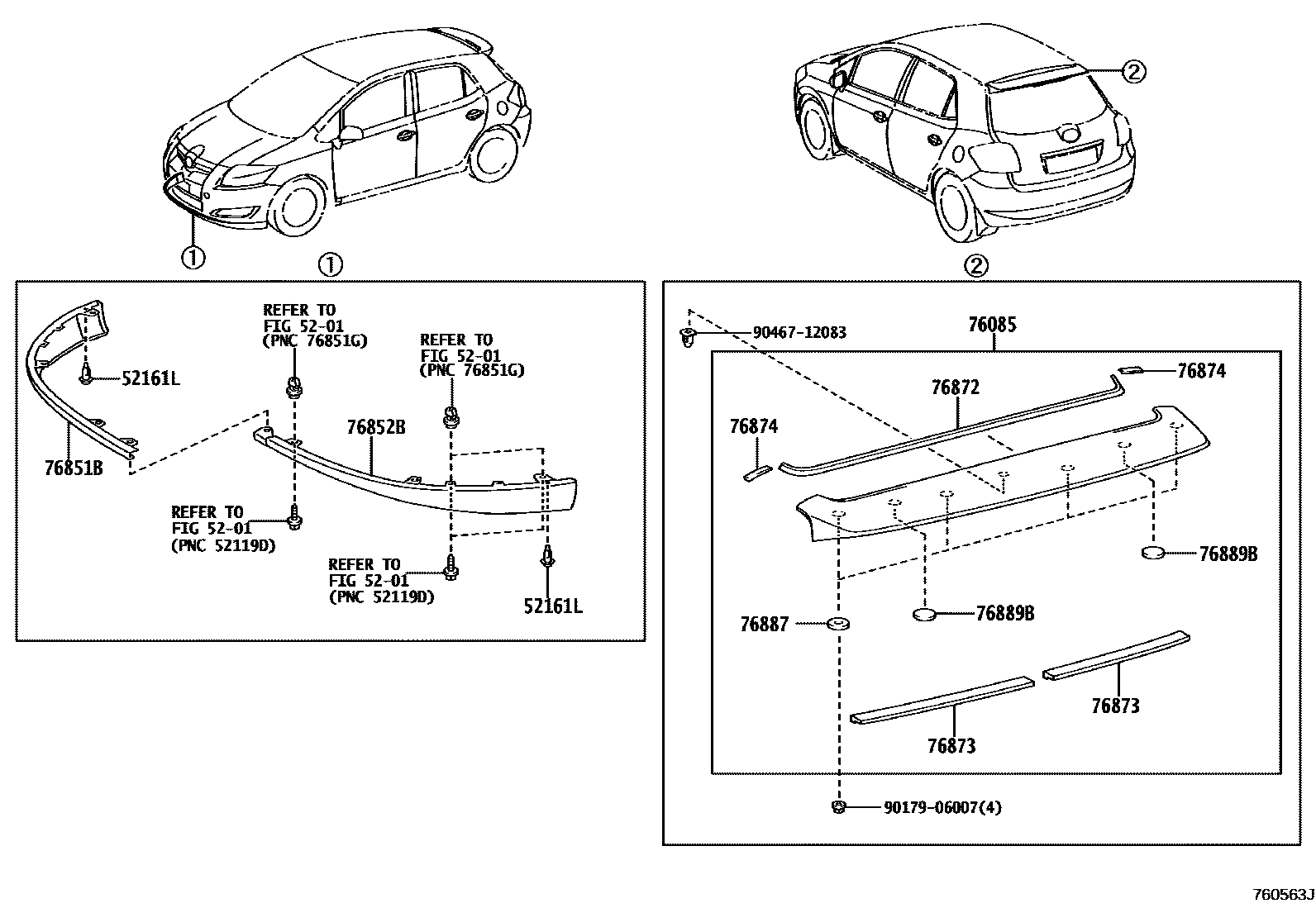

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161L | front spoiler insert | 52161-16010 |
| 76851B | right front spoiler | 76851-12180 · 76851-12250 |
| 76852B | left front spoiler | 76852-12140 · 76852-12210 |
| 76872 | No. 1 rear spoiler protective strip | 76872-12170 |
| 76873 | No. 2 rear spoiler protective strip | 76873-12180 |
| 76874 | No. 3 rear spoiler protective strip | 76874-12200 |
| 76887 | Rear spoiler seal | 76887-12050 |
| 76889B | No. 1 rear spoiler seal | 76889-12050 |
