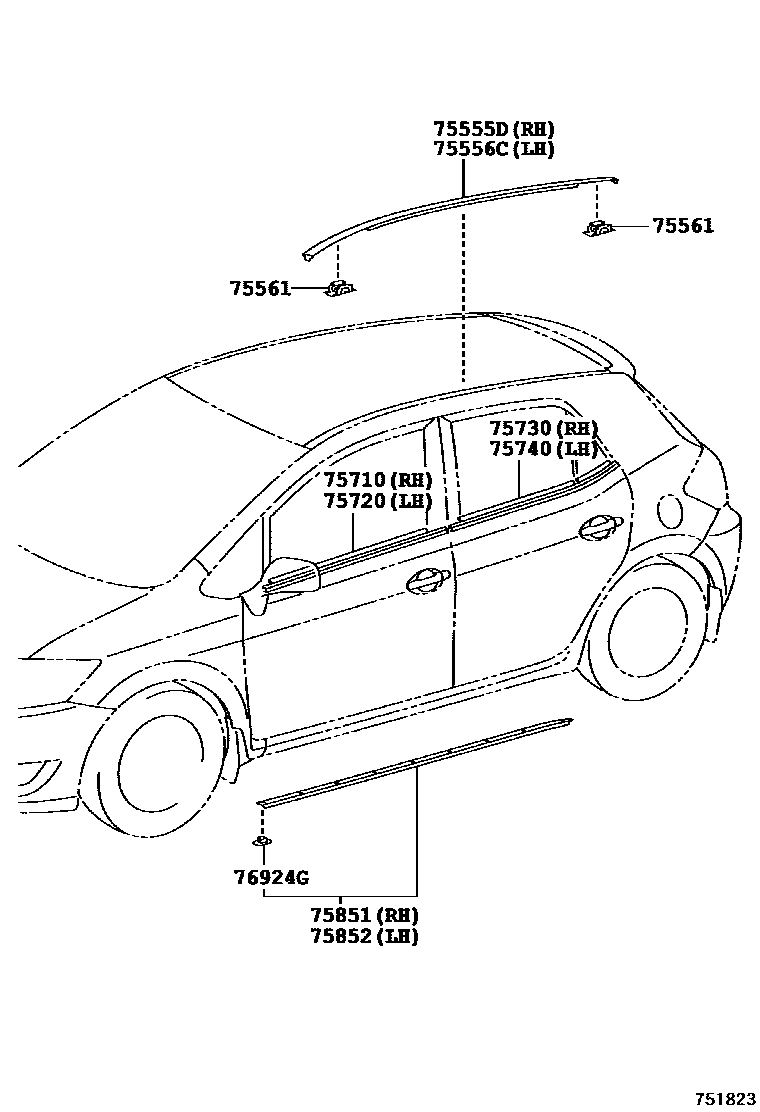

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12130 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12140 |
| 75561 | No. 1 roof drain channel side decorative strip clip | 75561-52040 |
| 75710 | Right front door waistline protection strip assembly | 75710-12770 |
| 75720 | Left front door waistline protection strip assembly | 75720-12770 |
| 75730 | Right rear door waistline protection strip assembly | 75730-12290 · 75730-12291 |
| 75740 | Left rear door waistline protection strip assembly | 75740-12380 · 75740-12381 |
| 75851 | Right side door sill panel protective strip | 75851-12111 |
| 75852 | Left side door sill panel protective strip | 75852-12081 |
| 76924G | Door sill panel protective strip fixings | 76924-12030 |
