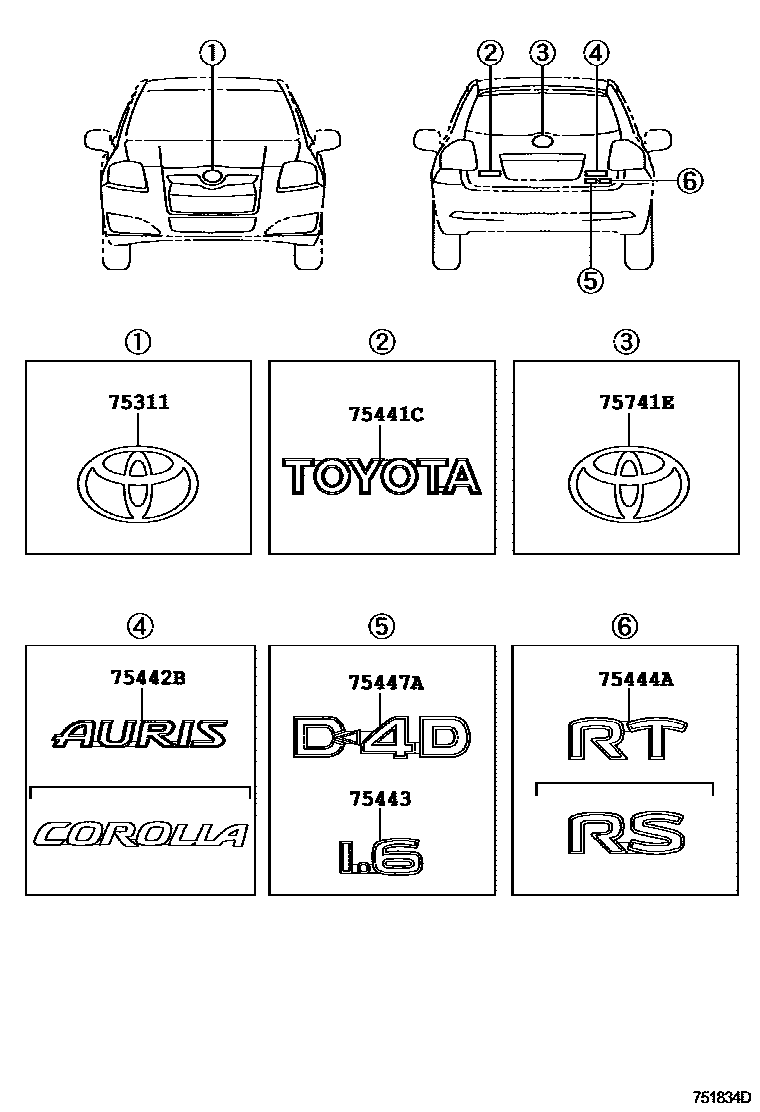

Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501
Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75301-12400 · 75301-12490 · 75311-12A10 · 75311-12B20 |
| 75441C | Back door nameplate | 75441-12880 · 75441-12A30 |
| 75442B | No. 2 nameplate on back door | 75442-12A00 · 75442-12A01 · 75442-12A80 · 75442-1A500 |
| 75443 | No. 3 nameplate on back door | 75443-12A30 |
| 75444A | No. 4 nameplate on back door | 75444-12A70 · 75444-12A80 |
| 75447A | No. 7 nameplate on back door | 75447-12040 · 75447-12041 |
| 75741E | logo | 90975-02074 · 90975-02130 · 90975-02176 · 90975-02179 |
