Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

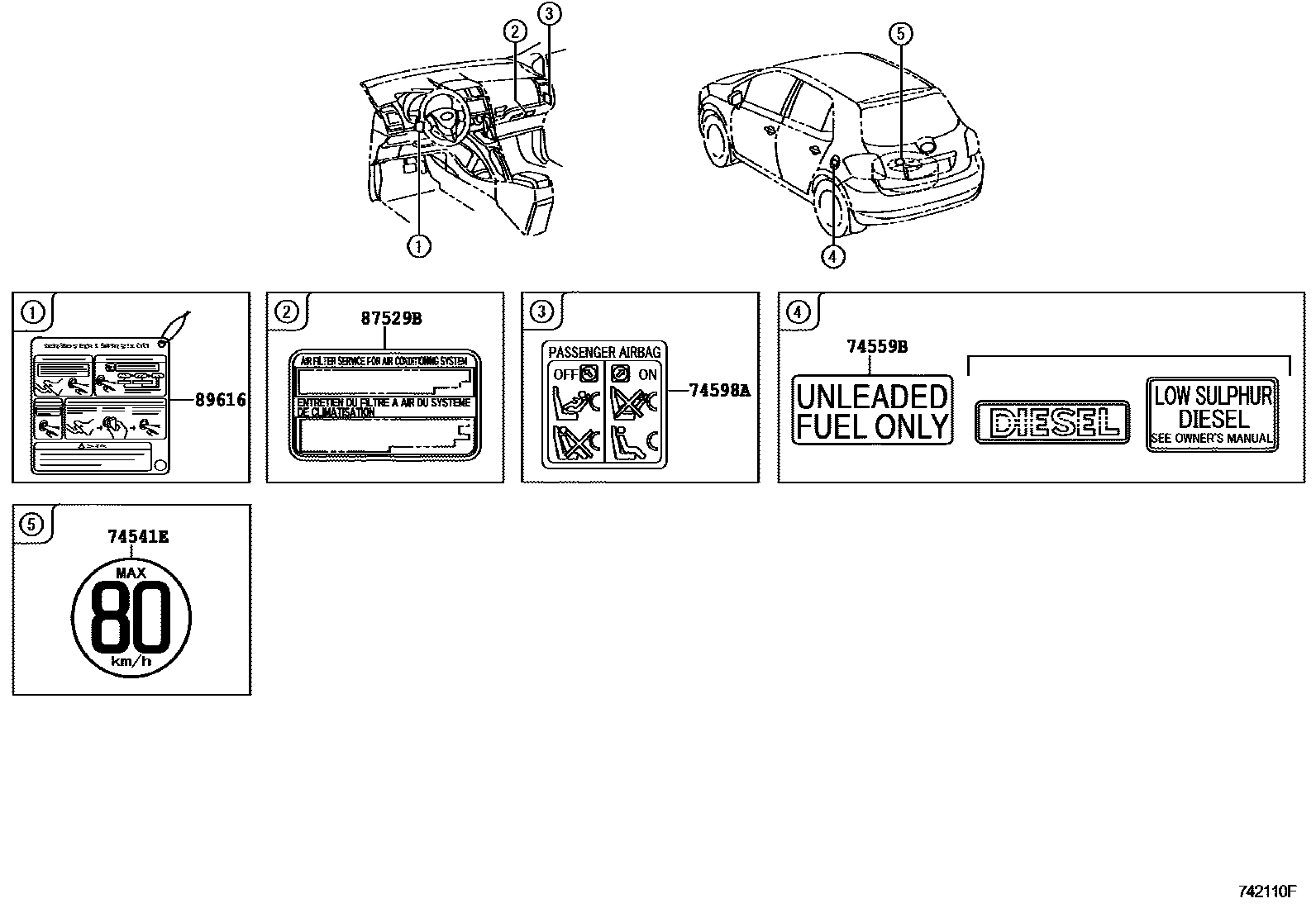

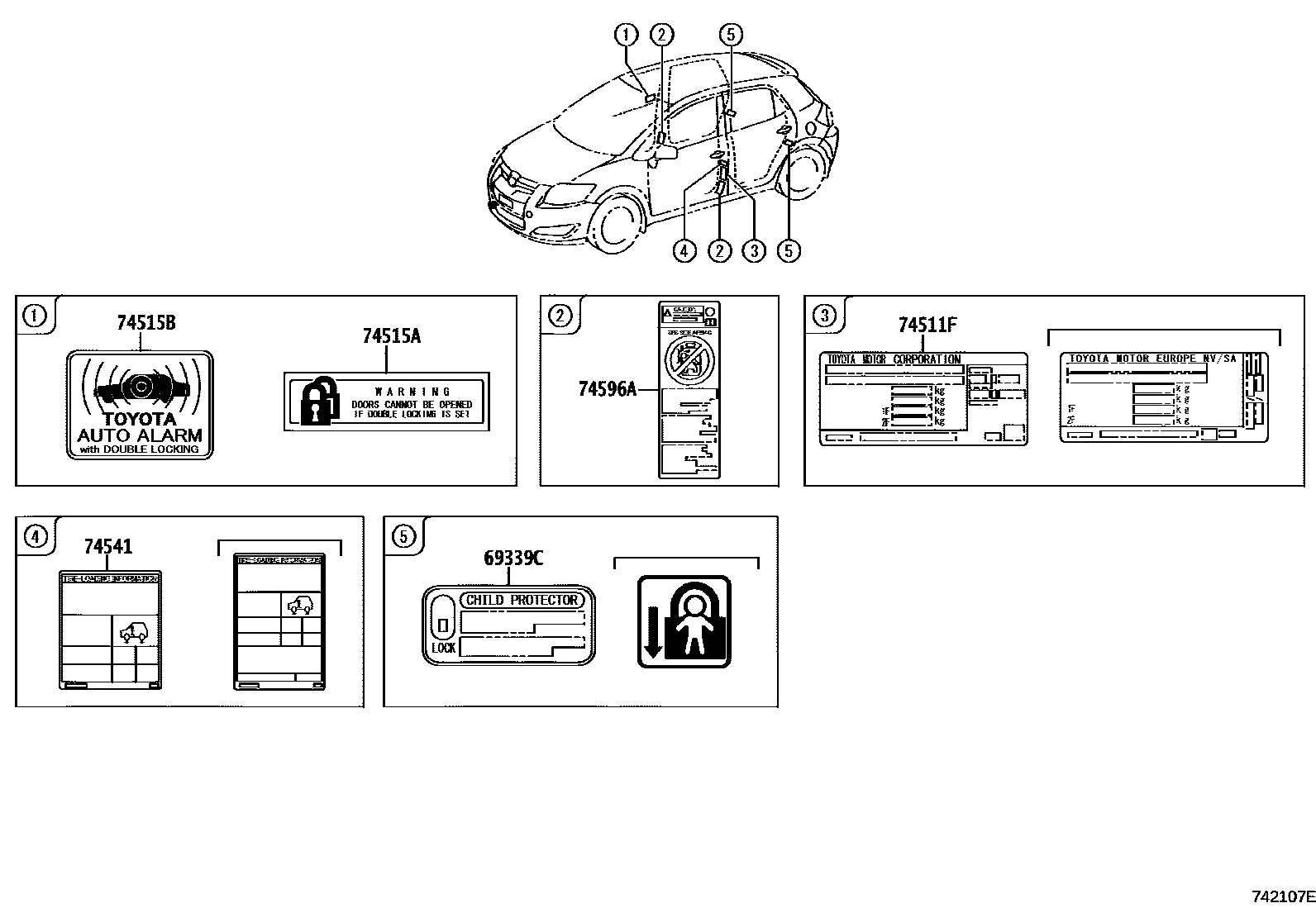

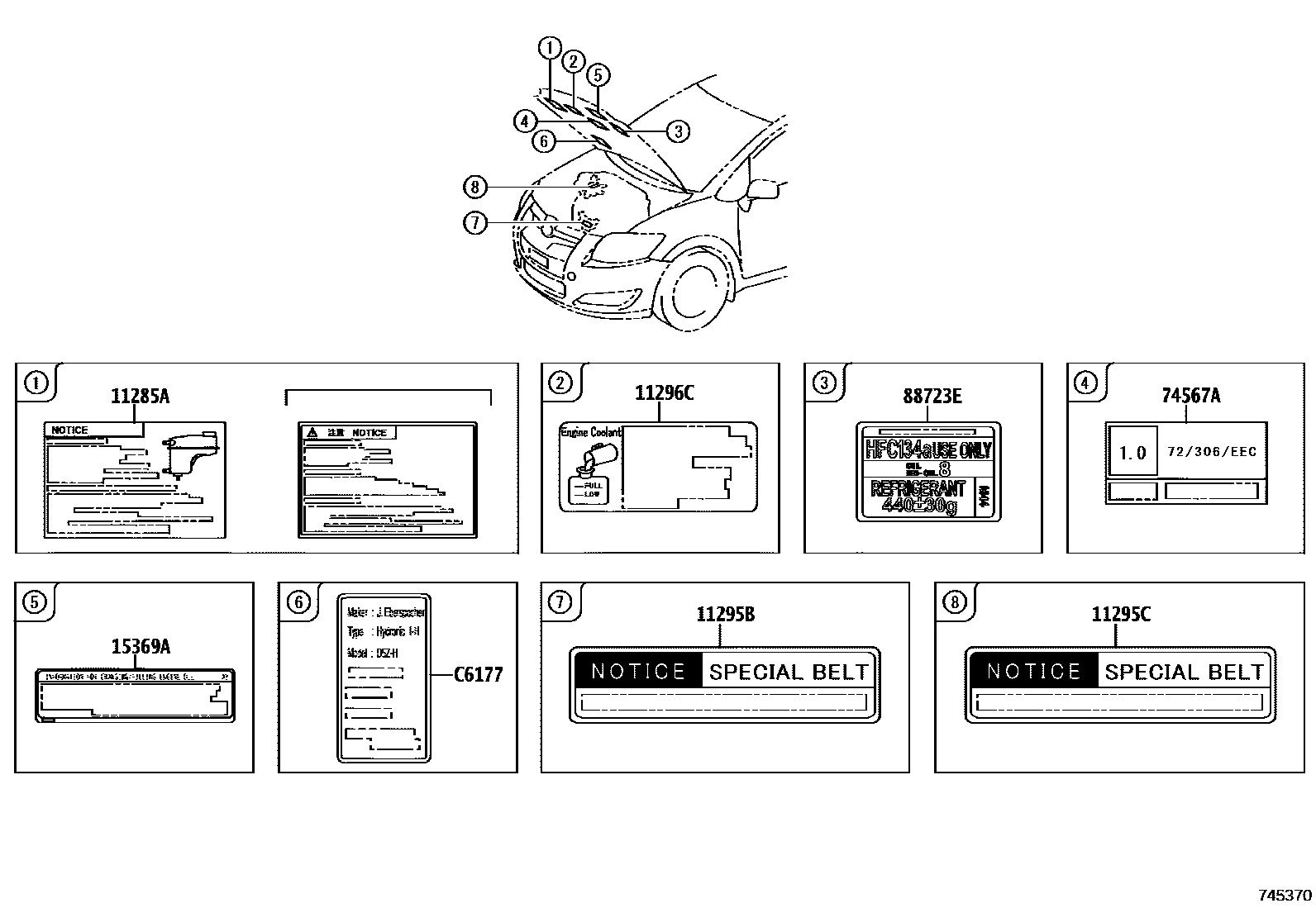

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-22080 · 11285-26010 · 11285-33030 · 11285-33040 |
| 11295B | ETIQUETTE, AVIS FONC MOTEUR NO.1 | 11295-33010 |
| 11295C | ETIQUETTE, AVIS FONC MOTEUR NO.2 | 11295-33010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 15369A | Engine oil information label | 15369-33010 |
| 69339C | Child Restraint Information Label | 69339-12010 · 69339-33040 |
| 74511F | Nameplate (laser identification label) | 74511-48020 · 74511-48050 · 74511-60480 |
| 74515A | Anti-theft warning nameplate | 74515-52010 |
| 74515B | Anti-theft warning nameplate | 74515-42010 |
| 74541 | tire pressure warning plate | 42661-02D30 · 42661-02D40 · 42661-02D50 · 42661-02D60 · 42661-12B10 · 42661-12B30 · 42661-12B50 · 42661-1E280 |
| 74541E | Small spare tire warning plate | 42668-20020 |
| 74559B | fuel information label | 74559-14050 · 74559-20120 · 74559-89101 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 · 74567-26201 |
| 74596A | Side air bag warning label | 74596-53010 · 74596-53011 |
| 74598A | Passenger air bag warning label | 74598-12010 |
| 87529B | Cabin filter information label | 87529-50010 |
| 88723E | Cooler maintenance warning label | 88733-20020 |
| 89616 | Button start information label | 89616-52030 · 89616-52040 · 89616-52050 · 89616-52060 · 89616-52070 · 89616-52100 · 89616-53010 · 89616-53030 |
| C6177 | Heater Caution Label | C6177-05010 · C6177-74010 |
