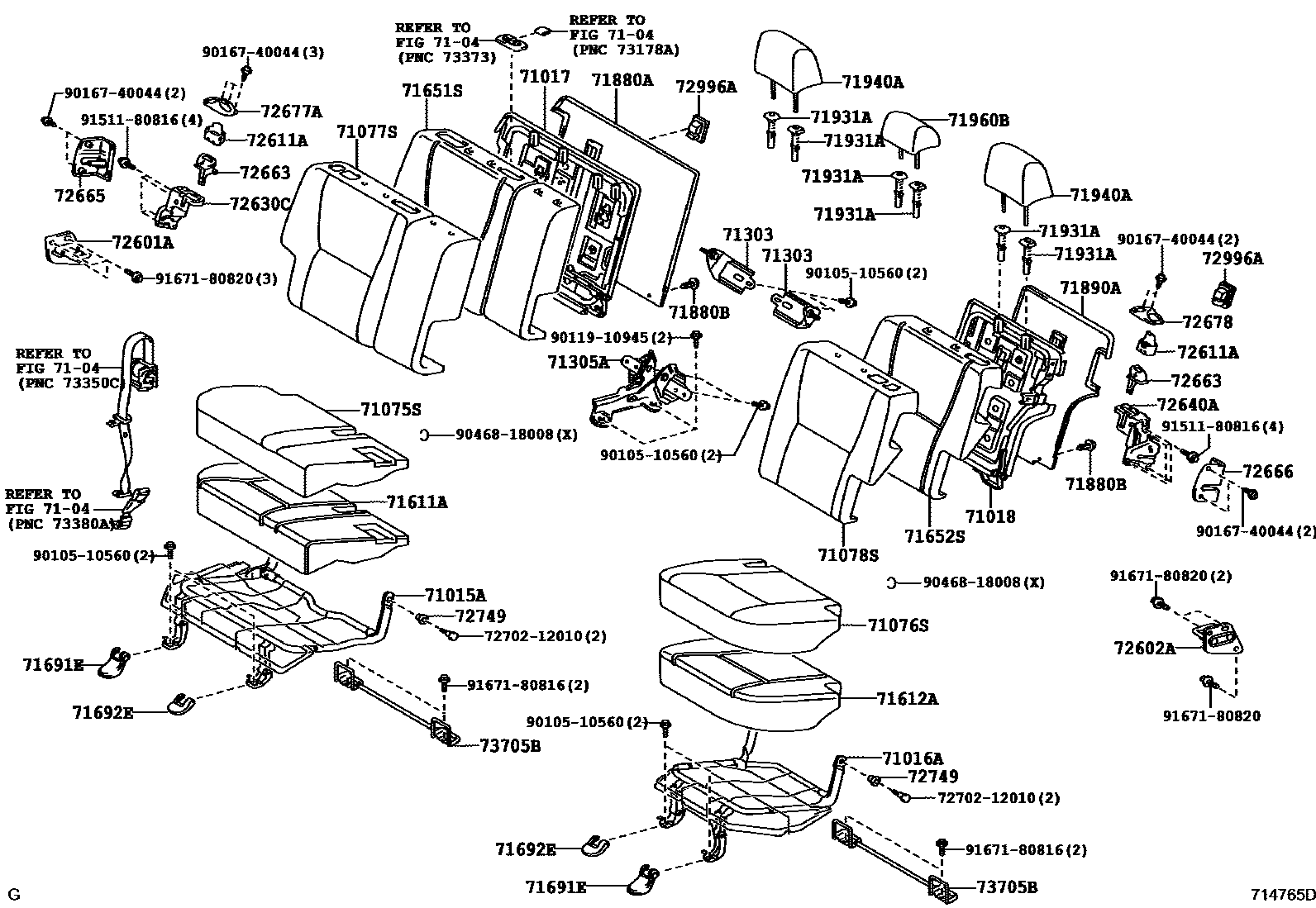

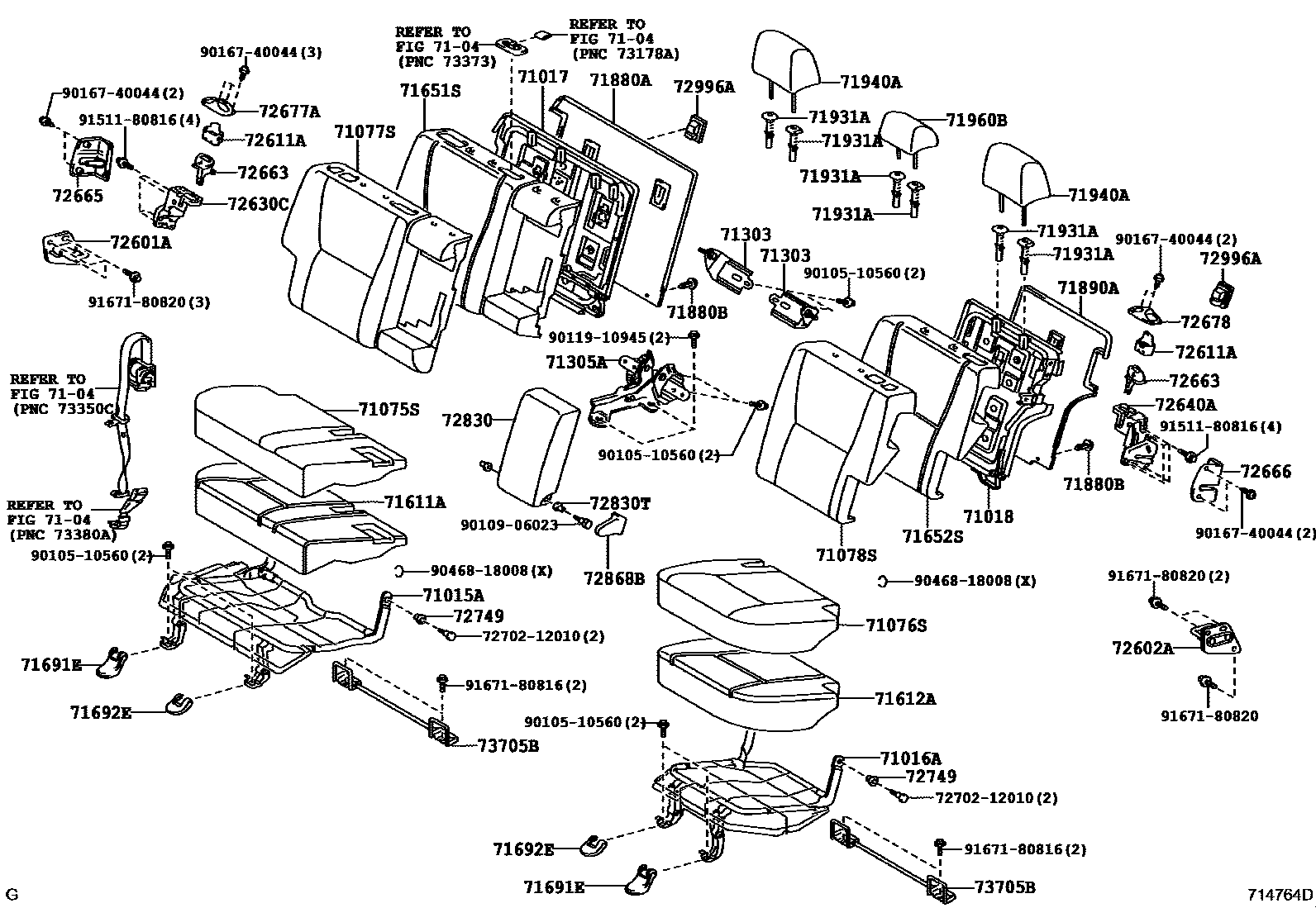

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-12420 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-12010 |
| 71017 | Right rear seat back frame sub-assembly | 71017-12700 · 71017-12710 |
| 71018 | Rear left seat back frame sub-assembly | 71018-12350 |
| 71303 | Rear seat back hinge sub-assembly | 71303-12161 |
| 71305A | Rear center seat backrest hinge sub-assembly | 71305-12190 |
| 71611A | Rear right seat cushion | 71611-12670 |
| 71612A | Rear left seat cushion | 71612-12380 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-12840 · 71651-12850 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-12720 |
| 72601A | Right rear seat back lock sub-assembly | 72601-12200 |
| 72602A | Rear left seat back lock sub-assembly | 72602-12060 |
| 72611A | Rear seat lock base | 72631-12100 · 72632-12090 |
| 72630C | Rear right seat back lock assembly | 72603-12040 · 72630-12320 |
| 72640A | Rear left seat back lock assembly | 72604-12060 · 72640-12290 |
| 72749 | Rear seat backrest tilt cushion | 72749-12010 |
| 72830T | Bushing (for rear seat center armrest) | 90386-08077 |
| 73705B | Cross anchor bracket sub-assembly | 73705-12060 |
