Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

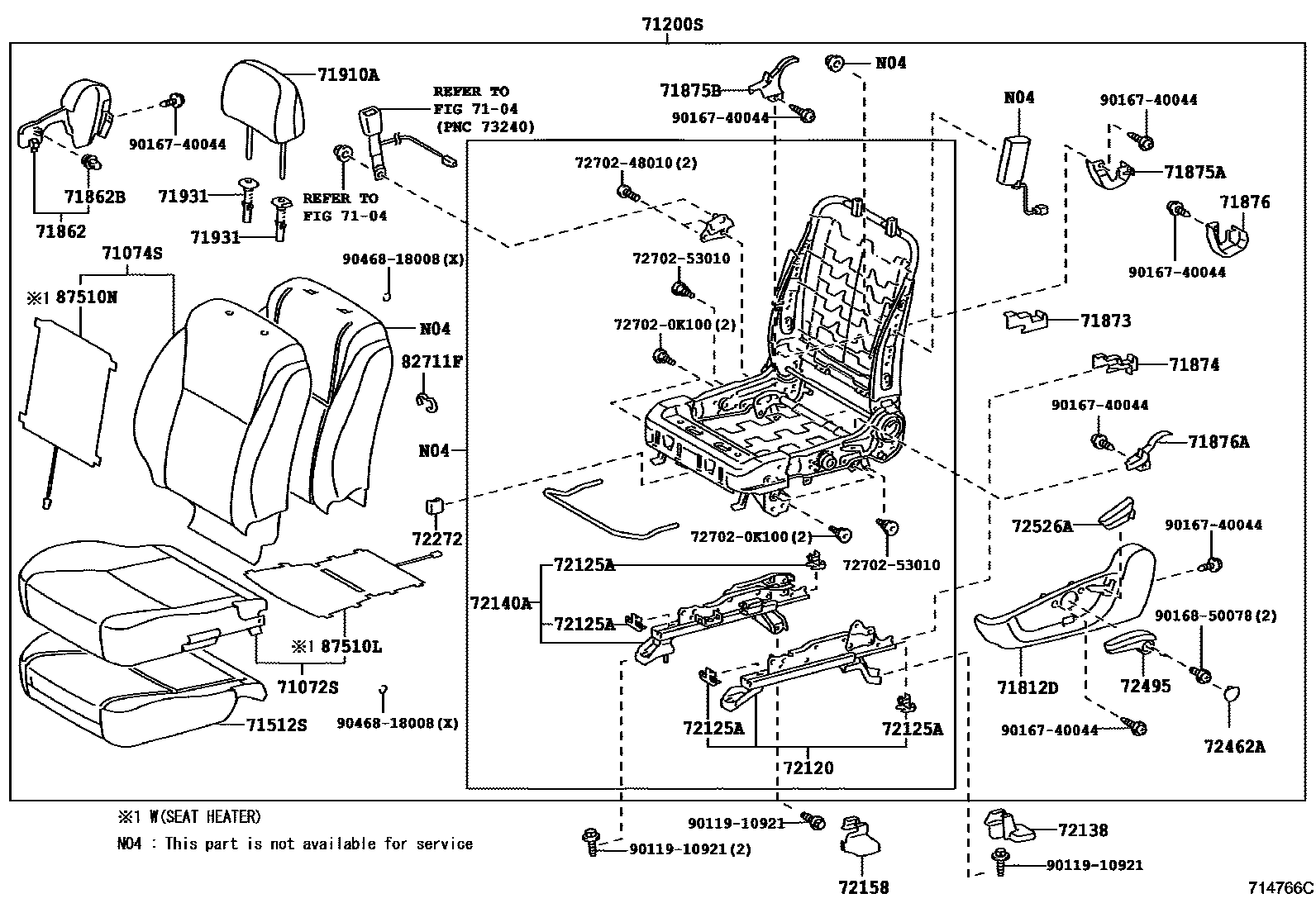

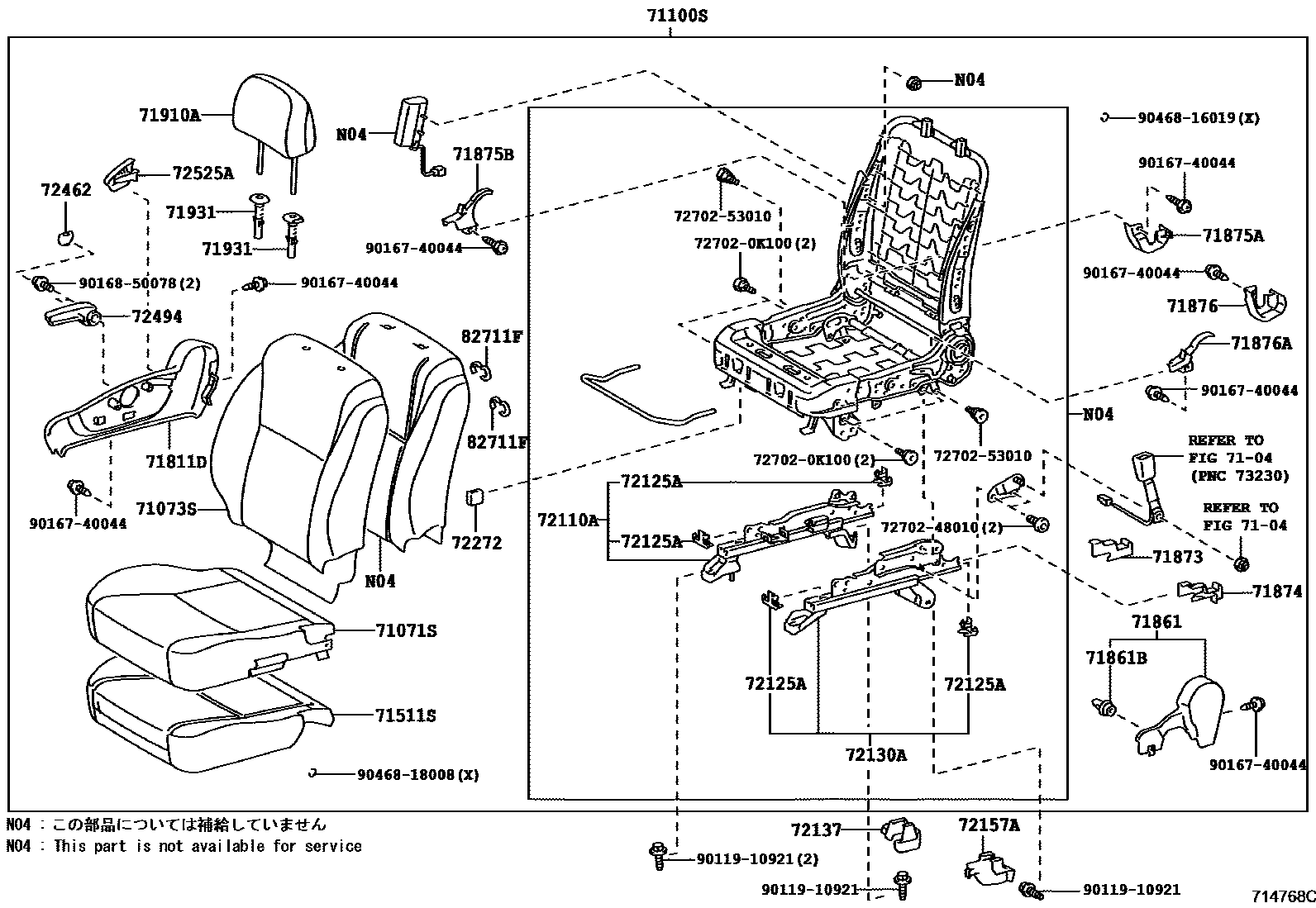

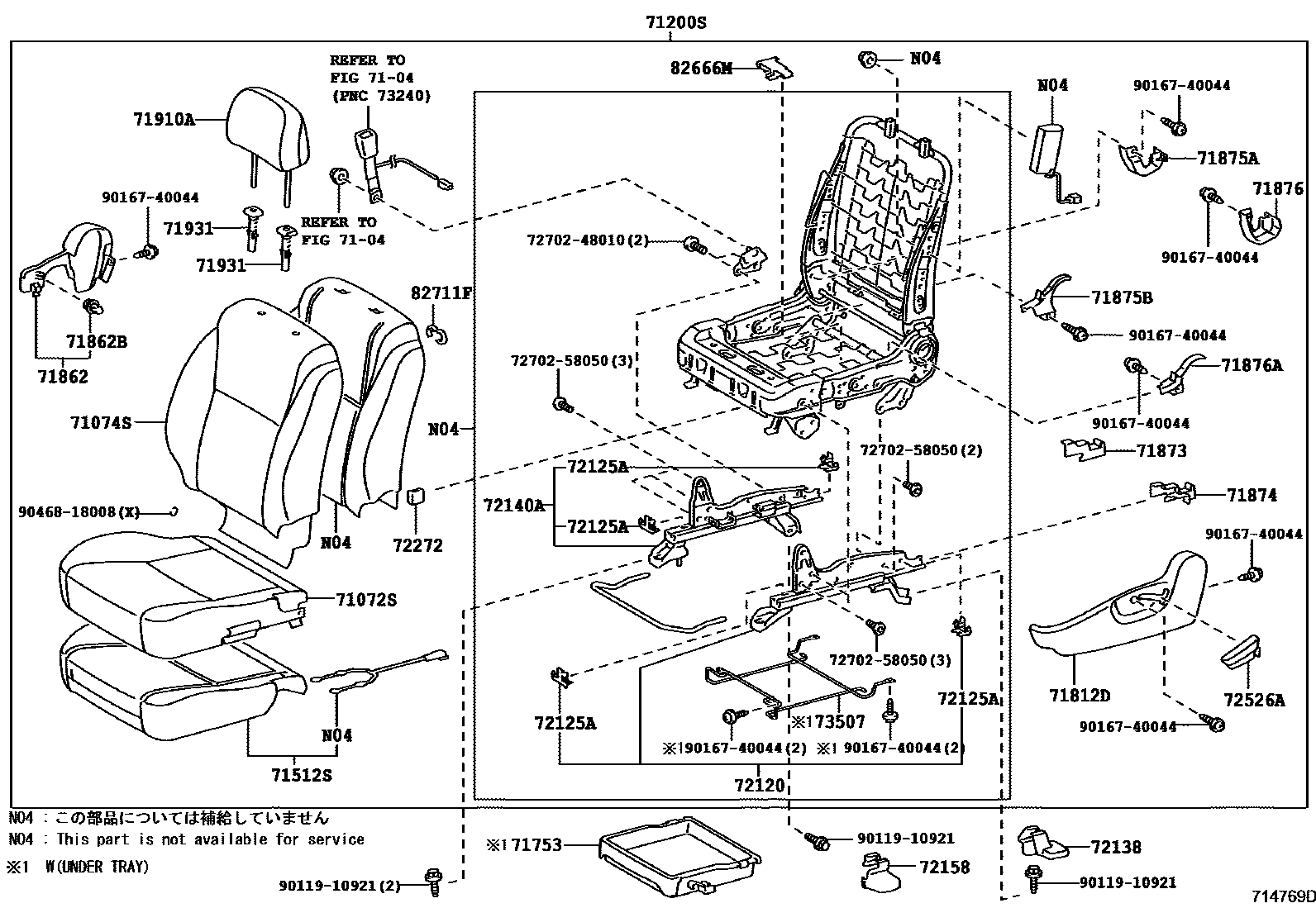

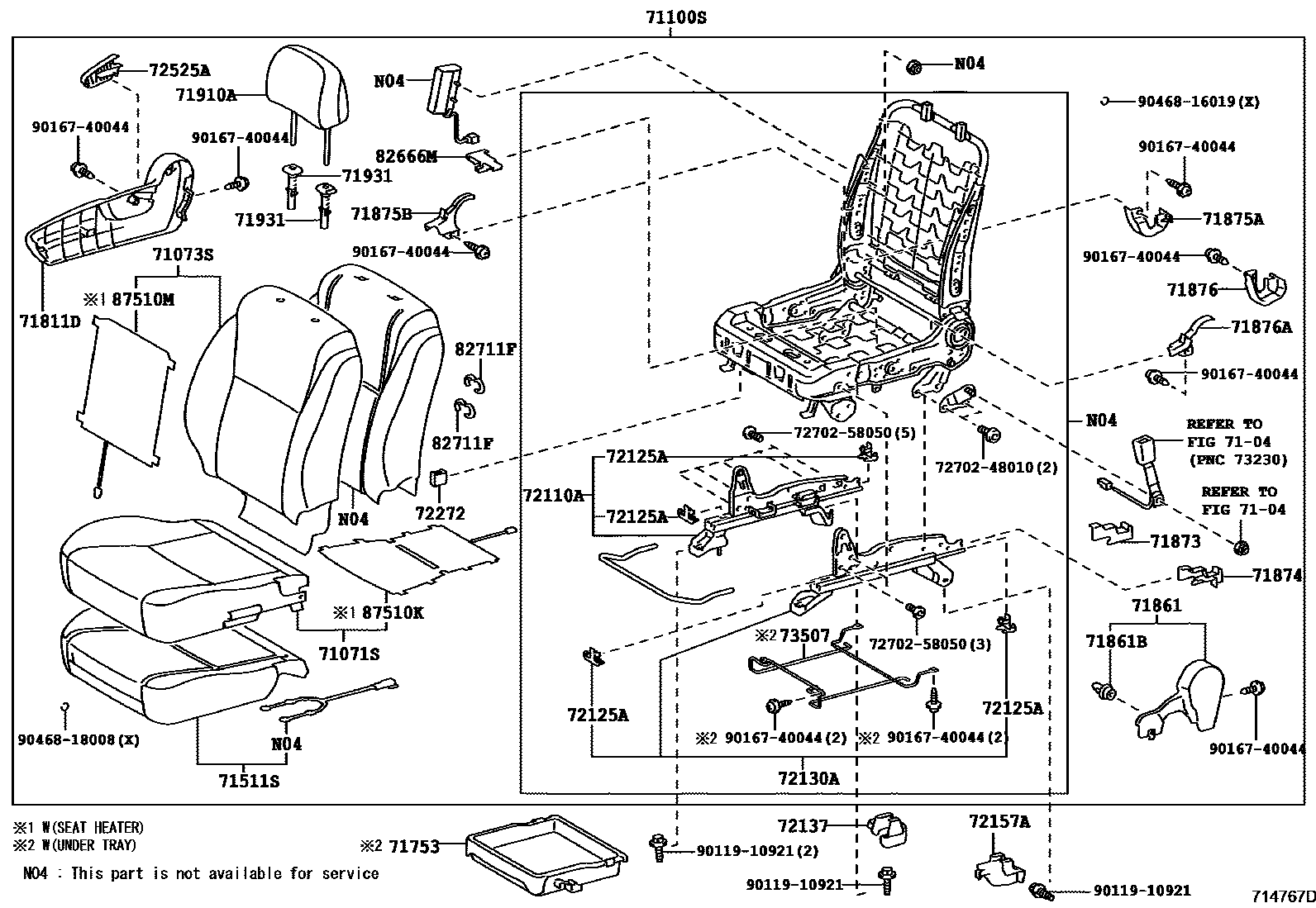

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71501-12010 · 71511-12B00 |
| 71512S | Front left seat cushion cushion (for split seats) | 71502-12070 · 71512-12280 |
| 71753 | Front seat bottom bracket | 71753-12020 |
| 71861B | Clip (for front right seat guard) | 71769-33020 |
| 71862B | Clip (for front left seat guard) | 71769-33020 |
| 71873 | Front right seat cushion lower guard panel | 71873-42030 |
| 71874 | Front left seat cushion lower guard | 71874-42020 |
| 72110A | Front right seat outer slide rail assembly | 72110-12170 · 72110-12180 |
| 72120 | Front left seat outer slide rail assembly | 72120-12140 · 72120-12150 |
| 72125A | Rear seat upper slide rail cover | 72125-13040 |
| 72130A | Front right seat inner slide rail assembly | 72130-12760 · 72130-12770 |
| 72140A | Front left seat inner slide rail assembly | 72140-12630 · 72140-12640 |
| 72272 | Seat rail control cable clip | 72272-12020 |
| 73507 | Front seat rail sub-assembly | 73507-12010 |
| 82666M | Connector holder | 82666-12420 |
| 82711F | Wire harness clip | 82711-10070 · 82711-12120 |
| 87510K | Front right seat cushion heater assembly | 87510-12170 |
| 87510L | Front left seat cushion heater assembly | 87510-12170 |
| 87510M | Front right seat back heater assembly | 87510-12200 |
| 87510N | Front left seat back heater assembly | 87510-12200 |
