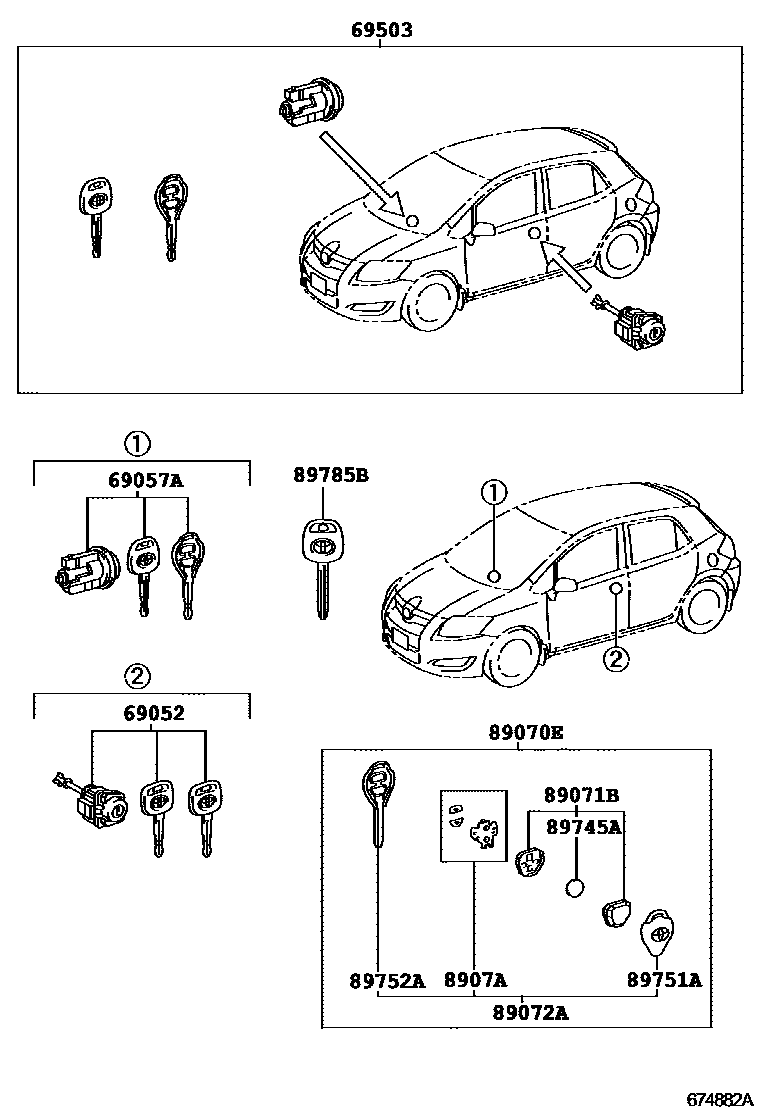

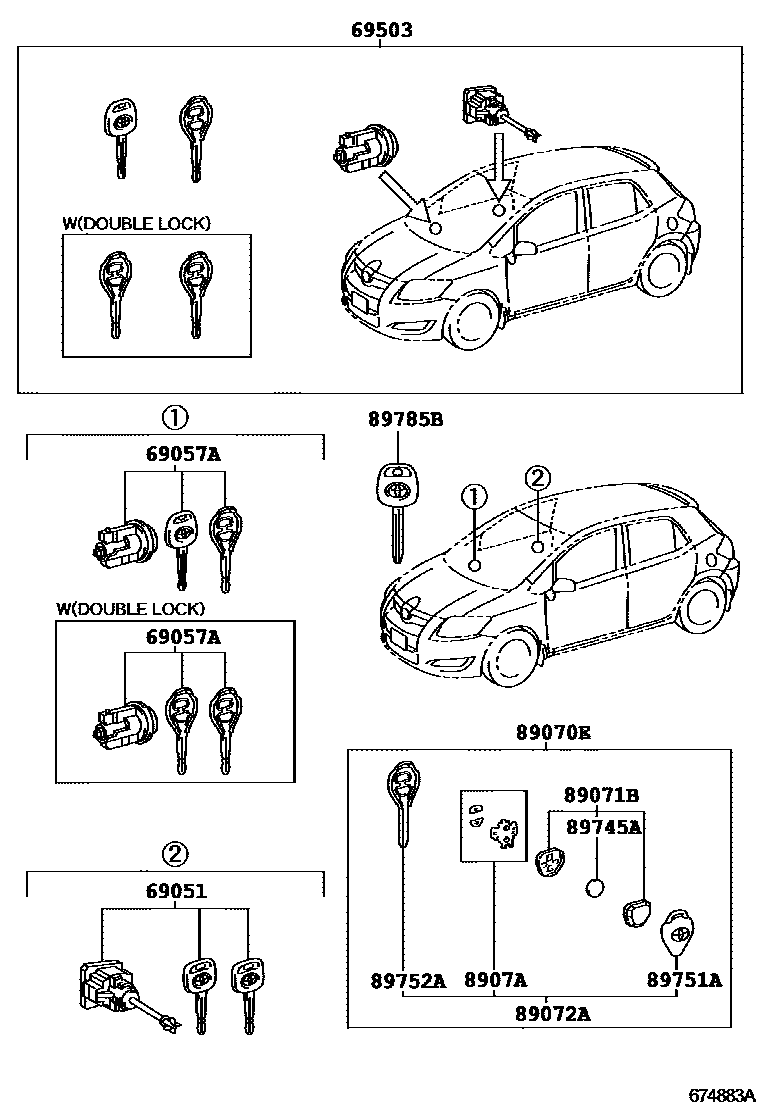

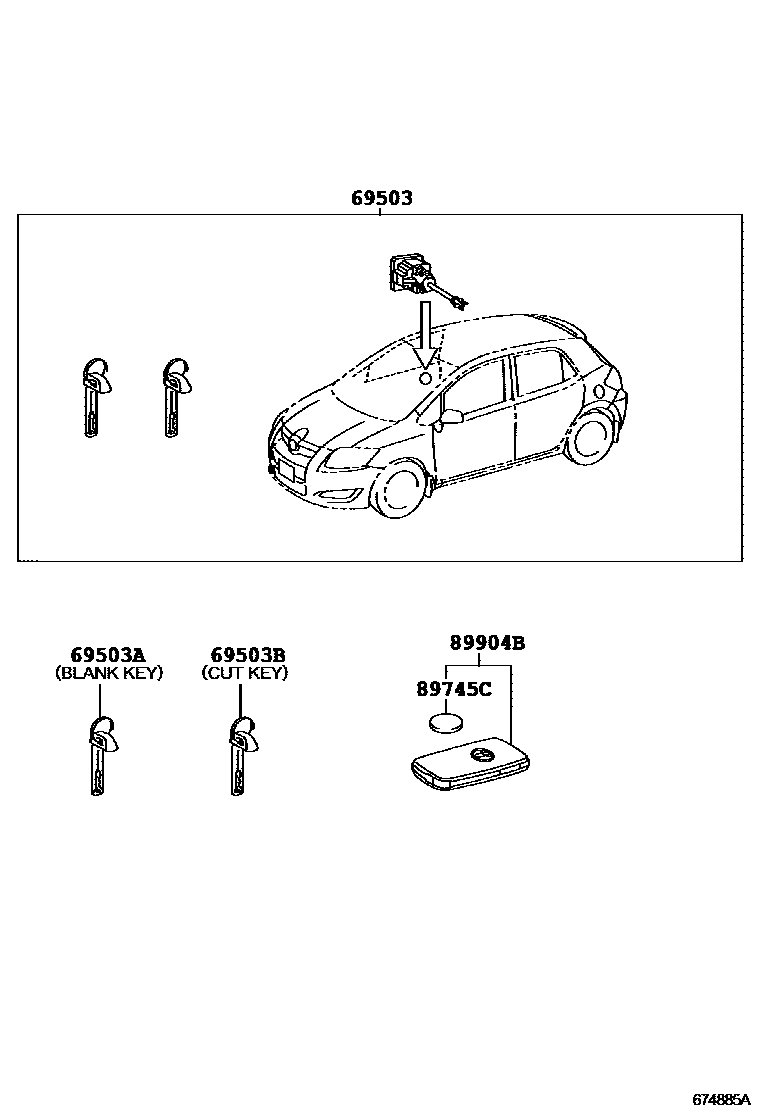

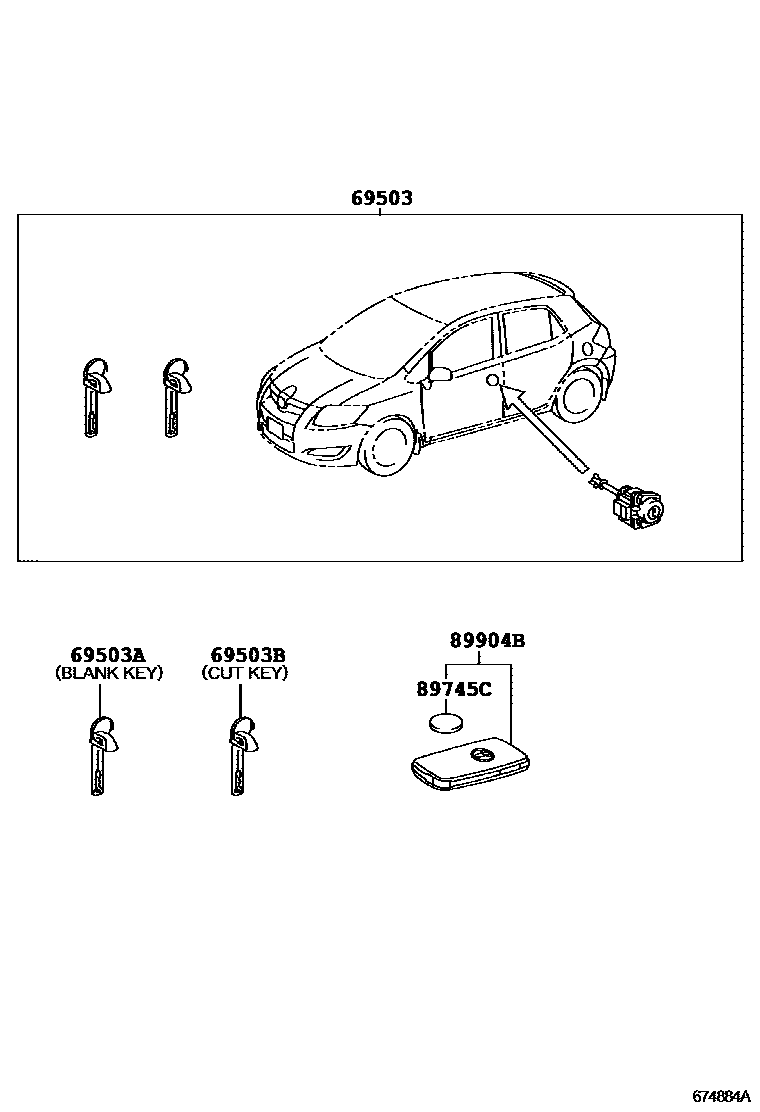

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52400 |
| 69052 | Left door lock cylinder and key assembly | 69052-52330 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12730 · 69057-12780 · 69057-12800 · 69057-28370 |
| 69503 | Door lock cylinder components | 69005-12B70 · 69005-12B80 · 69005-12C40 · 69005-12C70 · 69005-12D10 · 69005-12D20 · 69005-12D30 · 69005-52A80 |
| 69503A | external tooth key | 69515-52120 |
| 69503B | internal tooth key | 69515-52110 |
| 89070E | Remote key assembly | 89070-12491 · 89070-12501 · 89070-28811 · 89070-28812 · 89070-28850 |
| 89071B | Remote key sub-assembly module assembly | 89071-12150 · 89071-12160 · 89071-28201 · 89071-28202 · 89071-28240 |
| 89072A | Remote key shell assembly | 89072-12181 · 89072-28300 |
| 8907A | Transmitter switch assembly | 8907A-28010 |
| 89745A | Transmitter battery | 89745-48030 |
| 89745C | Transmitter battery | 89745-52030 |
| 89751A | Transmitter housing cover | 89751-28070 · 89751-52140 |
| 89752A | transmitter housing | 89752-12140 · 89752-28050 |
| 89785B | transceiver key master transmitter | 89785-60160 · 89785-60210 |
| 89904B | Electronic key transmitter sub-assembly | 89904-12120 · 89904-52070 · 89904-52071 |
