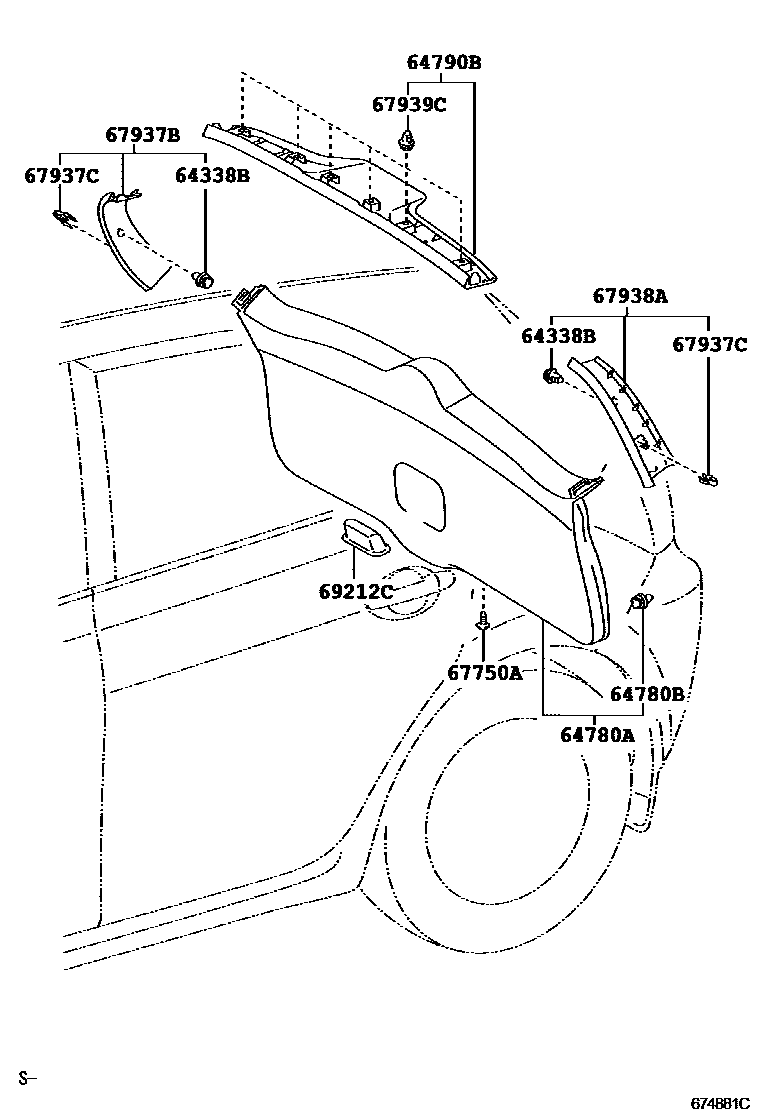

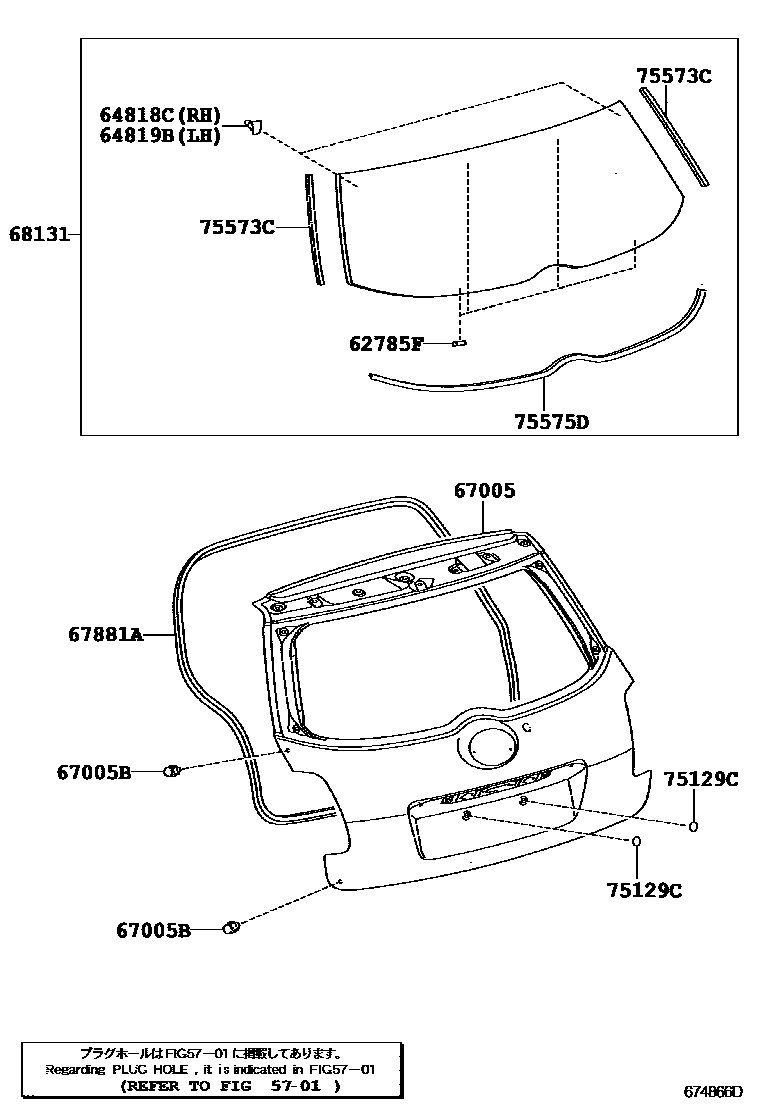

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-12050 · 62785-60030 |
| 64780B | Clip (for rear door trim panel) | 90467-10161 |
| 64818C | No. 1 back window glass spacer | 64818-12050 |
| 64819B | No. 2 back window glass spacer | 64819-12030 |
| 67005 | Rear door panel sub-assembly | 67005-12A30 · 67005-12B80 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67881A | Back door seal | 67881-12290 |
| 67937C | Clip (for rear door side decorative strip) | 67771-58010 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 |
| 68131 | back door glass | 68105-12300 · 68105-12310 |
| 75129C | rear license plate cushion | 75129-40010 |
| 75573C | Protective strip for rear window | 75573-12340 |
| 75575D | Protective strip under rear window | 75575-12440 |
