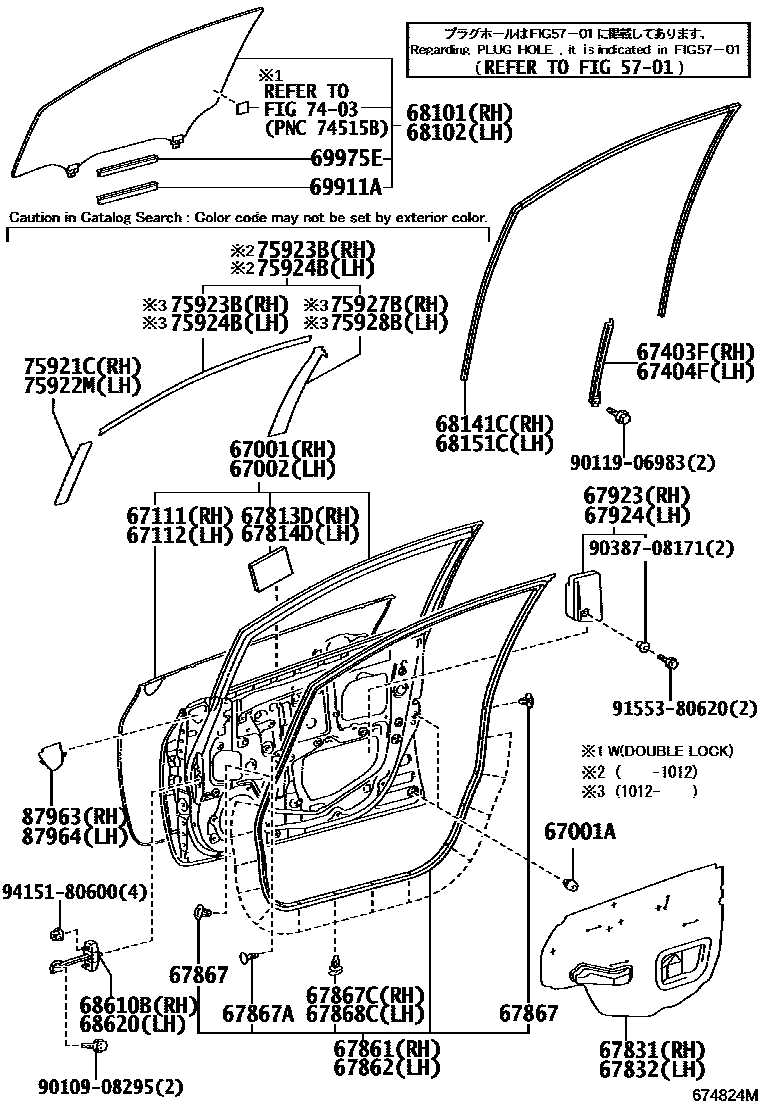

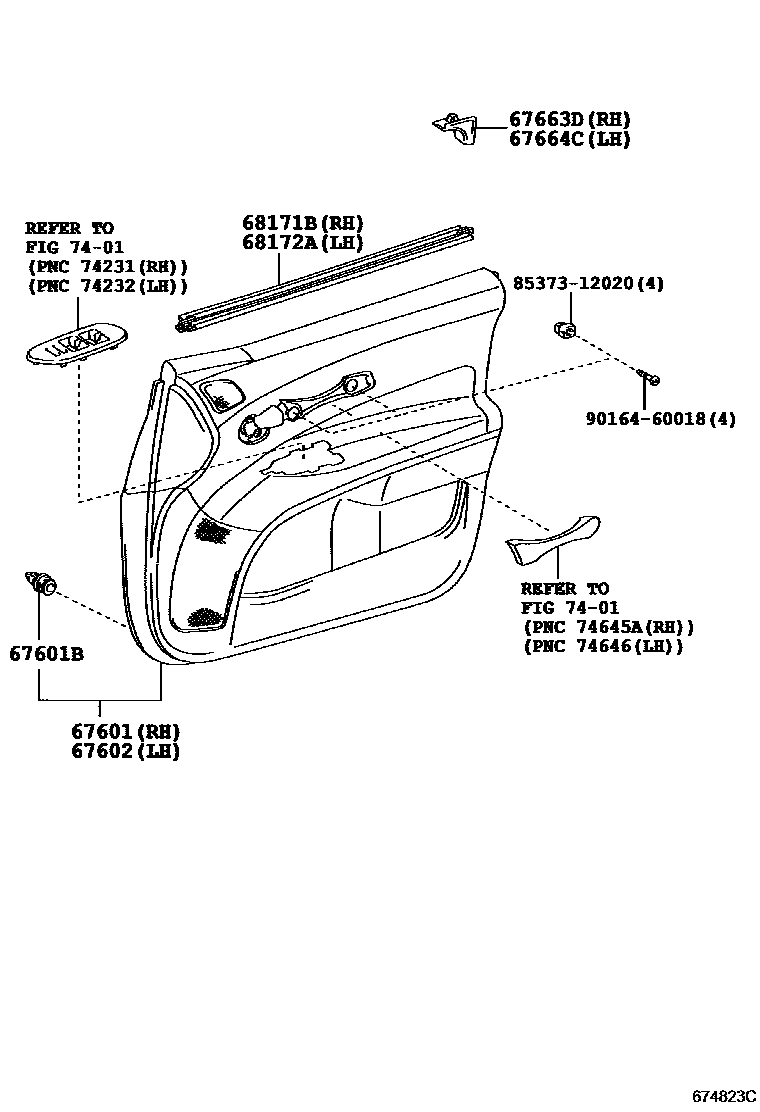

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12A20 |
| 67001A | Front door panel cushion | 90541-09124 · 90541-09143 |
| 67002 | Left front door panel sub-assembly | 67002-12A20 |
| 67111 | Outer right front door panel | 67111-12680 |
| 67112 | Outer left front door panel | 67112-12680 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-12250 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-12240 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-48010 |
| 67664C | Left door frame decorative strip | 67664-48010 |
| 67813D | Right side enclosure silencer panel | 67817-47010 |
| 67814D | Left side enclosure silencer panel | 67817-47010 |
| 67831 | Right front door access hole cover | 67831-12660 |
| 67832 | Left front door access hole cover | 67832-12440 |
| 67861 | Right front door seal | 67861-12A10 · 67861-12A70 |
| 67862 | Left front door seal | 67862-12A10 · 67862-12A70 |
| 67867 | Car door seal strip clip | 90467-04034 |
| 67867A | Door seal strip clip (for front door) | 67869-20030 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 67923 | Front door No. 1 reinforcement cushion pad | 67923-12020 · 67923-12060 |
| 67924 | Front door No. 2 reinforcement cushion pad | 67924-12020 · 67924-12060 |
| 68101 | Right front door glass sub-assembly | 68101-12A50 · 68101-12A51 · 68101-12B20 · 68101-12B21 · 68101-12B30 |
| 68102 | Left front door glass sub-assembly | 68102-12A50 · 68102-12A51 · 68102-12B20 · 68102-12B21 · 68102-12B30 |
| 68141C | Right front door glass lift channel | 68141-12530 |
| 68151C | Left front door glass lift channel | 68151-12230 |
| 68171B | Right front door glass inner sealing strip | 68171-12330 |
| 68172A | Left front door glass inner sealing strip | 68172-12250 |
| 68610B | Right front door opening limiter assembly | 68610-12180 · 68610-12181 |
| 68620 | Left front door opening limiter assembly | 68610-12180 · 68610-12181 |
| 69911A | No. 1 front door glass slot | 69911-20050 · 69955-47010 |
| 69975E | No. 1 front door glass groove filler | 69975-16020 · 69975-47010 |
| 75921C | No. 1 right side light-shielding film | 75921-12070 |
| 75922M | No. 1 left shading film | 75922-12070 |
| 75923B | No. 2 right side light-shielding film | 75923-12050 · 75923-12080 |
| 75924B | No. 2 left shading film | 75924-12050 · 75924-12090 |
| 75927B | No. 4 right side light-blocking film | 75927-12030 |
| 75928B | No. 4 left shading film | 75928-12030 |
| 87963 | Right exterior rearview mirror mounting hole cover | 87963-12010 |
| 87964 | Left exterior rearview mirror mounting hole cover | 87964-12010 |
