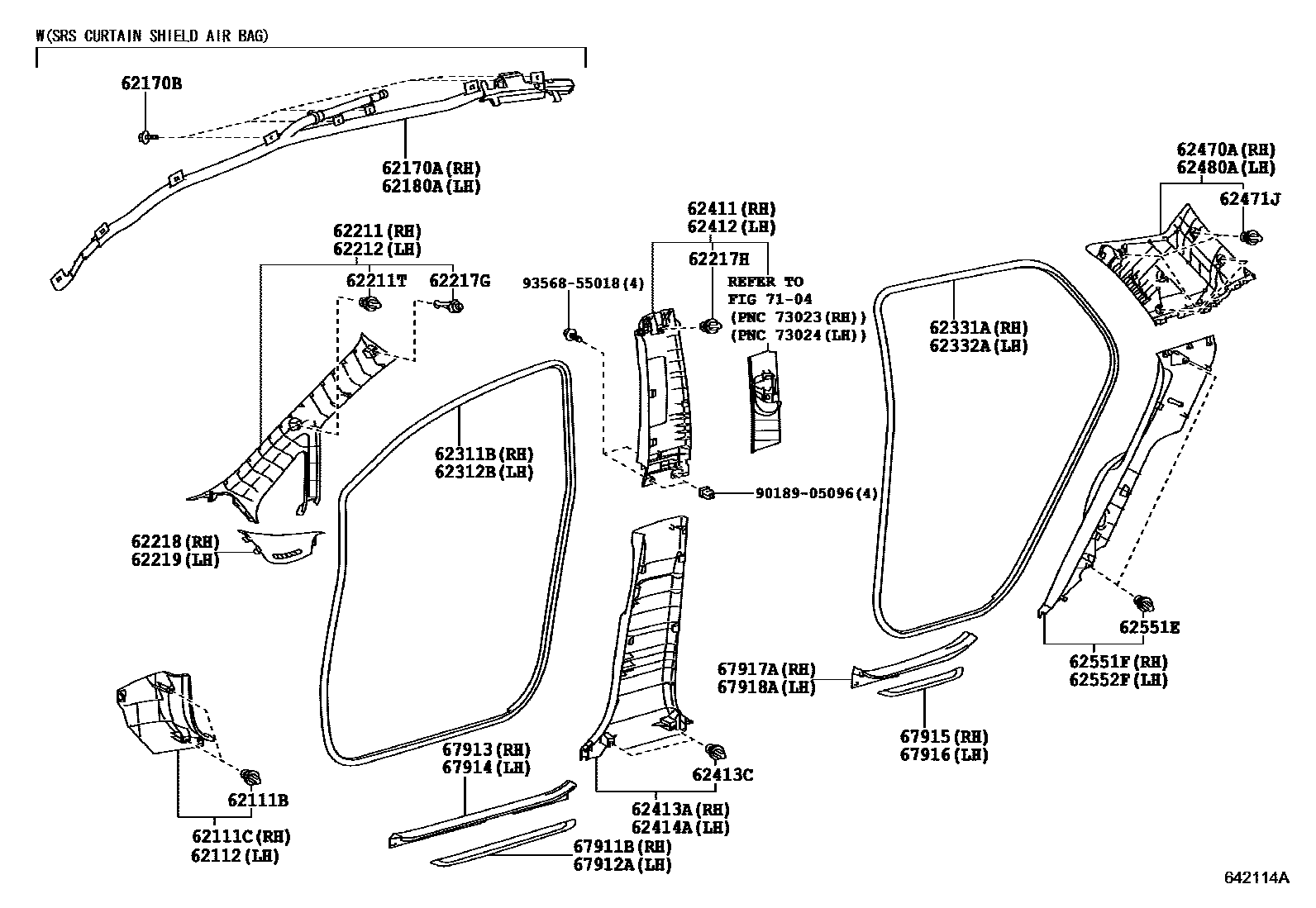

Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401
Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-10161 |
| 62170A | Right curtain air bag assembly | 62170-12020 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-12020 |
| 62211T | Clip (for front pillar decorative panel) | 90467-10161 |
| 62217G | Front pillar decorative plate clip | 90950-08004 |
| 62217H | Center pillar decorative plate clip | 62217-13010 |
| 62218 | Right front pillar decorative panel corner trim piece | 62218-12010 |
| 62219 | Left front pillar decorative panel corner trim piece | 62219-12010 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62471J | Clips (for roof side trim panels) | 62217-12050 · 90467-10161 |
| 62551E | Clips (for rear seat side trim panels) | 90467-10161 |
