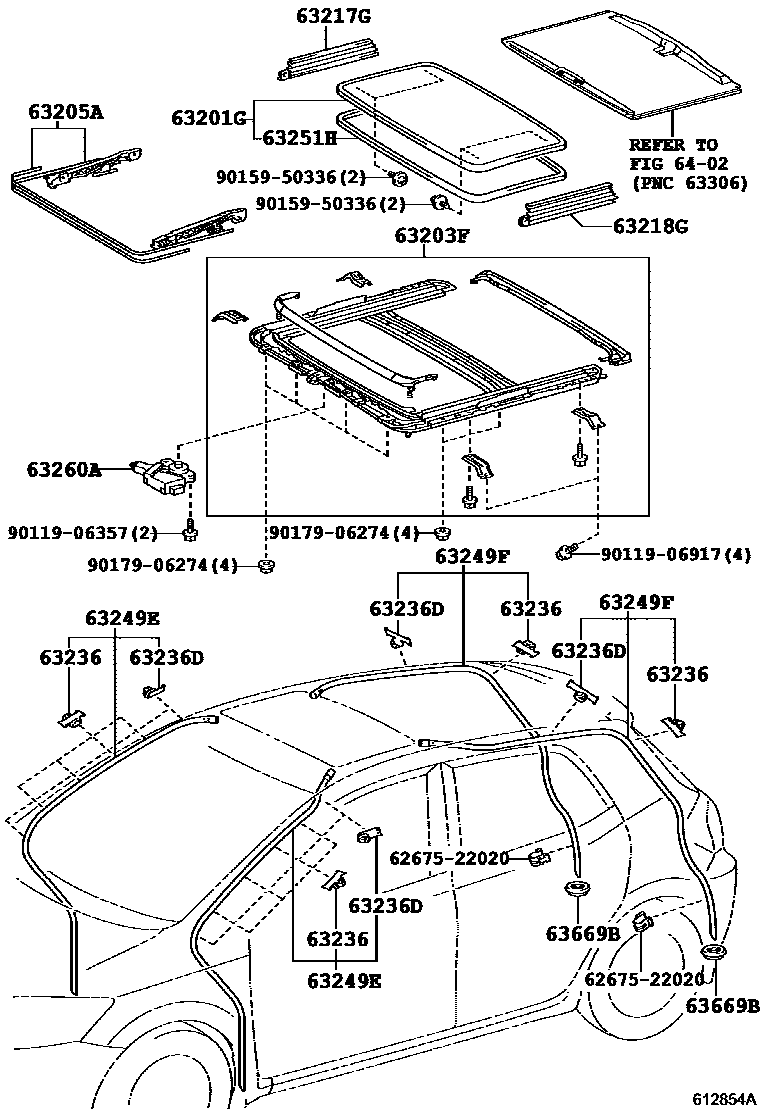

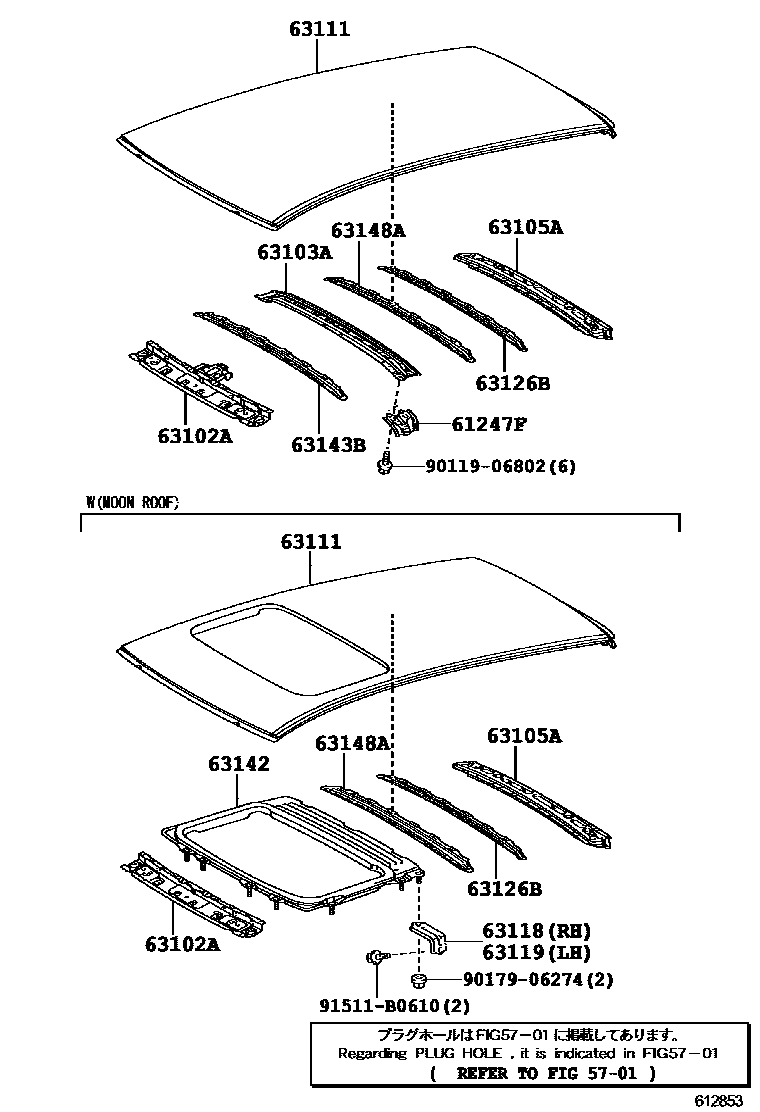

Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104
Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61247F | Roof inner longitudinal beam reinforcement | 61247-12040 |
| 63102A | Windshield roof sub-assembly | 63102-12210 · 63102-12220 |
| 63103A | Roof panel reinforcement sub-assembly | 63141-12280 |
| 63105A | Back door opening frame sub-assembly | 63105-12270 |
| 63111 | roof panel | 63111-12820 · 63111-12840 |
| 63118 | Right roof panel bracket | 63118-12110 |
| 63119 | Left roof panel bracket | 63118-12110 |
| 63126B | No. 2 rear roof panel reinforcement | 63126-12020 |
| 63142 | No. 2 roof panel reinforcement | 63103-12080 |
| 63143B | No. 3 roof panel reinforcement | 63143-12120 |
| 63148A | No. 7 roof panel reinforcement | 63144-12100 · 63148-12050 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-12280 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-12160 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-48010 |
| 63217G | Right sliding sunroof trim | 63217-48030 |
| 63218G | Sliding sunroof trim, left | 63218-48030 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-12010 |
| 63236D | Sliding skylight drain hose clamp | 82711-1E450 · 82711-3A540 |
| 63249E | Sliding skylight drain hose | 63249-12360 · 63249-12390 |
| 63249F | Sliding skylight drain hose | 63249-12370 · 63249-12380 |
| 63251H | Sliding skylight seal | 63251-63010 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-12130 |
| 63669B | Sliding skylight drain seal | 90480-26020 |
