Toyota COROLLA 地板垫和地毯 — Figure 5804

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 2 images and 4 PNC and OE references.

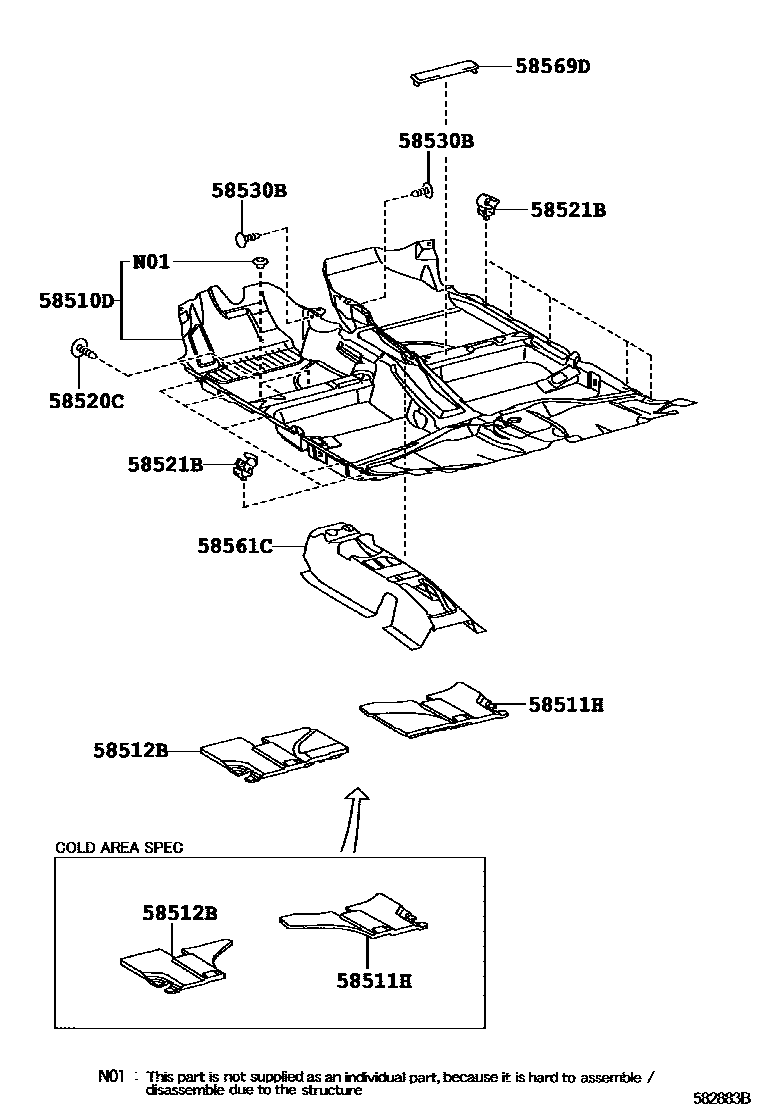

Toyota COROLLA 地板垫和地毯 EPC diagram — 582883B
地板垫和地毯 — 582883B (200610 – 999999)

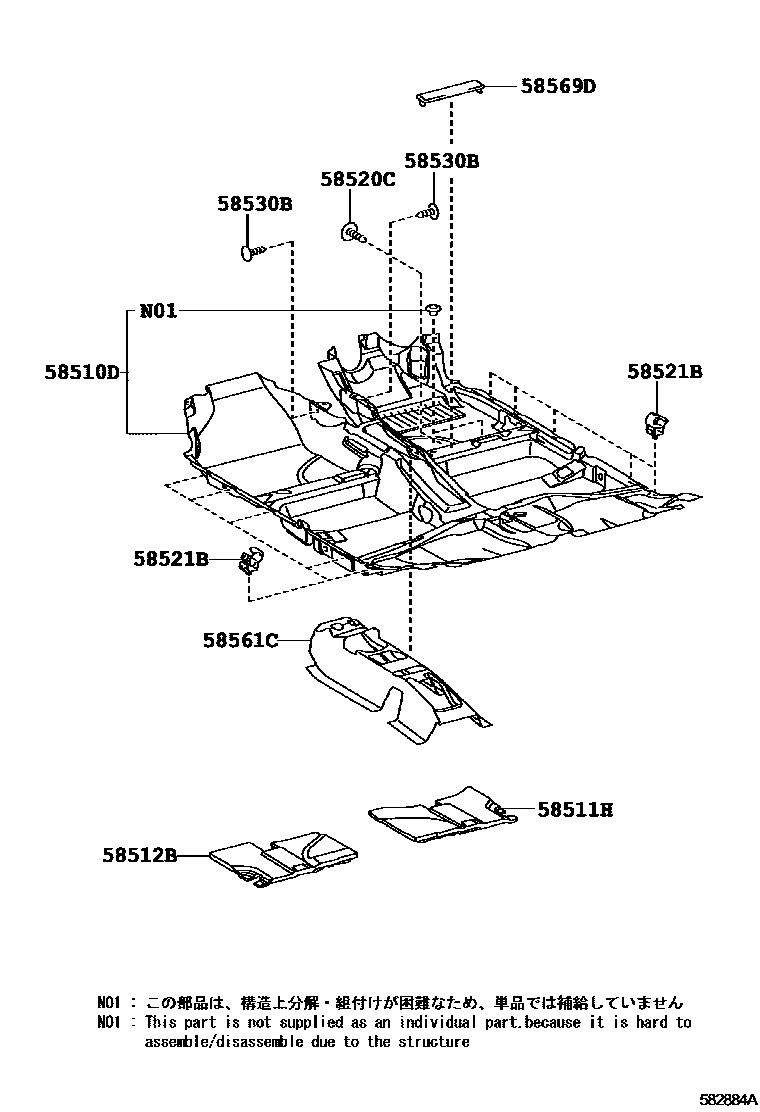

Toyota COROLLA 地板垫和地毯 EPC diagram — 582884A
地板垫和地毯 — 582884A (200610 – 999999)

PNC and OE references

PNCPart nameOE numbers
58511HFront floor right mat58512-12190 · 58512-12200
58512BFront floor left mat58511-12610 · 58511-12620
58521Bcarpet hook58521-12140
58561CFront floor silencer No. 158561-12040 · 58561-12041
