Toyota COROLLA 仪表板和手套箱 — Figure 5501

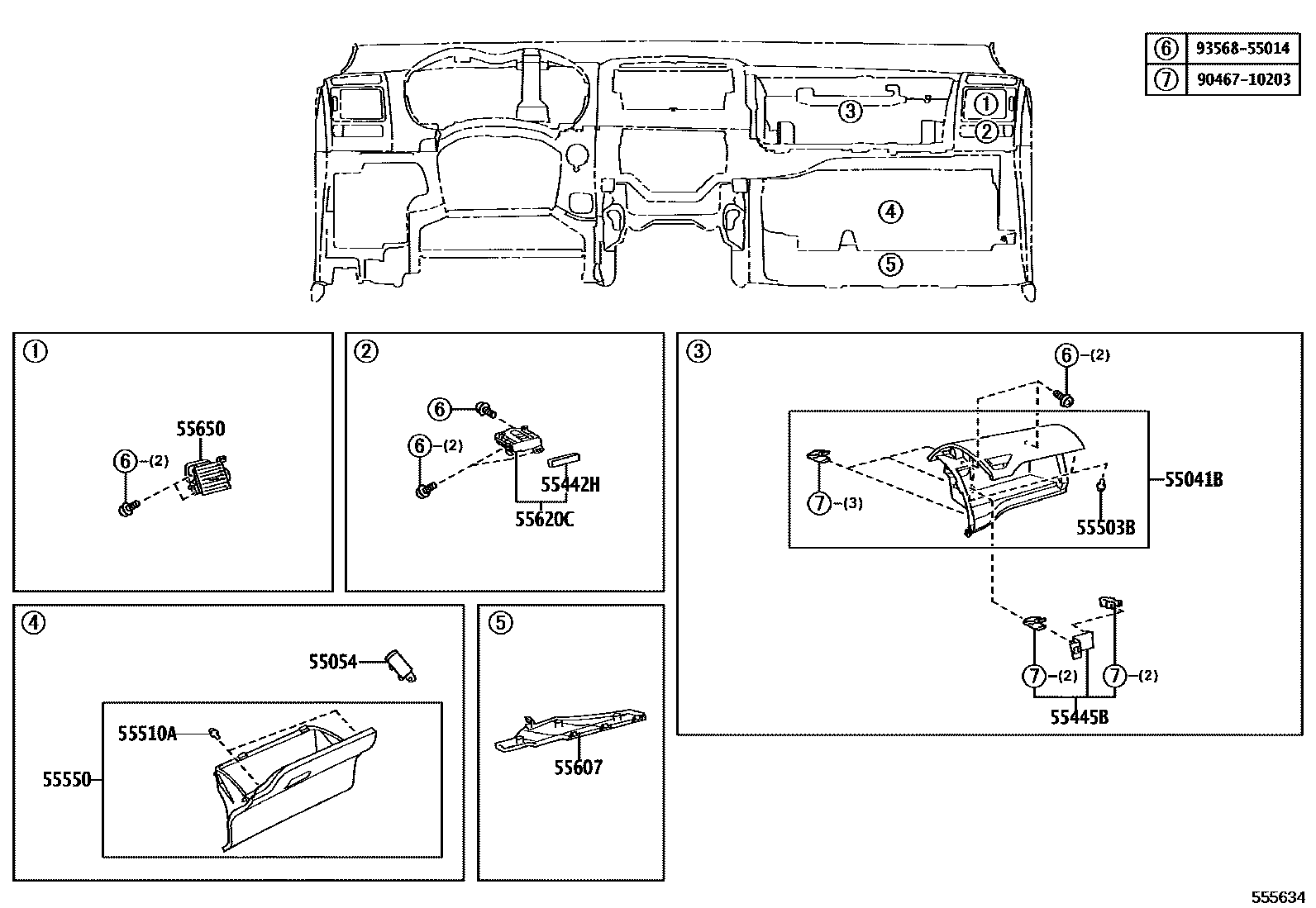

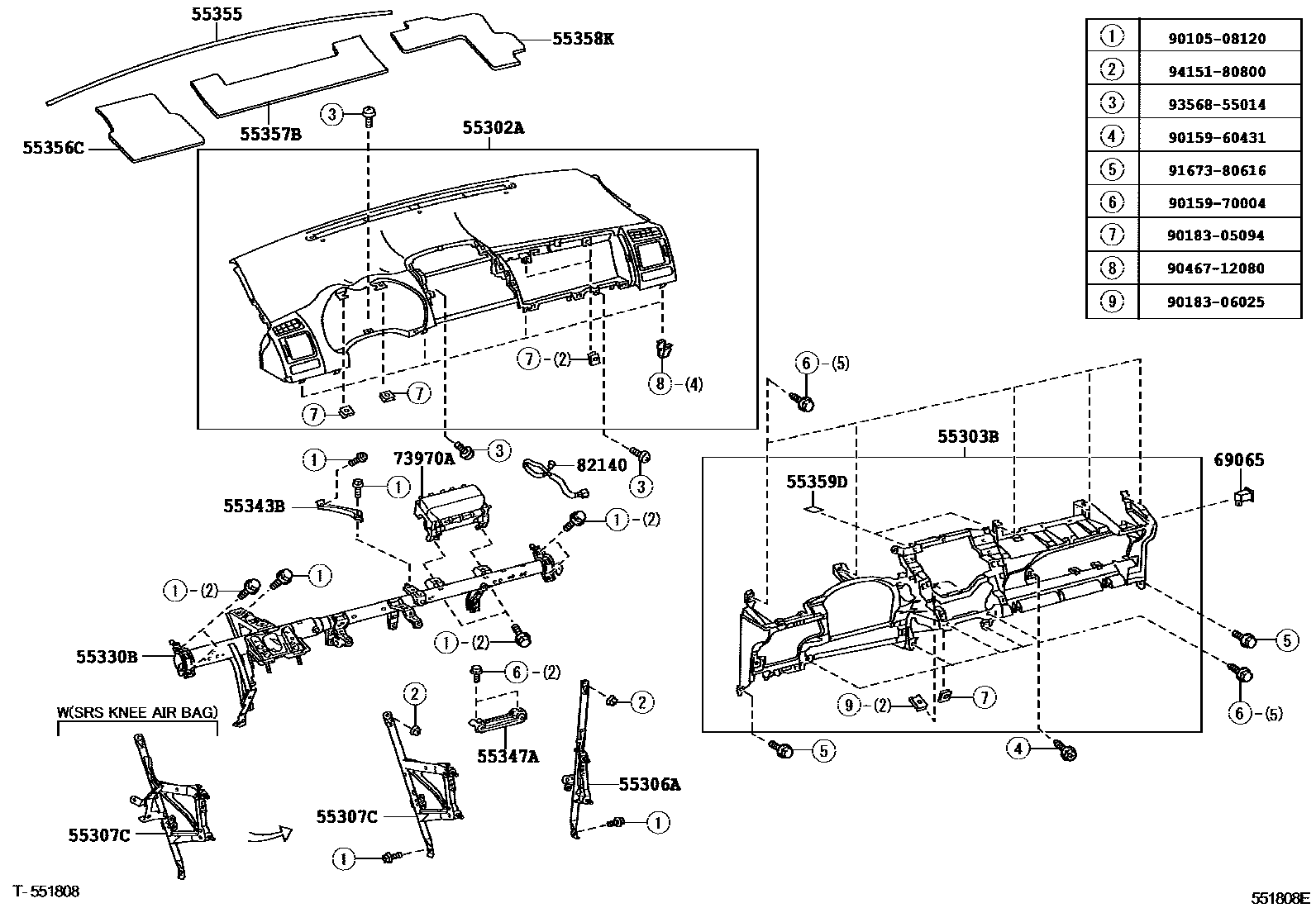

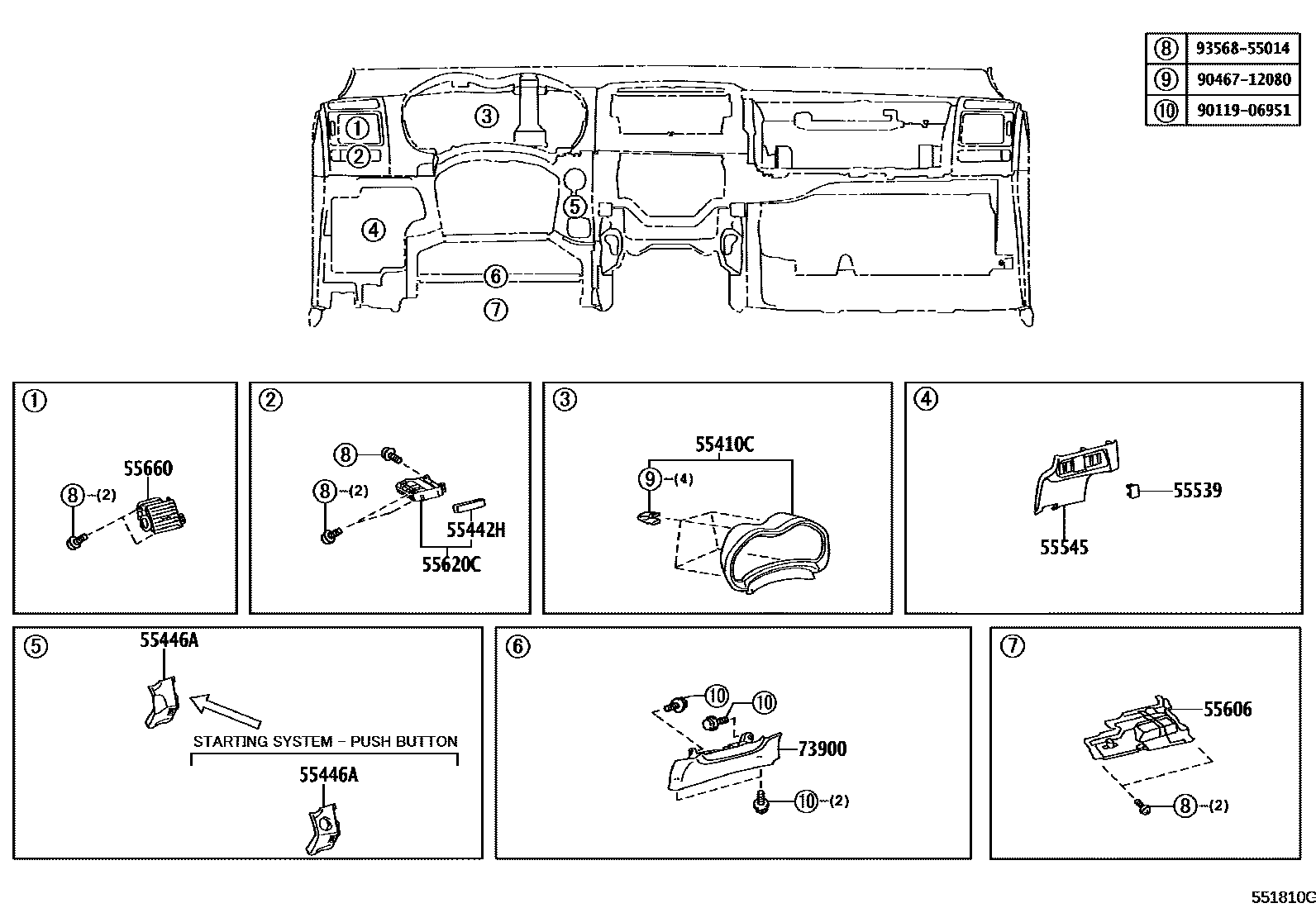

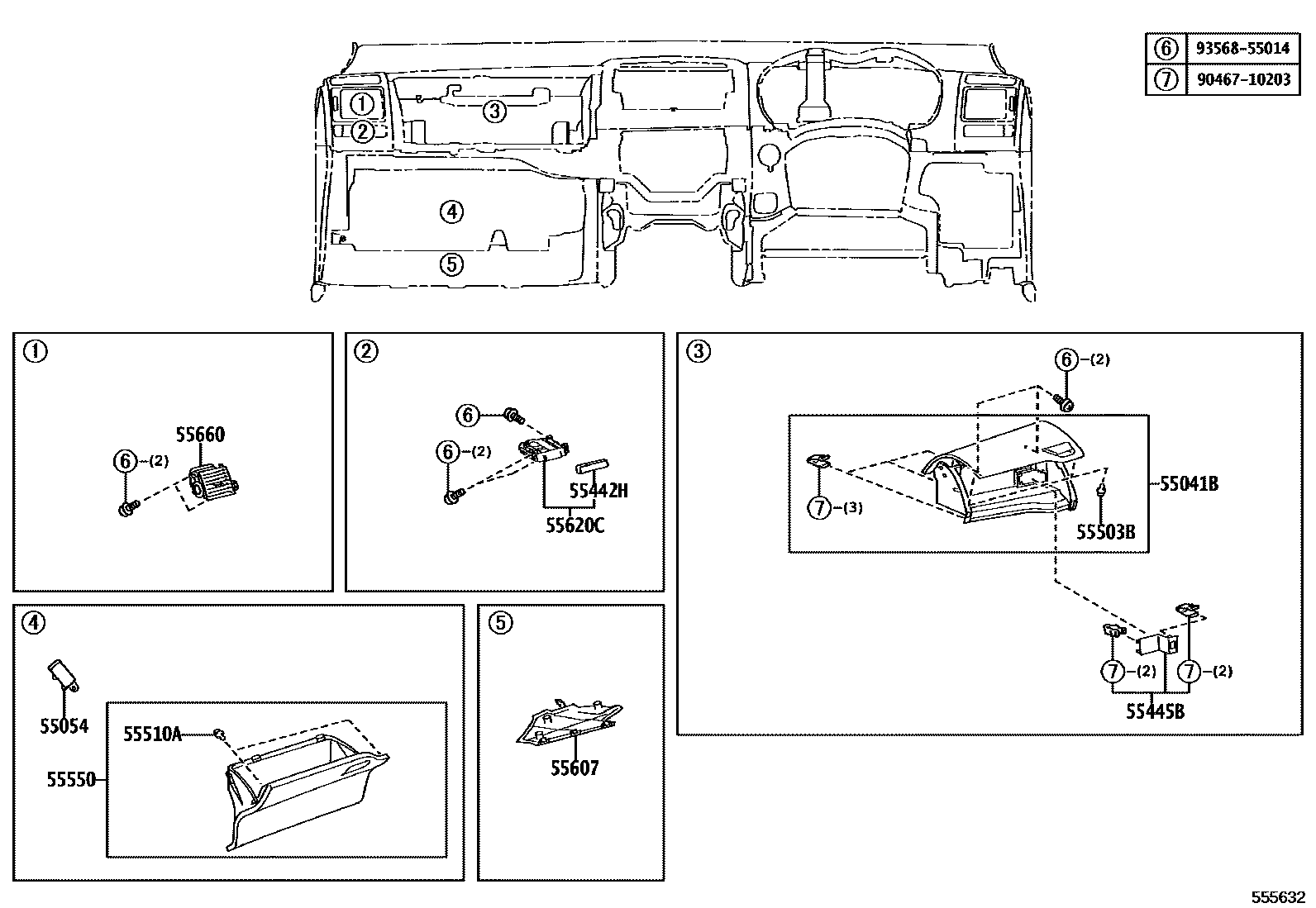

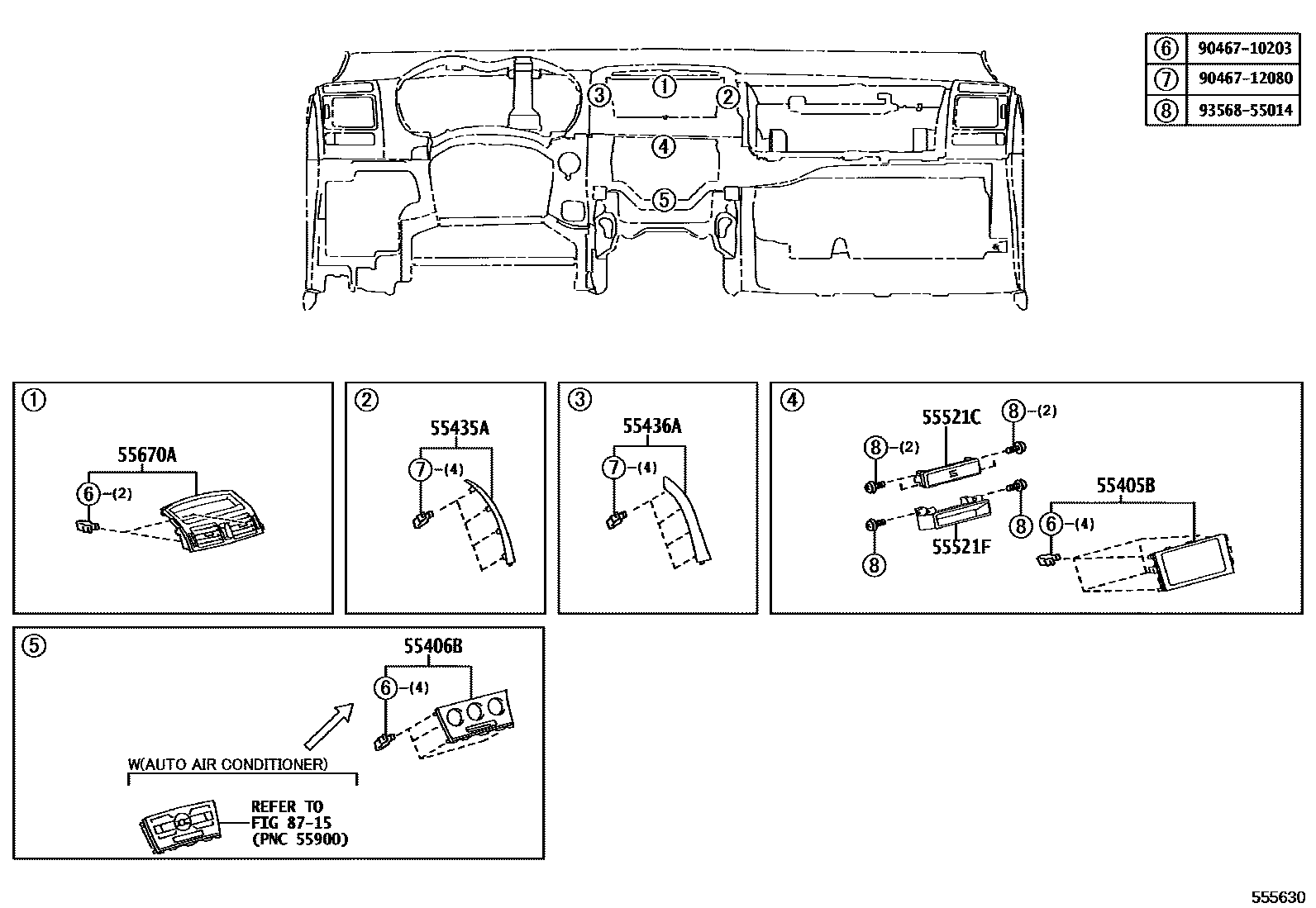

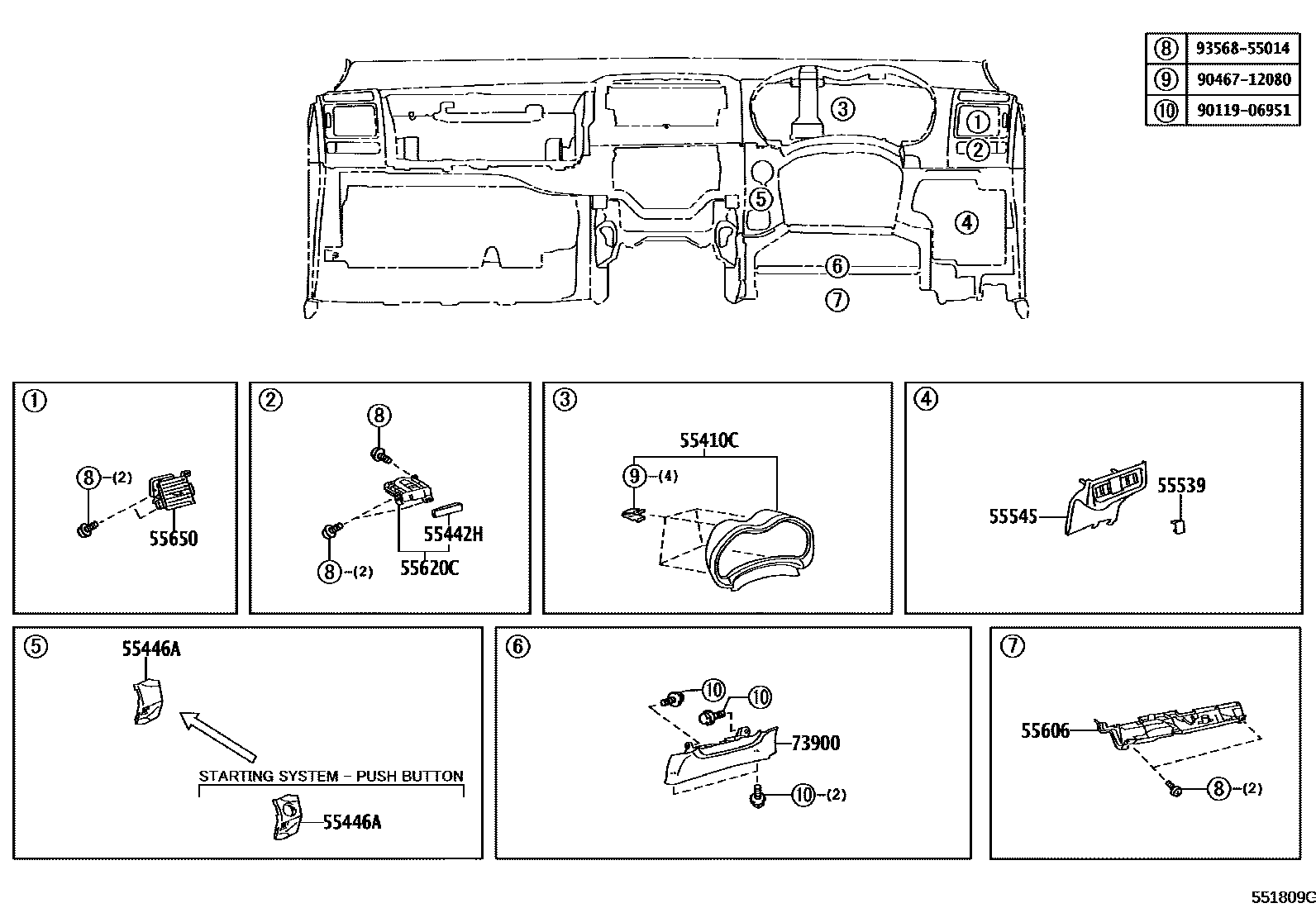

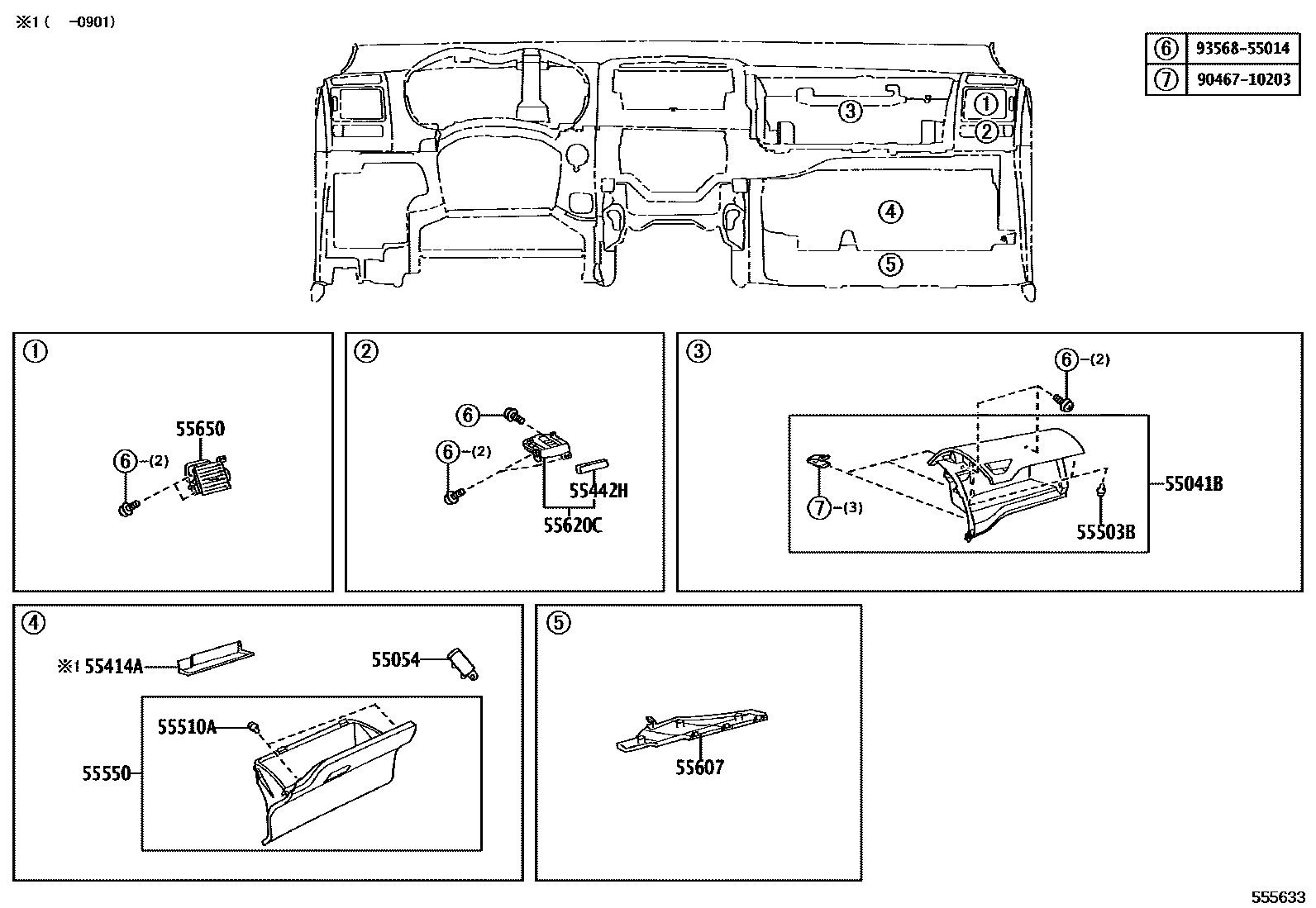

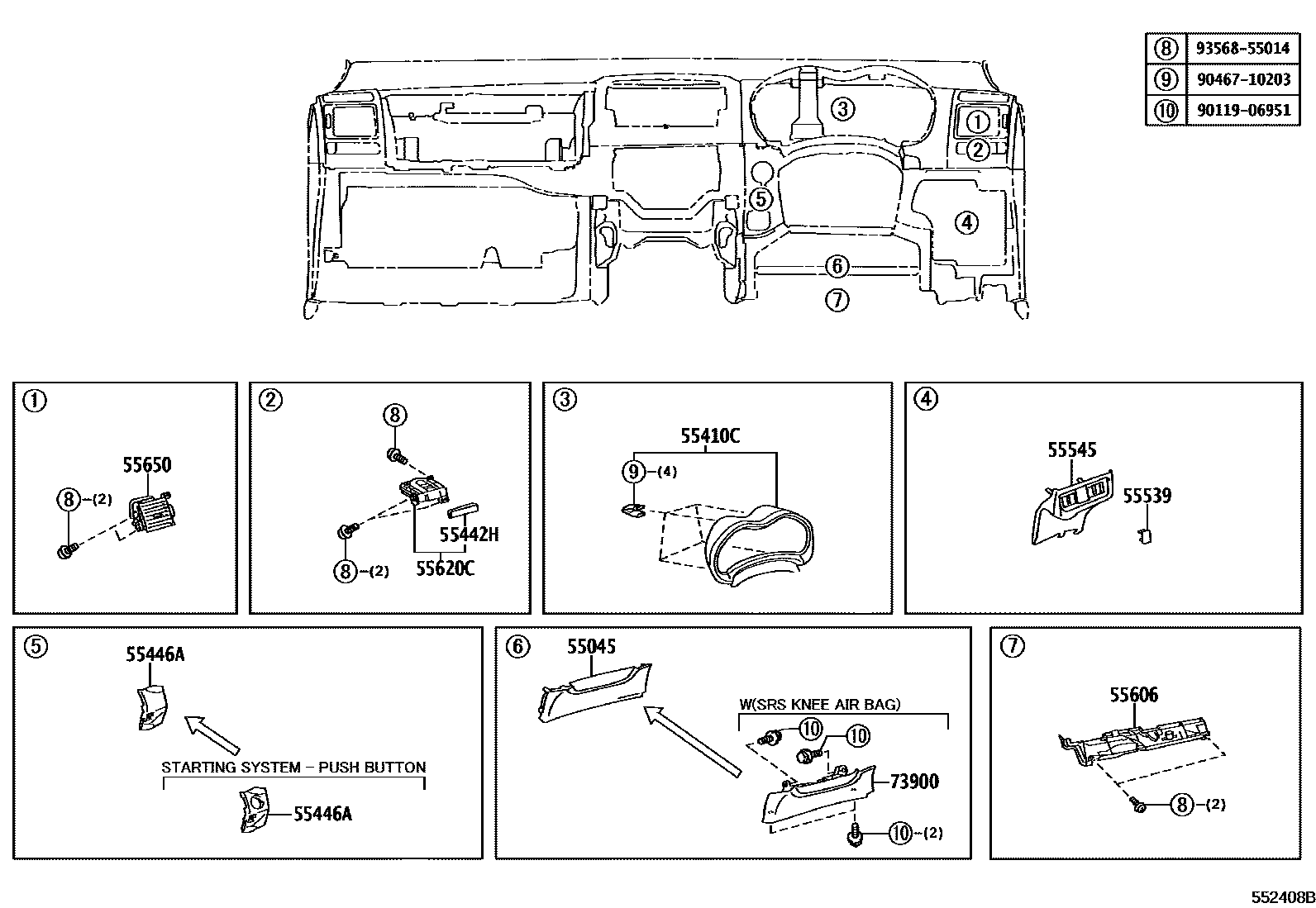

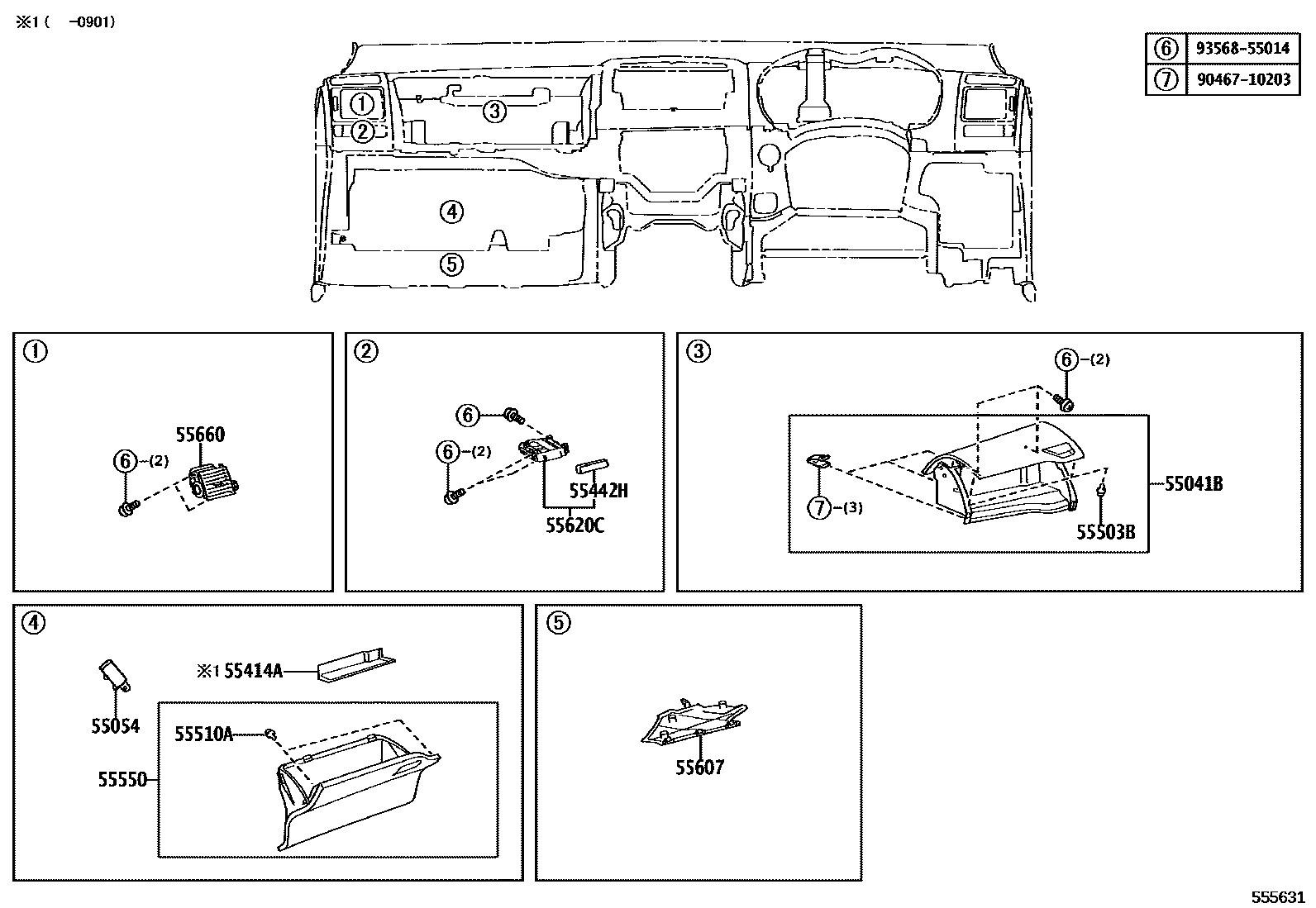

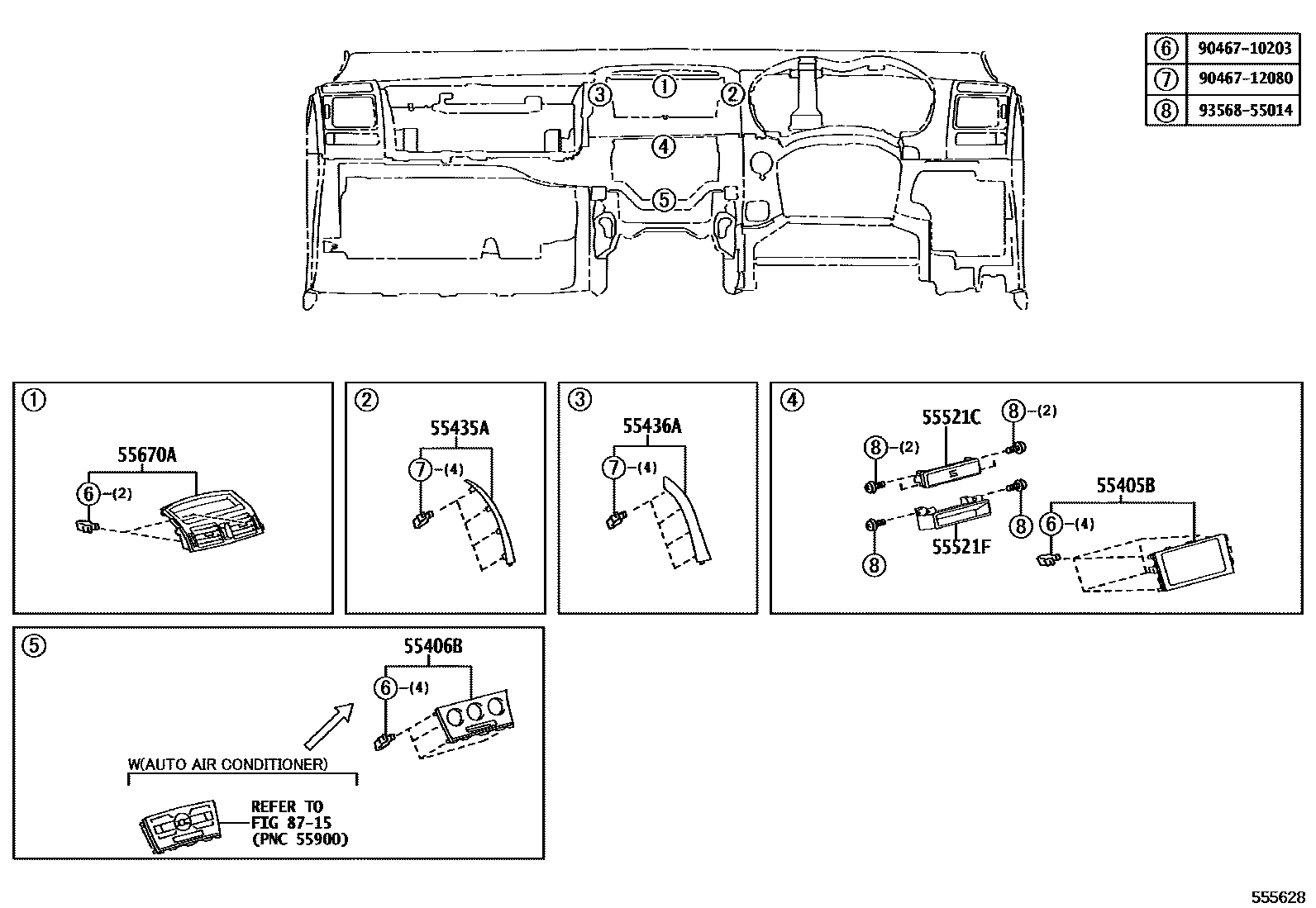

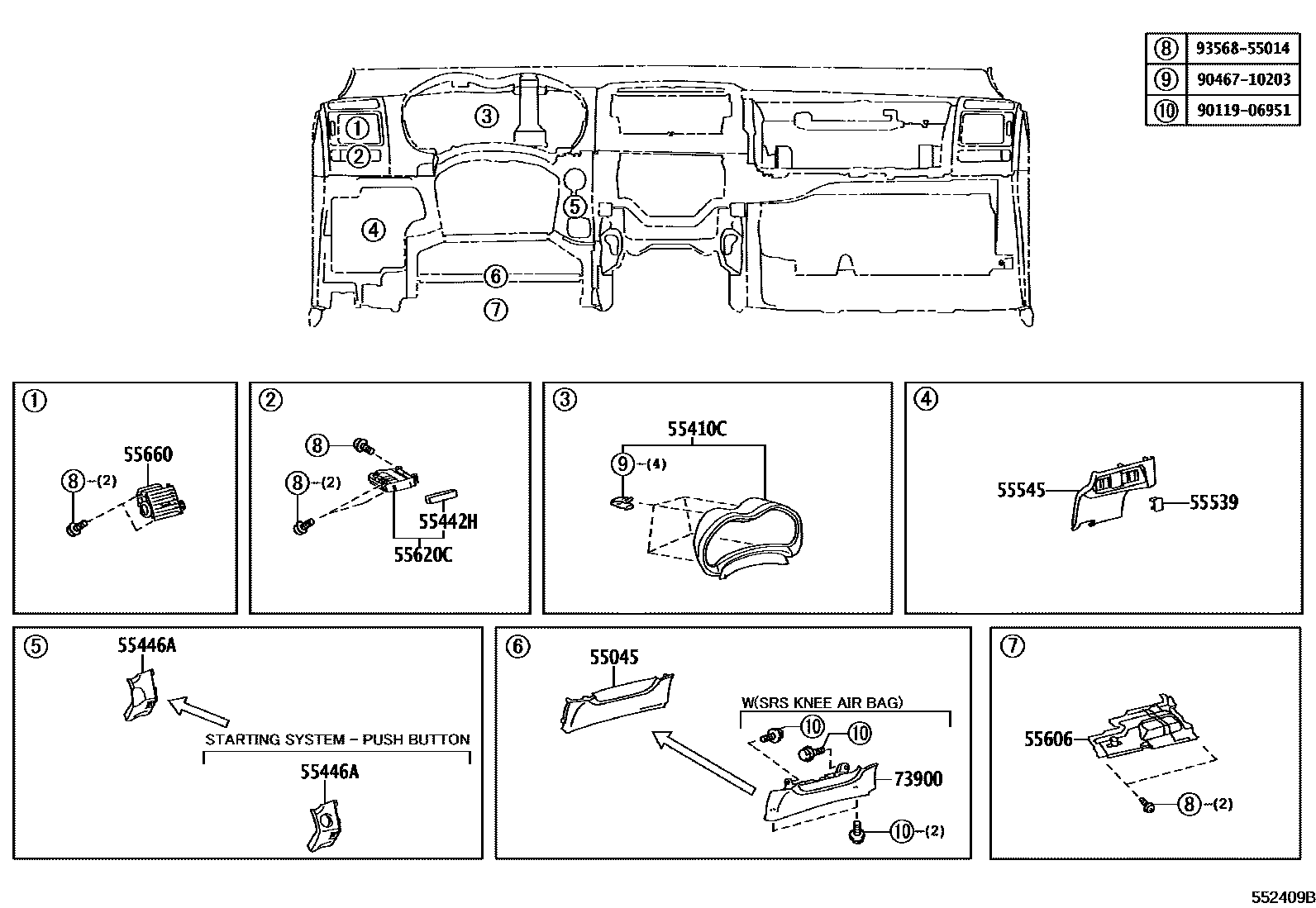

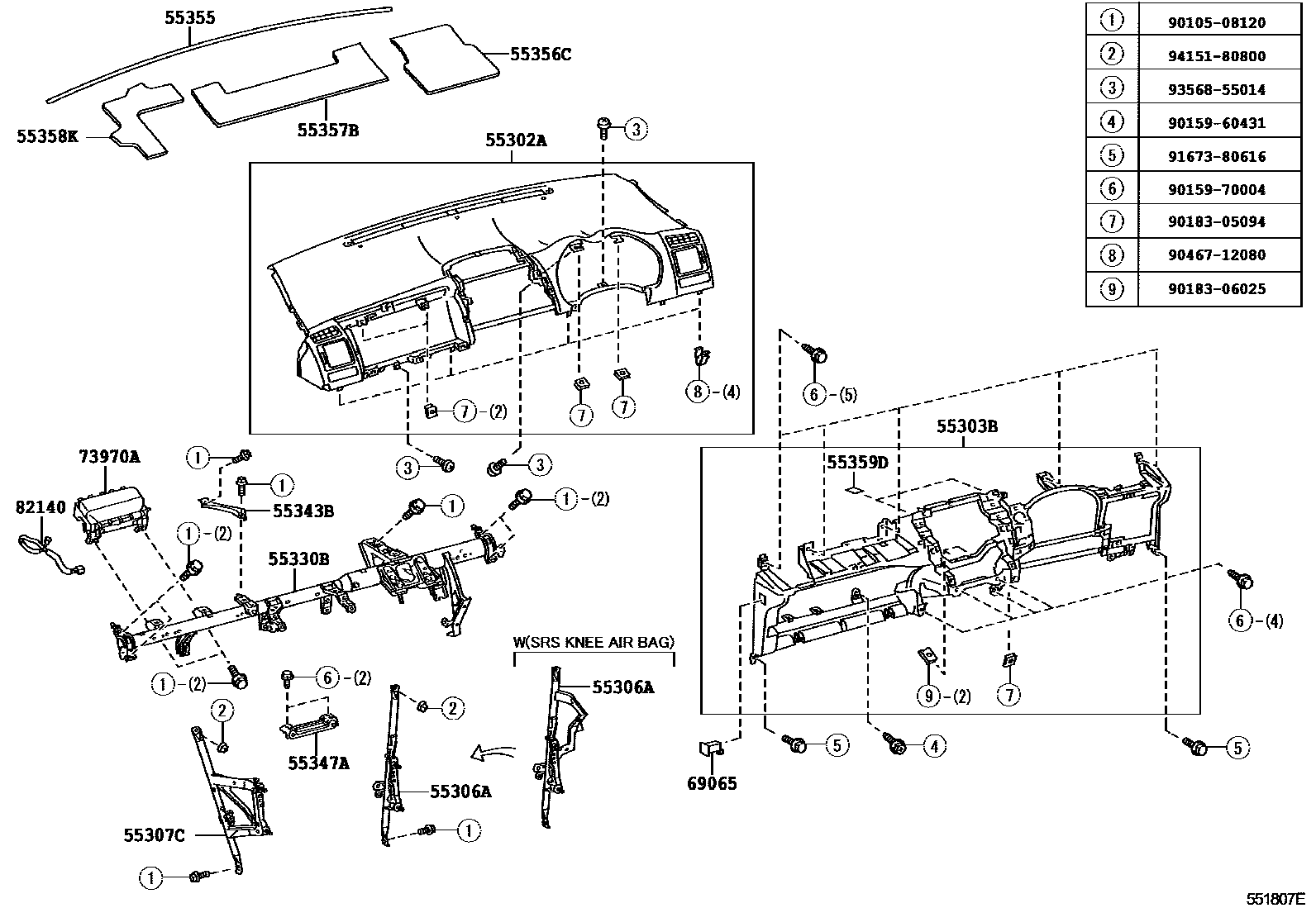

Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 14 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-12020 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-12330 · 55306-12331 · 55307-12310 · 55307-12311 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55306-12340 · 55306-12341 · 55307-12300 · 55307-12301 |
| 55330B | Instrument panel reinforcement assembly | 55330-12660 · 55330-12670 |
| 55343B | Center bracket (dashboard to cowl) | 55343-12070 |
| 55347A | Instrument panel No. 1 bracket mounting bracket | 55349-12120 · 55349-12121 · 55349-12170 |
| 55355 | Dashboard No. 1 Cushion Pad | 55355-12090 · 55355-12130 |
| 55356C | Dashboard No. 2 Cushion Pad | 55356-12090 |
| 55357B | Dashboard No. 3 Cushion Pad | 55357-12080 |
| 55358K | Dashboard No. 4 Cushion Pad | 55358-12070 |
| 55359D | Dashboard No. 5 Cushion Pad | 55359-12090 |
| 55405B | Center instrument cluster decorative panel sub-assembly | 55405-12A00 · 55405-12A10 · 55405-1A190 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-12410 · 55406-12420 · 55406-12530 |
| 55414A | Instrument cluster end decorative panel | 55414-12190 · 55414-12200 |
| 55435A | Dashboard right end decorative panel | 55435-12070 · 55435-12150 |
| 55436A | Instrument panel left end decorative panel | 55436-12040 · 55436-12120 |
| 55445B | Dashboard decorative panel | 55445-12160 · 55445-12170 |
| 55503B | Cushion pad (for glove box) | 58959-60060 |
| 55510A | Cushion (for glovebox lid) | 90541-05026 |
| 55521C | stereo system hole cover | 55521-12190 |
| 55521F | Stereo system hole cover No. 2 | 55521-52020 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-12060 · 55606-12070 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-12060 · 55607-12070 |
| 55670A | Instrument panel central air register assembly | 55670-12310 · 55670-12320 · 55670-12330 · 55670-12480 · 55670-12500 |
| 69065 | Air bag cut-off switch lock cylinder sub-assembly | 69065-42010 · 69065-53010 · 69065-74010 |
| 73970A | Dashboard passenger air bag assembly | 73970-12110 |
| 82140 | Instrument panel wiring harness assembly | 82140-1A200 |
