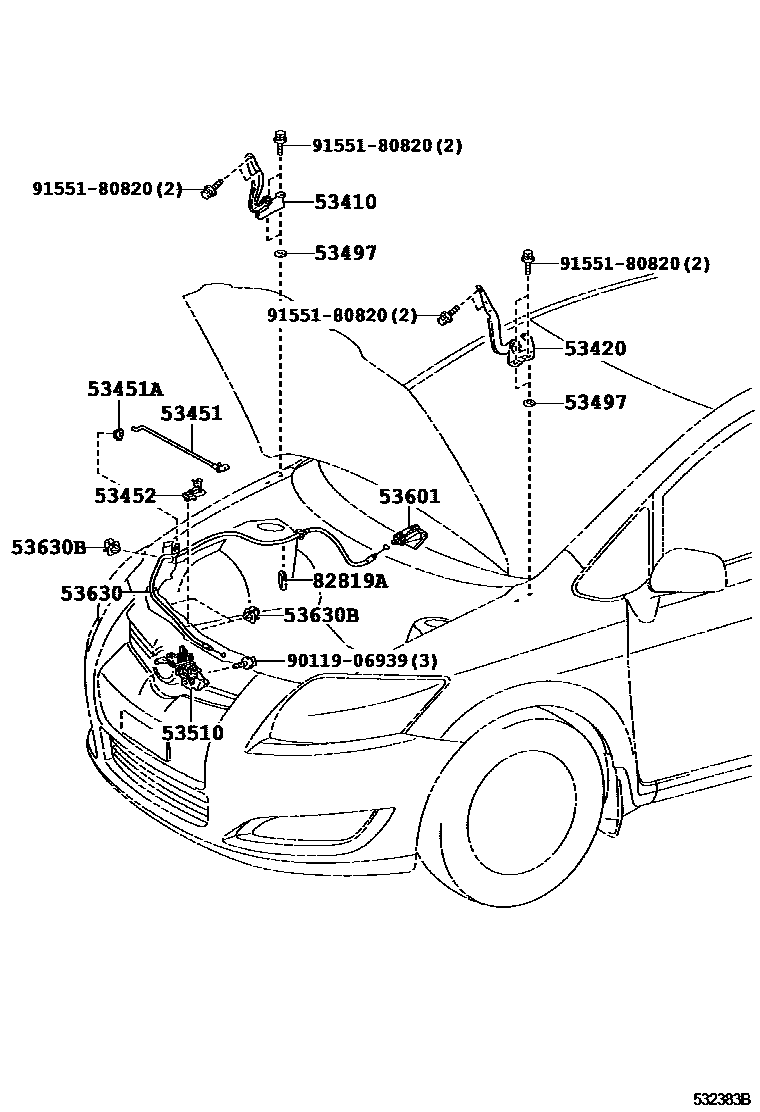

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12480 |
| 53420 | Engine cover left hinge assembly | 53420-12470 |
| 53451 | Engine cover support rod | 53440-12050 |
| 53451A | Gasket (for engine cover support rod) | 53454-52010 |
| 53452 | Engine cover stay rod fixing | 53452-12050 |
| 53497 | No. 1 engine cover hinge gasket | 53497-42010 |
| 53510 | Engine cover lock assembly | 53510-12810 · 53510-12880 · 53510-12B20 |
| 53630 | Engine hood lock control cable assembly | 53630-12530 · 53630-12540 |
| 53630B | Clip (for hood lock control cable) | 90469-06005 |
| 82819A | Wire harness seal | 82817-1A810 |
