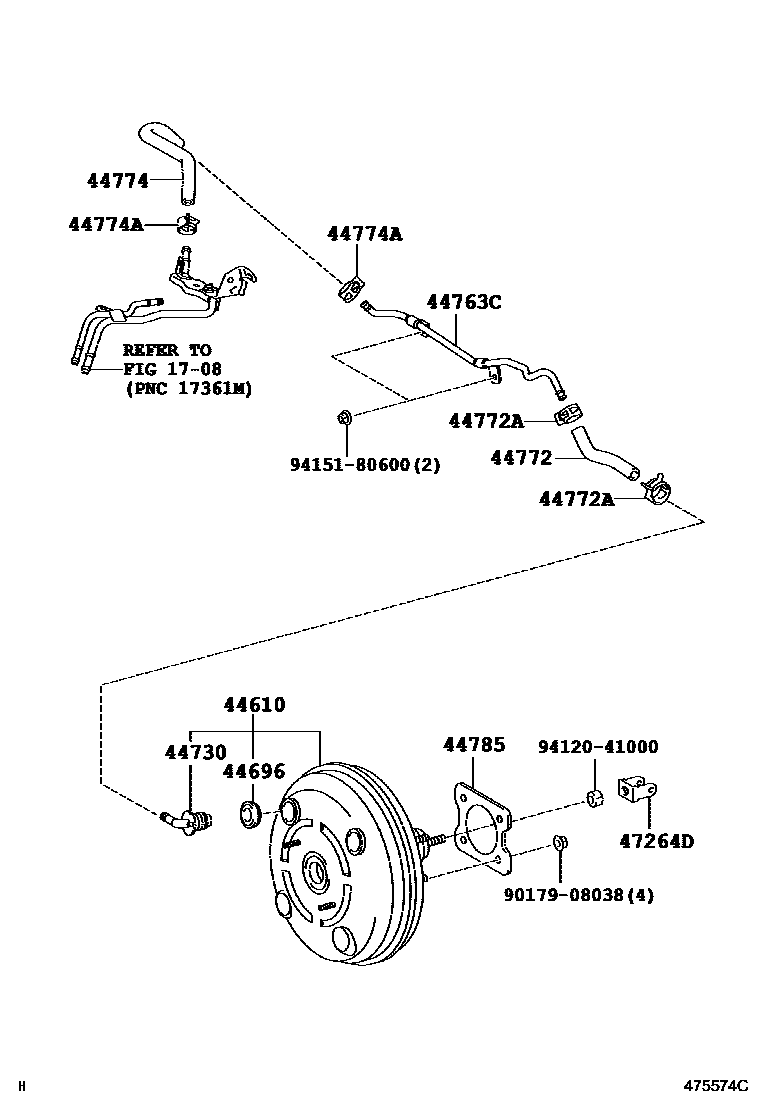

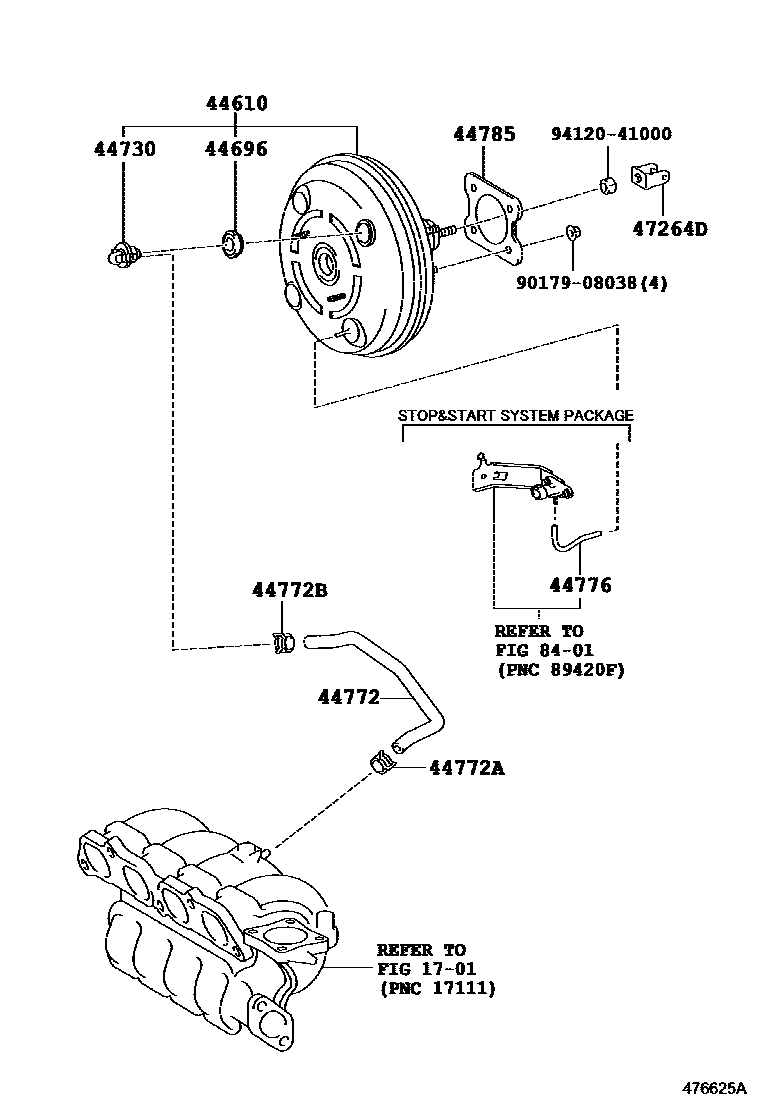

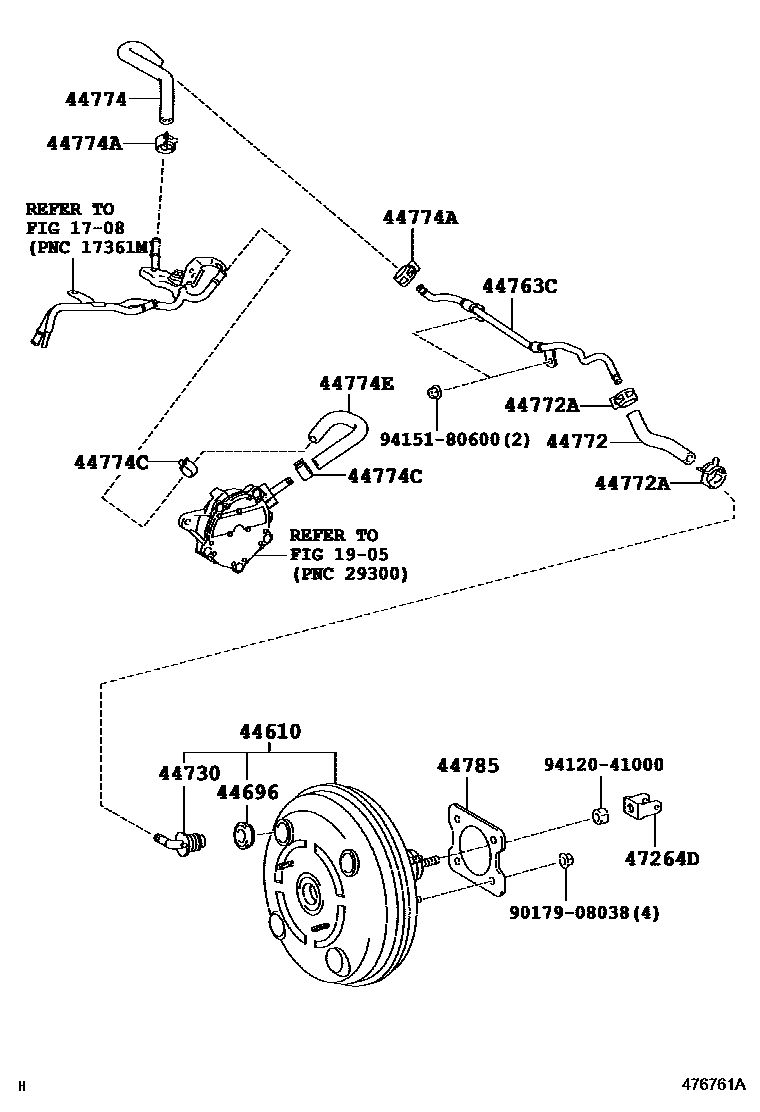

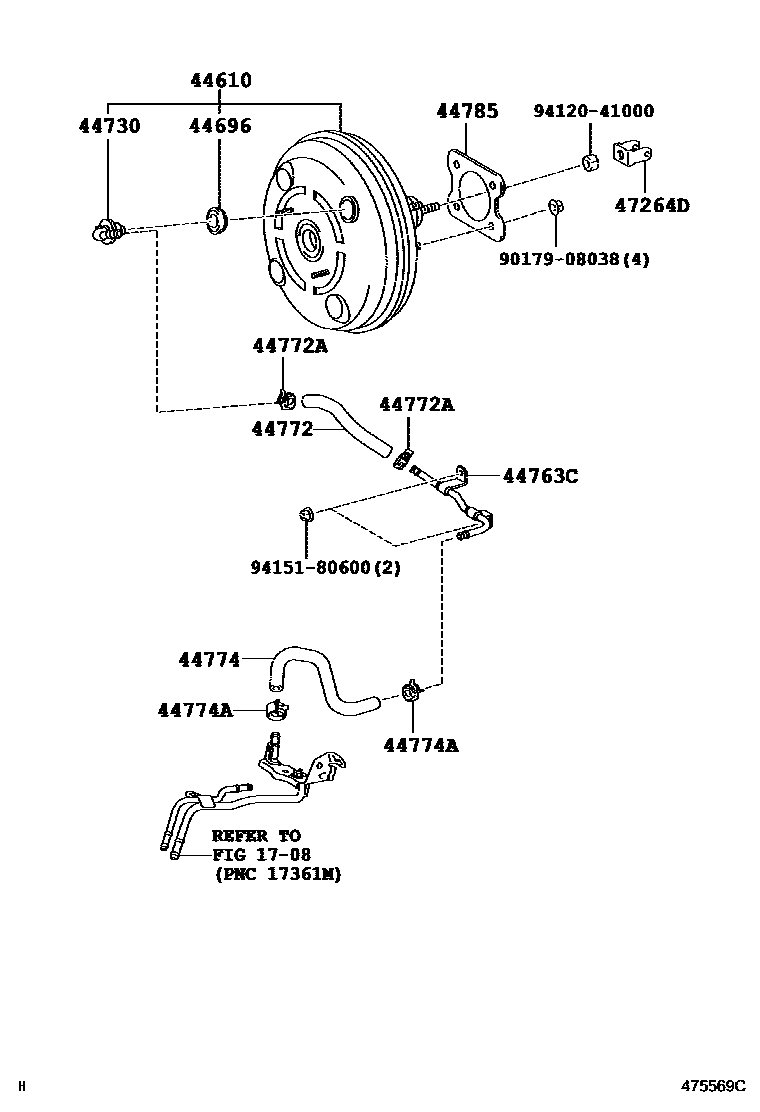

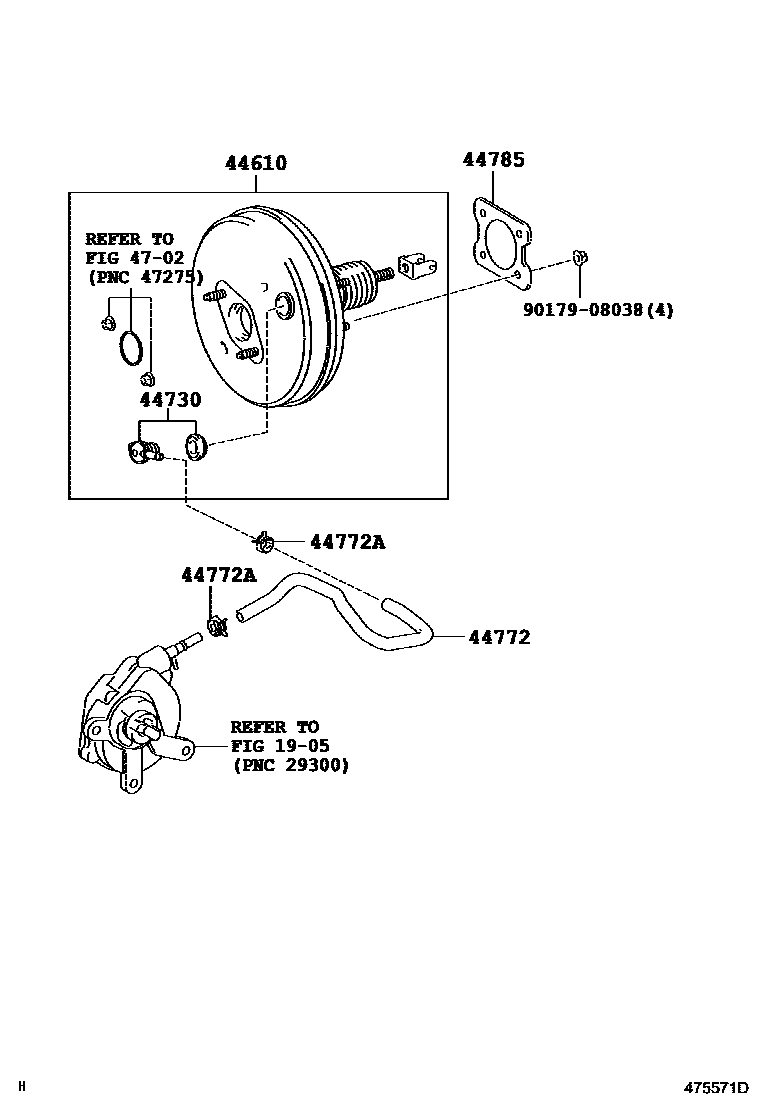

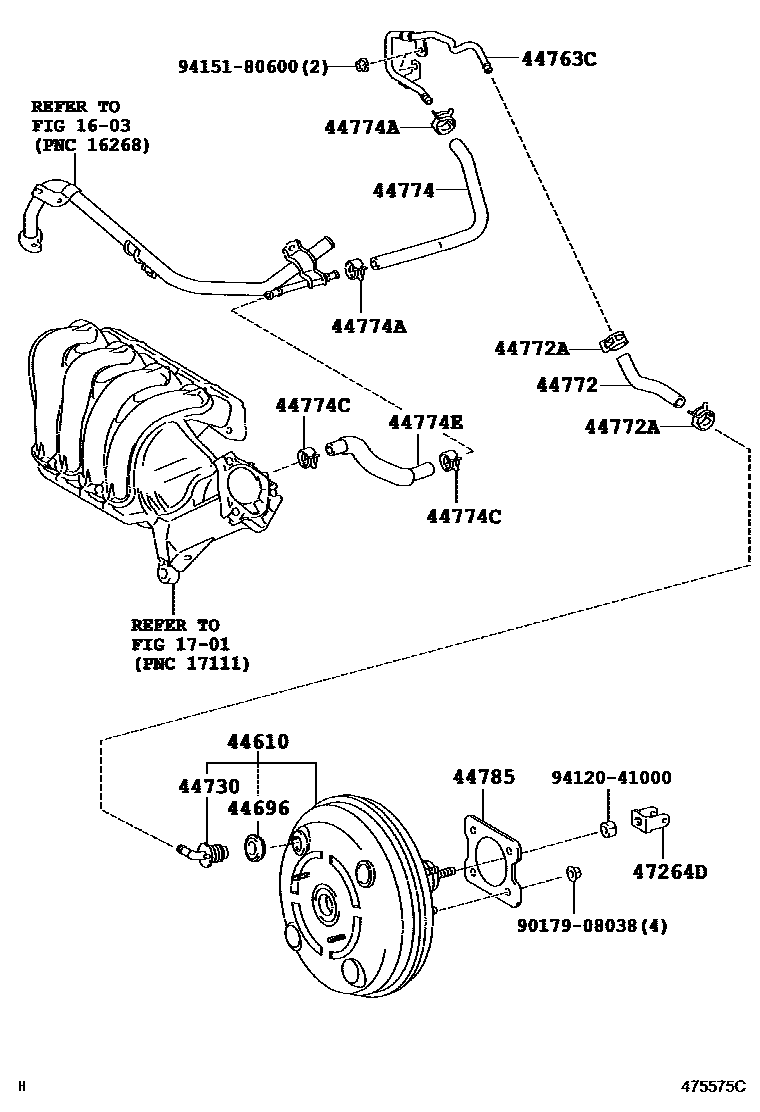

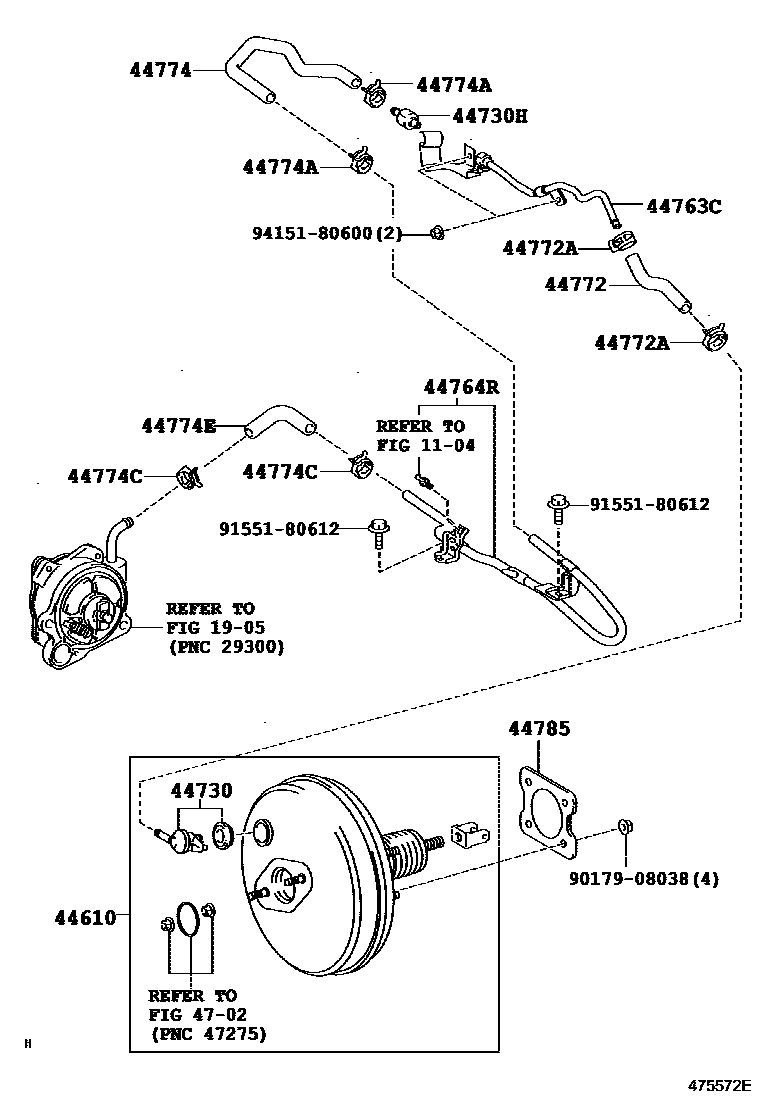

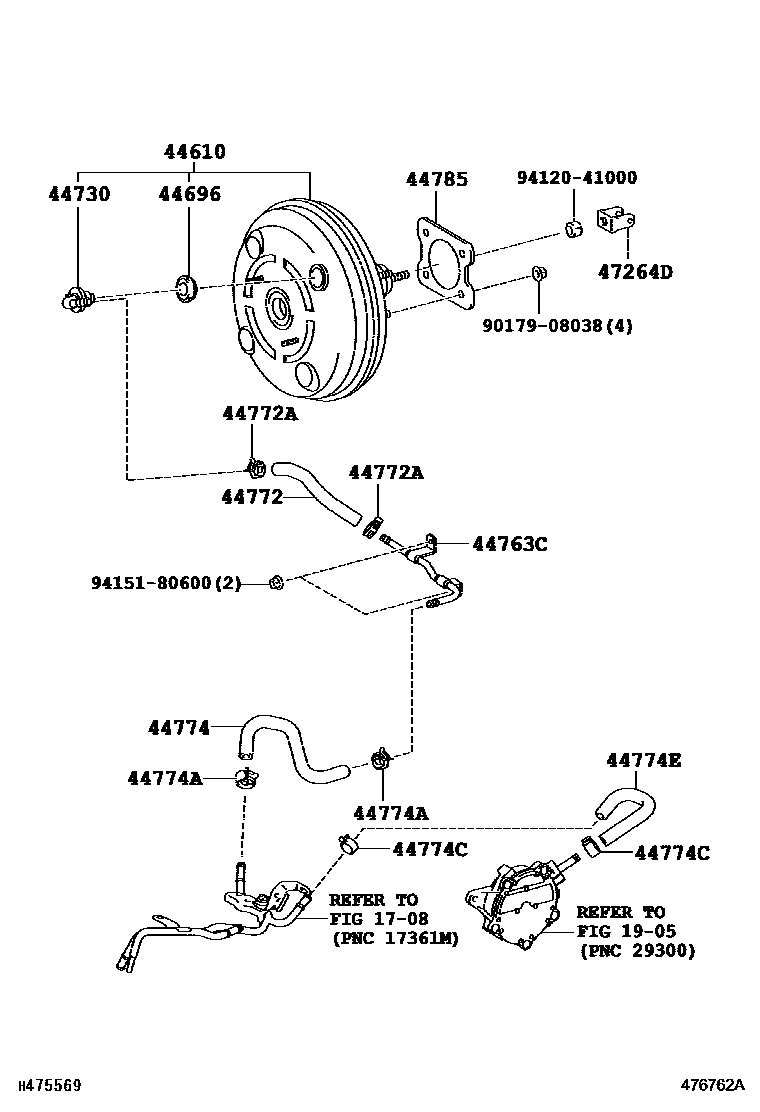

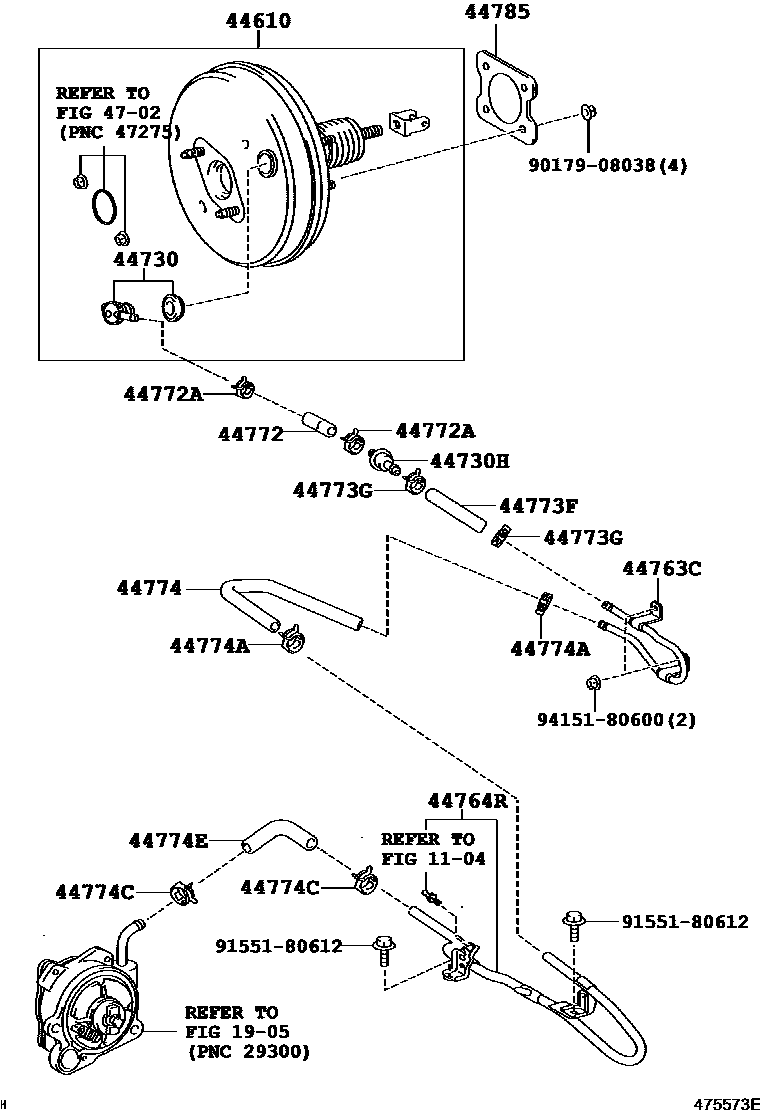

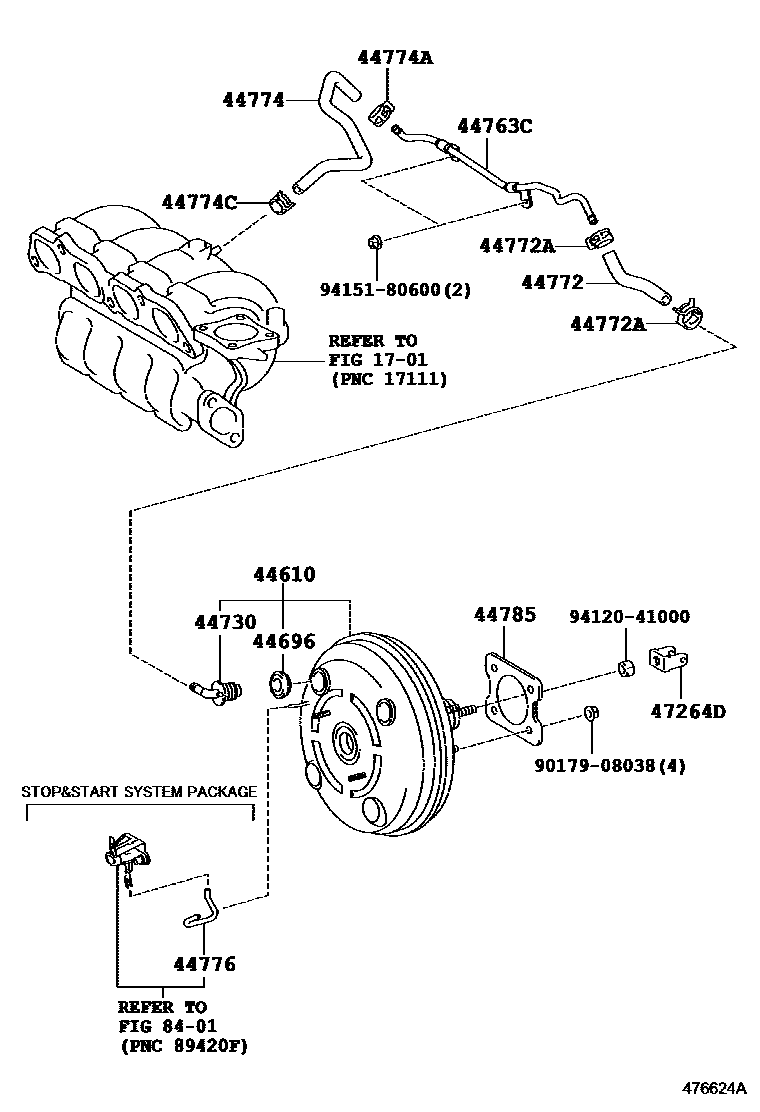

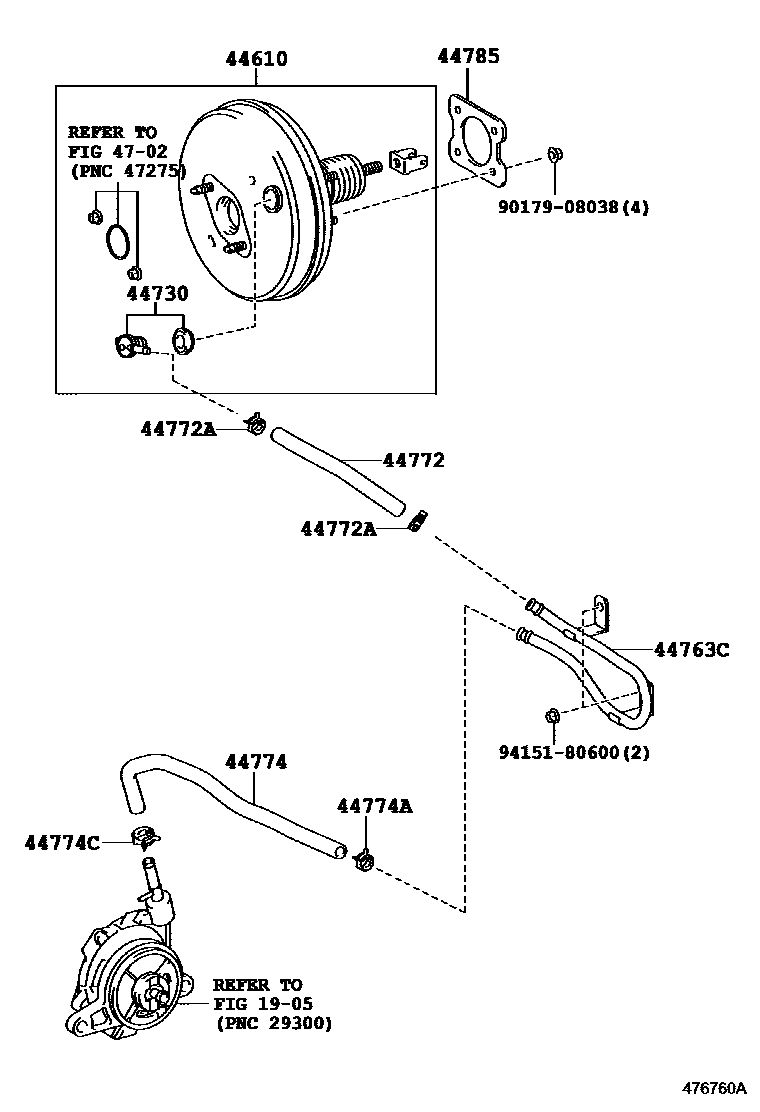

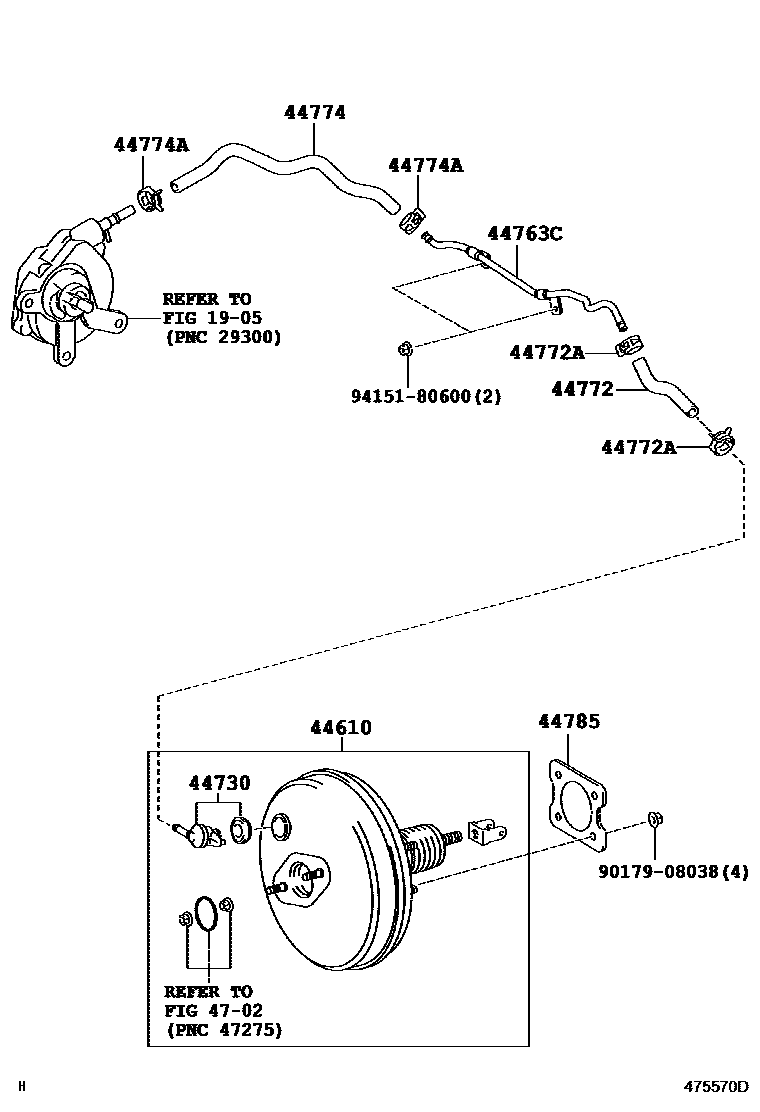

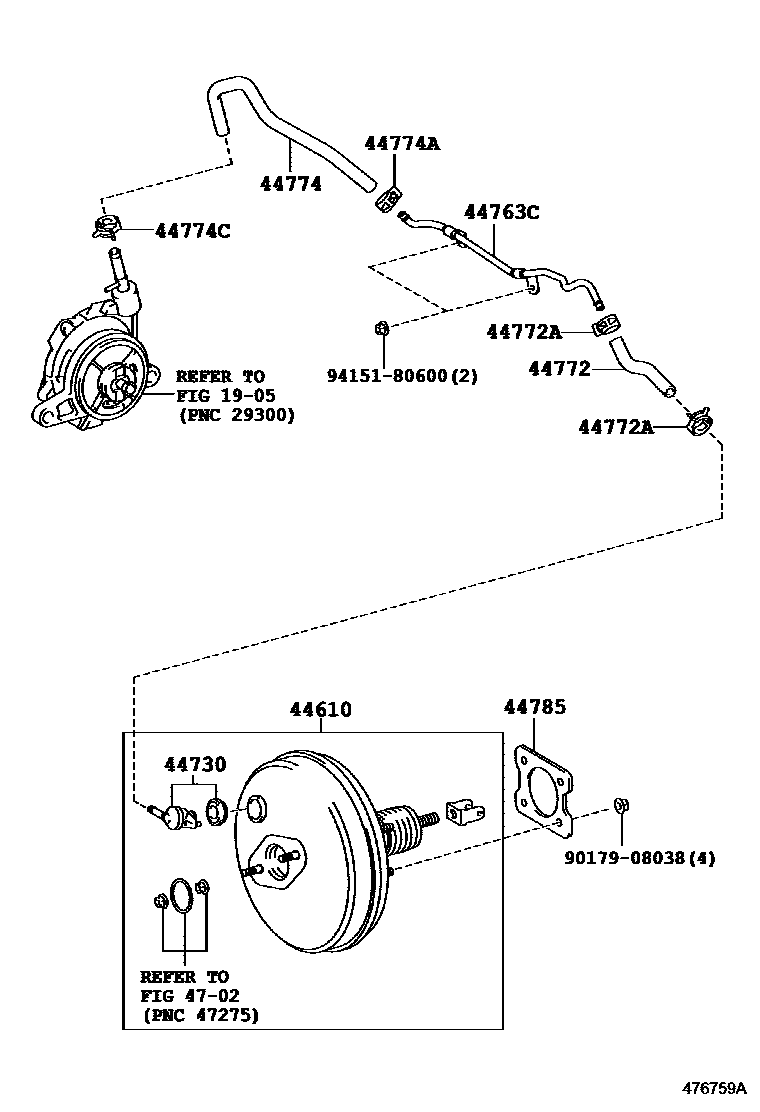

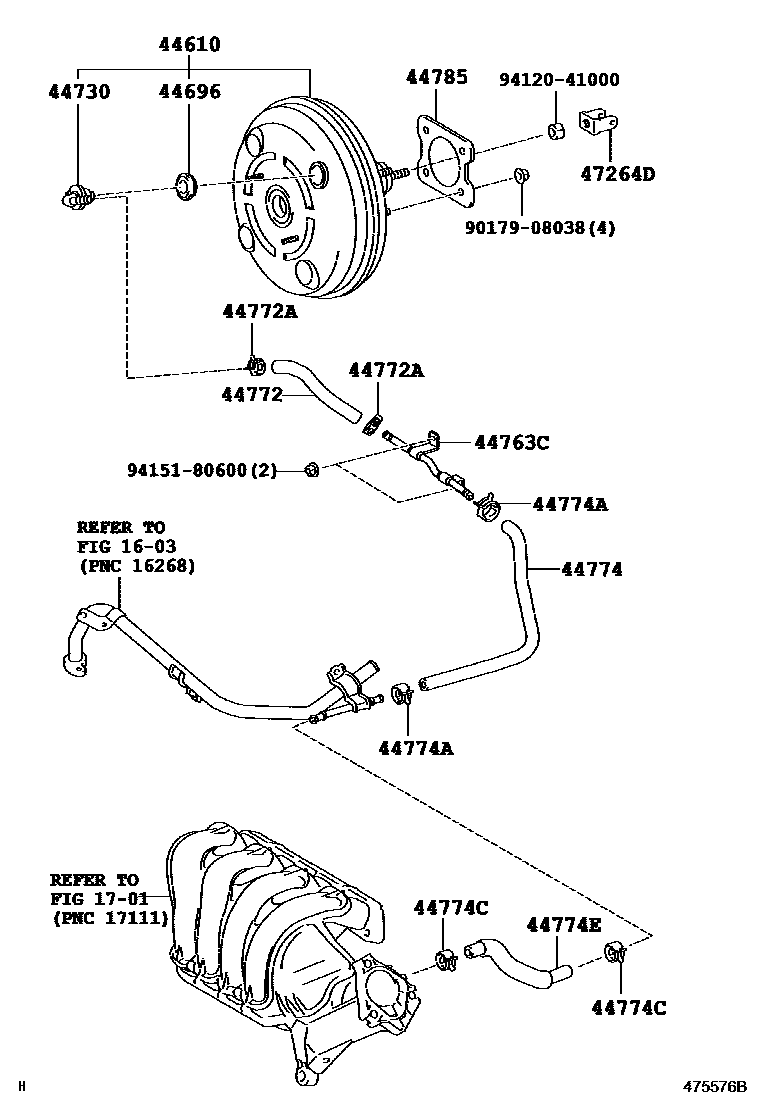

Toyota COROLLA 制动助力器和真空管 — Figure 4703
Toyota COROLLA EPC diagram 4703, 制动助力器和真空管, with 14 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-12A40 · 44610-12A41 · 44610-12A80 · 44610-12A81 · 44610-12C10 · 44610-12C11 · 44610-12D50 · 44610-12D51 · 44610-12F11 · 44610-12F21 · 44610-12F31 · 44610-12F41 · 44610-12F51 · 44610-12F61 · 44610-12F71 · 44610-12F81 · 44610-19015 · 44610-19025 · 44610-19035 · 44610-19045 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-09020 · 44730-12070 · 44730-14050 |
| 44730H | Vacuum check valve assembly (for vacuum reservoir) | 44730-12080 · 44730-35010 |
| 44763C | Pipe No. 2 (hose to hose) | 44763-12400 · 44763-12420 · 44763-12430 · 44763-12440 · 44763-12450 · 44763-12470 |
| 44764R | Tubing (connector to vacuum reservoir) | 44764-12010 |
| 44772 | Hoses (check valve to connector tube) | 44772-12510 · 44772-12580 · 44772-12600 · 44772-12610 · 44772-12620 · 44772-12640 · 44772-12680 |
| 44772A | Clip (for check valve to connector tube) | 90467-16014 · 96133-41500 |
| 44772B | Hoses (check valve to brake booster) | 96133-41500 |
| 44773F | Hoses (connector to check valve) | 44773-12780 |
| 44773G | Clamp (for connector to one-way valve hose) | 96133-41500 |
| 44774 | Hoses (joints to connector tubes) | 44774-12530 · 44774-12540 · 44774-12560 · 44774-12570 · 44774-12580 · 44774-12590 · 44774-12630 · 44774-12740 · 44774-12750 · 44774-12760 · 44774-12761 |
| 44774A | Clip (for fitting to connector tube hose) | 96133-41500 |
| 44774C | Clip (for fitting to connector tube hose) | 90467-16014 · 96133-41500 |
| 44774E | Hoses (joints to connector tubes) | 44774-12470 · 44774-28320 · 44774-52021 |
| 44776 | brake booster hose | 44776-12170 · 44776-12180 |
| 44785 | brake booster pad | 44785-12040 |
| 47264D | Brake master cylinder push rod U-shaped clamp | 47264-63020 · 47264-68010 |
