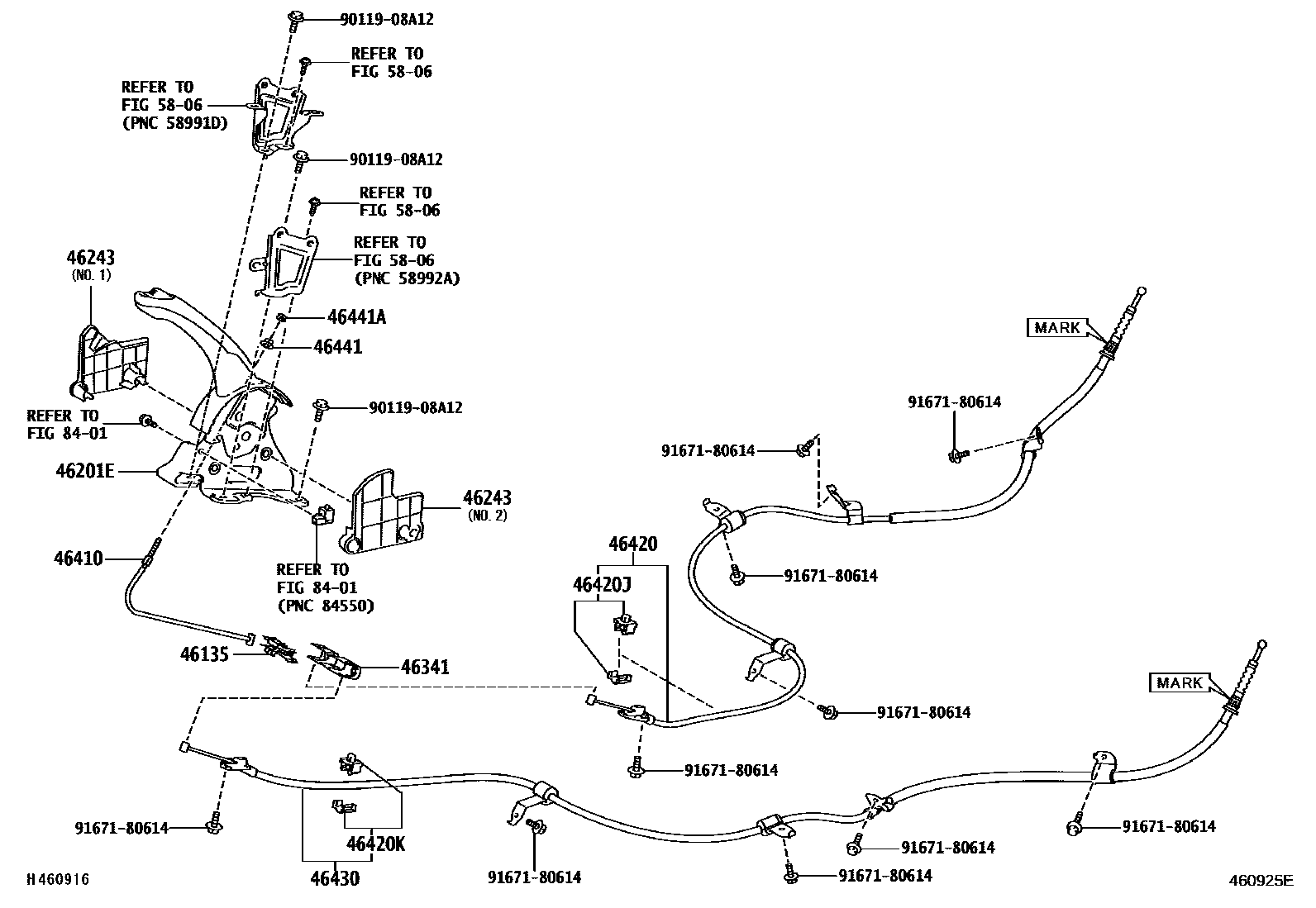

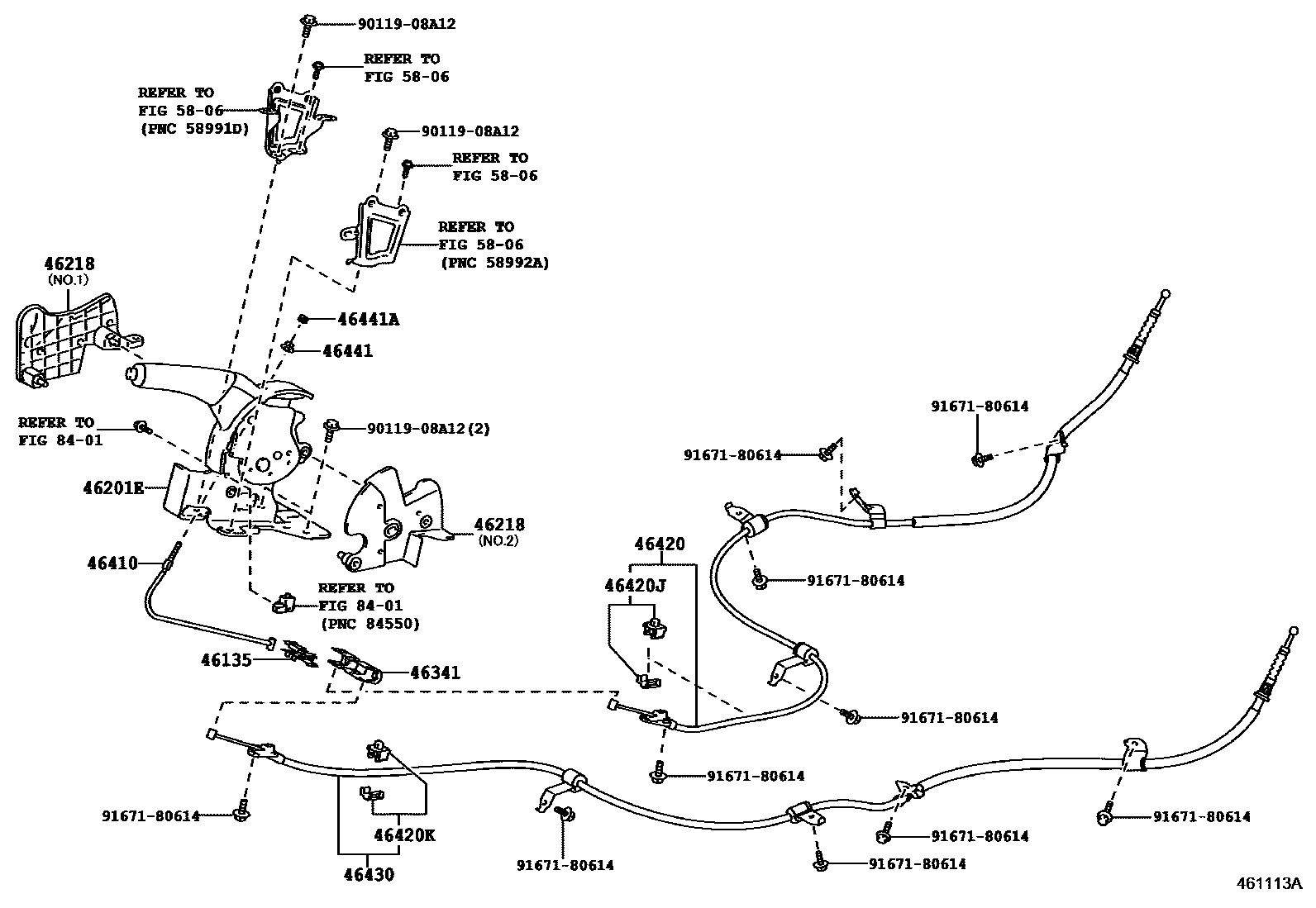

Toyota COROLLA Parking Brake & Cable — Figure 4601
Toyota COROLLA EPC diagram 4601, Parking Brake & Cable, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46135 | Parking brake cable end stop | 46135-12010 |
| 46218 | Parking brake lever edge protector | 82817-12K40 · 82817-12K50 |
| 46243 | Parking brake lever cover | 46243-12041 · 46243-12051 |
| 46341 | Parking brake balancer | 46341-12040 |
| 46410 | Parking brake cable assembly No. 1 | 46410-12280 · 46410-12350 |
| 46420 | Parking brake No. 2 cable assembly | 46420-12590 · 46420-12700 · 46420-12720 · 46420-12721 |
| 46420J | Clamp No. 3 (for parking brake cable) | 46402-12010 · 46402-12030 |
| 46420K | Clamp No. 4 (for parking brake cable) | 46402-12010 · 46402-12030 |
| 46430 | Parking brake No. 3 cable assembly | 46430-12470 · 46430-12580 · 46430-12610 · 46430-12611 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46441A | No. 2 cable adjustment nut | 90179-06299 |
